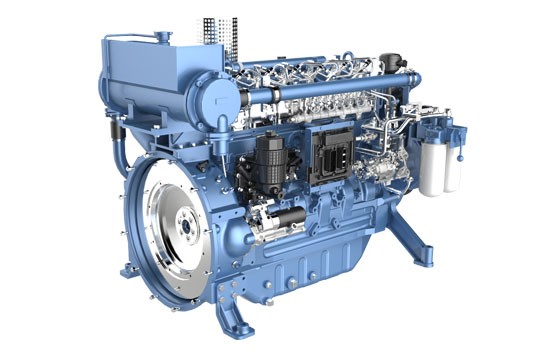

Weichai WP6C250-23 Marine Diesel Engine: The Ultimate 250HP Marine Propulsion Engine for Commercial Vessels
The commercial maritime sector demands unwavering reliability, structural durability, and high thermal efficiency. As a premier Weichai marine engine supplier and trusted global Weichai marine engine exporter, HekoPower is proud to present the Weichai WP6C250-23, a benchmark model in the highly acclaimed Weichai WP6 marine engine lineup. Engineered to deliver an optimal balance of robust power and low operating costs, this 250HP marine propulsion engine represents the ideal heavy duty marine propulsion system for diverse commercial operations.
Generating 168kW at a rated engine speed of 2230 RPM (often classified closely within the Weichai marine engine 2300rpm class framework), this WP6C250-23 diesel engine is uniquely optimized for high-torque, variable-load maritime duty cycles. Whether you are an international shipyard looking to buy Weichai WP6C250-23 marine engine units in bulk, or a fleet owner seeking a single, highly reliable replacement Weichai inboard marine engine, HekoPower delivers genuine Weichai marine engine supplier support, competitive pricing, and global logistics expertise.
Tech Specs of Weichai WP6C250-23
General Engine Data
Engine Model: Weichai WP6C250-23
Cylinder Count: 6 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 6.75 L
Bore * Stroke: 105×130 (mm)
Net weight: 750 kg
Overall Dimension: 1360×890×1054 (mm)
Key Performance Data
Rated Power: 168 kW / 228 HP
Rated Speed: 2230 RPM
Idle Speed: 650±30 RPM
Minimum fuel consumption rate: 212 g/kW·h
Oil consumption rate: ≤0.2 g/kW·h
More Technical Data
Certification: IMO Tier II
Aspiration: turbocharged and aftercooled
Starting system: Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: Mechanical pump
Power rating: P1
Noise: ≤98dB(A)
Deep Technical Comparison: Mechanical Pump vs. Common-Rail Systems
Navigating the choice between a modern high-pressure common-rail (HPCR) electronic engine and a mechanical pump 6 cylinder marine engine Weichai alternative is a common challenge for commercial operators. The WP6C250-23 proudly utilizes a mechanical fuel system, which provides specific, undeniable operational advantages in harsh marine settings.
Fuel Quality Tolerance in Global Operations
Electronic common-rail engines depend on ultra-fine filtration and perfectly clean, low-sulfur fuel. However, if you run a marine engine for fishing boat operations or transport cargo through inland waterways, fuel quality at remote docks can be unpredictable. The high-pressure inline mechanical pump on the WP6C250-23 handles fuel grade and viscosity fluctuations with ease, reducing the risk of sudden injector failure or electronic limp-mode activations while at sea.
Resistance to Harsh Saltwater Environments
Electronic sensors, computerized engine control modules (ECMs), and complex wiring harnesses are vulnerable to salt-air corrosion, vibration-induced micro-fractures, and moisture intrusion. By stripping away complex electronics, this mechanical Weichai boat engine operates on pure mechanical and hydraulic principles. It will continue running even if the vessel experiences a total electrical system failure, offering peace of mind to commercial operators.
Real-World Application Scenarios for the Weichai WP6 Series
The Weichai WP6 marine propulsion engine series is utilized globally due to its versatility across different hull profiles, displacement weights, and duty cycles. As an experienced Weichai marine engine distributor, HekoPower supplies this series for several specific maritime applications.
Optimization as a Marine Engine for Fishing Boat and Trawler Fleets
For a commercial fishing vessel or a heavy displacement trawler, a marine engine for fishing boat duty must be capable of continuous, high-torque operations. When pulling heavy nets or navigating head seas under full load, the WP6C250-23 utilizes its 20% to 35% torque reserve to maintain steady propeller RPM. This prevents engine bogging, ensures uniform net speeds, and keeps the vessel stable in rough coastal waters.
Deployments as a Marine Engine for Workboat and Passenger Vessels
In high-utilization commercial sectors—such as pilot boats, water taxis, and passenger ferries—the engine must withstand frequent duty cycle adjustments. The marine engine for passenger boat and diesel engine for workboat variants operate with accelerated duty schedules. The rapid throttle response of the WP6C250-23 allows captains to maneuver docks safely and efficiently, while the low structural vibration profile ensures passenger comfort during transit.
Operations as a Marine Engine for Inland Waterway and Transport Vessels
Navigating shallow river systems, locks, and canals requires a reliable marine engine for inland vessel layouts. Operating as a marine engine for transport vessel or a marine engine for inland waterway vessel system, the WP6C250-23 offers reliable continuous propulsion. Its low profile easily fits lower deck clearance limits typical of inland barge designs, providing a dependable marine propulsion engine for commercial boats working inland waterways.
Lifecycle Maintenance Guidelines and Repowering Tips
Maximizing the ROI of your Weichai marine diesel engine requires strict adherence to recommended service protocols. Investing in proactive care directly translates to predictable operational costs.
Understanding the Weichai WP6C250-23 Overhaul Interval 12000h
A standout engineering feature of this model is the designed Weichai WP6C250-23 overhaul interval 12000h. To reach this 12,000-hour major overhaul milestone without mid-lifecycle failure, operators should maintain a consistent maintenance cadence:
- Every 250 Hours: Replace engine lubricating oil and swap out the dual-stage spin-on fuel filters. Inspect the zinc anodes in the raw water heat exchanger to prevent galvanic corrosion.
- Every 1,000 Hours: Clean the air intake filter, check and adjust valve clearances, and test the mechanical injection nozzles for correct spray patterning and opening pressure.
- Every 3,000 Hours: Inspect the turbocharger bearings, service the raw-water pump impeller, and clean the core of the fresh-water heat exchanger.
Critical Checklist for Replacing Older Inboard Engines
When repowering an older hull and replacing an outdated power unit with a new Weichai inboard marine engine, consider these integration factors:
- Bed Foundation Alignment: Ensure the existing engine stringers can accommodate the 1,360 mm length. Ensure the engine mounts are aligned precisely with the marine gearbox input shaft to avoid premature bearing wear.
- Cooling Infrastructure: The WP6C250-23 features an expansion tank and heat exchanger setup. Verify that raw-water intake seacocks and sea strainers are sized correctly to handle the engine's required cooling water flow rate.
- Exhaust Backpressure: Verify that your wet or dry exhaust piping diameter matches Weichai’s factory discharge specifications to ensure optimal turbocharger performance and prevent high exhaust gas temperatures (EGTs).
Choose HekoPower as Your Trusted Global Weichai Marine Power Solutions Partner
When you select HekoPower as your preferred marine main engine supplier, you receive more than an engine; you gain a dedicated partner focused on your vessel's efficiency and longevity. We operate as a premier China marine engine manufacturer liaison, Weichai marine engine distributor, and global Weichai marine engine exporter, ensuring that your equipment arrives safely, on time, and completely configured to your exact technical specifications.
Whether your project requires a fuel efficient marine engine for boats, a reliable marine engine for fishing vessels, or an entire fleet upgrade of commercial marine diesel engine units, our engineering team is ready to assist. Contact HekoPower today to explore our comprehensive Weichai marine power solutions, request a datasheet review, and secure the best 250hp marine diesel engine configuration for your next maritime build.
Weichai 12WH17 series marine diesel engine, original products from Weichai. This series mainly includes 12WH17C1224-2, 12WH17C1360-2, 12WH17C1496-2, 12WH17C1564-5, 12WH17C1700-5, 12WH17C1836-5, 12WH17C1972-5, 12WH17C2203-5.
Frequently Asked Questions (FAQs)
What certifications does the Weichai WP6C250-23 engine hold?
The WP6C250-23 is fully compliant with IMO Tier II marine diesel engine emission parameters. It is widely certified by major classification societies worldwide, including the China Classification Society (CCS certified marine engine standard), making it globally accepted for international commercial shipping and domestic coastal commerce.
Why should I choose a mechanical pump engine over an electronic version?
A mechanical pump 6 cylinder marine engine Weichai provides excellent reliability in remote geographic areas. It offers high tolerance to variable fuel quality, features an electrical-failure-proof architecture, and can be serviced worldwide without specialized computer diagnostic tools.
What is the estimated Weichai WP6C250-23 price from HekoPower?
As an established Weichai marine engine dealer and Weichai marine engine wholesale specialist, HekoPower provides customized tier-pricing structures based on order volume, ancillary marine gearbox pairings (such as Advance or Fada gearboxes), and destination shipping requirements. Contact our sales department directly for an accurate, obligation-free quotation.
Does HekoPower supply authentic factory parts for maintenance?
Yes. As a genuine Weichai marine engine supplier, HekoPower provides complete access to authentic factory-authorized components. We stock everything from simple replacement fuel filters, gaskets, and zinc anodes to major overhaul assemblies like pistons, cylinder liners, and fuel injection pumps.
Can this engine be deployed as a marine auxiliary engine?
While the WP6C250-23 is primarily optimized as a marine propulsion engine for commercial boats, its structural architecture can be configured as a constant-speed prime mover for large marine auxiliary gensets. It can reliably drive alternators to supply onboard electrical power for large refrigeration fleets or cargo vessels.
