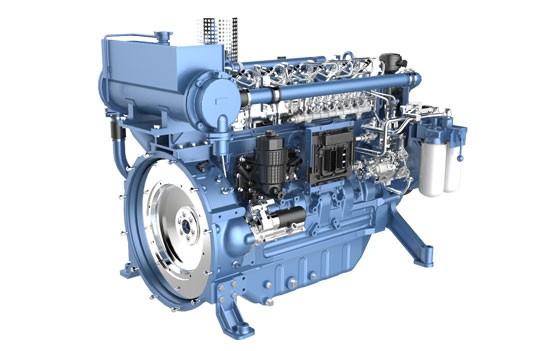

Weichai WP6C140-23 Marine Propulsion Engine: Complete Technical & Commercial Guide
The commercial maritime sector demands unwavering performance, low operational overheads, and extreme powertrain resilience. As a trusted global Weichai marine engine supplier, HekoPower delivers high-performance mechanical drive packages to shipyards and fleet operators worldwide. Foremost among mid-tier workhorse engines is the Weichai WP6C140-23, an incredibly reliable 6 cylinder inboard marine engine built specifically for sustained propulsion tasks.
Operating at a rated output of 103kW (140 HP) at 2300 RPM, this heavy-duty, four-stroke diesel power plant is the benchmark model within the renowned Weichai WP6 series marine engine family. Rooted in proven European engineering lineages and enhanced via modern metallurgical and fluid dynamics upgrades, this engine provides continuous WP6C140-23 propulsion engine power to vessels moving heavy loads through unforgiving coastal or river currents.
Tech Specs of Weichai WP6C140-23
General Engine Data
Engine Model: Weichai WP6C140-23
Cylinder Count: 6 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 6.75 L
Bore * Stroke: 105×130 (mm)
Net weight: 750 kg
Overall Dimension: 1360×890×1054 (mm)
Key Performance Data
Rated Power: 103 kW / 140 HP
Rated Speed: 2300 RPM
Idle Speed: 650±30 RPM
Minimum fuel consumption rate: 212 g/kW·h
Oil consumption rate: ≤0.2 g/kW·h
More Technical Data
Certification: IMO Tier II
Aspiration: turbocharged and aftercooled
Starting system: Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: Mechanical pump
Power rating: P1
Noise: ≤98dB(A)
Technical Comparisons & Market Benchmarks
When souring an engine in the 140 horsepower class, vessel owners must evaluate upfront acquisition capital alongside long-term mechanical survival rates. HekoPower serves as an international Weichai marine engine distributor, providing critical insights to compare the Weichai WP6C140-23 vs Cummins, Yanmar, and Deutz marine engines.
Weichai WP6C140-23 vs Cummins Marine Engine
The 140HP class often sees buyers deciding between the mechanical Weichai platform and classic Cummins 6BT or electronic QSB platforms.
- Fuel Quality Tolerance: Modern Cummins engines heavily utilize electronic common-rail setups. While highly efficient under clean fuel conditions, they are vulnerable to water contamination and sulfur variances common in remote fueling terminals. The Weichai WP6 mechanical pump marine engine features an ultra-reliable mechanical fuel system that handles variable fuel grades without causing fault codes, injector failures, or system shutdowns.
- Capital Allocation: The Weichai WP6C140-23 price is roughly 35% more cost-effective than an equivalent Western alternative, establishing it as the best alternative to a Cummins 140HP marine engine for commercial vessel updates and refits.
Weichai WP6C140-23 vs Yanmar Marine Engine
Yanmar marine configurations are highly regarded for lightweight, high-RPM recreational or light commercial duty. However, heavy displacement hulls require different structural capabilities:
- Structural Rigidity: The Weichai WP6 block features a heavy gantry-type cast-iron layout with separate cylinder heads and wet liners. This design handles continuous mechanical load much better than aluminum-alloy high-speed blocks.
- Torque Reserve Metrics: The Weichai WP6C140-23 torque performance yields an exceptional 20% to 35% torque reserve. This creates a wide peak torque band, allowing a loaded vessel to punch through rough tides and coastal headwinds without bogging down.
Weichai WP6C140-23 vs Deutz Marine Engine
The WP6 series shares historical lineage with the Deutz 226B platform. However, Weichai has heavily updated this design for maritime environments. Unlike generic industrial Deutz engine adaptations, the modern Weichai WP6C140-23 marine diesel engine features a specialized water-jacketed freshwater-cooled exhaust manifold to control engine-room ambient temperatures, a flat marine oil sump to prevent leaks during vessel pitch and roll, and reinforced internal forgings built for harsh sea conditions.
Real-World Maritime Application Scenarios
The Weichai propulsion engine 140HP configuration is engineered for heavy continuous workloads. As a reliable Weichai marine engine exporter, HekoPower delivers this platform across three major global commercial operations:
140 hp Diesel Engine for Commercial Fishing Boat Operations
For artisanal fishermen and mid-shore trawling fleets, seasonal profitability relies entirely on mechanical uptime. The Weichai WP6C140-23 for fishing boats provides the steady low-end torque needed to drag heavy nets or lift massive crab pots from deep water. Its reliable Weichai WP6C140-23 IMO Tier II engine certification grants full legal clearance to operate within strictly regulated regional coastal waters, making it one of the best 140HP marine diesel engine for fishing vessels in active service.
Commercial Tugs, Tenders, and The Weichai WP6C140-23 for Workboats
Harbor launch vessels, public service crafts, and line-handling workboats require immediate thrust response and high structural durability. The P1 continuous duty classification means this engine can operate at maximum load for hours on end without thermal degradation, offering a dependable Weichai WP6C140-23 marine propulsion solution for municipal and commercial harbor support.
Shallow-Draft Logistics: Weichai WP6C140-23 for Inland Vessels
River barges and small dry-bulk inland cargo haulers require dependable propulsion capable of fighting strong river currents over days of continuous operation. The $105\text{ mm} \times 130\text{ mm}$ long-stroke design optimizes the thermal combustion profile, reducing fuel costs over long cargo routes across large river networks.
Maintenance Protocols & Fleet Replacement Parts
To reach the engineered 12,000-hour major overhaul lifespan, operators must stick to strict preventive maintenance routines. HekoPower operates as a comprehensive Weichai marine diesel engine supplier, offering genuine replacement parts alongside complete power units.
Lubrication and Filtration Schedules
- Running Filter Swaps: A standout engineering feature of this series is its built-in non-stop filter replacement technology. The dual-element duplex fuel filter assembly allows operators to turn an isolation valve and swap a clogged fuel filter element while the engine is running—preventing dangerous power losses in congested shipping channels or rough water.
- Lubrication Maintenance: Use high-quality marine oil matching CF-4 or CH-4 15W/40 specifications. Change the oil and the spin-on full-flow oil filters every 250 operating hours to minimize component wear.
Cooling Circuit Operations
The engine features a dual-circulation heat exchanger system where raw sea water cools internal fresh water through a robust plate-type oil and water heat exchanger.
- Anode Monitoring: Inspect and replace the sacrificial zinc anodes inside the raw-water cooling covers every 100 operating hours to prevent galvanic corrosion within the heat exchanger.
- Impeller Maintenance: Check the belt-driven, self-priming raw water pump's flexible impeller seasonally to ensure proper raw-water cooling volume flow.
Essential Replacement Parts for Weichai WP6 Series Engine
HekoPower recommends maintaining a critical onboard "voyage spares kit" containing the following genuine Weichai WP6C140-23 engine components to minimize downtime:
- P-type fuel injection nozzles and copper seating washers.
- Complete cylinder head sealing gaskets and valve cover seals.
- Spare 24-volt heavy-duty starter motor and matching charging alternator.
- Primary raw water pump impellers and heavy-duty Poly-V drive belts.
Weichai 12WH17 series marine diesel engine, original products from Weichai. This series mainly includes 12WH17C1224-2, 12WH17C1360-2, 12WH17C1496-2, 12WH17C1564-5, 12WH17C1700-5, 12WH17C1836-5, 12WH17C1972-5, 12WH17C2203-5.
Frequently Asked Questions (FAQ)
What is the precise fuel consumption profile of the Weichai WP6C140-23?
The official Weichai WP6C140-23 fuel consumption rating is specified at ≤ 212 g/kW·h at full load. However, under typical cruising operations (around 70% to 80% load), the engine's optimized direct-injection combustion bowl drops real-world consumption down near 195 g/kW·h, making it highly economical for daily commercial operations.
Can HekoPower export this engine directly to my international port?
Yes, HekoPower is an experienced global Weichai marine engine exporter. Operating as a direct Weichai marine engine supplier China hub, we manage full export documentation, customs packing, and freight handling. We routinely supply the Weichai marine engine for Southeast Asia markets (such as Indonesia, the Philippines, and Vietnam) as well as the Weichai marine engine for Africa fishing boats market.
Is it possible to buy a complete engine and gearbox propulsion package?
Absolutely. When you choose to buy Weichai WP6C140-23 marine engine systems from HekoPower, we offer factory-matched and pre-aligned marine gearboxes from trusted brands like Advance or Fada. We help configure custom reduction ratios to ensure the engine perfectly matches your vessel's existing shaft diameter and propeller pitch.
How does a mechanical pump engine lower overall maintenance costs?
Because the engine uses a highly reliable mechanical governor and fuel pump instead of a complex Electronic Control Unit (ECU), it eliminates the risk of computer component failures due to salt air and moisture. Any qualified marine mechanic can service the fuel system anywhere in the world using standard tools, which significantly lowers long-term Weichai WP6C140-23 maintenance costs.
