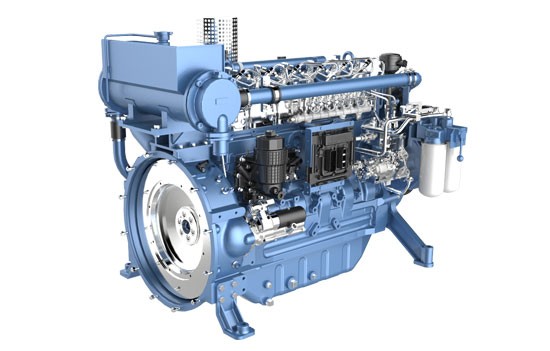

Weichai WP6C156-21E220 Marine Diesel Engine: Engineering Excellence for Commercial Vessels
The Weichai WP6C156-21E220 Marine Diesel Engine is a reliable and fuel-efficient marine propulsion solution designed for commercial vessel operators who require stable power output and long-term durability. Delivering 115kW (156HP) at 2100rpm, this engine belongs to the proven Weichai WP6 marine engine platform and features an electronically controlled common rail fuel injection system that enhances fuel economy, combustion efficiency, and emissions performance.
As a professional Weichai marine diesel engine supplier, HekoPower provides genuine Weichai WP6C156-21E220 marine engines, replacement parts, technical support, and export services for customers worldwide. Whether you are upgrading an existing propulsion system or equipping a new vessel, the WP6C156-21E220 offers a dependable solution for fishing boats, passenger vessels, workboats, and aquaculture operations.
Tech Specs of Weichai WP6C156-21E220
General Engine Data
Engine Model: Weichai WP6C156-21E220
Cylinder Count: 6 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 6.75 L
Bore * Stroke: 105×130 (mm)
Net weight: 750 kg
Overall Dimension: 1360×890×1054 (mm)
Key Performance Data
Rated Power: 115 kW / 156 HP
Rated Speed: 2100 RPM
Idle Speed: 650±30 RPM
Minimum fuel consumption rate: 212 g/kW·h
Oil consumption rate: ≤0.2 g/kW·h
More Technical Data
Certification: IMO Tier II / China Stage II Inland Marine
Aspiration: turbocharged and aftercooled
Starting system: Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: HPCR
Power rating: P1
Noise: ≤98dB(A)
Technical Engineering and Comparative Analysis
Evaluating the Weichai WP6C156-21E220 requires a look beyond simple horsepower ratings. Its design features are explicitly tailored to survive the harsh conditions of continuous saltwater operations.
Mechanical Pump Systems vs. E220 Common Rail Architecture
Traditional marine engines in the 115kW power class often utilize mechanical inline fuel injection pumps. While functionally simple, mechanical setups struggle to maintain optimal fuel atomization across variable engine speeds. The Weichai E220 series electronically controlled marine engine solves this problem with an advanced electronic control unit (ECU) that manages fuel injection timing, pressure, and duration.
The Weichai WP6C156-21E220 common rail system maintains high injection pressures even at lower idle speeds. This precise fuel management results in an exceptional minimum Weichai WP6C156-21E220 fuel consumption rate. This represents a noticeable drop in fuel usage compared to older, mechanical alternatives. Additionally, the electronic injection control significantly limits combustion noise and structural vibrations, providing a safer and more stable working environment on deck.
Structural Performance and Emission Standards
The physical framework of the WP6C156-21E220 is built around a heavy-duty cast iron gantry-type engine block accompanied by separate cast iron cylinder heads and wet cylinder liners. This architecture offers exceptional structural stiffness and simplifies overhauls by allowing individual cylinder servicing.
With a cylinder bore of 105mm and a stroke of 130mm, the engine easily handles high combustion pressures. From an environmental perspective, this design ensures that the platform functions as an IMO Tier II compliant Weichai WP6 engine supplier solution. It safely satisfies NOx emission limits while carrying a prestigious CCS certified marine diesel engine designation. Consequently, it easily fulfills international regulatory requirements for commercial deployment anywhere in the world.
Proactive Maintenance and Strategic Component Replacement
Maintaining high operational availability requires a structured, predictive maintenance strategy. For any fleet operator, minimizing unexpected down-time is essential to preserving profitability.
Managing High-Wear Components
The fuel system and intake components face the greatest operational stress in marine environments. The high-pressure injectors must be checked regularly for carbon buildup to ensure the spray patterns remain clean and efficient.
Because fuel quality varies between ports, the duplex fuel filters are engineered to be replaced while the engine is running. This dual-filter configuration allows operators to isolate and replace a clogged element without stopping the primary propulsion line. Air intake systems rely on a washable air filter matched to a marine-optimized turbocharger, which should be inspected for compressor wheel fouling every 1,500 operating hours.
Essential Overhaul and Spare Parts Kit
To avoid lengthy delays during standard service windows, boat operators should keep a baseline inventory of genuine Weichai marine engine spare parts on board. Heko Power provides complete Weichai WP6 engine overhaul parts kits designed for major mid-life service intervals. Your standard onboard kit should include the following essential items:
- Complete cylinder head gasket sets and specialized O-rings.
- Primary and secondary fuel filter elements alongside lubricating oil filters.
- High-pressure fuel injector nozzles and copper sealing washers.
- Replacement alternator and raw-water pump drive belts.
- Sacrificial zinc anodes for the internal heat exchanger tubes.
Commercial Deployment and Real Application Scenarios
The 115kW marine propulsion engine operates within a specific operational sweet spot. It provides ample torque for heavy displacement hulls while remaining compact enough for tight engine compartments.
Workboats and Fishing Fleet Operations
In the commercial fishing sector, a fishing boat diesel engine must run reliably for days at a time. The Weichai 156hp P1 continuous duty marine diesel engine excels in these demanding duty cycles. It is designed to run at full load without time restrictions, making it perfect for dragging nets or hauling heavy aquaculture traps.
The engine provides a torque reserve between 20% and 35%. This high reserve ensures that commercial fishing vessels can quickly accelerate and maintain steady headway through strong coastal tides and heavy seas.
Commercial Passenger Transports and Harbor Tugs
For coastal transport boats and regional passenger vessels, reliability translates directly into safety and strict schedule adherence. The compact dimensions and 750kg dry weight of this engine allow it to sit perfectly in multi-engine arrangements or space-constrained hulls.
When configured as a marine engine for harbor tugs, this platform delivers the low-end thrust needed for precise vessel maneuvering. The insulated exhaust manifold and fresh-water cooled lube oil plate heat exchanger protect the engine compartment from extreme heat buildup, ensuring the vessel runs smoothly during long harbor shifts.
Comprehensive Powertrain and Gearbox Integration
Selecting a marine engine is only part of the engineering challenge; matching it to the correct transmission system is what unlocks true performance. Heko Power excels in delivering optimized Weichai marine gearbox matching solutions that transform raw engine output into efficient thrust.
Depending on your vessel's operational profile, our engineering team can pair the WP6C156-21E220 with industry-standard marine gearboxes from leading brands like Advance or Fada. For slow-moving fishing vessels requiring high pulling power, we calculate deep reduction ratios that support large-diameter, high-pitch propellers. Conversely, for high-speed coastal transports, we configure shallow reduction ratios to maximize knots while keeping the engine inside its optimal RPM efficiency band. Our end-to-end propulsion design ensures that the engine, transmission, coupling, and shafting operate in perfect harmony. This careful integration eliminates torsional vibration and protects your powertrain investment for years to come.
Weichai WP6 series marine diesel engine, original products from Weichai. This series mainly includes WP6C122-15, WP6C140-23, WP6C142-18, WP6C150-15, WP6C156-21, WP6C163-23, WP6C165-18, WP6C185-21, WP6C198-23, WP6C220-23, WP6C250-23, WP6C122-15E220, WP6C140-23E220, WP6C142-18E220, WP6C150-15E220, WP6C156-21E220, WP6C163-23E220, WP6C165-18E220, WP6C185-21E220, WP6C198-23E220, WP6C220-23E220, WP6C250-23E220.
Frequently Asked Questions
What are the precise dimensions and dry weight of the WP6C156-21E220 engine?
The overall physical dimensions for this turbocharged and intercooled version are 1360mm in length, 890mm in width, and 1054mm in height. The certified net dry weight sits right at 750kg, making it one of the most balanced power-to-weight options in the 150HP marine market segment.
Does this engine require specific fuel grades to protect the common rail components?
To maximize the service life of the high-pressure common rail injection pump, always use high-quality commercial automotive or marine diesel fuel that complies with standard low-sulfur regulations. Running dirty or high-sulfur fuel will cause accelerated injector tip wear and can lead to internal filter clogging.
How do I obtain a verified Weichai WP6C156-21E220 datasheet PDF or price quote?
As a global Weichai marine engine exporter, Heko Power provides direct access to official factory specifications, installation drawings, and technical data. You can request a competitive wholesale price quote and get copies of the certified engineering datasheets by contacting our technical support team directly through the hekopower.com inquiry portal.
