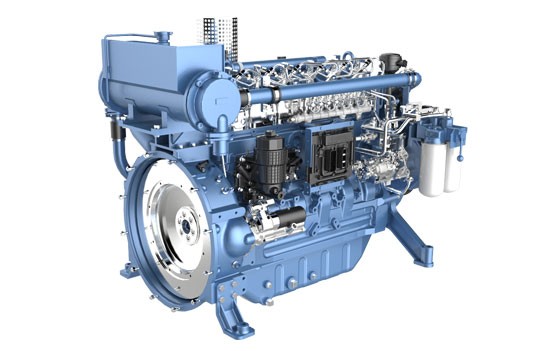

Weichai WP6C185-21E220 Marine Propulsion Engine (185HP / 136kW)
The Weichai WP6C185-21E220 is a high-performance 185 HP marine propulsion engine developed for commercial vessels requiring dependable power, fuel efficiency, and long service life. Based on Weichai's proven WP6 platform, this electronically controlled six-cylinder marine diesel engine delivers 136kW of output at 2100rpm and is widely used in fishing boats, passenger ferries, patrol vessels, and coastal workboats.
As a professional marine engine supplier, HekoPower provides genuine Weichai WP6C185-21E220 marine engines, replacement parts, technical support, and global export services. For vessel owners seeking a balance between operating costs and propulsion performance, the WP6C185-21E220 remains one of the most practical choices in the 185HP marine engine category.
Tech Specs of Weichai WP6C185-21E220
General Engine Data
Engine Model: Weichai WP6C185-21E220
Cylinder Count: 6 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 6.75 L
Bore * Stroke: 105×130 (mm)
Net weight: 750 kg
Overall Dimension: 1360×890×1054 (mm)
Key Performance Data
Rated Power: 136 kW / 185 HP
Rated Speed: 2100 RPM
Idle Speed: 650±30 RPM
Minimum fuel consumption rate: 212 g/kW·h
Oil consumption rate: ≤0.2 g/kW·h
More Technical Data
Certification: IMO Tier II / China Stage II Inland Marine
Aspiration: turbocharged and aftercooled
Starting system: Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: HPCR
Power rating: P1
Noise: ≤98dB(A)
Technical Comparison: Weichai WP6C185 vs Cummins Marine Engine
Selecting the best 185HP marine diesel engine requires an objective analysis of how different engineering designs perform in actual commercial environments. The most common comparison point in this power bracket is between the Weichai WP6 marine diesel engine and equivalent displacement Cummins marine models.
Mechanical Simplicity vs Electronic Sensitivity
A primary difference emerges when evaluating the fuel injection control architecture. While certain competitive models rely on a highly complex common rail setup, the standard WP6C185-21 configuration uses a robust mechanical governor. The Weichai electronic marine engine and Weichai common rail marine diesel variants exist for specific emission zones, but the mechanical P-pump configuration remains a preferred choice for remote coastal operations where access to specialized diagnostic laptops is limited. If a mechanical system encounters contaminated fuel, it can often be serviced or cleaned at sea, whereas an electronic common rail system may suffer immediate injector failure and trigger a total electronic engine shutdown.
Displacement and Low-End Torque Curve
The 6.75-liter displacement of the Weichai unit provides a distinct physical advantage over smaller-displacement high-RPM alternative options. The long-stroke design of the WP6 platform allows it to generate high torque at lower operational engine speeds. This means the Weichai engine can swing a larger, high-pitch propeller more effectively, offering superior bollard pull and acceleration when pushing a loaded barge or hauling heavy fishing nets.
Real Marine Application Scenarios
The adaptability of the WP6C185-21E220 marine propulsion engine makes it a versatile choice across several distinct commercial vessel sectors. As a reliable marine propulsion engine for coastal vessels, its duty-cycle rating allows it to operate for thousands of hours without unexpected mechanical downtime.
Commercial Fishing Boats and Trawlers
In the commercial fishing sector, a Weichai engine for fishing boat operations must handle highly variable loads. When a trawler is setting or hauling nets, the engine experiences sudden load changes at low hull speeds. The Weichai engine for trawler use is engineered to sustain these high-torque demands without experiencing severe thermal cycling or black smoke emissions, keeping the vessel stable and productive during critical harvesting windows.
Workboats and Coastal Patrol Vessels
For industrial operations, an 185HP marine diesel for workboat application requires a power plant that can run continuously at idle for hours, then immediately transition to full power. The precise combustion chamber design of the WP6 series prevents carbon buildup during long idling periods. This clean-burning characteristic also makes it an excellent fit as a Weichai engine for patrol vessel duties or as a dependable Weichai engine for passenger ferry operations in inland waterways and busy coastal shipping lanes.
Maintenance Protocols and Replacement Guidelines
To protect your investment and maintain the standard 12,000-hour design overhaul life, operators must adhere to strict maintenance intervals and use correct replacement components. As an established Weichai marine diesel manufacturer partner, HekoPower provides complete technical support for these procedures.
The Legacy Connection: Replacement Engine for Deutz 226B Marine
The historical development of the Weichai WP6 series is deeply rooted in the German joint-venture Deutz 226B engine platform. Because Weichai optimized and upgraded this original design, the modern WP6C185-21 serves as a seamless, direct physical replacement engine for Deutz 226B marine units that have reached the end of their service lives. The footprint, engine mounts, and flywheel connections align closely, allowing shipyards to execute engine retrofits without undergoing extensive, expensive structural modifications to the vessel's engine beds.
Critical Maintenance Schedules and Overhaul Logistics
Daily checks should focus on oil levels and cooling water purity. Engine oil and primary filtration units require replacement every 250 to 300 operational hours. When approaching major service intervals, operators should utilize a genuine Weichai WP6 marine engine overhaul kit 12000 hours to refresh the wet cylinder liners, pistons, rings, and main bearings. Using non-genuine or counterfeit aftermarket components frequently leads to mismatched thermal expansion rates, which can cause premature liner scuffing or catastrophic bearing failures.
Sourcing and Supply Chain Logistics with HekoPower
When you decide to buy Weichai WP6C185-21E220 marine engine units for a single vessel retrofit or an entire fleet upgrade, selecting the right partner determines your long-term operational success. HekoPower operates as a dedicated Weichai WP6C185-21E220 supplier and exporter, streamlining the procurement process from initial documentation through to international delivery.
Genuine Parts Sourcing and Component Verification
The global marine market contains many third-party component manufacturers, making it vital to confirm you are purchasing a genuine Weichai marine engine. Every propulsion unit supplied by HekoPower carries verified factory serialization and official build certificates. Furthermore, ship owners can buy genuine Weichai WP6C185 parts online directly through our supply network, ensuring that replacement filters, gaskets, mechanical pumps, and specialized cooling components match original factory tolerances.
Price Structure, Lead Times, and International Logistics
When evaluating the true Weichai WP6C185-21E220 price, buyers must consider the complete acquisition cost, including shipping and custom clearance document preparation. HekoPower maintains direct factory channels to offer clear, competitive pricing structures. Our logistics team manages domestic shipping, export documentation, and marine freight coordination to reduce the standard Weichai WP6C185-21E220 lead time, getting your vessel out of the drydock and back into profitable operations as quickly as possible.
Weichai WP6 series marine diesel engine, original products from Weichai. This series mainly includes WP6C122-15, WP6C140-23, WP6C142-18, WP6C150-15, WP6C156-21, WP6C163-23, WP6C165-18, WP6C185-21, WP6C198-23, WP6C220-23, WP6C250-23, WP6C122-15E220, WP6C140-23E220, WP6C142-18E220, WP6C150-15E220, WP6C156-21E220, WP6C163-23E220, WP6C165-18E220, WP6C185-21E220, WP6C198-23E220, WP6C220-23E220, WP6C250-23E220.
Frequently Asked Questions regarding the WP6 Series
What emission compliance standards does the WP6C185-21E220 meet?
This specific engine model is an IMO Tier II compliant 185hp marine engine. It fully satisfies international marine pollution standards for NOx emissions under Annex VI of the MARPOL convention, making it legally compliant for use in standard international waters and coastal zones that accept IMO Tier II certifications.
Can I get a detailed Weichai WP6C185-21 price and specifications quote for export?
Yes, HekoPower provides transparent pricing sheets along with the complete technical specifications package. You can request a comprehensive quote tailored to your specific port of delivery by contacting our sales department with your vessel's technical requirements.
Is the WP6 platform suitable for continuous, heavy-load operations?
The design is optimized as a Weichai 185hp continuous duty boat engine. Unlike pleasure craft engines that are rated for intermittent use, this power plant is built to run at constant RPM under substantial load for extended durations without suffering accelerated mechanical fatigue.
Where can I find a verified Weichai WP6C185-21E220 for sale with original warranty coverage?
HekoPower supplies factory-fresh engines complete with official manufacturer warranty coverage. This guarantees that your propulsion system is fully protected against material or structural defects, with technical backup supported by our engineering team.
