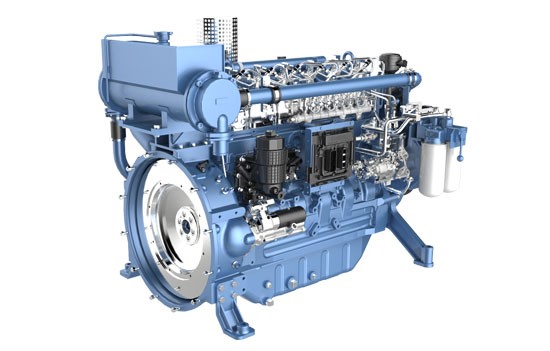

Weichai WP6C142-18 Marine Engine: Premium 142 HP Propulsion System
The Weichai WP6C142-18 marine engine is a reliable and fuel-efficient propulsion engine developed for commercial marine applications requiring long operating hours, dependable power output, and low maintenance costs. Rated at 105kW (142HP) at 1800rpm, this 6-cylinder marine diesel engine is widely used in fishing vessels, trawlers, passenger ferries, inland cargo boats, and utility workboats.
Built on the proven WP6 platform, the WP6C142-18 marine diesel engine combines a robust mechanical fuel injection system, turbocharged air intake, and heavy-duty marine cooling technology. Designed for P1 continuous duty operation, the engine is capable of supporting demanding marine workloads while maintaining excellent fuel economy and operational reliability.
As a professional marine engine supplier, HekoPower provides genuine Weichai propulsion solutions, technical consultation, spare parts support, and worldwide delivery services for customers seeking dependable marine power systems.
Tech Specs of Weichai WP6C142-18
General Engine Data
Engine Model: Weichai WP6C142-18
Cylinder Count: 6 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 6.75 L
Bore * Stroke: 105×130 (mm)
Net weight: 750 kg
Overall Dimension: 1360×890×1054 (mm)
Key Performance Data
Rated Power: 105 kW / 142 HP
Rated Speed: 1800 RPM
Idle Speed: 650±30 RPM
Minimum fuel consumption rate: 212 g/kW·h
Oil consumption rate: ≤0.2 g/kW·h
More Technical Data
Certification: IMO Tier II
Aspiration: turbocharged and aftercooled
Starting system: Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: Mechanical pump
Power rating: P1
Noise: ≤98dB(A)
Technical Architecture & Engineering Insights
The Significance of the 1800 RPM P1 Continuous Duty Lifecycle
Unlike light-duty engines tuned to high RPM bands for intermittent speeds, the Weichai marine engine 1800rpm optimization is purpose-built for the Weichai P1 continuous marine engine duty classification. A P1 rating mandates that the engine can operate continuously at 80% to 100% load variations with an unrestricted annual working time, regularly exceeding 5,000 operational hours per year.
By bounding the maximum speed to 1800 RPM, internal linear piston speeds are minimized, drastically reducing frictional wear on the cylinder liners, main bearings, and valvetrain components. This specific architectural tuning allows the powertrain to achieve its legendary Weichai WP6 series 12000 hours overhaul engine metric, outlasting high-speed alternatives by several seasons of heavy operation.
Mechanical Fuel Injection Precision
In a marketplace increasingly crowded by electronic common-rail systems, the Weichai mechanical marine engine configuration remains highly sought after for remote coastal and high-seas operations. The heartbeat of the engine is its heavy-duty, inline P-type Weichai WP6C142-18 mechanical pump specifications.
Driven directly by the engine's gear train, this mechanical pump injects fuel with exceptional pressure accuracy, maintaining a balanced WP6C142-18 fuel consumption rate with a minimum fuel consumption baseline as low as 195 g/kW·h under optimal working loads. The mechanical layout eliminates complex ECUs, wiring harnesses, and digital sensors that are vulnerable to salt-spray corrosion and electrical shorts, allowing your crew to perform basic maintenance with simple tools while out at sea.
In-Depth Technical Comparisons: WP6C142-18 vs. Industry Alternatives
When sourcing a replacement or planning a new vessel build, marine engineers frequently compare the Weichai WP6C142-18 vs Cummins marine engine (specifically the 6BT5.9 series) or the Weichai WP6C142-18 vs Yuchai marine engine counterparts. Understanding the structural differences explains why the Weichai WP6 platform is universally selected as the best 142hp marine diesel engine for raw, continuous hauling power.
Weichai WP6C142-18 vs. Cummins 6BT5.9 (Marine Variants)
While the Cummins 6BT5.9 is a renowned platform, its marine configurations within the 140–150 HP range typically operate at higher speeds, often reaching 2200 to 2500 RPM. The Weichai 105kW marine engine gains a distinct advantage via its larger 6.75L marine diesel engine displacement compared to the Cummins 5.9L platform.
The larger displacement means the Weichai engine generates its 142 HP effortlessly at 1800 RPM, producing far higher continuous torque at lower speeds. For heavy-displacement hulls, trawlers, and workboats, this lower RPM requirement results in superior propeller bite, less drivetrain vibration, and a significantly lower thermal load under sustained, multi-day operations.
Weichai WP6C142-18 vs. Yuchai YC6A Series
Yuchai engines are highly valued in transport sectors, but the Weichai WP6 series features marine-dedicated casting engineering from its inception. The WP6C142-18 utilizes a robust cast iron gantry-type structure block paired with separate cast iron cylinder heads and wet, honed liners.
Furthermore, the integration of an aluminum alloy piston assembly with internal gallery oil cooling gives the Weichai unit superior thermal dissipation capabilities compared to standard Yuchai blocks. This engineering difference prevents piston ring sticking and liner scuffing during long-duration, high-load towing cycles.
Real-World Application Scenarios
The power curve, mechanical design, and emission metrics of this IMO Tier II compliant Weichai WP6 engine make it the standard choice for several maritime industrial profiles:
Commercial Fishing Vessels and Trawlers
As a dedicated marine engine for fishing vessel arrays, this engine provides the relentless low-end torque required to pull heavy trawl nets through high head-seas without bogging down. Operators of a commercial fishing boat diesel engine setup benefit immensely from the integrated duplex fuel filters, which can be safely replaced while the engine is running. If a load of low-grade or contaminated marine fuel begins clogging the filtration system mid-catch, the crew can switch elements safely without shutting down the primary propulsion, protecting both the vessel's safety and its haul. This makes it an ideal marine engine for fishing boats, marine engine for trawlers, and specialized 6.75L Weichai engine for commercial fishing vessels.
Inland Waterway Vessels and Small Cargo Boats
For a marine engine for inland waterway vessels or a marine engine for small cargo boats, fuel economy and space constraints dictate profitability. With compact Weichai WP6C142-18 dimensions (typically measuring 1360 x 890 x 1054 mm with a net weight of 700 kg), this block fits easily into narrow engine bays, leaving more space for cargo hold optimization. The low fuel consumption marine diesel engine performance helps transport operators lower their overall operating costs on long, predictable river cargo routes. It is also widely deployed as a marine engine for passenger boats operating short coastal or river routes.
Workboats and Public Service Vessels
Whether acting as a propulsion engine for workboats or a marine engine for workboat fleets operating in harbors, reliability is paramount. The integration of a fresh/raw water heat exchanger with integrated thermostatic valves and expansion tanks ensures that the engine warms up quickly and maintains a perfectly stable operating temperature, even during prolonged idling or abrupt shifts from neutral to full throttle load.
Preventive Maintenance & Critical Component Replacement Tips
To maximize the service life of your investment and ensure it easily reaches the target 12,000-hour overhaul point, the technical team at HekoPower has compiled these essential maintenance guidelines for the WP6C142-18 powertrain.
Fuel System Lubricity and Filtration Protocols
Because the P-type mechanical injection pump relies on the passing marine diesel fuel for its internal lubrication, fuel quality is critical.
- Every 250 Hours: Check the water-separating bowl on the primary fuel filters. Drain any accumulated water immediately to prevent high-pressure tip corrosion on the mechanical injectors.
- Every 500 Hours: Rotate the duplex fuel filter handle to isolate worn elements and install genuine replacements. Always verify that the dual-skinned fuel pipes are clear and that the leak collection alarm indicator remains unobstructed.
Zinc Anode Preservation in the Raw Water Loop
To protect the copper-nickel alloy core of the plate-type oil cooler and the main heat exchanger from galvanic corrosion, sacrificial zinc anodes are placed along the cooling circuits.
- Monthly Inspection: Unscrew the zinc plug points located on the seawater pump intake and the main heat exchanger housing.
- Replacement Rule: Replace the zinc anodes immediately once they have degraded past 50% of their original mass. Neglecting these plugs will cause raw seawater to pit the heat exchanger core, leading to catastrophic coolant-to-oil cross-contamination.
Valvetrain and Cylinder Head Adjustments
The separate cast iron cylinder head design allows for localized servicing, minimizing downtime if a single component requires attention.
- Initial Break-In (50 Hours): After purchasing a new unit from a Weichai WP6C142-18 supplier, check and re-torque the cylinder head bolts and verify valve clearances.
- Every 1000 Hours: Measure and adjust intake and exhaust valve clearances ($0.3\text{ mm}$ intake, $0.4\text{ mm}$ exhaust) while the engine is cold to prevent valve seat burning and maintain peak thermodynamic efficiency.
Sourcing & Quotation Support
If you are looking for a reliable Weichai WP6C142-18 distributor, Weichai WP6C142-18 supplier, or have discovered a Weichai WP6C142-18 for sale online and require verification on a highly competitive Weichai WP6C142-18 price quote, contact our engineering sales department.
HekoPower is a premium WP6C142-18 marine engine manufacturer representative, dedicated to providing clear technical advice, ensuring that your vessel’s hull characteristics, gearbox reduction ratio, and propeller pitch match perfectly with the 1800 RPM torque output of this engine. Contact us today to download the official Weichai WP6C142-18 datasheet or to buy Weichai WP6C142-18 marine engine configurations tailored for your specific vessel refit project. Reach out to the team to find exactly where to buy Weichai WP6C142-18 propulsion system parts or full builds today.
Weichai 12WH17 series marine diesel engine, original products from Weichai. This series mainly includes 12WH17C1224-2, 12WH17C1360-2, 12WH17C1496-2, 12WH17C1564-5, 12WH17C1700-5, 12WH17C1836-5, 12WH17C1972-5, 12WH17C2203-5.
Frequently Asked Questions (FAQ)
Q1: Can I buy a complete Weichai WP6C142-18 propulsion package from HekoPower?
A: Yes. As an experienced engine supplier, HekoPower does not just sell bare engines. We configure complete marine propulsion systems including the Weichai WP6C142-18, matched marine gearboxes (such as Advance or Fada series with appropriate reduction ratios), flexible couplings, drive shafts, propellers, and complete dual-station remote control panels with a 5-meter wiring harness extension.
Q2: What exact certifications are included with this engine model?
A: The engine comes standard with an EIAPP certificate proving compliance with IMO II marine engine and IMO Tier II compliant Weichai WP6 engine emission standards. For commercial vessel compliance, HekoPower can supply this engine with full China Classification Society (CCS) type approval. If your local maritime authority requires alternative international registry class certificates (such as BV, ABS, DNV, or LR), please specify your requirements during the inquiry process so we can arrange factory trial testing under those specific society surveyors.
Q3: How does HekoPower handle spare parts availability for the WP6 series?
A: We maintain a deep inventory of genuine Weichai WP6 series parts at our logistics hubs. Whether you require standard consumables like spin-on full-flow lube oil filters, washable air filters, and duplex fuel elements, or major overhaul components like cylinder heads, wet liners, pistons, or replacement P-type mechanical pumps, we provide rapid international shipping to minimize your vessel's dockside downtime.
Q4: What are the exact structural shipping dimensions and weight of the engine?
A: The standard dry weight of the turbocharged WP6C142-18 engine block is approximately 700 kg (750 kg for turbocharged and intercooled variants). The core Weichai WP6C142-18 specifications list its dimensions as 1360 x 890 x 1054 mm. For international sea freight or air export, it is securely cradled and shipped in a custom, IPPC-certified seaworthy wooden case which slightly increases the gross shipping package dimensions.
Q5: How can I verify that the engine I buy from a distributor is a genuine Weichai unit?
A: Every authentic Weichai marine engine supplied by HekoPower features an official anti-counterfeit metal nameplate riveted directly to the block. This nameplate displays the unique engine serial number, model designator (WP6C142-18), build date, and manufacturing tracking codes. This serial number can be verified directly across Weichai’s global database, ensuring you are receiving genuine equipment backed by factory warranty support.
