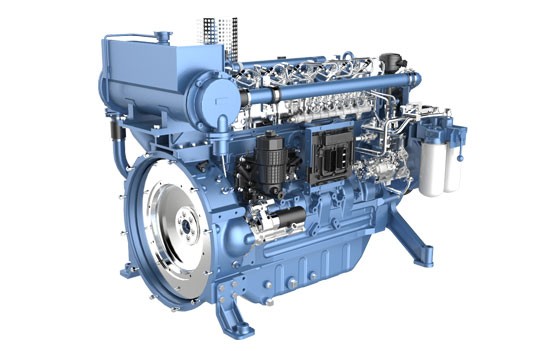

Weichai WP6C140-23E220 Marine Diesel Engine
The Weichai WP6C140-23E220 Marine Diesel Engine is a highly efficient 140HP marine diesel engine designed for modern commercial marine operations. Delivering 103kW at 2300rpm, this engine combines Weichai's advanced common rail fuel injection technology with a robust 6-cylinder platform to provide excellent fuel economy, stable power output, and long-term durability.
As a trusted Weichai marine engine supplier, HekoPower provides genuine WP6C140-23E220 marine engines, technical consultation, worldwide shipping, spare parts support, and complete marine propulsion solutions for vessel owners, shipyards, fleet operators, and marine equipment distributors.
Tech Specs of Weichai WP6C140-23E220
General Engine Data
Engine Model: Weichai WP6C140-23E220
Cylinder Count: 6 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 6.75 L
Bore * Stroke: 105×130 (mm)
Net weight: 750 kg
Overall Dimension: 1360×890×1054 (mm)
Key Performance Data
Rated Power: 103 kW / 140 HP
Rated Speed: 2300 RPM
Idle Speed: 650±30 RPM
Minimum fuel consumption rate: 212 g/kW·h
Oil consumption rate: ≤0.2 g/kW·h
More Technical Data
Certification: IMO Tier II / China Stage II Inland Marine
Aspiration: turbocharged and aftercooled
Starting system: Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: HPCR
Power rating: P1
Noise: ≤98dB(A)
Key Design Enhancements
- High-Pressure Common Rail Technology: As a premier Weichai 140HP common rail marine engine, this unit utilizes precise electronic fuel injection to optimize combustion, drastically reducing smoke, noise, and vibration while maximizing thermal efficiency.
- Duplex Fuel Filter Marine Engine System: To safeguard against contaminated or low-quality marine fuel, the engine features a standard duplex fuel filter setup. This allows operators to switch and service fuel filters safely without shutting down the engine—a critical safety feature during offshore operations.
- Rigid Structural Block: Built on Weichai’s proven heavy-duty frame, the engine block features optimized ribbing to handle continuous duty cycles without structural fatigue.
Technical Comparisons: Why Choose the WP6 Series Over Competitors?
Selecting the right 140HP marine diesel engine requires looking beyond basic power numbers. When compared to other options in the 100kW to 110kW marine market, the Weichai WP6 marine engine offers distinct competitive advantages.
Displacement vs. Thermal Stress
Many contemporary 140HP commercial marine engines achieve their power ratings by pushing smaller 4-cylinder blocks (around 4.5L to 5.0L) to their absolute mechanical limits via high turbo boost pressures. The Weichai WP6C140-23E220 utilizes a generous 6.75L displacement across six cylinders.
This larger displacement means individual components experience significantly lower thermal and mechanical stress while generating the same 103kW marine propulsion engine output. The result is a radically prolonged Time Between Overhauls (TBO) and better low-end lugging torque when pushing heavy loads against strong currents.
Common Rail vs. Traditional Mechanical Systems
While older mechanical fuel injection systems are simple, they fail to meet modern environmental mandates and exhibit higher fuel burn rates across variable throttle curves. The advanced common rail system equipped on this Weichai 2300rpm marine engine monitors engine load dynamically. By optimizing injection timing and fuel atomization, operators see a 10% to 15% reduction in hourly fuel consumption during cruising speeds compared to legacy mechanical variants.
Real-World Application Scenarios: Where the WP6C140-23E220 Excels
The versatility of the Weichai WP6C140-23E220 marine diesel engine makes it a highly sought-after propulsion plant for diverse commercial, civilian, and utility hulls.
Best 140hp Diesel Engine for Commercial Fishing Boats and Trawlers
For operators navigating offshore fishing grounds, engine reliability dictates both profitability and safety. The 140HP fishing boat engine configuration provides the steady, high-torque output required to drag heavy trawl nets or haul deep-water pots. The marine engine for trawler boat applications benefits directly from the engine's ability to run continuously at low idle speed for auxiliary power generation or slow trolling, without experiencing carbon buildup or cylinder glazing.
Commercial Workboats, Patrol Crafts, and Passenger Vessels
- Marine Engine for Workboat & Tug Applications: Pushing or towing small barges along inland rivers requires relentless structural endurance. The WP6 series delivers consistent bollard pull under heavy loads.
- Marine Engine for Patrol Boat Units: When configured for fast-response coastal patrol hulls, the 2300rpm rating ensures rapid acceleration and agile throttle response.
- Marine Engine for Passenger Boat Operations: Low vibration and minimized exhaust odors (thanks to IMO II marine diesel engine certification) guarantee a comfortable ride for passengers on commuter ferries and ecotourism vessels.
- Marine Propulsion Engine for Small Cargo Boats: Navigating restricted inland waterways demands high maneuverability and low fuel burn. The compact footprint of this engine allows for easier installation in tight engine room spaces without sacrificing cargo capacity.
Maintenance, Fuel Consumption, and Genuine Replacement Parts
To guarantee the decade-long operational life of your WP6C140-23E220 marine propulsion engine, strict adherence to preventive maintenance schedules is paramount.
Fuel Consumption Metrics
The Weichai WP6C140-23E220 fuel consumption curve is highly optimized. At its sweet spot—around 75% to 85% load (roughly 1800–2000 rpm)—the specific fuel consumption rates hover efficiently around 195-200 g/kWh. This translates directly to extended operating ranges and reduced seasonal overhead costs for fleet owners.
Routine Maintenance Guidelines
- Fuel System Protection: Regularly monitor the duplex fuel filter marine engine Weichai WP6 assembly. Drain collected water daily from the water separators, especially when refueling from variable coastal sources.
- Cooling System Inspection: Check the sacrificial zinc anodes inside the seawater heat exchanger every 250 operational hours to combat galvanic corrosion in saltwater environments.
- Lubrication Intervals: Change the engine oil and replace the lube oil filters every 250 to 300 hours of operation using high-grade marine-certified diesel engine oil.
Sourcing Genuine Weichai WP6C140 Replacement Parts
Using counterfeit components can cause catastrophic engine failure at sea. HekoPower is your authorized channel for genuine Weichai WP6C140-23E220 engine parts. We maintain an extensive, ready-to-ship global inventory of:
- Piston kits, cylinder liners, and main bearings
- Turbochargers and raw water pumps
- Common rail fuel injectors and high-pressure pumps
- OEM gaskets, seals, and filtration kits
Why Buy from HekoPower? Your Trusted Weichai Marine Engine Supplier
Navigating the global marine market requires a partner who understands more than just part numbers. As a dedicated Weichai WP6C140-23E220 marine diesel engine supplier, distributor, and marine engine OEM supplier, HekoPower delivers value far beyond the initial sale.
Global Supply Chain & Flexible Logistics
Whether you need to buy a Weichai marine engine online or arrange bulk delivery for a commercial shipyard project, HekoPower coordinates secure sea, air, and land freight. We act as a dependable marine engine wholesale supplier, managing customs documentation and ensuring that your machinery arrives safely at your port of choice.
Tailored Quotations and Custom Engineering Options
Every hull design presents distinct technical requirements. Our engineering team works directly with your naval architects to provide customized marine engine quotations, complete with compatible marine gearboxes (such as Advance, Twin Disc, or ZF brands), flexible couplings, instrument panels, and tailored exhaust systems.
Weichai 12WH17 series marine diesel engine, original products from Weichai. This series mainly includes 12WH17C1224-2, 12WH17C1360-2, 12WH17C1496-2, 12WH17C1564-5, 12WH17C1700-5, 12WH17C1836-5, 12WH17C1972-5, 12WH17C2203-5.
Frequently Asked Questions (FAQs)
What emissions standard does the Weichai WP6C140-23E220 comply with?
The engine is fully IMO Tier II certified, ensuring adherence to international maritime pollution controls for NOx emissions. This makes it suitable for commercial use across major global waterways and coastal territories.
Can the duplex fuel filter system be serviced while the vessel is moving?
Yes. The integrated duplex fuel filter marine engine design features a selector valve that enables the operator to isolate a clogged filter element and divert fuel flow through the clean element seamlessly, eliminating the need to cut power or shut down mid-voyage.
What is the standard warranty period for a genuine Weichai marine engine from HekoPower?
Every genuine Weichai WP6C140-23E220 engine sourced through HekoPower comes with a comprehensive factory warranty covering major components, backed by Weichai’s international service network. Contact our sales office for specific warranty durations tailored to your region and application class.
How can I request an official WP6C140-23E220 engine price quotation?
As your direct Weichai WP6C140-23E220 distributor, HekoPower provides transparent, competitive pricing based on your required accessories, gearbox choices, and delivery location. Simply click our "Request a Quote" button or contact our support desk directly with your project parameters for a personalized technical proposal.
