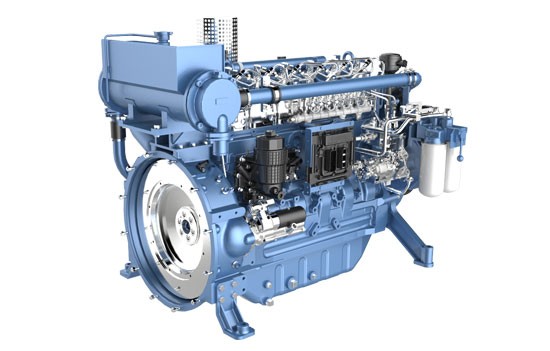

Weichai WP6C198-23E220 Marine Diesel Engine: High-Performance 145kW Propulsion for Commercial Vessels
Modern 198HP Electronically Controlled Marine Diesel Engine Technology
The marine industry demands reliability, fuel economy, and compliance with modern environmental standards. The Weichai WP6C198-23E220 marine diesel engine is a premier 145kW marine propulsion engine engineered specifically for heavy-duty commercial applications. This 6 cylinder marine diesel engine features an advanced electronically controlled common rail marine engine architecture, separating it from older mechanical models. The heart of its performance lies in the specialized Weichai ECU marine engine fuel consumption rate management system, which monitors load parameters in real time to optimize every injection cycle.
Operating at a rated speed of 2300rpm, this 2300rpm marine propulsion engine delivers consistent torque across its power band. It is built as a turbocharged aftercooled marine engine, utilizing forced air induction to achieve high thermal efficiency from its compact 6.75L marine diesel engine displacement. This design ensures that commercial operators receive a P1 rated marine diesel engine built for continuous, unrestricted duty cycles at maximum rated output.
For commercial shipbuilders and fleet operators, HekoPower serves as your premier independent Weichai marine engine distributor and China Weichai marine engine supplier. We maintain a reliable supply chain to offer competitive Weichai marine engine wholesale price options, rapid Weichai marine engine lead time schedules, and complete technical support. Whether you operate a single vessel or manage a large commercial fleet, we ensure you receive a genuine Weichai WP6C198-23E220 supplier experience with complete documentation and original factory configurations.
Comprehensive Weichai WP6C198-23E220 Specifications and Footprint
Physical integration into existing or newly designed vessel hulls requires precise dimensional and structural planning. The Weichai WP6C198-23E220 dimensions measure 1185 mm in length, 744 mm in width, and 1083 mm in height. This compact footprint allows marine architects to maximize engine room space or accommodate auxiliary machinery easily. The total net Weichai WP6C198-23E220 weight sits at approximately 750 kg, offering an excellent power-to-weight ratio that improves overall vessel trim and buoyancy parameters.
Fuel efficiency remains a critical metric for operational profitability. The Weichai WP6C198-23E220 fuel consumption profile establishes a baseline minimum consumption rate of 195 g/kW·h or less under standard operating conditions. By utilizing a high-pressure common rail system, fuel atomization is maximized, resulting in clean combustion that easily satisfies international environmental requirements as an IMO II marine diesel engine. The engine also features a 24V electric starting system and a standard SAE1 flywheel housing configuration to ensure smooth pairing with popular marine gearboxes.
Tech Specs of Weichai WP6C198-23E220
General Engine Data
Engine Model: Weichai WP6C198-23E220
Cylinder Count: 6 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 6.75 L
Bore * Stroke: 105×130 (mm)
Net weight: 750 kg
Overall Dimension: 1360×890×1054 (mm)
Key Performance Data
Rated Power: 145 kW / 198 HP
Rated Speed: 2300 RPM
Idle Speed: 650±30 RPM
Minimum fuel consumption rate: 212 g/kW·h
Oil consumption rate: ≤0.2 g/kW·h
More Technical Data
Certification: IMO Tier II / China Stage II Inland Marine
Aspiration: turbocharged and aftercooled
Starting system: Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: HPCR
Power rating: P1
Noise: ≤98dB(A)
Technical Comparisons and Market Positioning
Evolution from Legacy Platforms: Deutz 226B Replacement Weichai WP6C Series
Understanding the design heritage of the Weichai Deutz WP6 series helps operators appreciate its structural integrity. The modern WP6 platform represents the technological evolution of the legendary Deutz 226B marine engine series, which was known worldwide for its rugged mechanical block. While the structural durability remains unchanged, the transition to the WP6C198-23E220 brings massive advancements in electronic fuel delivery. Legacy 226B engines relied on mechanical inline injection pumps that lacked the ability to adapt to varying load profiles dynamically.
The modern WP6C198-23 Weichai diesel overcomes these older limitations by introducing high-pressure common rail injection. This upgrade provides significantly faster throttle response, cleaner cold starts, and a drastic reduction in exhaust smoke under sudden acceleration. For vessel owners looking for a direct Deutz 226B replacement Weichai WP6C series unit, this engine provides identical physical mounting footprints while delivering significantly lower operating costs and smoother power curves.
Differentiating the WP6C198-23E220 from Competitor Marine Engines
When evaluating options in the 200 horsepower marine propulsion market, the WP6C198-23E220 stands out through its specialized marine-first engineering. Many competing engines in this power class are merely converted truck blocks that suffer from accelerated corrosion and component fatigue when subjected to harsh marine environments. The WP6 marine engine is engineered from the ground up with a water-jacketed exhaust manifold, integrated oil cooler, and a specialized marine oil pan capable of maintaining oil pressure at extreme operating angles.
Furthermore, many competitors still offer older mechanical models under the generic WP6C198-23 marine engine designation. The inclusion of the "E220" suffix in our premium product line indicates the presence of a closed-loop electronic control system that actively prevents engine overloading. This protective feature reduces thermal stress on internal engine components, giving it a clear durability advantage over purely mechanical alternatives.
Real Application Scenarios and Vessel Integration
Powering Coastal Fishing Vessels and Heavy Commercial Boats
The operational demands of a marine engine for coastal fishing vessel duties require sustained low-speed trolling combined with high-torque capacity when hauling heavy nets. The Weichai 198HP marine engine provides exactly this versatility, delivering peak torque in the mid-RPM range where fishing vessels operate most frequently. Its robust construction allows it to handle the sudden torque loads encountered when operating hydraulic winches or navigating rough coastal chop.
As an ideal Weichai engine for fishing boat operations, this powertrain ensures that crews can get to fishing grounds quickly and return safely with their catch. HekoPower works closely with commercial fishing fleets to supply complete propulsion packages, ensuring the engine matches perfectly with the correct marine gearbox ratio to maximize propeller thrust and efficiency.
High-Speed Propulsion for Passenger Ferries and Patrol Craft
For public service vessels and commercial transport operators, speed consistency and uptime are paramount. The WP6C198-23E220 serves as an exceptionally reliable Weichai engine for passenger ferry operations, where vessels run on strict daily schedules. The low vibration characteristics of the 6 cylinder design ensure passenger comfort while minimizing mechanical wear on the hull structure.
Similarly, when utilized as a Weichai engine for patrol boat applications, this powertrain delivers the acceleration needed for enforcement and security operations. The advanced electronic common rail system permits rapid throttle adjustments, allowing patrol crews to maneuver confidently in tight harbors or during high-speed interception runs.
Heavy-Duty Cycle Performance in Commercial Workboats
Inland waterways and busy commercial ports demand rugged propulsion systems capable of pushing heavy loads day after day. The WP6C198-23E220 acts as a core marine diesel engine for workboat operations, including small tugs, barge pushers, and harbor service craft. Its P1 continuous rating means it can run at maximum output for extended periods without experiencing thermal degradation.
The integrated cooling system is specifically designed to handle muddy or debris-heavy inland waters. By utilizing high-efficiency heat exchangers and a durable raw water pump, the engine maintains optimal internal temperatures even when pushing heavy timber or stone barges against strong river currents.
Maintenance, Troubleshooting, and Replacement Strategies
Optimizing the Weichai WP6C Marine Engine Overhaul Period Hours
Maximizing the return on investment for any marine asset requires strict adherence to preventative maintenance protocols. The documented Weichai WP6C marine engine overhaul period hours typically extend past 12,000 to 15,000 hours of operation, provided that regular servicing is performed. Fleet managers must establish clear schedules for oil changes, fuel filter replacements, and cooling system flushes to reach this operational lifespan.
Using high-quality, genuine filtration elements is vital for safeguarding the high-pressure common rail system. Because the injection pressures are incredibly high, even microscopic water or dust particles can cause accelerated wear on the fuel injectors. HekoPower recommends installing a primary fuel-water separator ahead of the engine's onboard filters to provide an extra layer of protection against contaminated marine fuel.
Practical Weichai WP6C198 Common Rail Marine Engine Troubleshooting
When operational anomalies occur at sea, engineers require clear troubleshooting methodologies to minimize vessel downtime. Issues related to power loss or irregular idling are frequently linked to fuel supply fluctuations. If the engine experiences a sudden drop in RPM, technicians should check the primary fuel line pressure and inspect the duplex fuel filters for blockages. The engine design allows for seamless filter element replacement while running, ensuring you do not have to shut down propulsion in open water.
If the ECU instrument panel displays a diagnostic trouble code related to rail pressure, the fault typically points to a sticking fuel metering valve or a worn pressure relief valve. Regular inspection of electrical harnesses and grounding points is also recommended, as salt air can cause micro-corrosion on sensor connectors over time. Keeping connectors clean and treated with dielectric grease prevents false sensor readings and intermittent warning lights.
Sourcing Genuine Replacement Units from an Authorized Supplier
When an existing engine reaches the end of its economic service life, choosing a certified replacement source is vital to ensure long-term reliability. To buy genuine Weichai WP6 marine propulsion engine units, buyers must avoid unverified third-party rebuilders who use non-standard components. HekoPower functions as a dedicated Weichai marine engine exporter and certified partner, ensuring that every engine shipped carries a verified factory serial number and full warranty backing.
Choosing a genuine Weichai WP6C198-23E220 supplier guarantees that all auxiliary components, including the alternator, starter motor, and instrument panel, are original factory-spec items. This eliminates installation headaches and alignment issues during repowering projects, allowing your vessel to return to active service as quickly as possible.
Weichai WP6 series marine diesel engine, original products from Weichai. This series mainly includes WP6C122-15, WP6C140-23, WP6C142-18, WP6C150-15, WP6C156-21, WP6C163-23, WP6C165-18, WP6C185-21, WP6C198-23, WP6C220-23, WP6C250-23, WP6C122-15E220, WP6C140-23E220, WP6C142-18E220, WP6C150-15E220, WP6C156-21E220, WP6C163-23E220, WP6C165-18E220, WP6C185-21E220, WP6C198-23E220, WP6C220-23E220, WP6C250-23E220.
Frequently Asked Questions
What are the main differences between the mechanical WP6C198-23 and the electronic WP6C198-23E220?
The primary difference centers on the fuel injection architecture and emissions management. The mechanical model uses a traditional mechanical fuel injection pump, which is simple but lacks precise fuel metering across varying loads. The WP6C198-23E220 utilizes an advanced high-pressure common rail system governed by a dedicated Weichai ECU. This electronic version provides better fuel efficiency, lower noise levels, significantly less exhaust smoke, and full compliance with IMO Tier II environmental standards.
How does HekoPower handle the Weichai marine engine lead time for international commercial orders?
As an experienced international Weichai marine engine distributor, HekoPower maintains an optimized logistics pipeline. For standard configurations of the Weichai WP6C198-23E220 marine diesel engine, we leverage our deep factory connections to offer significantly shorter lead times than generic trading companies. Exact shipping timelines depend on the destination port and any custom gearbox matching requirements, but we provide transparent tracking and documentation throughout the entire process.
Is this 198HP engine compliant with international maritime emissions regulations?
Yes, this model is explicitly designed as an IMO Tier II compliant Weichai boat motor 198hp unit. It also satisfies the China Stage II Marine emissions standards. The precise control provided by the common rail injection system ensures complete fuel combustion, minimizing carbon monoxide, nitrogen oxides, and particulate matter emissions without sacrificing overall propulsion power.
Can the WP6C198-23E220 engine be customized for specific OEM hull requirements?
HekoPower operates as an experienced Weichai marine engine OEM supplier capable of accommodating specific technical requests. We can configure the engine with alternative flywheel housings, specialized dual-circuit cooling systems, distinct instrument dashboard configurations, or auxiliary PTO pulleys to drive onboard hydraulic systems. Contact our engineering team before ordering to discuss your specific hull integration requirements.
Where can I view the official Weichai WP6C198-23E220 datasheet and verify pricing details?
You can access full dimensional drawings and performance curves by requesting the official Weichai WP6C198-23E220 datasheet directly from the HekoPower sales department. Because international shipping rates, currency exchange values, and bulk order discounts vary, we provide personalized quotes. Please contact us through our website inquiry portal to receive the current Weichai WP6C198-23E220 price for your region.
