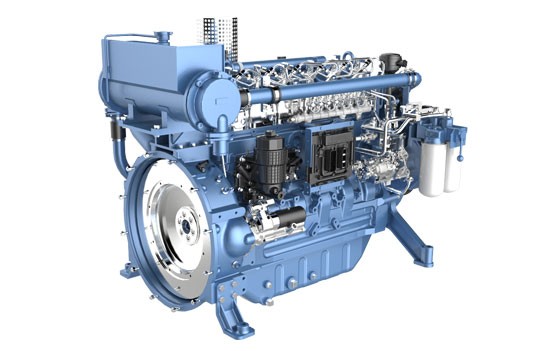

Weichai WP6C220-23 Marine Engine: Premium 220HP 6-Cylinder Propulsion Solution
As a leading global marine propulsion engine supplier and China marine diesel engine manufacturer network partner, HekoPower is proud to supply the heavy-duty Weichai WP6C220-23 marine diesel engine. Engineered for commercial vessels demanding relentless endurance, this 162kW marine diesel engine delivers high torque, exceptional fuel efficiency, and structural ruggedness. Operating at a rated speed of 2300rpm, this six-cylinder marine engine stands out as a premier Choice for vessel operators looking to repower or build new hulls.
Whether you operate an ocean-going trawler, a regional passenger ferry, or a heavy-duty harbor workboat, sourcing your Weichai marine power engine through an authorized marine diesel engine wholesale channel like HekoPower ensures you receive authentic builds, factory-backed warranties, and a continuous supply of OEM maintenance parts.
Tech Specs of Weichai WP6C220-23
General Engine Data
Engine Model: Weichai WP6C220-23
Cylinder Count: 6 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 6.75 L
Bore * Stroke: 105×130 (mm)
Net weight: 750 kg
Overall Dimension: 1360×890×1054 (mm)
Key Performance Data
Rated Power: 162 kW / 220 HP
Rated Speed: 2300 RPM
Idle Speed: 650±30 RPM
Minimum fuel consumption rate: 212 g/kW·h
Oil consumption rate: ≤0.2 g/kW·h
More Technical Data
Certification: IMO Tier II
Aspiration: turbocharged and aftercooled
Starting system: Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: Mechanical pump
Power rating: P1
Noise: ≤98dB(A)
Technical Comparison: The Evolution from Deutz 226B-6C to Weichai WP6C
When selecting a Weichai 220 HP marine engine, buyers often ask about its design lineage. The WP6 series is the modern evolution of the classic European Weichai Deutz marine engine platform. While the core geometry remains robust, Weichai has introduced significant technological upgrades to meet modern maritime challenges, creating a distinct divergence when evaluating the Deutz 226B-6C vs Weichai WP6C marine engine lineages.
Materials Engineering and Structural Strengthening
The original Deutz 226B platform was praised for its reliability, but the modern Weichai WP6C platform introduces a redesigned, reinforced engine block. The main bearing cap bolts have been upgraded, and the crankshaft material has transitioned to a specialized alloy steel composition. This allows the WP6C220-23 marine diesel engine to safely withstand higher peak explosion pressures, translating to a massive 20% to 35% torque reserve across its operational range. This gives the WP6C220-23 propulsion engine superior lugging power when battling heavy currents compared to its predecessor.
Materials Engineering and Structural Strengthening
The original Deutz 226B platform was praised for its reliability, but the modern Weichai WP6C platform introduces a redesigned, reinforced engine block. The main bearing cap bolts have been upgraded, and the crankshaft material has transitioned to a specialized alloy steel composition. This allows the WP6C220-23 marine diesel engine to safely withstand higher peak explosion pressures, translating to a massive 20% to 35% torque reserve across its operational range. This gives the WP6C220-23 propulsion engine superior lugging power when battling heavy currents compared to its predecessor.
Fuel System Adaptation & Emission Regulation Compliance
A primary difference when reviewing the Deutz 226B-6C vs Weichai WP6C marine engine lineages lies in emission management and fuel delivery. The older platform cannot satisfy contemporary environmental controls. In contrast, the modern WP6C220-23 is an **IMO Tier II compliant 220HP boat engine**. It integrates an optimized mechanical fuel pump alongside advanced fuel injector nozzle geometry, dropping minimal fuel consumption down to an impressive ≤195 g/kW·h, while keeping nitrogen oxide emissions well within international limits. It balances old-school mechanical reliability with modern regulatory compliance.
Maintenance Protocol & Lifespan Maximization Tips
Sourcing a high-quality unit from a trusted **marine propulsion engine supplier** is only the first step. To secure a long service life, vessel crews must follow strict operational maintenance protocols tailored to the **Weichai WP6C220-23 specifications**.
Understanding the Weichai WP6C220-23 Specs and Overhaul Period
The targeted major overhaul design lifespan of this engine series is an exceptional 12,000 operational hours, provided that routine service items are completed. To keep the engine running efficiently, adhere to the following maintenance timeline:
- First 50 Hours (Break-In Period): Change the initial lube oil break-in charge and replace both the lube oil filters and primary fuel-water separator elements. Verify belt tension on the alternator.
- Every 250 Hours: Renew engine lube oil (Premium grade CF-4 15W/40 is recommended for commercial operations). Inspect zinc anodes within the seawater heat exchanger to prevent galvanic corrosion.
- Every 1000 Hours: Check and adjust intake and exhaust valve clearances (Cold state spec: Intake 0.2±0.05mm, Exhaust 0.3±0.05mm). Test fuel injection pressures on the mechanical pump line.
- Every 3000 Hours: Inspect the turbocharger bearing play, clean the core air intercooler matrix, and check the performance of the freshwater circulating pump.
Adhering to these strict metrics ensures that your Weichai 162kW marine engine reaches its full engineering potential without unexpected internal wear.
Crucial Advantage: Weichai WP6 Marine Engine Non-Stop Filter Replacement
A major risk during high-sea fishing or cargo transport is filter clogging due to degraded harbor fuel. A sudden engine shutdown can leave a vessel vulnerable in rough weather.
The Weichai WP6 platform counters this with an available **Weichai WP6 marine engine non-stop filter replacement** layout. By implementing a parallel duplex fuel filtration manifold equipped with an integrated directional changeover valve, operators can redirect fuel flow through an isolated secondary filter chamber. This allows the clogged filter cartridge to be safely replaced while the engine remains online at full throttle, ensuring continuous vessel propulsion.
Commercial Applications: Real-World Vessel Deployment
As a seasoned **commercial marine engine** wholesale specialist, HekoPower matches specific hull profiles with exact propulsion configurations. The **WP6C220-23 propulsion engine** is highly adaptable, proving its value across diverse commercial maritime operations.
Fishing Vessel Propulsion Engine Solutions
For small-to-medium trawlers and coastal netting vessels, HekoPower acts as a dedicated fishing boat diesel engine supplier. The **WP6C220-23 for fishing boats** provides the perfect operational balance. Commercial fishing demands a split duty cycle: high speed when racing to fishing grounds, followed by hours of low-speed, high-load pulling while dragging heavy nets. The engine's mechanical fuel pump handles varying fuel qualities well, while the deep torque curve makes it an ideal trawler marine diesel engine that prevents engine stalling when nets face strong underwater currents.
Passenger Boats, Ferries, and Tourism Vessels
When operating a **marine engine for passenger boats** or a high-traffic **passenger ferry marine engine**, reliability directly impacts your revenue. The WP6C220-23 features advanced noise-reduction engineering, keeping structural block vibrations below ≤105 dB(A). This makes it an exceptional choice for a tourism boat propulsion engine, ensuring a quiet, comfortable cabin for passengers on coastal tours, luxury excursions, or river crossings.
Workboats, Patrol Vessels, and Inland Waterway Freight
For industrial operations, this unit serves as a dependable **marine engine for workboats**, a fast-responding patrol boat marine engine, and a workhorse for a cargo boat diesel engine configuration. When deployed as an inland waterway vessel engine navigating tight canal locked networks, its compact size leaves more space for cargo storage, while its fast throttle response gives captains the control needed to safely navigate busy harbor channels.
Strategic Buyer's Guide: Sourcing and Procurement Options
Navigating the global supply chain for heavy machinery requires diligence. To avoid counterfeit components, it is critical to work with an established, factory-aligned **Weichai WP6C220-23 supplier** like HekoPower.
Sourcing Strategy: Where to Buy Authentic Weichai WP6C220-23 Engines
Because the WP6 and old Deutz designs are widely used, some third-party repair shops assemble hybrid engines using low-grade aftermarket components, selling them under genuine labels. When searching for **where to buy authentic Weichai WP6C220-23** units, always verify the presence of the official laser-etched Weichai data matrix plate, an uncompromised factory anti-tamper seal on the mechanical injection pump governor, and official testing certificates matching the engine block serial number stamp. Partnering with a recognized marine diesel engine wholesale supplier like HekoPower guarantees 100% factory authenticity.
Bulk Procurement and Customization Options at HekoPower
As a reputable China marine diesel engine manufacturer network exporter, HekoPower does more than deliver boxed machinery. We provide full system integration support, including:
- Custom matching with marine gearboxes (Advance, Fada, or Hangzhou brands) across various reduction ratios (2:1, 2.5:1, 3:1, etc.).
- Dual-output front PTO (Power Take-Off) shafts to power hydraulic net haulers, bilge pumps, or onboard auxiliary electrical generators.
- Custom digital remote control instrument panels for bridge installation, monitoring engine oil pressure, coolant temperatures, and running hours.
To receive a tailored, high-volume **Weichai WP6C220-23 price** quote inclusive of ocean freight logistics to your destination port, contact the HekoPower commercial sales desk directly. We offer customized deals for fleet owners looking for an affordable Weichai WP6C220-23 price for fishing boats.
Weichai 12WH17 series marine diesel engine, original products from Weichai. This series mainly includes 12WH17C1224-2, 12WH17C1360-2, 12WH17C1496-2, 12WH17C1564-5, 12WH17C1700-5, 12WH17C1836-5, 12WH17C1972-5, 12WH17C2203-5.
Frequently Asked Questions (FAQs)
What is the exact fuel consumption profile of the Weichai WP6C220-23 engine?
The engine features a highly economical fuel curve, with a minimum fuel consumption rating of ≤195 g/kW·h under ideal operating conditions. In real-world commercial terms, when matched correctly to a propellor curve at 80% load, it functions as a highly fuel efficient marine propulsion engine, consuming approximately 30 to 36 liters of marine diesel oil per hour, keeping operational costs low for commercial vessel operations.
Can this engine operate in countries requiring strict EPA Tier 3 or Euro Stage V compliance?
The Weichai WP6C220-23 is an IMO Tier II certified marine engine. It is fully approved for international high-seas commercial transit and is compliant within territories accepting IMO Tier II standards (such as many regions across Asia, Africa, South America, and the Middle East). If your vessel operates in strictly regulated local zones like inland US waterways or EU inland networks requiring active SCR exhaust treatment, please consult HekoPower for our alternative electronic common-rail solutions.
What type of engine cooling framework does the WP6C220-23 utilize?
This is an inline, water cooled marine diesel engine utilizing a closed-loop dual-cooling mechanism. An internal freshwater circuit managed by an integrated thermostat cools the engine block core. This internal freshwater heat is then dissipated via a heavy-duty copper-alloy shell-and-tube heat exchanger, which is continuously cooled by raw seawater drawn in via an external rubber-impeller seawater pump.
Why is a mechanical fuel pump preferred over electronic common rail for this model?
The inclusion of a traditional **marine engine with mechanical fuel pump** layout makes the WP6C220-23 highly popular in remote fishing ports and developing regions. Mechanical fuel systems are highly resilient against variable fuel quality and moisture contamination. Additionally, they can be maintained and serviced by shipboard engineers using standard mechanical tools, completely eliminating the need for specialized electronic diagnostic computers during deep-sea voyages.
How does HekoPower manage international warranty claims and spare parts supply?
Every Weichai engine supplied by HekoPower carries our comprehensive export warranty protection plan. We maintain a deep wholesale inventory of genuine WP6 series spare parts—including cylinder liners, piston rings, injectors, filtration packs, and overhaul gasket sets—ensuring fast global air-express dispatch to minimize any unexpected vessel downtime.
