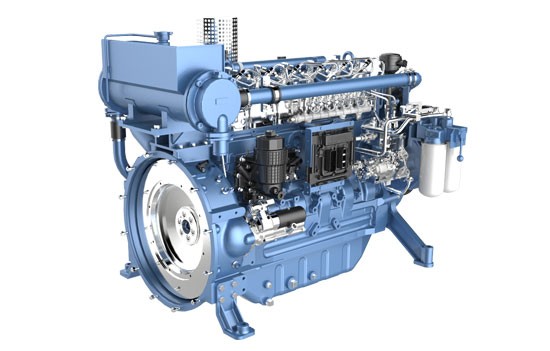

Weichai WP6C163-23 Marine Engine: The Ultimate 163HP Marine Diesel Propulsion Solution
As a leading global Weichai WP6 series supplier, dealer, and exporter, HekoPower is proud to offer the Weichai WP6C163-23 marine engine. Engineered specifically for continuous duty P1 operations, this Weichai 163 HP marine engine provides an unbeatable combination of reliability, fuel economy, and rugged durability. Whether you are looking for a Weichai boat diesel engine for a newly built commercial hull or sourcing a WP6C163-23 mechanical pump diesel engine replacement to retrofit an existing vessel, HekoPower provides the technical expertise, competitive pricing, and global logistics support your fleet requires.
The WP6C163-23 marine diesel engine is built upon Weichai’s legendary medium-bore platform, delivering a rated power of 120kW (163HP) at 2300 RPM. This Weichai 6 cylinder marine engine is the go-to power plant for operators who refuse to compromise on blue-water safety and uptime.
Tech Specs of Weichai WP6C163-23
General Engine Data
Engine Model: Weichai WP6C163-23
Cylinder Count: 6 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 6.75 L
Bore * Stroke: 105×130 (mm)
Net weight: 750 kg
Overall Dimension: 1360×890×1054 (mm)
Key Performance Data
Rated Power: 120 kW / 163 HP
Rated Speed: 2300 RPM
Idle Speed: 650±30 RPM
Minimum fuel consumption rate: 212 g/kW·h
Oil consumption rate: ≤0.2 g/kW·h
More Technical Data
Certification: IMO Tier II
Aspiration: turbocharged and aftercooled
Starting system: Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: Mechanical pump
Power rating: P1
Noise: ≤98dB(A)
Evaluating the WP6C163-23 Torque Curve
The defining advantage of the marine propulsion engine WP6C163-23 lies in its flat, high-amplitude WP6C163-23 torque curve. Unlike automotive-derived blocks that require high RPMs to reach peak torque, this purpose-built 120kW Weichai marine engine delivers maximum torque at lower speeds. This design provides immediate throttle response and massive bollard pull power, allowing your vessel to fight heavy currents, maintain cruising speeds when fully loaded, and handle sudden changes in sea states without engine lugging or thermal overloading.
Fuel Efficiency & Environmental Compliance
In commercial maritime operations, fuel costs represent the largest variable expense. The WP6C163-23 fuel consumption profile is optimized via a highly refined, mechanical inline injection pump paired with multi-hole injectors. By optimizing the air-to-fuel ratio across the entire operational RPM spectrum, this low fuel consumption 163hp marine propulsion engine slashes operating costs. Furthermore, it is designed as an IMO compliant marine diesel engine, holding global certifications including CCS (China Classification Society) and EIAPP type approval, verifying low NOx emissions without requiring complex electronic exhaust after-treatments.
Deep Technical Comparison: WP6C163-23 vs. Competitors
When evaluating options from a China marine engine manufacturer or looking through marine propulsion engine export catalogs, it is essential to compare the structural integrity of the Weichai WP6 platform against standard alternative engines in the 120kW category.
Mechanical Simplicity vs. Electronic Vulnerability
Many modern 120kW marine propulsion engine options rely heavily on Common Rail Electronic Control Units (ECUs). While efficient on land, electronic sensors are highly vulnerable to saltwater corrosion and moisture-induced shorts. The WP6C163-23 mechanical pump diesel engine replacement utilizes a rugged, purely mechanical governor and injection system. It can run reliably in damp, isolated marine environments with basic mechanical tools, making it the preferred choice for remote coastal and international operators.
Total Cost of Ownership (TCO) Advantages
The Weichai WP6 series marine engine is engineered with a gantry-type, high-strength cast iron cylinder block and a single-piece cylinder head. By reducing the overall part count by nearly 30% compared to competitors, Weichai minimizes internal friction and potential failure points. This superior structural integrity allows HekoPower to confidently market this unit as a Weichai marine engine with 12000 hours overhaul life, giving it a operational lifespan that significantly outlasts light-duty competitive alternatives.
Operational Scenarios: Where the WP6C163-23 Excels
The versatility of this Weichai marine propulsion engine makes it an excellent fit for multiple commercial, regulatory, and industrial hull designs.
Industrial Commercial & Fishing Applications
- 6 Cylinder Weichai Inboard Engine for Fishing Boat: For artisanal and commercial fishing crews, an engine failure at sea can mean lost cargo or a compromised crew. The WP6C163-23 marine diesel offers a 25% torque reserve, allowing heavily laden fishing trawlers to haul nets and navigate rough coastal waters confidently. It stands out as one of the best 163hp marine diesel engine options for hull lengths between 15 to 25 meters.
- Marine Engine for Small Commercial Vessels: Water taxis, small cargo barges, and workboats benefit from the compact WP6C163-23 marine engine dimensions, which maximize available cargo or passenger space while delivering a true continuous duty P1 marine engine 120kw rating for non-stop, 24/7 commercial operations.
High-Demand Civil & Public Service Hulls
- Marine Engine for River Transport Vessels: Navigating inland waterways requires constant engine speed adjustments to counter river currents and shallow bends. The rapid transient response of the Weichai WP6 ensures precise handling for inland pushers and logistics transport barges.
- Marine Diesel Engine for Patrol Boats: For coastal security, port authority, and search-and-rescue vessels, reliability is non-negotiable. The quick cold-start capability and high-speed stability of this 163hp marine diesel engine for boats make it ideal for public service duties.
Gearbox Matching & Mechanical Integration Guide
To maximize the efficiency of your new Weichai 163HP marine engine, selecting the proper marine transmission is critical. HekoPower provides comprehensive engineering support for proper WP6C163-23 gearbox matching.
Approved Marine Gearboxes
The flywheel housing and flywheel configurations of the WP6C163-23 follow standard SAE dimensions, making it highly compatible with globally recognized marine gearboxes, such as the Advance Hangzhou (e.g., 135A, MB170, or 242A series) and ZF Marine transmissions. Depending on your hull style—whether a deep-draft displacement hull requiring a high reduction ratio and large propeller, or a fast planning hull—HekoPower’s engineering department can calculate the exact torsional coupling and reduction ratios needed to keep your engine running within its optimal RPM efficiency band.
Physical Footprint and Structural Installation
When planning the engine room layout, the dry WP6C163-23 engine weight of ~750 kg must be balanced properly on the engine beds. HekoPower supplies heavy-duty flexible anti-vibration mounts alongside the engine to minimize hull resonance, protecting onboard electronics and ensuring passenger comfort.
Maintenance, Lifetime Optimization, and Spare Parts Support
As an authorized Weichai WP6C163-23 dealer and dedicated Weichai WP6C163-23 exporter, HekoPower’s relationship with you does not end at the point of sale. We ensure your vessel remains operational with minimal downtime through a robust spare parts network and detailed technical support.
Proactive Lifecycle Maintenance Schedule
To achieve the promised 12000 hours overhaul life, operators should adhere to the following maintenance intervals:
- Every 250 Hours: Change engine oil, clean the air intake system, and replace primary fuel filters.
- Every 500 Hours: Replace the secondary fuel filters, inspect the zinc anodes in the raw-water heat exchanger to prevent galvanic corrosion, and check belt tension.
- Every 1500 Hours: Check and adjust valve clearances, inspect fuel injection pressures, and test the mechanical safety alarm shutdowns.
Non-Stop Duplex Filter System Replacement Advantage
A standout feature of the Weichai marine line is the optional integration of a duplex fuel filter system. If a batch of contaminated marine gas oil clogs a fuel filter while your vessel is underway in dangerous waters, the operator can flip an integrated valve lever to switch to a clean parallel filter. This allows you to replace the clogged filter element safely while the engine is running, eliminating hazardous mid-water power loss.
Why Choose HekoPower as Your Trusted Marine Engine Supplier?
When searching for a Weichai WP6C163-23 for sale or seeking a reliable marine diesel engine supplier, working with an authorized international partner makes all the difference. HekoPower is more than just an export broker; we are a full-scale marine power solution provider.
Uncompromising Quality Assurance & Certification
Every single Weichai WP6C163-23 marine engine shipped from our facilities undergoes rigorous dynamometer bench testing to verify its rated power, fuel efficiency curves, and thermal stability. We handle all international classification paperwork, ensuring your engine arrives with authentic Weichai engine with CCS EIAPP type approval documentation, enabling seamless registration with local maritime registries worldwide.
Global Logistics, Packaging, and Competitive Pricing
Because of our deep manufacturing partnerships in China, we offer the most competitive Weichai WP6C163-23 price structures on the market today. We wrap all export engines in heavy-duty, vacuum-sealed anti-moisture barriers before securing them inside ISPM-15 compliant export wooden crates. Whether you need a single unit delivered to a port in Southeast Asia, Europe, Africa, or South America, HekoPower guarantees safe, secure, and fast delivery.
Weichai 12WH17 series marine diesel engine, original products from Weichai. This series mainly includes 12WH17C1224-2, 12WH17C1360-2, 12WH17C1496-2, 12WH17C1564-5, 12WH17C1700-5, 12WH17C1836-5, 12WH17C1972-5, 12WH17C2203-5.
Frequently Asked Questions (FAQs)
What is included in the standard Weichai WP6C163-23 package from HekoPower?
Our standard marine package includes the complete engine block, a fresh-water/raw-water heat exchanger, a water-cooled exhaust manifold, a 24V electric starter motor, a charging alternator, a mechanical instrument panel (with RPM, oil pressure, and water temperature readouts), an air cleaner, and an operation/spare parts manual.
Can the WP6C163-23 replace older Deutz or Cummins marine engines?
Yes. The Weichai WP6 platform was originally developed through deep engineering partnerships with European diesel design firms, making it an excellent WP6C163-23 mechanical pump diesel engine replacement for aging legacy engines like the Deutz 226B series or older Cummins 6BT units. HekoPower can supply custom engine mount footprints and adaptor housings to ensure a drop-in fit.
How do I request a formal quote and check availability?
To find out more about the current Weichai WP6C163-23 price and specifications, simply contact the HekoPower sales desk through our website portal. Please specify your required quantity, preferred marine gearbox model (if any), classification society requirements (such as CCS), and your destination port so our team can provide a precise, competitive CNF or FOB quotation within 24 hours.
