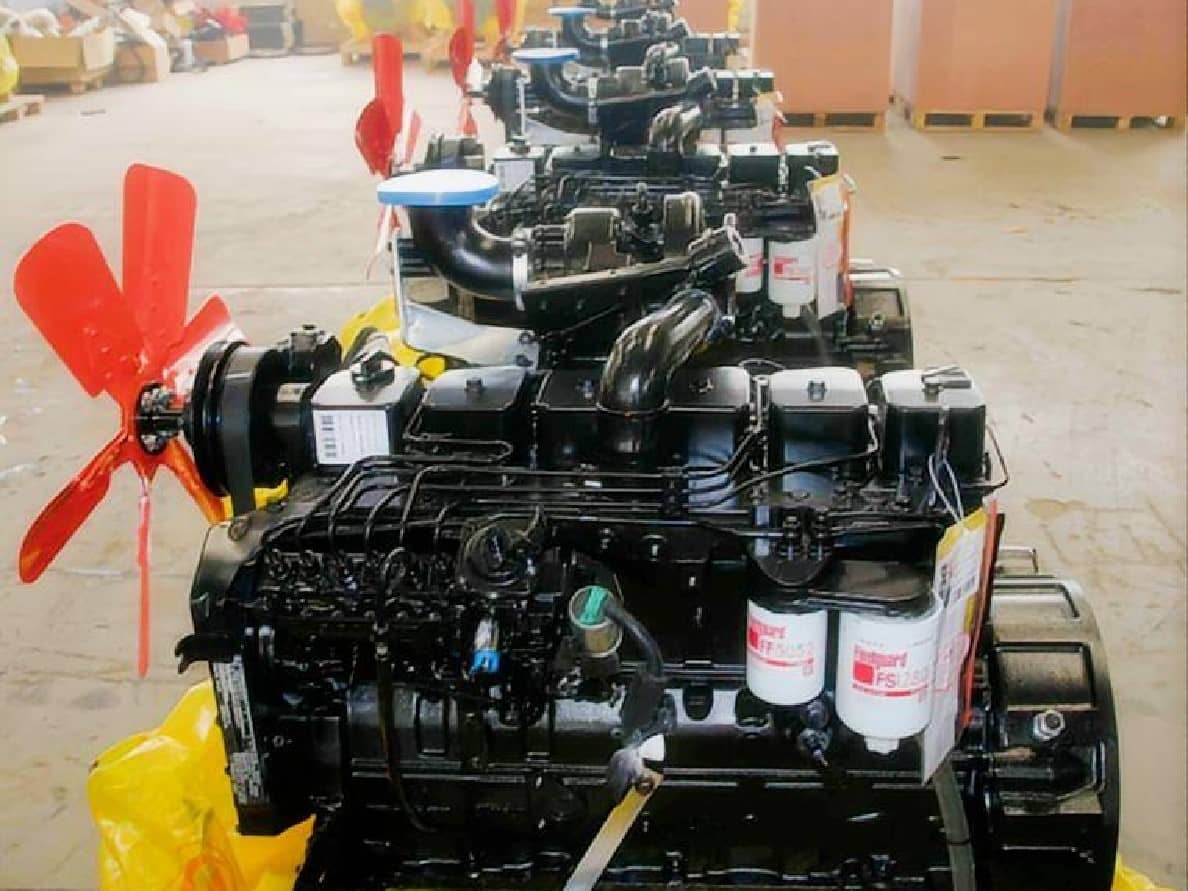

Cummins 6BTA5.9-C155 Diesel Engine: The Workhorse of Modern Construction
The Cummins 6BTA5.9-C155 remains a cornerstone of the industrial sector. At HekoPower, we recognize that sourcing a 114kW industrial engine isn't just about the hardware; it’s about ensuring project uptime. This 6-cylinder mechanical diesel engine is engineered for environments where electronic complexity is a liability rather than an asset.
Tech Specs of Cummins 6BTA5.9-C155
General Engine Data
Engine Model: Cummins 6BTA5.9-C155
Type: 6 Cylinders in Line
Displacement: 5.9 L
Bore * Stroke: 102 * 120
Overall Dimension: 1100mm*750mm*988mm
Net Weight (with flywheel & alternator): 443 Kg
Key Performance Data
Rated Power: 114 kW/145HP
Rated Speed: 2160 rpm
Max Torque/Speed: 625 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 228 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro I
Aspiration: Turbocharged-Intercooled
Fuel System: Wuxi Weifu A Pump/ RSV Govenor
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 10.4 L
Turbocharging and Intercooling Efficiency
The "BTA" designation signifies a turbocharged and aftercooled system. Unlike naturally aspirated units, the Cummins 5.9L turbocharged diesel engine maintains consistent torque even at higher altitudes. This makes it the preferred choice for mining machinery operating in mountainous regions.
Mechanical vs. Electronic Injection
A primary concern for our clients is the "Mechanical fuel injection Cummins engine" advantage. In remote construction sites, finding specialized diagnostic tools for electronic engines is difficult. The 6BTA5.9-C155 uses a mechanical governor and fuel pump, allowing for easier field repairs and higher tolerance for varying fuel qualities often found in developing regions.
Maintenance and Replacement: Extending Engine Life
As an experienced engine supplier, HekoPower doesn't just sell an assembly; we support its lifecycle.
Common Replacement Indicators
When should you look for a Cummins 6BTA5.9-C155 wholesale price instead of a repair? If your current block shows signs of "blow-by" or if the crankshaft has suffered structural fatigue, a genuine DCEC 6BTA5.9-C155 engine assembly is often more cost-effective than a manual overhaul.
6BTA5.9-C155 Engine Oil Capacity and Schedule
- Initial Break-in: Change oil and filters after the first 50 hours.
- Standard Service: Every 250 to 500 hours depending on dust levels.
- Oil Capacity: Typically 14.2 to 16.4 liters. Using high-quality CH-4 or CI-4 grade oil is non-negotiable for protecting the turbocharger bearings.
Genuine vs. OEM: The HekoPower Quality Standard
There is significant confusion regarding "Genuine Cummins" vs. "OEM DCEC." As a direct supplier, we clarify this: DCEC (Dongfeng Cummins Engine Co.) is the joint venture in China. A "Genuine DCEC 6BTA5.9-C155 engine" is the same quality as any global Cummins unit but optimized for the industrial machinery manufactured in the East. Avoid "No-name" aftermarket assemblies that compromise on the alloy quality of the cylinder head.
Real-World Application Scenarios
The versatility of the Dongfeng Cummins 155HP industrial engine is best seen in its diverse applications.
The 20-Ton Excavator Standard
The 6BTA5.9-C155 is the "gold standard" for 20-ton class excavators. Its torque curve is specifically matched to hydraulic pump demands. When the excavator digs into heavy clay, the engine’s lugging ability prevents hydraulic stall, ensuring smooth cycle times.
Drilling and Piling Rigs
In drilling applications, constant RPM stability is vital. This 155 HP Cummins diesel engine provides the steady vibration-resistant power needed for deep-hole boring. HekoPower has supplied these units for road roller and crane equipment where high torque at low RPM (peak torque at 1500 RPM) is critical for safety and precision.
Logistics and Global Support
Buying a heavy-duty construction diesel engine requires more than a "buy" button.
Lead Time and Shipping
HekoPower maintains a ready-stock inventory for the Cummins 6BTA5.9-C155. Standard lead times for sea freight range from 15 to 30 days depending on your region. We provide full export documentation, ensuring your Cummins industrial engine exporter experience is seamless.
6BTA5.9-C155 Performance Curve and Torque Data
Understanding the 6BTA5.9-C155 torque curve is essential for fuel economy. Peak torque of approximately 600-630 N.m is achieved in the mid-range. Running the engine within this "sweet spot" reduces the 6BTA5.9-C155 fuel consumption per hour, significantly lowering the Total Cost of Ownership (TCO).
Cummins B5.9-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6BT5.9-C115, 6BT5.9-C120, 6BT5.9-C125, 6BT5.9-C130, 6BT5.9-C135, 6BT5.9-C145, 6BT5.9-C150, 6BTA5.9-C125, 6BTA5.9-C130, 6BTA5.9-C150, 6BTA5.9-C155, 6BTA5.9-C170, 6BTA5.9-C175, 6BTA5.9-C180, 6BTAA5.9-C130, 6BTAA5.9-C150, 6BTAA5.9-C160, 6BTAA5.9-C180, 6BTAA5.9-C190, 6BTAA5.9-C195, 6BTAA5.9-C205.
Expert FAQ for Sourcing the 6BTA5.9-C155
What is the fuel consumption of the Cummins 6BTA5.9-C155?
Under typical industrial loads (75%), fuel consumption is approximately 210-215 g/kW.h. For a 114kW industrial engine, this translates to roughly 25-28 liters per hour depending on application intensity.
Can this engine replace a 4BT or 6BT model?
While the mounting footprints may be similar, the C155 is specifically tuned for industrial power. If you are upgrading from a lower-horsepower 6BT, ensure your cooling system and transmission can handle the increased 155HP output.
What is included in a HekoPower Cummins 6BTA5.9 engine assembly?
Our complete assemblies typically include the fuel system, turbocharger, water pump, and starter. We can customize the "dressing" (alternators, fans) based on whether it is for an excavator or a stationary pump.
