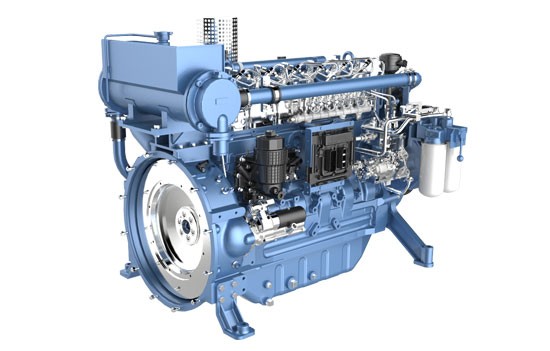

Weichai WP6C156-21 Marine Propulsion Engine: The Definitive 115kW Power Solution for Commercial Vessels
The Weichai WP6C156-21 marine engine represents the pinnacle of medium-duty maritime engineering, delivering a calibrated 115kW (156HP) at a rated speed of 2100rpm. As a specialized 6 cylinder marine diesel engine, this model is meticulously designed to meet the rigorous demands of modern commercial vessel propulsion. Whether you are operating a heavy-duty marine propulsion engine in coastal waters or outfitting a fast-displacement hull, the WP6C156-21 diesel engine offers an exceptional balance of thermal efficiency, mechanical reliability, and structural durability.
At HekoPower, we do not just list equipment; as a premier global marine propulsion solution supplier, marine engine exporter, and authorized marine engine distributor, we provide end-to-end integration support. The WP6 Series marine diesel engine platform is a trusted industry workhorse, and the specific WP6C156-21 configuration stands out as an optimized variant for captains and fleet owners seeking an IMO II marine engine that refuses to compromise on torque or longevity.
Tech Specs of Weichai WP6C156-21
General Engine Data
Engine Model: Weichai WP6C156-21
Cylinder Count: 6 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 6.75 L
Bore * Stroke: 105×130 (mm)
Net weight: 750 kg
Overall Dimension: 1360×890×1054 (mm)
Key Performance Data
Rated Power: 115 kW / 156 HP
Rated Speed: 2100 RPM
Idle Speed: 650±30 RPM
Minimum fuel consumption rate: 212 g/kW·h
Oil consumption rate: ≤0.2 g/kW·h
More Technical Data
Certification: IMO Tier II
Aspiration: turbocharged and aftercooled
Starting system: Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: Mechanical pump
Power rating: P1
Noise: ≤98dB(A)
Technical Architecture and WP6C156-21 Specifications
To truly understand why the Weichai 156HP marine engine dominates its class, one must analyze its inner mechanical framework. This water cooled marine diesel engine relies on a heavily reinforced, cast-iron engine block configuration specifically treated to resist marine galvanic corrosion.
Advanced Aspiration and Fluid Dynamics
The turbocharged marine diesel engine design utilizes a fresh-and-raw water dual-circulation cooling system. An integrated heat exchanger ensures that internal block temperatures remain perfectly regulated even under continuous, wide-open-throttle conditions. By pairing this system with a specialized marine turbocharger and a high-efficiency intercooler, the engine optimizes air density within the combustion chambers. This results in cleaner burns, a reduction in thermal stress, and an impressive WP6C156-21 fuel consumption profile, averaging a minimum fuel consumption rate of ≤ 212 g/kW·h at full rated load.
Robust Mechanical Fuel Injection System
Unlike overly complex electronic common-rail setups that are prone to failure in harsh, humid saltwater environments, this unit relies on a highly dependable mechanical fuel injection marine engine architecture. The P-type mechanical inline injection pump ensures reliable fuel delivery even when handling varied qualities of marine diesel. This mechanical simplicity guarantees that the engine remains serviceable anywhere in the world, making it an ideal choice for a replacement marine diesel engine in remote ports.
Technical Comparisons: Why the WP6C156-21 Outperforms Competitors
When evaluating a 115kW marine propulsion engine, vessel owners often compare the Weichai boat engine line against alternative regional and global brands. Understanding these core engineering differences highlights why the Weichai platform offers a superior return on investment.
Inline 6-Cylinder vs. V-4 or V-6 Alternatives
Many alternative manufacturers attempt to reach the 156HP threshold using high-rpm V-4 or compressed V-6 engine architectures. The six cylinder marine engine design of the WP6C156-21 provides inherit primary and secondary mechanical balance. Because the cylinders are arranged inline, the firing intervals are perfectly spaced, resulting in significantly less vibrational harmonic transfer to the vessel’s hull. Lower vibration translates directly into reduced wear on engine mounts, shaft couplings, and onboard electronic systems.
Mechanical Integrity and Torque Reserves
Compared to competitors who push smaller 4-liter blocks to high RPMs to achieve 150+ horsepower, the WP6 series boasts a generous 6.75-liter total displacement with a 105mm bore and 130mm stroke. This larger displacement allows the Weichai 115kW marine engine to develop massive low-end torque without over-stressing structural internal components. With a torque reserve ranging from 20% to 35%, this engine responds instantaneously when accelerating through heavy head-seas, whereas downsized competitive engines often bog down or suffer thermal spikes.
Real-World Application Scenarios across Commercial Fleets
The 2100rpm marine diesel engine speed calibration of this model makes it incredibly versatile. It occupies the perfect sweet spot between high-speed patrol craft power and low-speed tugboat torque.
The Ultimate Marine Engine for Fishing Boats
For regional commercial fishing fleets, profitability depends entirely on reliability and speed. A marine engine for fishing boat use must be able to idle for hours while hauling lines or nets, and then immediately run at full capacity to bring the catch back to port before it spoils. The WP6C156-21 provides coastal trawlers and long-liners with the exact heavy-duty performance required to pull weighted nets against strong ocean currents without overheating.
Heavy-Duty Diesel Engine for Workboats and Barges
For inland logistics, river transport, and harbor maintenance, a diesel engine for workboat duties requires continuous power output. Operating under a P1 duty cycle, the WP6C156-21 can run continuously for unrestricted hours annually. This makes it an ideal commercial vessel propulsion engine for small cargo barges, push-boats, and utility workboats that demand non-stop service day in and day out.
Reliable Marine Engine for Patrol Boats and Passenger Ferries
Public service vessels require immediate throttle response and high operational availability. As a specialized marine engine for patrol boat operations, this engine offers rapid acceleration capabilities due to its high torque reserve. For regional passenger ferries, the exceptionally low noise profile (under ≤ 98 dB(A)) ensures passenger comfort while maintaining strict transit schedules across regional waterways.
Professional Maintenance, Lifespan Optimization, and Spare Parts Sourcing
As your committed Weichai marine engine supplier, HekoPower prioritizes the entire operational lifecycle of your machinery. Protecting your investment requires adherence to strict preventative maintenance schedules and the use of genuine components.
Routine Maintenance Protocols
To maximize the lifecycle of your Weichai marine diesel engine, operators should establish a rigid maintenance log anchored around the following intervals:
- Every 50 Hours: Inspect raw water pump impellers, check fluid levels, and bleed the primary water separator.
- Every 250 Hours: Replace engine lubrication oil (high-quality CF-4 or CH-4 15W-40 oil is strongly recommended) and swap out primary oil filters.
- Every 1000 Hours: Conduct valve clearance adjustments, clean the core heat exchanger tubes, and inspect the structural integrity of the turbocharger bearings.
Sourcing Genuine WP6C156-21 Spare Parts
Using aftermarket or non-marine grade components can cause catastrophic engine failure at sea. HekoPower maintains a massive inventory of WP6C156-21 spare parts and Weichai marine engine WP6C156-21 replacement parts to ensure your vessel experiences minimal downtime.
We provide fast global shipping on critical components, including:
- High-pressure mechanical fuel injectors and injection pumps.
- Specialized marine-grade cylinder head gaskets and liner seals.
- Fresh water pumps, raw water impellers, and replacement zinc anodes for sacrificial corrosion protection.
- Full WP6C156-21 technical data packages and component diagrams for onboard engineers.
Weichai 12WH17 series marine diesel engine, original products from Weichai. This series mainly includes 12WH17C1224-2, 12WH17C1360-2, 12WH17C1496-2, 12WH17C1564-5, 12WH17C1700-5, 12WH17C1836-5, 12WH17C1972-5, 12WH17C2203-5.
Frequently Asked Questions (FAQs)
Is the Weichai WP6C156-21 engine compliant with global emissions regulations?
Yes. The WP6C156-21 is fully certified as an IMO II marine engine (IMO Tier II compliant). It features optimized combustion bowl geometry and a precision injection timing system that significantly lowers nitrogen oxide (NOx) outputs, satisfying global environmental requirements for commercial maritime operations.
Can HekoPower provide official classification certificates for this engine?
Absolutely. As a top-tier China marine diesel engine manufacturer representative and exporter, HekoPower can supply this engine with a Weichai WP6C156-21 CCS certificate propulsion approval package. If your vessel operates under alternative classification societies, please contact our engineering department during the ordering process to arrange for equivalent certification inspection.
What is included in the standard WP6C156-21 technical data package from HekoPower?
When you purchase or inquire about the Weichai WP6C156-21 for sale through us, we provide a complete technical dossier. This includes detailed engine dimensional prints, fuel consumption curves across the entire RPM range, wiring schematics for the 24V electric start system, a comprehensive maintenance manual, and a Weichai 156HP marine diesel engine specs PDF document for shipyard installation reference.
How can I check the Weichai WP6C156-21 price and stock availability?
Because marine propulsion requirements vary wildly based on gearbox selections, cooling styles, and classification certificates, pricing is customized per project. To get an accurate, obligation-free quote on a Weichai WP6C156-21 price in stock, simply contact the HekoPower sales office via our website contact form or email. Our team will provide a comprehensive quote detailing current lead times, shipping logistical support, and bulk package discounts for fleet operators.
