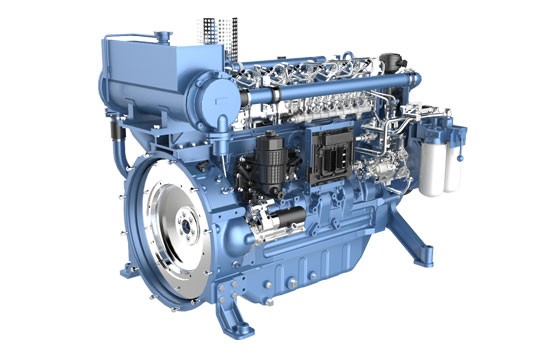

Weichai WP6C165-18E220 Marine Diesel Engine: High-Performance 165HP Common Rail Propulsion
The Weichai WP6C165-18E220 Marine Diesel Engine is a reliable and fuel-efficient marine propulsion solution developed for commercial and recreational vessels requiring dependable power output and long service life. Rated at 165HP (122kW) at 1800rpm, this electronically controlled common rail marine engine combines advanced fuel injection technology with Weichai's proven WP6 platform to deliver stable performance under demanding marine operating conditions.
As a member of the Weichai WP6 marine engine family, the WP6C165-18E220 is widely used in fishing boats, inland cargo vessels, patrol boats, tourist boats, passenger ferries, and workboats. Its 6.75L displacement, turbocharged aftercooled intake system, and water-cooled design contribute to excellent fuel economy, low emissions, and smooth power delivery. For vessel owners seeking an IMO II compliant marine engine with low operating costs and proven durability, the Weichai WP6C165-18E220 remains a highly competitive choice.
Tech Specs of Weichai WP6C165-18E220
General Engine Data
Engine Model: Weichai WP6C165-18E220
Cylinder Count: 6 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 6.75 L
Bore * Stroke: 105×130 (mm)
Net weight: 750 kg
Overall Dimension: 1360×890×1054 (mm)
Key Performance Data
Rated Power: 122 kW / 165 HP
Rated Speed: 1800 RPM
Idle Speed: 650±30 RPM
Minimum fuel consumption rate: 212 g/kW·h
Oil consumption rate: ≤0.2 g/kW·h
More Technical Data
Certification: IMO Tier II / China Stage II Inland Marine
Aspiration: turbocharged and aftercooled
Starting system: Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: HPCR
Power rating: P1
Noise: ≤98dB(A)
Advanced Engineering of the Weichai Electronic Common Rail Marine Engine
The engineering heart of this unit lies in its electronic fuel management. Traditional mechanical marine engines rely on fixed injection timing. This design restricts efficiency when operating outside of a narrow RPM band.
The Weichai common rail marine engine utilizes a high-pressure fuel rail controlled by an intelligent engine management system. This configuration dynamically adjusts injection pressure and timing based on real-time load variables.
Turbocharged Aftercooled Marine Diesel Engine Dynamics
Achieving a continuous 122kW rating from a 6.75L footprint requires efficient thermal management. The turbocharged aftercooled marine diesel engine configuration compresses incoming air, passing it through a dedicated seawater intercooler. This processes a higher oxygen density into the cylinders, yielding complete fuel combustion and minimizing unburned carbon deposits.
The water cooled marine propulsion engine design features a split-type dual-loop cooling system. Fresh water circulates through the cylinder block and heads to absorb internal heat, while a durable copper-alloy heat exchanger transfers that energy to passing seawater. This separate routing isolates sensitive internal metals from corrosive saltwater environments, preventing premature thermal stress and hot spots.
Technical Specs, Architecture, and Performance Insights
When analyzing the WP6C165-18E220 datasheet, the engine balance reflects deep-sea engineering priorities. The 105mm bore and 130mm stroke configuration delivers excellent low-end torque. This torque curve is crucial when a vessel fights heavy crosswinds or navigates shallow, fast-flowing riverbeds.
This 165hp 1800rpm common rail marine diesel engine weighs approximately 750 kg in dry configuration. The compact footprint allows smooth integration into tight engine compartments during repower projects. HekoPower provides direct access to the complete Weichai WP6C165-18E220 specifications and physical dimensional blueprints to streamline engineering calculations for your installation team.
Technical Comparisons: Electronic Common Rail vs. Mechanical Models
Procurement teams frequently evaluate the benefits of transitioning from legacy mechanical configurations to electronic platforms. The operational variations directly impact long-term fleet profitability.
Electronic Common Rail vs. Mechanical Marine Engine Systems
Mechanical injection systems use a camshaft-driven pump. This pump delivers less fuel pressure at lower engine speeds, occasionally producing black smoke during sudden acceleration.
The electronic common rail system maintains high injection pressures independent of engine speed. This precise atomization yields clean combustion from idle up to full throttle. It reduces visible exhaust, minimizes transom soot accumulation, and decreases fuel consumption during prolonged idling periods.
WP6C165-18E220 vs. WP6C150-15E220
The 150HP model operates at a lower rated speed of 1500rpm. This makes it suitable for steady auxiliary power generation or smaller displacement hulls. The WP6C165-18E220 provides a higher 1800rpm operating speed and an extra 15 horsepower. This combination delivers the added thrust needed for faster hull speeds and more responsive handling under load.
WP6C165-18E220 vs. WP6C185-21E220
The 185HP variant extends output further but requires an operating speed of 2100rpm. This higher speed profile often accelerates component wear in continuous, heavy-duty applications. The 165HP model operates at a conservative 1800rpm, finding an ideal middle ground that balances necessary power with structural longevity.
Real Application Scenarios Across Commercial Fleets
The unique torque curve and structural durability of this Weichai 165HP marine engine make it highly versatile for diverse commercial hull designs.
Marine Engine for Fishing Boats and Trawlers
A commercial fishing vessel diesel engine must operate reliably under contrasting load conditions. Trawlers require efficient fuel consumption while cruising to fishing grounds, followed by high torque outputs at low speeds when pulling heavy nets. The WP6C165-18E220 provides the necessary torque reserve, preventing engine lugging when winches and nets stress the powertrain.
Marine Propulsion Engine for Cargo Boats and Barges
Barges moving through inland waterways require consistent power for days at a time. This marine diesel engine for inland waterways maintains constant operational temperatures during long-distance river transits. The high fuel efficiency helps cargo operators protect their profit margins against volatile marine fuel pricing.
Passenger, Tourist, and Patrol Vessels
For passenger vessels and tourist boats, reducing noise, vibration, and harshness is essential for customer comfort. The rigid structural frame of this Weichai 6 cylinder marine engine minimizes vibration transfer through the hull.
For patrol boats and workboats, the electronic ECU provides quick throttle response, allowing operators to accelerate rapidly during intercept or rescue maneuvers.
Maintenance and Lifecycle Management
Protecting your marine asset requires sticking to standard service schedules. This proactive care ensures you achieve the engineered service life of this platform.
Weichai WP6 Series 12000 Hours Overhaul Engine Standards
The core structural assemblies of this engine are engineered to reach a 12,000-hour major overhaul milestone when properly maintained. Achieving this lifespan requires clean fuel, high-quality lubrication, and regular cooling system inspections. HekoPower supports fleet managers by supplying genuine overhaul kits, including original cylinder liners, pistons, and main bearings.
Weichai Marine Engine Duplex Fuel Filter Replacement Procedures
Fuel contamination from water or biological growth is a frequent challenge at sea. This engine includes a duplex fuel filter assembly to protect the sensitive high-pressure common rail system.
When a pressure drop indicates a clogged filter element, the operator turns the integrated directional valve to route fuel through the secondary clean filter loop. This design allows you to replace the dirty filter element safely while the engine continues running, maintaining propulsion and vessel safety.
Sourcing and Procurement with HekoPower
Finding a reliable China Weichai marine engine supplier involves more than comparing base equipment costs. Global transport logistics, warranty support, and component availability are critical factors for reducing fleet downtime.
As an experienced Weichai marine engine exporter, HekoPower provides transparent Weichai WP6C165-18E220 quotation options tailored to your destination port. Every engine we ship is verified as a genuine Weichai WP6C165-18E220 unit, complete with factory build certificates and official EIAPP emission documents. Our engineering team assists you with matching the correct transmission ratios and shaft configurations for your specific vessel repower or new build.
Weichai WP6 series marine diesel engine, original products from Weichai. This series mainly includes WP6C122-15, WP6C140-23, WP6C142-18, WP6C150-15, WP6C156-21, WP6C163-23, WP6C165-18, WP6C185-21, WP6C198-23, WP6C220-23, WP6C250-23, WP6C122-15E220, WP6C140-23E220, WP6C142-18E220, WP6C150-15E220, WP6C156-21E220, WP6C163-23E220, WP6C165-18E220, WP6C185-21E220, WP6C198-23E220, WP6C220-23E220, WP6C250-23E220.
Frequently Asked Questions
What exact emissions certification does this engine carry?
The model is fully IMO II compliant, making it legal for operation in international waters and jurisdictions adhering to IMO Tier II NOx emission limits.
Can I run this engine on standard commercial automotive diesel?
While optimized for marine gas oil, the common rail system operates reliably on standard ultra-low sulfur diesel, provided the fuel meets water content guidelines and passes through the filtration system.
How does HekoPower manage international warranty claims?
We handle warranty requests by verifying diagnostic data codes. We then expedite replacement components from our inventory to minimize your vessel's downtime in port.
Where can I check current Weichai WP6C165-18E220 price details?
Pricing depends on classification society certification rules and your required transmission options. Contact the HekoPower sales office directly for an individualized quote for your project.
