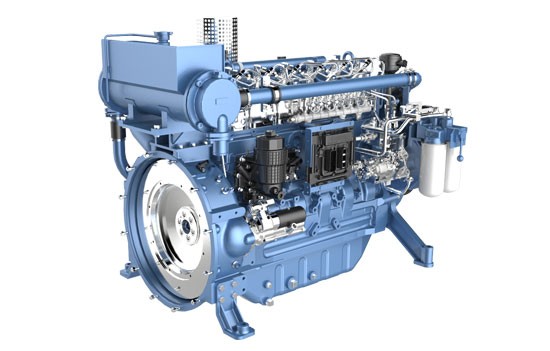

Weichai WP6C198-23 Marine Propulsion Engine: The Premium 200HP Marine Solution
As a premier global Weichai WP6C198-23 supplier and distributor, HekoPower delivers reliable, high-performance maritime propulsion units directly to shipbuilders, fleet operators, and commercial fishermen worldwide. The Weichai WP6C198-23 marine engine represents the pinnacle of compact, high-output engineering for mid-sized vessels. Developed from the field-tested WP6 platform, this WP6C198-23 marine diesel engine delivers a robust 198HP to 200HP at a rated speed of 2300 RPM. This makes it an ideal fit for operations that demand consistent torque, low downtime, and excellent thermal efficiency.
When you choose to buy a Weichai WP6C198-23 marine engine through HekoPower, you are investing in more than just factory iron. You are gaining a long-term engineering partner. We specialize in the complete configuration, packaging, and export of the Weichai marine propulsion engine series. Every unit we ship is optimized for the harsh realities of open-ocean and coastal operations. This guarantees your vessel stays on schedule and within budget.
Tech Specs of Weichai WP6C198-23
General Engine Data
Engine Model: Weichai WP6C198-23
Cylinder Count: 6 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 6.75 L
Bore * Stroke: 105×130 (mm)
Net weight: 750 kg
Overall Dimension: 1360×890×1054 (mm)
Key Performance Data
Rated Power: 145 kW / 198 HP
Rated Speed: 2300 RPM
Idle Speed: 650±30 RPM
Minimum fuel consumption rate: 212 g/kW·h
Oil consumption rate: ≤0.2 g/kW·h
More Technical Data
Certification: IMO Tier II
Aspiration: turbocharged and aftercooled
Starting system: Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: Mechanical pump
Power rating: P1
Noise: ≤98dB(A)
Engineering Comparison: Choosing the Right WP6 Variation
A frequent challenge for fleet procurement managers is navigating the Weichai marine engine comparison matrix. Choosing the wrong power profile can result in an underpowered vessel or unnecessary fuel overhead.
WP6C198-23 vs WP6C185-21
The WP6C185-21 is a legacy model built on an older platform. It delivers 185HP at a lower rated speed. The modern WP6C198-23 offers key structural upgrades, including a reinforced cylinder block and improved turbocharger efficiency. This allows it to safely deliver 200HP at 2300 RPM. This higher RPM capability makes the -23 model far better suited for planing and semi-displacement hulls that require quick acceleration and responsive throttle control.
WP6C198-23 vs WP6C220-23
While both models share the same 6.75L displacement block and basic architecture, the difference lies in their fuel system calibration and duty cycle ratings. The WP6C220-23 pushes output up to 220HP, making it ideal for light-duty or intermittent speed requirements. For continuous, round-the-clock commercial operations, the WP6C198-23 is often considered the best 200hp marine diesel engine. It balances performance and longevity by maintaining lower internal thermal stress during long voyages.
Real Application Scenarios: Where the WP6C198-23 Commands the Water
The versatility of the WP6C198-23 boat engine makes it a trusted choice across several commercial marine applications worldwide.
Commercial Fishing Vessels and Trawlers
For crews operating a Weichai marine engine for a trawler or a 198HP marine diesel for a fishing vessel, reliability is a safety requirement. The WP6C198-23 is widely used as a primary propulsion engine for coastal fishing boats. It can handle hours of low-speed idling while hauling nets, and still deliver full power when returning to port with a heavy catch.
Workboats and Coastal Cargo Barges
Operating a Weichai WP6C198-23 for a workboat or within a commercial fishing boat diesel engine configuration provides excellent low-speed maneuvering control. It is perfectly suited for small passenger ferries, supply vessels, and utility craft navigating river systems and coastal waterways.
The Power Team: Weichai WP6 Series Engine with 120C Gearbox
To extract maximum efficiency from your propulsion system, HekoPower offers pre-aligned power packages. Pairing a Weichai WP6 series engine with a 120C gearbox creates an incredibly reliable drivetrain. The Advance 120C marine gearbox perfectly handles the torque curve of the WP6C198-23, providing smooth gear engagement and long-term transmission reliability.
Maintenance Guide, Troubleshooting, and Spare Parts Support
To maximize your equipment life and protect your investment, your crew should follow a structured Weichai WP6C198-23 maintenance guide. Regular upkeep minimizes wear and avoids costly emergency repairs.
Weichai Marine Engine Service Intervals
- Daily / Pre-Start Check: Check oil levels, coolant levels, and inspect for leaks.
- Every 250 Hours: Replace engine oil and change primary fuel filter elements.
- Every 500 Hours: Inspect the seawater pump impeller and clean the air filter assembly.
- Every 1000 Hours: Adjust valve clearances and clean the tube bundle inside the heat exchanger.
- Weichai WP6C198-23 Overhaul Schedule: Major top-end inspections are typically scheduled between 6,000 to 8,000 operational hours, depending on fuel quality and duty cycle severity.
Common WP6C198-23 Troubleshooting Tips
If you encounter a drop in engine RPM, first inspect your fuel lines for air bubbles or water contamination. Sudden black smoke under heavy loads often points to a restricted air intake or a fouled turbocharger compressor wheel. If your engine is running hot, check the zinc anodes in the raw water cooling loop and clear any marine growth from the sea strainer.
Sourcing Genuine WP6C198-23 Spare Parts
Using generic components can compromise your engine's reliability and void your certifications. HekoPower makes it easy to buy genuine Weichai WP6C198 marine parts. From overhaul gasket sets and fuel injectors to cylinder liners and water pumps, we maintain a comprehensive inventory of WP6C198-23 spare parts ready for fast international dispatch.
Weichai 12WH17 series marine diesel engine, original products from Weichai. This series mainly includes 12WH17C1224-2, 12WH17C1360-2, 12WH17C1496-2, 12WH17C1564-5, 12WH17C1700-5, 12WH17C1836-5, 12WH17C1972-5, 12WH17C2203-5.
Frequently Asked Questions Regarding the WP6C198-23
What is the typical Weichai WP6C198-23 price?
The total Weichai WP6C198-23 price varies based on your required configuration, such as your choice of a mechanical or common rail fuel system, matching gearbox options (like the Advance 120C), instrumentation dashboard packages, and classification certificates. Contact the HekoPower sales team today for a tailored quote.
Is this engine fully legal for international commercial operation?
Yes, this model is built as an IMO Tier II compliant 6 cylinder marine engine and carries official CCS (China Classification Society) type approval. This ensures it meets international safety and emissions standards for commercial vessels operating worldwide.
Why choose HekoPower over an automated B2B listing site?
When you source a Weichai WP6C198-23 for sale through generic trading platforms, you often lose technical support. HekoPower manages the entire engineering process. We verify your technical specifications, arrange secure sea freight packaging, and provide long-term spare parts support. This specialized care ensures your engine arrives ready to install and perform.
