Weichai WP6C150-15 Marine Propulsion Engine: The Definitive Guide for Commercial Vessel Operators

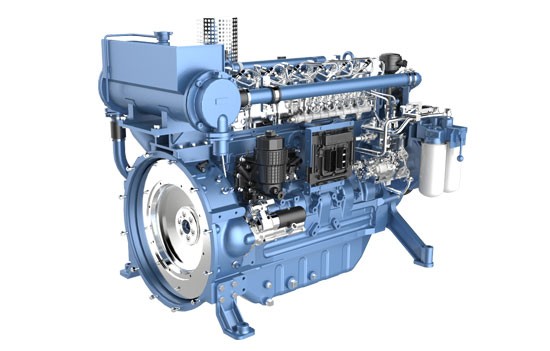

Finding a balance between low operational overhead and uncompromising torque is the primary challenge when selecting a main power unit for commercial workboats. As a trusted international Weichai marine engine dealer and exporter, HekoPower introduces the Weichai WP6C150-15 Marine Engine—a robust, heavy-duty 6 cylinder marine diesel engine purpose-built to deliver continuous, unyielding performance in the demanding maritime commercial sector.
Operating at an optimized 1500RPM marine diesel engine profile, this Weichai 110kW marine engine (Weichai 150HP marine engine) represents the pinnacle of medium-displacement propulsion engineering. It is structurally configured for applications where total system reliability directly impacts seasonal profitability.
Tech Specs of Weichai WP6C150-15
General Engine Data
Engine Model: Weichai WP6C150-15
Cylinder Count: 6 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 6.75 L
Bore * Stroke: 105×130 (mm)
Net weight: 750 kg
Overall Dimension: 1360×890×1054 (mm)
Key Performance Data
Rated Power: 110 kW / 150 HP
Rated Speed: 1500 RPM
Idle Speed: 650±30 RPM
Minimum fuel consumption rate: 212 g/kW·h
Oil consumption rate: ≤0.2 g/kW·h
More Technical Data
Certification: IMO Tier II
Aspiration: turbocharged and aftercooled
Starting system: Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: Mechanical pump
Power rating: P1
Noise: ≤98dB(A)
In-Depth Technical Comparison: Weichai WP6C150-15 vs. Cummins Marine Engines
When assessing a commercial marine engine replacement, fleet buyers frequently compare the Weichai WP6C150-15 vs Cummins marine engine equivalents (such as the 6BT5.9 or 6BTA5.9-M series). While both represent competitive mechanical-injection configurations, key structural and operational divergences illustrate why the Weichai platform stands out as a best 150HP marine diesel engine choice for heavy displacement applications.
Displacement Advantage and Speed-Matching
The most glaring difference lies in the displacement-to-RPM relationship. The Weichai WP6C150-15 offers a 6.75-liter block operating as a 1500rpm low speed marine diesel engine. Conversely, common 5.9L alternative platforms must spin up to 2200 RPM or higher to achieve an equivalent 150HP rating.
Operating at 1500 RPM yields a lower piston linear speed. This translates directly to less friction, lower heat generation, and a reduced wear rate on key sealing rings and liner paths.
Fuel Delivery and Mechanical Resiliency
Both manufacturers use mechanical injection components, but Weichai fits the WP6C150-15 with an heavy-duty P-type in-line injection pump. This configuration tolerates wide variations in marine diesel fuel quality and viscosity far better than rotary distributor pumps. For vessels operating in remote regions where fuel filtration standards at regional docks may be inconsistent, Weichai’s mechanical system offers superior operational tolerance.
Thermal Load Distribution
The WP6C150-15 features a split or modular cooling framework layout. Its water-jacketed exhaust manifold prevents high thermal radiation from building up inside enclosed, poorly ventilated workboat engine rooms. The larger physical volume of the Weichai block ensures that localized hot spots are virtually eliminated, extending structural valve life far beyond the tighter, smaller-displacement blocks of competing lines.
Real-World Application Scenarios: Delivering Pure P1 Continuous Duty
The operational classification of the WP6C150-15 Marine Propulsion Engine is officially designated as a continuous duty marine diesel engine (P1 Rating). This means the machine is engineered to work uninterrupted at 100% full load for unrestricted hours per year. This makes it an ideal fit across several heavy-displacement hull architectures:
Weichai WP6C150-15 for Fishing Boats and Trawlers
In the commercial fishing sector, a reliable fishing boat diesel engine is essential for crew safety and operational success. Whether configuring a Weichai WP6C150-15 for fishing boats or setting up a 150HP marine diesel engine for trawlers, the low-speed torque profile excels at dragging heavy nets without dragging down engine RPMs.
During long-line fishing or bottom-trawling operations, the boat needs consistent, low-speed pulling power. The high torque reserve of the WP6C150-15 allows it to handle sudden net resistance or heavy crosscurrents without stalling or requiring a downshift via the marine gearbox.
Marine Propulsion Engine for Transport Boats and Inland River Vessels
For freight transport along domestic and inland waterways, a marine engine for inland river vessels faces distinct challenges. Transport barges must push or tow thousands of tons against variable, strong river currents.
The marine propulsion engine for transport boats configuration provides the steady, non-stop propulsion required for long multi-day river journeys. Because the engine runs efficiently at a steady 1500RPM, it avoids the rapid cyclic thermal fatigue that impacts short-haul vessel setups, guaranteeing predictable travel schedules.
Weichai WP6C150-15 for Workboats, Tugs, and Passenger Boats
Harbor workboats, small tugs, and regional ferries demand a power plant capable of handling thousands of hours of service annually. As a marine engine for passenger boats, the WP6C150-15 offers smooth operation with minimal structural cabin vibration due to its balanced in-line 6 cylinder firing sequence (1-5-3-6-2-4). For fleet managers investing in a Weichai WP6C150-15 for workboats, this means reduced maintenance overhead and an asset that delivers a reliable return on investment over a long service life.
Maintenance Protocols, Lifecycle Optimization, and Replacement Tips
Maximizing the WP6C150-15 overhaul interval and service life requires strict adherence to planned preventative maintenance schedules. Because marine applications subject engines to damp, corrosive, and high-load environments, small component oversight can cause issues down the line.
Maintaining the Fuel System to Prevent Frictional Damage
The primary cause of premature mechanical injector failure is water contamination or particulate debris in marine fuel. The WP6C150-15 addresses this by integrating a high-performance duplex fuel filter marine engine 1500rpm setup.
- Hot-Swap Capability: The duplex design features a dual-chamber configuration with an integrated control valve. This allows an engineer to isolate and replace a clogged filter element on one side while the engine continues running on the other.
- Daily Inspections: Check the water-separator bowl daily before starting the engine. Drain accumulated condensation immediately to prevent water tracking from pitting the precision-ground plunger tips inside the injection pump.
Managing the Cooling System and Sacrificial Zinc Anodes
The engine relies on an expansion-tank-based heat exchanger cooling design. Raw seawater is drawn via a self-priming pump to cool the internal fresh jacket water circuit.
- Zinc Anode Auditing: Sacrificial zinc anodes are screwed directly into the raw-water side of the heat exchanger core. Inspect these anodes every 250 operating hours. Replace them once they have corroded past 50% volume to protect the copper-alloy cooling tubes from galvanic degradation.
- Impeller Life: Inspect the rubber impeller of the seawater pump every 500 hours. A brittle or chipped impeller blade can cause a drop in raw-water flow, triggering an engine overheat event under full load.
Understanding the WP6C150-15 Overhaul Intervals
Under standard operating conditions with verified oil changes every 250 hours (using high-quality marine-grade CF-4 or CH-4 lubricants), the WP6C150-15 delivers a major overhaul interval and service life of 10,000 to 12,000 operating hours.
When reaching a mid-life milestone (around 5,000 to 6,000 hours), execute a top-end service review: pull the cylinder heads, clean carbon deposits from the valves, and replace the injector nozzles to ensure the WP6C150-15 fuel consumption rate per hour stays within factory baselines.
Sourcing via HekoPower: Your Trusted China Marine Diesel Engine Manufacturer Partner
Navigating global engine logistics requires clear technical oversight and reliable supply lines. As an experienced Weichai WP6C150-15 supplier and exporter, HekoPower handles the distribution process from factory inspection to secure international transport.
Whether you are an individual vessel owner seeking a single WP6C150-15 for sale to handle an immediate commercial marine engine replacement, or a commercial shipyard coordinating a multi-vessel build program, HekoPower provides verified, original equipment backed by comprehensive warranty coverage.
Why Partner with HekoPower?
- Direct Factory Coordination: We supply genuine Weichai products complete with valid EIAPP certification documents and authentic factory serial numbers.
- Technical Integration Assistance: Our engineers help match your Weichai WP6C150-15 Marine Engine to the proper torsional vibration dampers, marine gearboxes, and remote bridge control systems.
- Global Spare Parts Logistics: We provide long-term maintenance support, stocking everything from the essential duplex fuel filter lines to complete cylinder liner overhaul kits.
Contact HekoPower today to access the official Weichai WP6C150-15 datasheet, review regional Weichai WP6C150-15 price and availability, or request a detailed cost quotation for your next vessel build.
Weichai 12WH17 series marine diesel engine, original products from Weichai. This series mainly includes 12WH17C1224-2, 12WH17C1360-2, 12WH17C1496-2, 12WH17C1564-5, 12WH17C1700-5, 12WH17C1836-5, 12WH17C1972-5, 12WH17C2203-5.
Frequently Asked Questions (FAQ)
Q1: What is the exact WP6C150-15 fuel consumption rate per hour under full load?
A: The minimum specific fuel consumption rate of the Weichai WP6C150-15 is ≤ 212 g/kW·h. In practical terms, when operating at its full continuous Weichai marine engine 110kW output at 1500 RPM, it consumes approximately 27 to 29 liters of fuel per hour, depending on fuel quality and ambient intake air temperatures.
Q2: What are the exact physical WP6C150-15 dimensions and weight for engine room planning?
A: The base engine dimensions typically measure approximately 1320 mm (length) × 780 mm (width) × 1120 mm (height). The dry net mass sits at roughly 750 kg, though the final footprint and weight can vary slightly based on the selected marine reverse reduction gearbox (e.g., Advance Hangzhou or Fada brands) and matching flywheels. Contact HekoPower to request the precise Weichai WP6C150-15 datasheet drawings for hull configuration.
Q3: Does the WP6C150-15 comply with international emission requirements for European or US waters?
A: The engine is an internationally certified IMO Tier II certified 150hp marine engine. This confirms it meets global maritime standards for NOx emissions limits on the open ocean and across international ports. Check your specific local or inland river regulatory frameworks regarding regional environmental zones before purchase.
Q4: How can I request an accurate Weichai marine engine quotation and check availability?
A: As a dedicated Weichai marine engine distributor, HekoPower coordinates directly with the factory to provide competitive pricing and flexible logistics. To secure a tailored Weichai marine engine quotation, contact our sales desk with your required gearbox reduction ratio, vessel type, and target delivery port. We provide complete technical packages, including matching control panels and spare parts kits.
