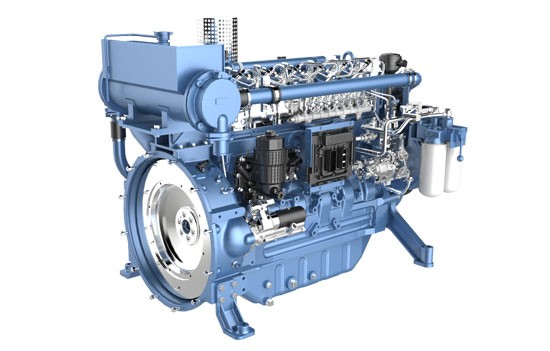

Reliable Marine Propulsion: The Weichai WP6C142-18E220 Marine Diesel Engine
Navigating commercial waters demands an inboard powertrain that combines relentless durability, fuel efficiency, and strict regulatory compliance. The Weichai WP6C142-18E220 marine engine stands as a premier choice for global maritime operators. Delivering a robust 142HP (105kW) at 1800rpm, this 6-cylinder, water-cooled marine engine is engineered specifically for heavy-duty marine propulsion.
Whether you operate a commercial fishing boat, a coastal transport vessel, or a passenger ferry, this Weichai WP6 Series P1 Duty Engine offers the high torque reserve and mechanical reliability needed to handle unpredictable open waters. As an authorized Weichai marine engine distributor, HekoPower provides global access to genuine Weichai propulsion systems, comprehensive technical documentation, and factory-backed support.
Tech Specs of Weichai WP6C142-18E220
General Engine Data
Engine Model: Weichai WP6C142-18E220
Cylinder Count: 6 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 6.75 L
Bore * Stroke: 105×130 (mm)
Net weight: 750 kg
Overall Dimension: 1360×890×1054 (mm)
Key Performance Data
Rated Power: 105 kW / 142 HP
Rated Speed: 1800 RPM
Idle Speed: 650±30 RPM
Minimum fuel consumption rate: 212 g/kW·h
Oil consumption rate: ≤0.2 g/kW·h
More Technical Data
Certification: IMO Tier II / China Stage II Inland Marine
Aspiration: turbocharged and aftercooled
Starting system: Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: HPCR
Power rating: P1
Noise: ≤98dB(A)
Fuel Injection Flexibility: Common Rail vs. Mechanical Pump
Depending on your operational environment and regional regulations, HekoPower supplies different variants of the WP6 platform. The Weichai common rail marine diesel engine variation utilizes an electronic fuel injection marine engine system. This setup precisely manages injection timing and fuel pressure, resulting in exceptionally quiet operation, minimal smoke, and optimized Weichai WP6C142-18E220 fuel consumption curves.
For regions requiring straightforward, field-serviceable systems without complex electronics, the Weichai WP6 mechanical pump diesel engine specs offer a highly reliable alternative. This mechanical setup remains a favorite among operators in remote coastal regions where basic tools and standard mechanical skills are preferred for field servicing.
Technical Comparison: Evaluating the WP6 Series in the Market
Choosing the right propulsion system requires looking beyond simple power figures. The Weichai 105kW marine propulsion engine holds distinct advantages over competing options in the 130 to 150 horsepower category.
Power Density and Operating RPM
Many competing engines achieve their rated power by running at 2100 to 2400 RPM. In contrast, this 1800rpm marine diesel engine delivers its full 142HP at a much lower rotational speed. Lower operating speeds directly translate to less internal component friction and reduced heat generation. Over years of service, this slower operation extends the overall time between major overhauls. It also allows the vessel to run a larger, more efficient propeller with an optimized gearbox reduction ratio.
Emissions and Environmental Compliance
Operating a commercial vessel today means adhering to strict international pollution standards. The Weichai IMO II marine engine design incorporates localized cooling design changes and optimized combustion bowls to reduce nitrogen oxide output. This makes it an officially certified IMO II compliant marine diesel engine, ensuring your vessel meets port state control audits without requiring expensive, secondary exhaust after-treatment systems.
Real-World Applications: Where the WP6 Series Excels
The Weichai WP6 series marine engine is a versatile powertrain found across diverse maritime industries worldwide.
Commercial Fishing Boat Diesel Engine Deployment
For operators managing a Weichai 6 cylinder engine for fishing ship, reliability translates directly into daily profitability. Fishing vessels require an engine capable of running for days at a time without shutting down. The 105kW marine diesel engine for fishing boat configuration is ideal for pulling heavy trawls, powering on-board hydraulic winches, and maintaining steady transit speeds back to port with a full hold. The predictable fuel burn allows captains to map out longer trips with absolute confidence.
Marine Diesel Engine for Workboats and Tugs
Workboats operating near ports and coastal infrastructures require high low-end torque for pushing and towing barges. The Weichai WP6 series P1 duty engine rating means it is built for continuous, uninterrupted operation at 100% load. The rugged cast-iron engine block and wet cylinder liners resist structural fatigue under these severe, continuous-load profiles.
Propulsion Engine for Passenger Boats and Coastal Transport
Passenger ferries and a marine engine for coastal transport vessels demand clean, dependable, and quiet operation. Utilizing the electronic fuel injection marine engine version ensures minimal visible exhaust smoke and keeps emissions within regulatory limits during harbor docking and passenger boarding. The reduced vibration profile also significantly improves passenger comfort during long transits.
Maintenance, Installation, and Overhaul Guidelines
Proper installation and preventive maintenance protect your investment and extend the operational life of your Weichai 105kW inboard diesel.
Space Planning and Engine Bed Alignment
When you buy Weichai WP6 series marine engine from distributor networks like HekoPower, proper installation planning is your first step toward success. Ensure the structural engine beds are perfectly aligned with the propeller shaft to prevent premature bearing wear. Maintain a minimum clearance around the oil filter, fuel filters, and seawater pump to simplify routine maintenance access. Proper ventilation must also be verified so that the turbocharged aftercooled marine engine receives a continuous supply of cool ambient air.
Routine Maintenance Practices
To ensure long-term reliability and keep fuel consumption optimized, adhere to a strict maintenance framework. Check engine oil levels and inspect the raw water sea strainer for debris daily. Replace engine oil and filters every 250 operating hours, and closely inspect the sacrificial zinc anodes inside the heat exchanger. These anodes protect internal cooling passages from destructive galvanic corrosion and must be replaced when half consumed. Every 1000 hours, clean the air filter element, inspect the turbocharger compressor wheel, and verify valve clearances according to the original WP6C142-18E220 specification sheets.
Sourcing Genuine Components
Using non-genuine or low-quality filters and internal components can lead to premature component failure and void your factory warranty. Always source your replacement components directly through an authorized Weichai marine engine distributor like HekoPower to guarantee component compatibility, proper micron filtration levels, and long-term reliability.
Strategic Sourcing and Logistics with HekoPower
Purchasing a commercial marine powertrain requires careful technical evaluation and dependable after-sales logistics. As a specialized Weichai marine diesel engine supplier, HekoPower simplifies the entire sourcing process.
We supply genuine Weichai WP6C142-18E220 marine engine units complete with original factory testing certificates and unique serial numbers. Our technical team helps calculate the correct gear ratios, specifies compatible torsional couplings, and ensures your propulsion system aligns with your vessel's operational profile.
We understand how critical it is to minimize vessel downtime during an engine failure or shipyard refit. HekoPower coordinates efficient international freight shipping, handles customs documentation, and uses robust packaging to deliver your engine safely to your shipyard. Contact our sales team today to receive a comprehensive breakdown of the Weichai IMO Tier II propulsion system cost and the current Weichai WP6C142-18E220 price.
Weichai WP6 series marine diesel engine, original products from Weichai. This series mainly includes WP6C122-15, WP6C140-23, WP6C142-18, WP6C150-15, WP6C156-21, WP6C163-23, WP6C165-18, WP6C185-21, WP6C198-23, WP6C220-23, WP6C250-23, WP6C122-15E220, WP6C140-23E220, WP6C142-18E220, WP6C150-15E220, WP6C156-21E220, WP6C163-23E220, WP6C165-18E220, WP6C185-21E220, WP6C198-23E220, WP6C220-23E220, WP6C250-23E220.
Frequently Asked Questions (FAQs)
What is the exact fuel consumption rate for the Weichai WP6C142-18E220?
The Weichai WP6C142-18E220 fuel consumption varies depending on operating loads and prop matching. At its optimal cruising speed, typically around 1500 to 1600 RPM, the engine achieves excellent fuel economy, averaging around 195 to 205 g/kWh. This efficiency significantly lowers total operating costs during long journeys.
Does this engine comply with international maritime emission laws?
Yes, this model is built as a Weichai IMO II marine engine, making it fully compliant with IMO Tier II marine emission standards. It features optimized combustion chambers and injection timing to keep emission levels within legal limits for international commercial operation.
Can I replace an older mechanical marine engine with this common rail version?
Yes, you can buy Weichai WP6C142-18E220 marine engine configurations to upgrade older, less efficient propulsion systems. The electronic common rail variant provides better fuel efficiency and lower emissions, though it requires incorporating a standard electronic wiring loom and digital display panel during retrofitting. Alternatively, the mechanical pump version remains available for simpler, direct drop-in retrofits.
What does the P1 Duty rating signify for the Weichai WP6 series?
The Weichai WP6 series P1 duty engine rating signifies that the engine is certified for continuous, uninterrupted operation at full rated power without requiring periodic throttle reduction. This rating is essential for commercial vessels like trawlers, tugs, and deep-sea cargo ships that run continuously for extended periods.
How can I request a quote or find a dependable Weichai WP6C142-18E220 supplier?
You can easily request a quote through HekoPower, your dedicated Weichai marine engine distributor. Use our contact form to provide your vessel details, and our marine engineering team will deliver a customized quote covering engine specifications, optional equipment, and global shipping options.
