DCEC Cummins 6BTAA5.9-C180 Replacement Engine Assembly

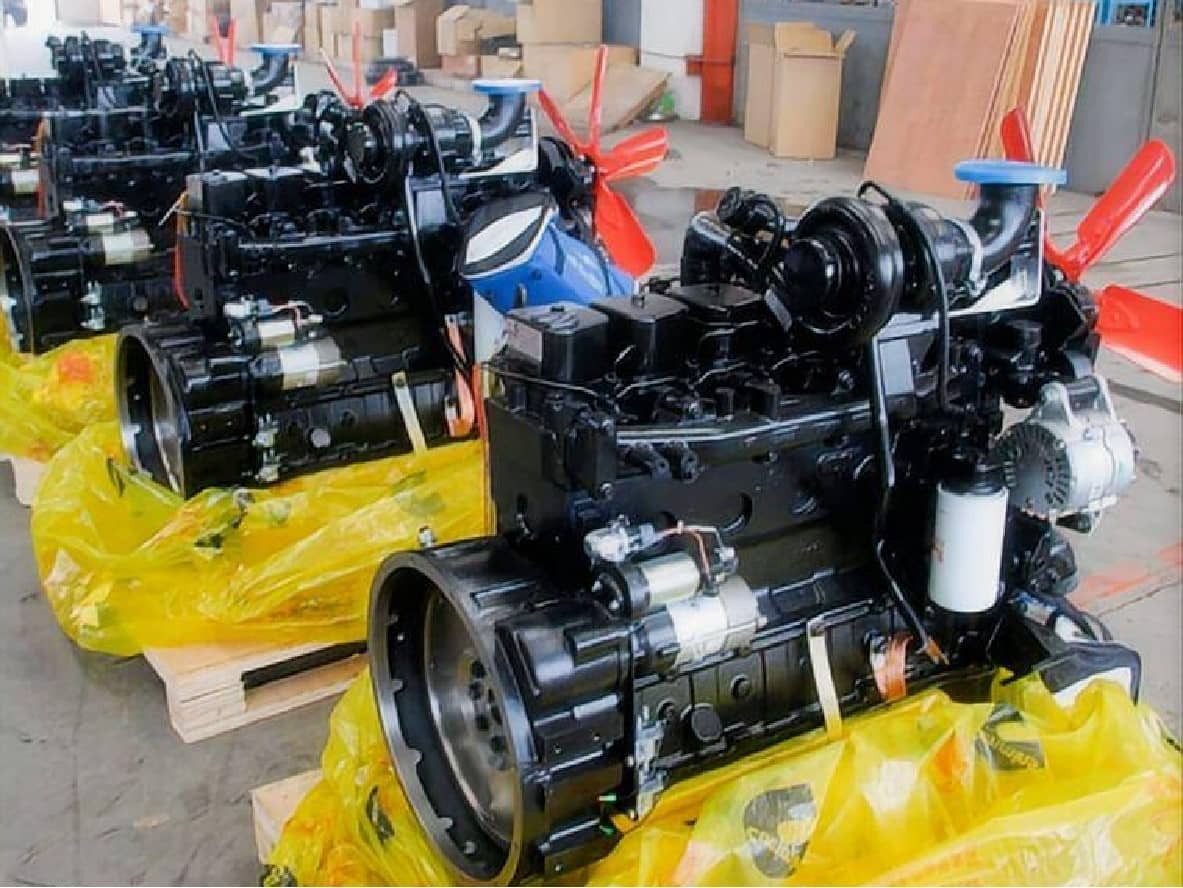

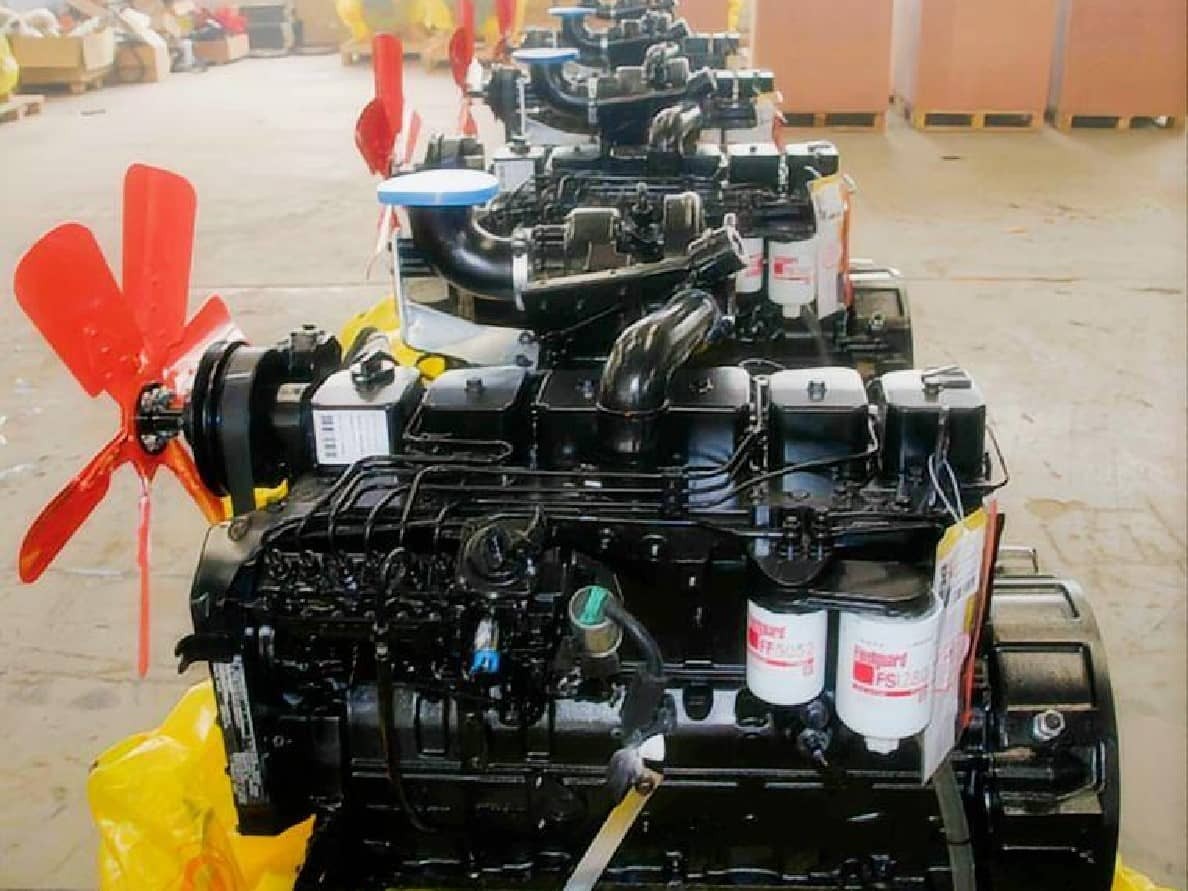

The DCEC Cummins 6BTAA5.9-C180 is a highly durable 5.9L six-cylinder diesel engine engineered specifically for heavy-duty industrial and off-highway applications. Delivering a robust rated power and speed of 132kW (180 HP) at 2000 RPM, this mechanical injection engine is widely recognized for its straightforward architecture and exceptional reliability in harsh operating environments. As a trusted supplier, HekoPower provides the complete Cummins 6BTAA5.9-C180 engine assembly with the fuel injection pump, turbocharger, and cooling components fully integrated, ensuring a drop-in solution for equipment repowering projects.
Tech Specs of Cummins 6BTAA5.9-C180
General Engine Data
Engine Model: Cummins 6BTAA5.9-C180
Type: 6 Cylinders in Line
Displacement: 5.9 L
Bore * Stroke: 102 * 120
Overall Dimension: 1100mm*750mm*988mm
Net Weight (with flywheel & alternator): 443 Kg
Key Performance Data
Rated Power: 132 kW/180HP
Rated Speed: 2000 rpm
Max Torque/Speed: 770 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 210 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged-Intercooled
Fuel System: Weifu P7100 Pump/ RSV Govenor
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 10.4 L
Real Application Scenarios for the 180 HP Node
Understanding the specific applications for this 132kW 180HP Cummins construction diesel engine is crucial for equipment managers. Unlike lower horsepower variants in the B-series, the C180 is calibrated for machinery that requires sustained high torque under heavy parasitic loads.
Powering 20-Ton Excavators and Earthmoving Equipment
One of the most common applications for the Cummins 6BTAA5.9-C180 engine is for 20-ton excavators and medium-sized wheel loaders. In these earthmoving applications, equipment operators demand rapid throttle response and a flat torque curve to prevent the engine from stalling when digging into compacted soil or lifting maximum payload capacities. The C180 provides ample breakout force while keeping thermal loads manageable within the confined engine compartments of tracked excavators. If you are looking for a DCEC 6BTAA5.9-C180 replacement engine for construction machinery, matching the hydraulic pump drive configuration to this specific 180 HP output is vital for maintaining original factory cycle times.
Industrial Water Pump and Compressor Drives
Beyond earthmoving, the 6BTAA5.9-C180 industrial water pump drive engine configuration is highly sought after for agricultural irrigation, mine dewatering, and high-capacity air compressors. In these continuous-duty scenarios, the engine operates at a fixed RPM for extended durations. The robust design of the Dongfeng Cummins 6BTAA5.9 series motor ensures consistent power delivery without the derating issues often seen in lighter-duty engines operating under continuous hydraulic or mechanical load.
Technical Comparisons: 6BTA5.9 vs. 6BTAA5.9
A frequent point of confusion during procurement is understanding the difference between the Cummins 6BTA5.9-C180 and the 6BTAA5.9-C180. While both share the same 5.9-liter displacement block, the difference lies in the charge air cooling system.
The standard 6BTA utilizes a jacket-water aftercooler, which relies on the engine's standard coolant loop to reduce the temperature of the compressed air coming from the turbocharger. The 6BTAA5.9-C180 utilizes an advanced Air-to-Air (the double "A") intercooling system. By routing the compressed intake air through a dedicated heat exchanger positioned in front of the radiator, the engine achieves significantly lower intake manifold temperatures. This denser, cooler air allows for a more efficient fuel burn, resulting in improved Cummins 6BTAA5.9-C180 torque and fuel consumption metrics, reduced exhaust emissions, and lower overall thermal stress on the cylinder head and piston crowns.
A common misconception in the market is that modern electronic engines are always superior to mechanical configurations. However, the 6BTAA5.9-C180 mechanical injection engine remains the preferred choice for remote construction sites and export markets. Without complex Electronic Control Modules (ECMs) or delicate common-rail wiring harnesses, this engine is immune to electrical fault codes that can paralyze a machine in the field. It also possesses a much higher tolerance for lower-quality or high-sulfur diesel fuel, making it an incredibly resilient powerplant.
Installation Dimensions and Replacement Compatibility
When preparing to replace a Cummins 6BTAA5.9-C180 industrial engine, mechanical engineers must verify several dimensional and mounting parameters to ensure a smooth installation. The Cummins 6BTAA5.9-C180 installation dimensions and footprint are generally standardized, but specific machine chassis may require minor adaptations.
First, mechanics must perform a strict Cummins 6BTAA5.9-C180 engine replacement compatibility check regarding the oil pan configuration. Depending on the machine, you may require a front-sump, center-sump, or rear-sump oil pan to clear the front axle or hydraulic manifolds. Furthermore, the Cummins 6BTAA5.9-C180 flywheel housing and mounting compatibility must be confirmed. Most industrial variants utilize an SAE 2 or SAE 3 flywheel housing, but the specific bolt pattern and ring gear must match your existing hydraulic pump drive or transmission torque converter.
Another critical DCEC 6BTAA5.9-C180 engine installation requirement involves the injection system. Buyers must ensure the Cummins 6BTAA5.9-C180 injection pump and governor setup matches their throttle linkage. The highly regarded 6BTAA5.9-C180 BYC P7100 fuel pump specs offer a rugged, inline plunger design that delivers precise fuel metering. Mechanical governors attached to these pumps can be set for either variable speed (for excavators and wheel loaders) or constant speed (for water pumps and generators), so confirming the governor type prior to ordering is essential.
Maintenance and Service Lifespan Strategies
To maximize the lifespan of your 5.9L Cummins mechanical diesel engine for construction equipment, adherence to a strict maintenance protocol is non-negotiable.
Understanding the Cummins 6BTAA5.9-C180 fuel consumption curve is the first step in preventative maintenance. Operating the engine consistently outside of its peak torque band will lead to increased fuel burn and premature wear. Mechanics should regularly inspect the air-to-air intercooler piping for leaks; even a minor boost leak will cause the engine to run rich, resulting in black exhaust smoke, elevated exhaust gas temperatures, and increased piston wear.
Routine maintenance should include strict 250-hour oil and filter change intervals using high-quality diesel engine oil designed to handle mechanical soot loading. Additionally, because this is a mechanical pushrod engine, checking and adjusting the valve lash clearance every 1,000 operating hours is critical to maintaining optimal volumetric efficiency and preventing valve seat degradation.
Navigating the Dongfeng Cummins B-Series Portfolio
When working with a professional DCEC 6BTAA5.9-C180 wholesale engine supplier, procurement teams often evaluate multiple power ratings to ensure they are purchasing the exact engine for their chassis weight and hydraulic demands. While the 180HP configuration is ideal for 20-ton machines, lighter or heavier equipment may require a different configuration within the same engine family.
Cummins B5.9-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6BT5.9-C115, 6BT5.9-C120, 6BT5.9-C125, 6BT5.9-C130, 6BT5.9-C135, 6BT5.9-C145, 6BT5.9-C150, 6BTA5.9-C125, 6BTA5.9-C130, 6BTA5.9-C150, 6BTA5.9-C155, 6BTA5.9-C170, 6BTA5.9-C175, 6BTA5.9-C180, 6BTAA5.9-C130, 6BTAA5.9-C150, 6BTAA5.9-C160, 6BTAA5.9-C180, 6BTAA5.9-C190, 6BTAA5.9-C195, 6BTAA5.9-C205.
Frequently Asked Questions
How to identify a genuine DCEC 6BTAA5.9-C180 engine?
Identifying a genuine Dongfeng Cummins engine involves inspecting the manufacturer data plate riveted to the timing gear housing. The plate should clearly list the Engine Serial Number (ESN), the specific CPL (Control Parts List) number, and the factory date. Additionally, genuine blocks feature distinct casting marks, and the BYC P7100 fuel pump will have its own verifiable serial plate. HekoPower strictly supplies 100% genuine DCEC complete engine assemblies.
Can HekoPower supply a complete plug-and-play power pack?
Yes. Beyond supplying raw replacement engines, we can build a genuine Cummins 6BTAA5.9-C180 power pack. This configuration arrives with an integrated structural radiator, air filter housings, exhaust silencers, a basic control panel interface, and heavy-duty support brackets.
Which CPL codes apply to this engine build?
The 6BTAA5.9-C180 industrial engine frequently utilizes standard Control Parts List designation frameworks like CPL 3106 or related variations, depending on the specific equipment configuration. Providing your current engine's data plate details lets our team match your CPL profile exactly.
How do you confirm the engine is an original DCEC product?
Every engine assembly features a unique factory data plate stamped by Dongfeng Cummins. This includes a unique engine serial number (ESN) that can be verified directly through official Cummins global tracking networks to confirm genuine origin status before your shipment departs.
Can I upgrade my older 6BT5.9 to a 6BTAA5.9-C180?
