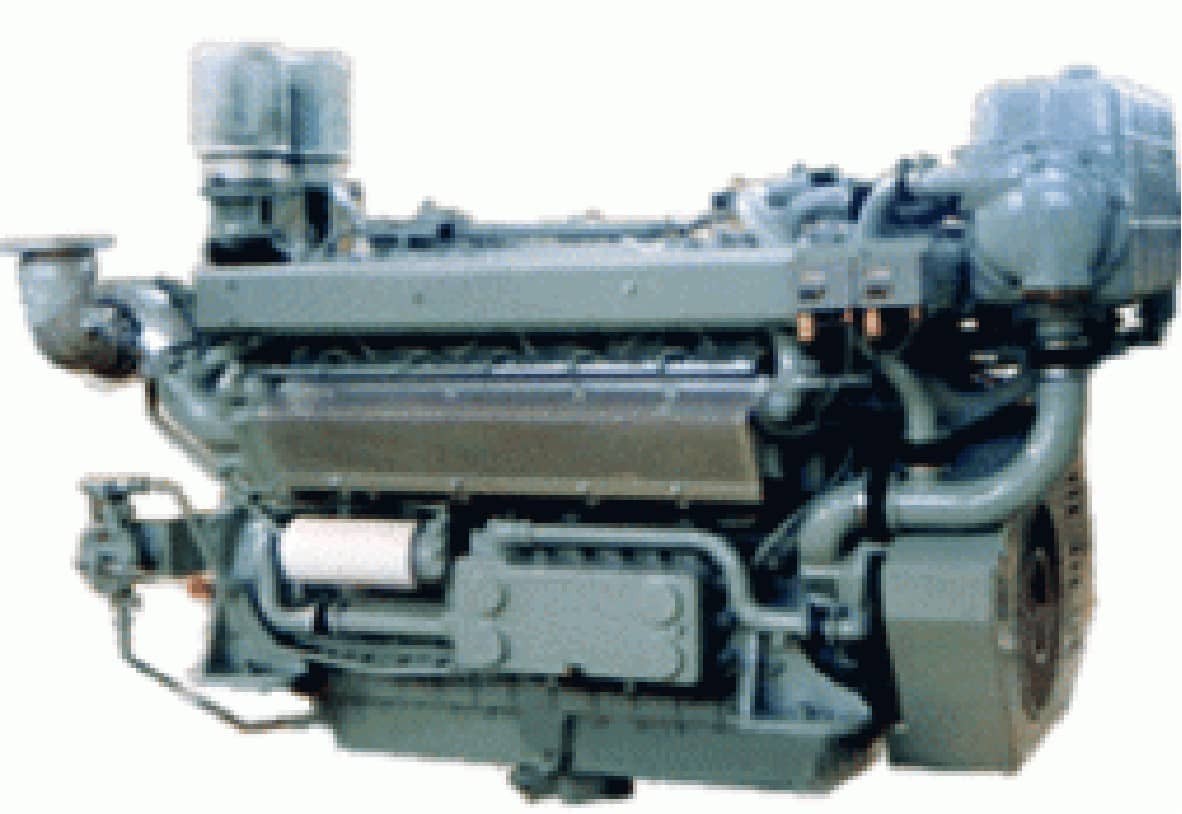

HND Deutz TBD234V12 373kW 1500RPM Generator Engine
Securing a reliable power source is the most critical decision for any continuous heavy-duty operation. The Deutz TBD234V12 marine generator engine is specifically engineered to meet these demanding requirements. Manufactured by the Henan Diesel Engine Plant (HND), this water-cooled 12-cylinder generator engine delivers a highly stable 373kW at a consistent 1500rpm.
Whether you are configuring a 350kW generator set for an industrial facility or sourcing a marine auxiliary engine for cargo ships, the TBD234V12 diesel engine offers an exceptional balance of power density and operational reliability. HekoPower provides this exact 373kW Deutz generator engine to clients worldwide, ensuring you receive genuine equipment backed by expert technical support.
Tech Specs of Deutz TBD234V12
General Engine Data
Engine Model: Deutz TBD234V12-373KW
Type: 12 Cylinders, V Type, 4 Stroke
Displacement: 21.6 L
Bore * Stroke: 128 * 140
Wet Weight (with heat exchanger): 2250 Kg
Overall Dimension: 2682mm*1485mm*1900mm
Key Performance Data
Rated Power/Speed: 373 kW @ 1500 rpm
Standby Power/Speed: 410 kW @ 1500 rpm
Min. Speed at Full Load: 1000 rpm
Low Idle Speed: 650 rpm
Fuel Consumption: 210 g/kW.hr
More Technical Data
Certification: CCS/IMO Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: High Pressure Fuel Pump
Compression Ratio: 15:1
Starting Method: Electrical Start (24V), Air Start
Cooling Method: Water Cooled
Ignition Sequence: A1-B5-A5-B3-A3-B6, A6-B2-A2-B4-A4-B1
Real Application Scenarios for the 373kW V12 Diesel Engine
The versatility of the TBD234V12 21.6L generator engine allows it to excel across two primary demanding sectors.
In the maritime industry, vessels require uninterrupted electrical power. The 373kW marine auxiliary engine for cargo ships is ideal for powering heavy onboard systems, including winches, navigation arrays, and climate control. The V12 configuration ensures smooth power delivery with minimal vibration. This is crucial for long voyages where structural fatigue from engine vibration must be minimized.
For land-based operations, this model serves as an exceptional 1500rpm diesel engine for industrial generator applications. Facilities such as hospitals, data centers, and manufacturing plants frequently utilize it as a prime power generator engine. When grid power fluctuates, this turbocharged TBD234V12 diesel engine steps in seamlessly. It is equally effective as an emergency power generator engine, capable of taking on sudden heavy load steps without stalling.
Technical Comparison: Deutz TBD234V12 vs Cummins KTA19 Marine Generator
When selecting a 373kW diesel generator drive engine, procurement managers often compare the HND TBD234V12 against the popular Cummins KTA19. Both are exceptional engines, but they possess distinctly different architectural advantages.
The Cummins KTA19 utilizes an inline-6 cylinder configuration. This makes it slightly narrower but significantly longer. The Deutz TBD234V12, however, utilizes a V12 architecture. Spreading the 21.6 liters of displacement across twelve cylinders rather than six results in smaller individual moving parts. This allows the Deutz engine to accelerate faster and respond more rapidly to sudden changes in electrical load.
Furthermore, the V-block design of the Deutz MWM TBD234V12 engine creates a shorter overall footprint. For marine engine rooms where space is at an absolute premium, this compact length makes installation and maintenance access considerably easier. While the inline-6 is renowned for its simplicity, the V12 Deutz offers superior smoothness and rapid load acceptance.
Overcoming Common Misconceptions
There are a few persistent myths surrounding the TBD234V12 12-cylinder diesel engine 1500rpm model that we frequently clarify for our clients.
Many buyers assume that a 12-cylinder engine will inherently consume more fuel than a 6-cylinder engine of the same power output. This is a misunderstanding of how engine load works. Because the 373kW TBD234V12 V12 diesel engine shares the operational stress across twice as many cylinders, it operates highly efficiently at its 1500rpm sweet spot. The specific fuel consumption remains highly competitive for a 50Hz diesel generator application.
Another misconception is that HND Deutz parts are difficult to source globally. As a dedicated TBD234V12 wholesale supplier, HekoPower maintains a comprehensive inventory of replacement parts. Routine maintenance components are readily available, ensuring your operations never suffer from extended downtime.
Expert Maintenance and Replacement Tips
Maximizing the lifespan of your TBD234V12 industrial diesel engine requires strict adherence to maintenance protocols.
The most critical factor for this water-cooled TBD234V12 generator engine is maintaining the integrity of the cooling system. In marine applications, heat exchangers must be inspected regularly to prevent salt or scale buildup. Even a minor reduction in cooling efficiency can lead to localized overheating in a V12 block. Always ensure the coolant mix precisely matches the manufacturer's recommendations for your specific operating climate.
When the time eventually comes for a complete overhaul, clients often debate rebuilding versus replacing. Sourcing a complete replacement engine for a TBD234V12 generator set is frequently more cost-effective than a deep rebuild. A factory-fresh replacement eliminates the hidden wear and tear on the engine block and crankshaft that a standard rebuild cannot fix. If you are upgrading an existing 350kW generator set, a direct TBD234V12 generator engine replacement ensures complete compatibility with your existing alternators and mounting points.
HND Deutz TBD234 Series Integration
While the 373kW configuration provides exceptional power for specific auxiliary and industrial needs, it is part of a much broader and highly adaptable engine family. We understand that different projects require different power nodes, and the Henan Diesel Engine Plant (HND) Deutz TBD234 series was designed with exactly this flexibility in mind.
Whether you need a slightly smaller footprint or an even higher power output, the surrounding models in this lineup share many common parts and maintenance procedures, simplifying fleet management. As a leading China TBD234V12 diesel engine supplier, HekoPower provides access to the complete range to match your exact specifications.
Deutz TBD234-Marine Generator Series, Marine Generator Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TD234V6, TD234V8, TBD234V6-116KW, TBD234V6-132KW, TBD234V6-186KW, TBD234V6-205KW, TBD234V6-222KW, TBD234V6-244KW, TBD234V8-160KW, TBD234V8-186KW, TBD234V8-249KW, TBD234V8-274KW, TBD234V8-296KW, TBD234V8-325KW, TBD234V12-373KW, TBD234V12-444KW.
Frequently Asked Questions
How can I buy the Deutz TBD234V12 373kw marine generator online?
Purchasing heavy industrial equipment requires careful technical verification. You can initiate the process by contacting the HekoPower sales team directly through our website. We will verify your exact technical requirements before finalizing the order.
What is the standard Deutz TBD234V12 engine price and lead time?
The TBD234V12 generator engine price varies slightly depending on specific emission certifications, marine society classifications, and optional cooling accessories. Lead times generally range from 15 to 30 business days. Please contact us for a formal, customized quotation.
Is this engine suitable for a 50Hz electrical system?
Yes. The TBD234V12 373kW 1500rpm generator engine is perfectly synchronized for 50Hz power generation. Running a generator drive engine at a continuous 1500rpm ensures stable voltage and frequency for sensitive electrical equipment.
Do you provide engines for complete new builds and repowering projects?
Absolutely. We supply the HND TBD234V12 engine for sale for brand-new vessel construction, industrial facility setups, and as direct drop-in replacements for aging generator sets. Our technical team can assist with footprint and compatibility verification.
