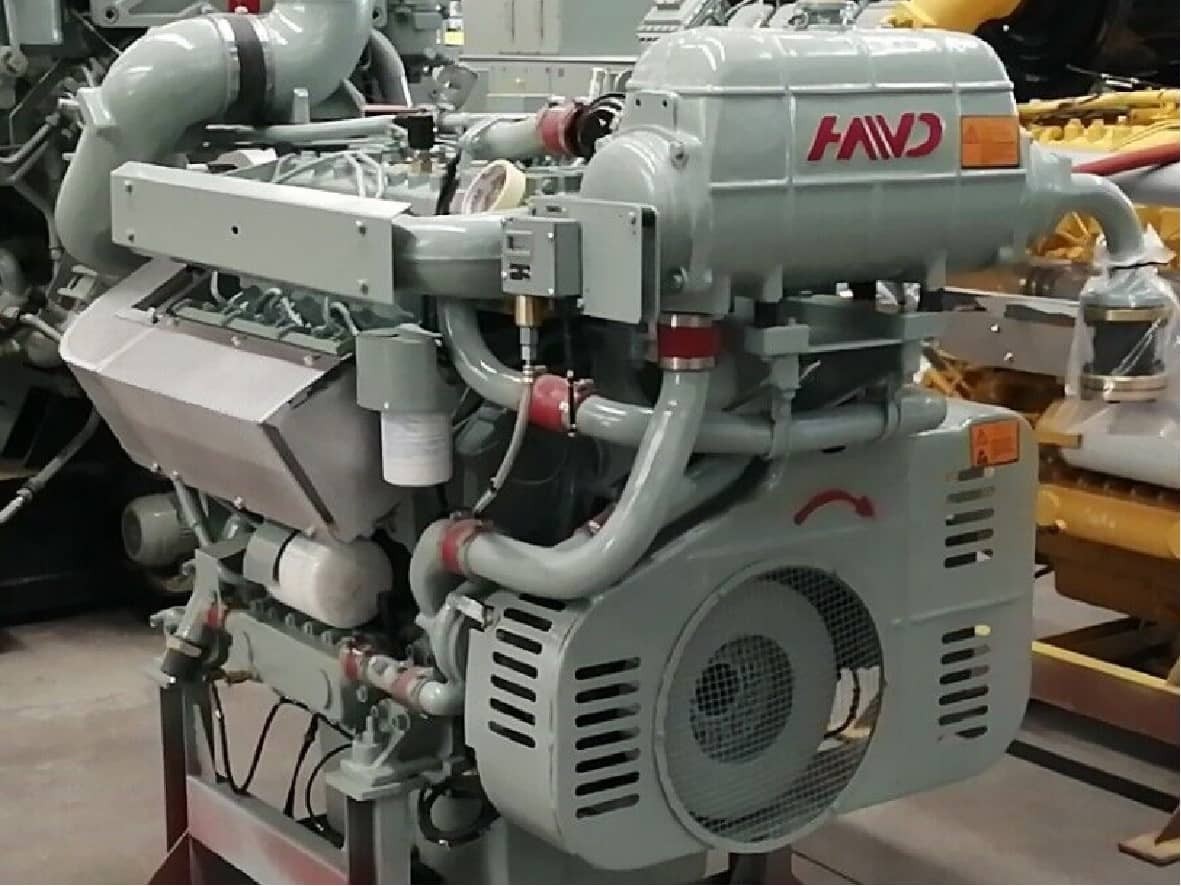

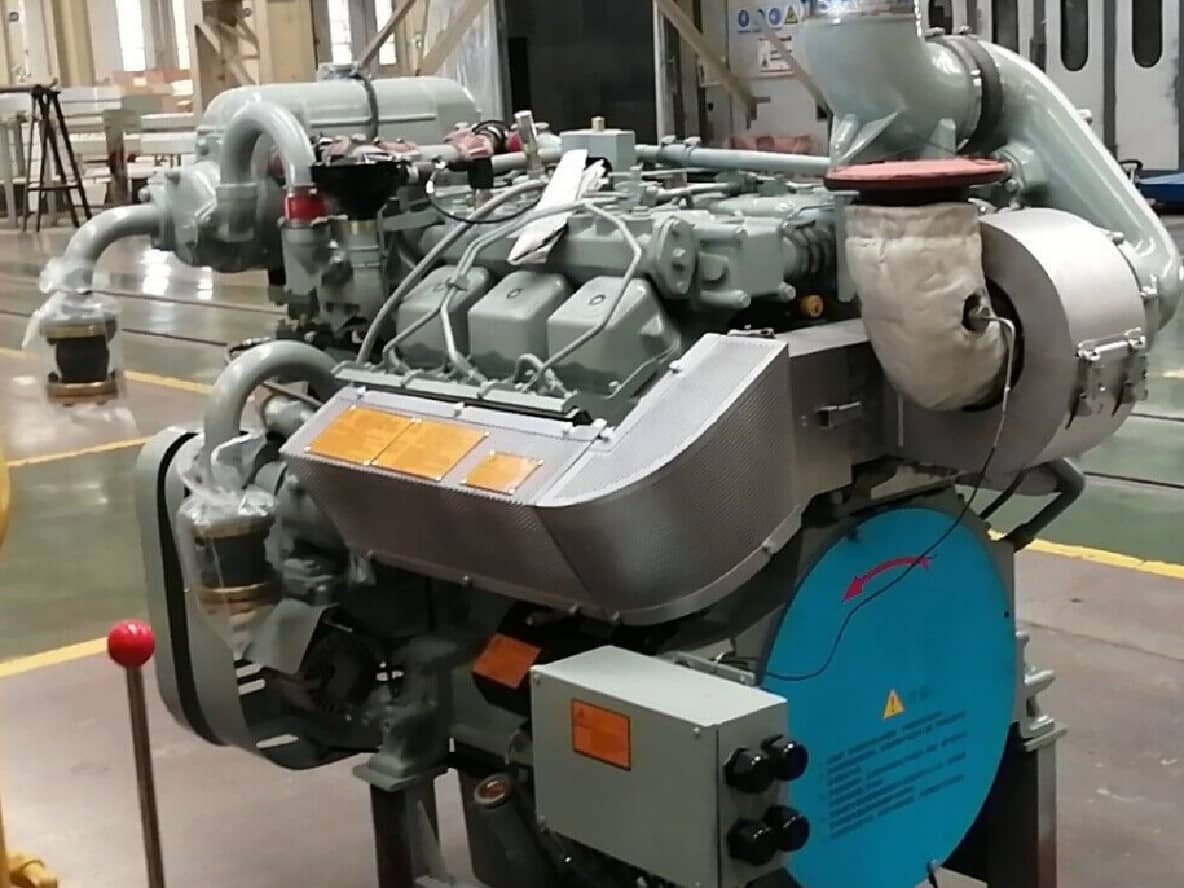

Deutz TBD234V6 222kW 1800RPM Marine Auxiliary Diesel Engine
When sourcing a prime mover for commercial marine operations, engine speed stability, displacement, and thermal management dictate long-term reliability. The Deutz TBD234V6 222kW engine operates natively at 1800 RPM, making it the premier choice for 60Hz marine generator sets. Manufactured under official license by the Henan Diesel Engine Plant (HND), this specific output configuration bridges the gap between smaller inline blocks and heavier, less fuel-efficient alternatives. HekoPower serves as a primary TBD234V6 222kW engine supplier, providing this exact 300hp engine for continuous duty cycle applications on the water.
Tech Specs of Deutz TBD234V6
General Engine Data
Engine Model: Deutz TBD234V6-222KW
Type: 6 Cylinders, V Type, 4 Stroke
Displacement: 10.8 L
Bore * Stroke: 128 * 140
Wet Weight (with heat exchanger): 1300 Kg
Overall Dimension: 1847mm*1130mm*1587mm
Key Performance Data
Rated Power/Speed: 222 kW @ 1800 rpm
Standby Power/Speed: 244 kW @ 1800 rpm
Min. Speed at Full Load: 1000 rpm
Low Idle Speed: 650 rpm
Fuel Consumption: 210 g/kW.hr
More Technical Data
Certification: CCS/IMO Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: High Pressure Fuel Pump
Compression Ratio: 15:1
Starting Method: Electrical Start (24V), Air Start
Cooling Method: Water Cooled
Ignition Sequence: A1-B2-A3, B1-A2-B3
Technical Edge Compared to Standard Commercial Engines
Unlike typical commercial inline-6 engines that rely on single-slab cylinder heads, this V6 features individual cylinder heads for each piston. This allows a single marine engineer to easily lift and service a specific cylinder without needing overhead heavy-lifting equipment. Furthermore, while modern competitors rely heavily on complex, voltage-sensitive electronic control modules, this HND Deutz TBD234V6 engine utilizes a TBD234V6 mechanical speed governor. Mechanical governance provides immediate throttle response and complete immunity to the electrical faults caused by salt-air corrosion.
Fuel delivery is handled by a proven TBD234V6 block-type injection pump that pushes diesel through a TBD234V6 duplex fuel filter system. A duplex setup means engineers can switch filter housings and bleed the fuel line while the engine remains running—a critical redundancy for any TBD234V6 marine auxiliary engine. The TBD234V6 marine cooling circuit is also separated into distinct, safer zones. Rather than pumping corrosive raw seawater directly through the engine block, it relies on an indirect TBD234V6 heat exchanger cooling system, preserving the internal CrMo-steel crankshaft and cast-iron crankcase.
Real Application Scenarios for the 222kW Deutz Marine Diesel Engine
How do shipyards and fleet operators actually deploy this specific model? Most commonly, it serves as a reliable TBD234V6 auxiliary engine for ship generator setups. Due to its standard TBD234V6 SAE 1 flywheel housing and TBD234V6 SAE 14 flywheel, it couples effortlessly with major alternator brands to create a complete 222kW marine auxiliary power engine package.
We frequently supply the TBD234V6 engine for cargo ship builds, where it is configured as a highly efficient TBD234V6 auxiliary engine for 200kW generator or a 222kW engine for 250kVA marine generator systems. The engine manages the heavy inductive loads of deck cranes, ventilation fans, and refrigeration compressors with ease. You will also find the TBD234V6 engine for passenger vessel operations, where it powers critical hotel loads, lighting, and HVAC systems. In heavier commercial sectors, the TBD234V6 engine for tug boat setups runs heavy towing winches, while the TBD234V6 engine for fishing vessel use often drives hydraulic haulers directly via a customized TBD234V6 PTO configuration. No matter the vessel, this TBD234V6 1800rpm genset engine provides uninterrupted 60Hz power.
Maintenance, Genuine Replacement Parts, and Common Misconceptions
Keeping the Deutz TBD234V6 222kW 1800rpm diesel engine running smoothly requires strict adherence to factory maintenance intervals. The engine features a high-volume TBD234V6 forced lubrication system to guarantee oil reaches the top end instantly upon startup. While a TBD234V6 dry sump lubrication option is occasionally requested for vessels expecting extreme pitch and roll, the standard wet sump satisfies the vast majority of marine classifications.
As a leading TBD234V6 marine engine manufacturer China representative, we frequently encounter a common misconception regarding parts interchangeability. Operators often assume that any spare part from the wider TBD234 family will fit this unit. This is incorrect. While the raw block is shared, the internal calibration for this specific Deutz TBD234V6 60Hz generator engine is unique. The fuel injection pump timing, injector nozzle spray patterns, and turbocharger housing ratios are precision-matched specifically to the 1800 RPM power band. Using parts intended for a 1500 RPM propulsion variant will result in black smoke and lost efficiency.
When it is time for an overhaul, sourcing genuine Deutz TBD234V6 generator set replacement parts is critical. HekoPower operates as a dedicated TBD234V6 engine spare parts supplier to ensure your maintenance is done right. Start failures are another common issue that is often misdiagnosed. The standard build uses a TBD234V6 24V electric starting system, which requires well-maintained battery banks. For larger commercial vessels needing black-start capabilities, we highly recommend upgrading to the TBD234V6 air starting system.
TBD234V6 Marine Engine Series Sourcing Options
When engineering a complete vessel power system, having flexibility within a proven engine family is invaluable. While the 222kW Deutz marine diesel engine is an exceptional choice for 60Hz marine generator power unit applications, your shipyard project may require different power nodes, 50Hz speeds, or direct propulsion configurations. Our catalog covers the entire spectrum of this highly respected engineering line.
Deutz TBD234-Marine Generator Series, Marine Generator Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TD234V6, TD234V8, TBD234V6-116KW, TBD234V6-132KW, TBD234V6-186KW, TBD234V6-205KW, TBD234V6-222KW, TBD234V6-244KW, TBD234V8-160KW, TBD234V8-186KW, TBD234V8-249KW, TBD234V8-274KW, TBD234V8-296KW, TBD234V8-325KW, TBD234V12-373KW, TBD234V12-444KW.
Frequently Asked Questions (FAQ)
What is the HND TBD234V6 1800rpm fuel consumption rate?
At full continuous load, the specific fuel consumption is highly efficient, typically resting at approximately 210 g/kW.h. Monitoring this metric is vital; a sudden increase usually points to a fouled charge air cooler or worn injectors rather than a fundamental engine issue.
Can I request the Deutz TBD234V6 222kW technical datasheet PDF?
Yes. As a direct TBD234V6 222kW marine engine supplier, we provide the complete factory datasheet, which includes torque curves, TBD234V6 222kW engine weight details, and comprehensive TBD234V6 222kW engine dimensions for your engine room planning.
Is this engine certified for commercial marine use?
Absolutely. We supply the Deutz TBD234V6 222kW CCS certificate marine engine upon request, ensuring the unit passes strict classification society inspections for commercial and international marine operations.
Are these genuine HND engines?
Yes. Every unit is a genuine Chinese license Deutz TBD234V6 222kW marine power pack. If you want to buy original HND Deutz TBD234V6 marine engine packages, we guarantee full factory authenticity, Deutz/MWM technology compliance, and comprehensive warranty support.
What is the TBD234V6 222kW engine price and lead time?
To get an exact TBD234V6 222kW engine quotation, contact our sales team with your specific PTO and starting system requirements. We offer highly competitive HND Deutz TBD234V6 222kW supplier price structures, and we support TBD234V6 222kW engine wholesale inquiries for multi-vessel fleet upgrades. Standard TBD234V6 engine lead time ranges from 15 to 30 business days, making us a fast, reliable Deutz TBD234V6 engine replacement supplier for tight dry-dock schedules.
