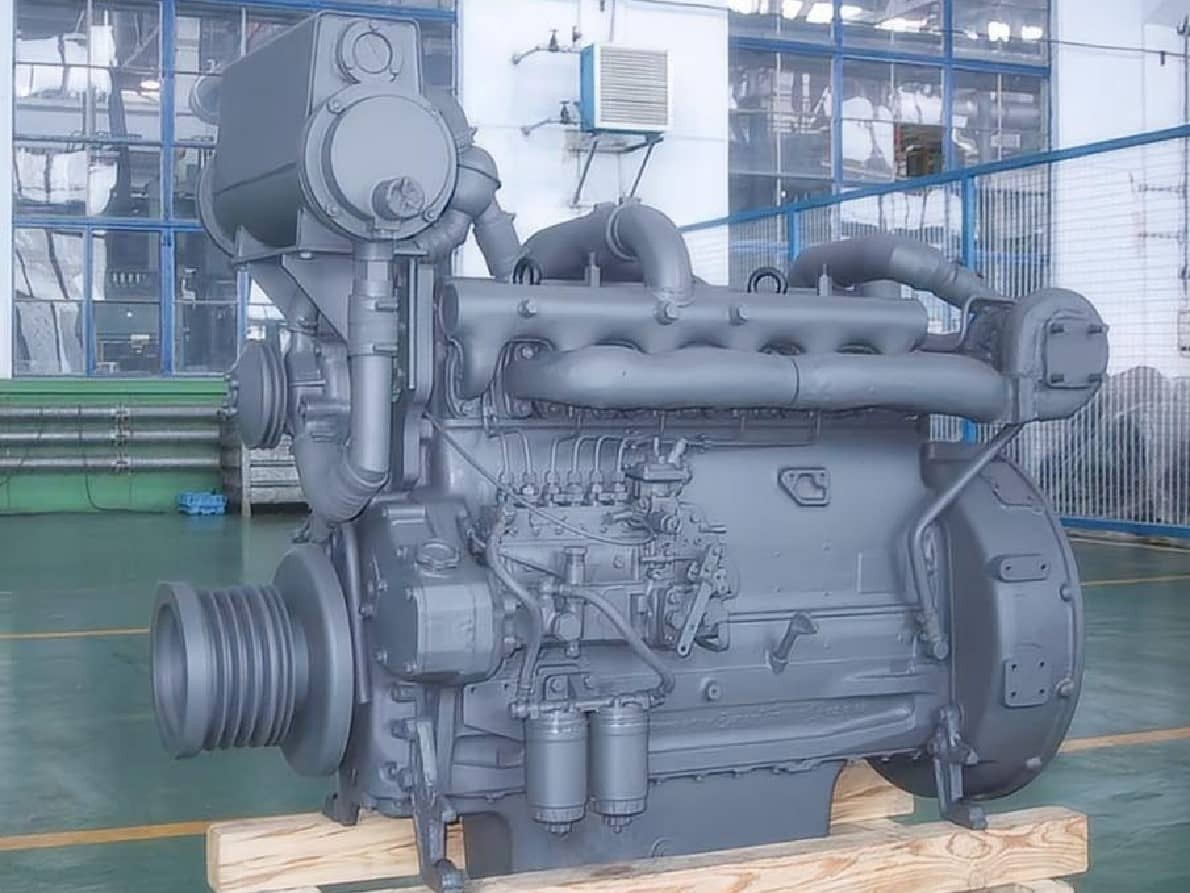

Deutz TBD226B-6IIC 176kW Vehicle Diesel Engine for Truck and Bus Applications
Finding a reliable Deutz TBD226B-6IIC engine replacement requires more than just matching a model number. Fleet operators and mechanics need an engine that delivers consistent torque under heavy loads. The Deutz TBD226B-6IIC is a turbocharged, 6-cylinder vehicle engine designed specifically to meet the grueling demands of modern commercial transport.
As a trusted Deutz TBD226B-6IIC engine supplier, HekoPower provides this exact powertrain ready for installation. We back this unit with a comprehensive 12-month warranty. With a standard lead time of just 15 to 20 business days, we ensure your commercial vehicles get back on the road rapidly. We also offer flexible payment terms including T/T, L/C, and Western Union to streamline your procurement process.
Tech Specs of Deutz TBD226B-6IIC Vehicle Diesel Engine
General Engine Data
Engine Model: Deutz TBD226B-6IIC
Type: 6 Cylinders, in Line
Displacement: 6.23 L
Bore * Stroke: 105 * 120
Key Performance Data
Adversed Power/Speed: 176 kW/2500 rpm
Max. Torque/Speed: 810 N.m @ 1400-1600 rpm
Idle Speed: 750 ± 50 rpm
Min. Fuel Consumption @ Full-load: 196 g/Kw.h
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Aftercooled
Ignition Sequence: 1-5-3-6-2-4
Flywheel Casing: SAE1, SAE3
Technical Comparisons Within the Weichai Deutz 226B Series
You might wonder how this specific 239HP Deutz diesel engine for coach and truck applications compares to other engines in the same family. Competitor sites often list the whole 226B series without explaining the differences.
The primary distinction of the Deutz TBD226B-6IIC is its aggressive power mapping. While lower-tier 226B models might output around 120kW to 150kW, this "6IIC" variant is tuned for a robust 176kW. This makes it strictly suited for heavier commercial tasks. If you are comparing this to a non-turbocharged 6-cylinder model, the TBD226B-6IIC provides significantly better high-altitude performance. The turbocharger ensures oxygen density remains high even in mountainous driving conditions.
Furthermore, this is a Deutz 226B Euro II diesel engine. Compared to older Euro I variants, the fuel injection system on the TBD226B-6IIC is optimized for finer fuel atomization. This reduces particulate matter while extracting more kinetic energy from every drop of diesel.
Real Application Scenarios
The versatility of the Deutz 226B-6IIC engine is one of its strongest selling points. It is not a stationary generator motor forced into a vehicle; it is a purpose-built commercial vehicle engine.
Deutz TBD226B-6IIC Truck Engine Deployment
Heavy-duty trucks require engines with a flat torque curve. The Deutz TBD226B-6IIC max torque and fuel consumption profiles are engineered precisely for this. When hauling heavy freight, drivers need pulling power at lower RPMs to avoid stalling on inclines. This engine delivers massive low-end torque, making it a premier Deutz 226B engine for Chinese truck applications and imported heavy-duty rigs.
Deutz TBD226B-6IIC Bus Diesel Engine Usage
Passenger coaches demand smooth power delivery and low vibration. Because this is a 6-cylinder vehicle diesel engine, it possesses natural primary and secondary dynamic balance. This means less cabin vibration for passengers. The Deutz TBD226B-6IIC bus engine variant is frequently installed in long-distance touring coaches where reliability and comfort are equally important.
Maintenance and Engine Replacement Tips
Keeping a 176kW Deutz TBD226B-6IIC engine running at peak efficiency requires adherence to strict maintenance schedules. We always recommend consulting the official Deutz TBD226B-6IIC maintenance manual for exact service intervals, but a few core practices stand out.
Fluid and Filter Management
Do not stretch your oil change intervals. The turbocharged nature of this engine means the engine oil is responsible for lubricating the high-speed turbo bearings. Degraded oil will lead to premature turbocharger failure. Always use high-quality diesel engine oil rated for Euro II emission vehicle engine standards.
Planning a Deutz TBD226B-6IIC Engine Replacement
If you are buying this unit as a Deutz TBD226B-6IIC engine for truck replacement, verify your transmission mating before ordering. Ensure your clutch housing and flywheel dimensions align with the new engine block.
When conducting a Deutz TBD226B-6IIC engine replacement, always flush the vehicle's existing radiator and intercooler lines. Debris left from a previous engine failure can quickly circulate into your new block and cause catastrophic damage.
Insist on Genuine Parts
The aftermarket is flooded with cheap knockoffs. When you buy Deutz TBD226B-6IIC diesel engine units from HekoPower, you are guaranteed authenticity. Using a genuine Deutz TBD226B-6IIC engine for sale through certified supply chains protects your investment. We also supply Deutz TBD226B-6IIC replacement engine and genuine parts to keep your fleet running smoothly for years after the initial purchase.
The engines for truck mainly include Deutz TBD226B-3II, Deutz TBD226B-4II, Deutz TBD226B-4IIA, Deutz TBD226B-4IIC, Deutz TBD226B-6IIA, Deutz TBD226B-6IIB, Deutz TBD226B-6IIC.
The engines for coach mainly include TBD226B-4IIA, TBD226B-6IIC, TBD226B-6IID.
The engines for bus mainly include TBD226B-4IIA, TBD226B-6IIC, TBD226B-6IID.
Frequently Asked Questions (FAQs)
What is the maximum engine speed of this model?
This is a Deutz TBD226B-6IIC 176kW 2500rpm diesel engine. The governor is set to allow a maximum continuous operating speed of 2500 rpm, which provides excellent highway cruising speeds for trucks and buses.
How does the Deutz TBD226B-6IIC torque curve behave under load?
The Deutz TBD226B-6IIC torque curve is broad and flat. This means the engine reaches its maximum twisting force early in the RPM range and holds it steady. Drivers do not have to constantly downshift when encountering hills, which reduces transmission wear and driver fatigue.
Who manufactures this specific engine model?
This engine is part of a historic joint venture. It is heavily recognized as a Weichai Deutz 226B series engine. You will often see it referred to as the Weichai Deutz TBD226B engine or the Huachai Deutz TBD226B-6IIC engine, depending on the specific assembly plant. Regardless of the factory nameplate, it is built to strict Deutz AG engineering tolerances.
How can I find the Deutz TBD226B-6IIC engine price?
Because shipping logistics and regional taxes vary, we provide custom quotes rather than a flat cart price. As a leading China Deutz TBD226B-6IIC engine exporter, HekoPower offers highly competitive wholesale pricing for B2B clients. Contact our sales team via the email provided at the top of the page to get an exact price including freight to your location.
