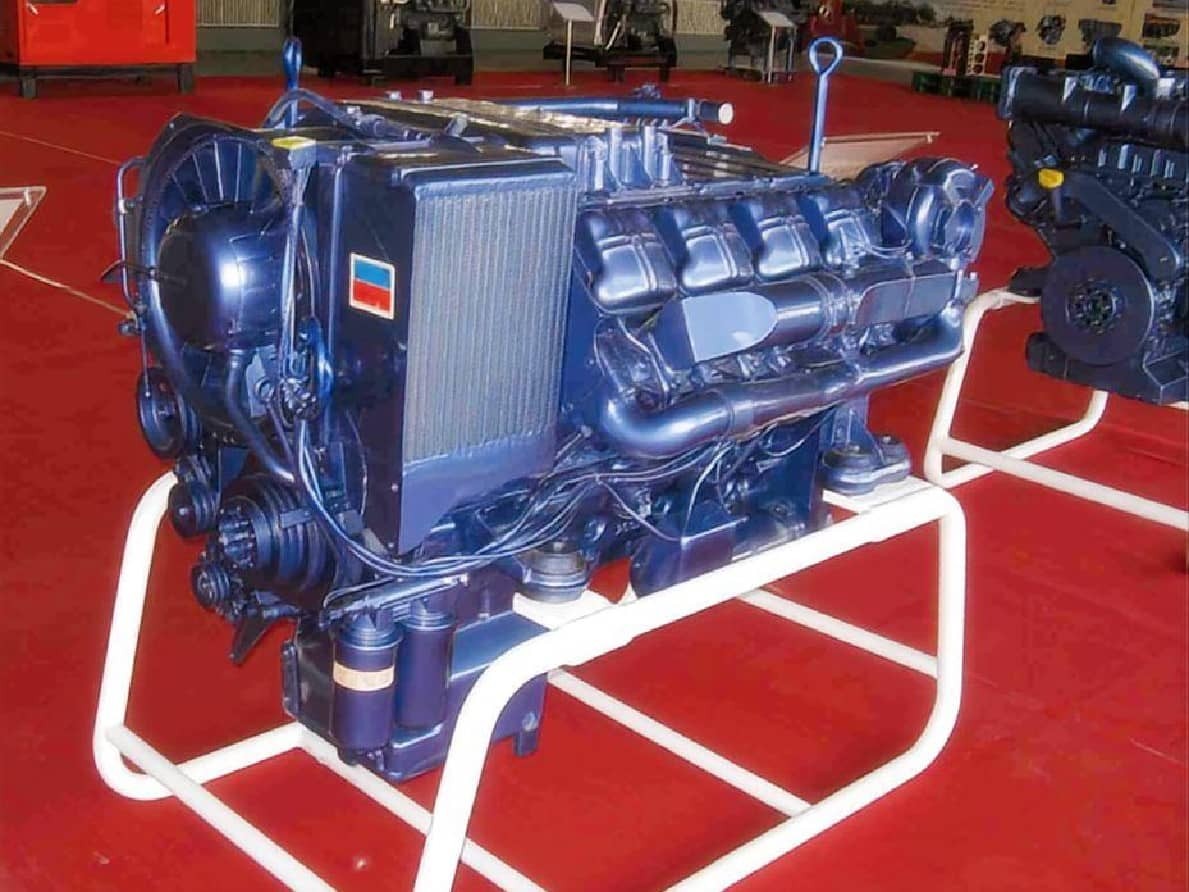

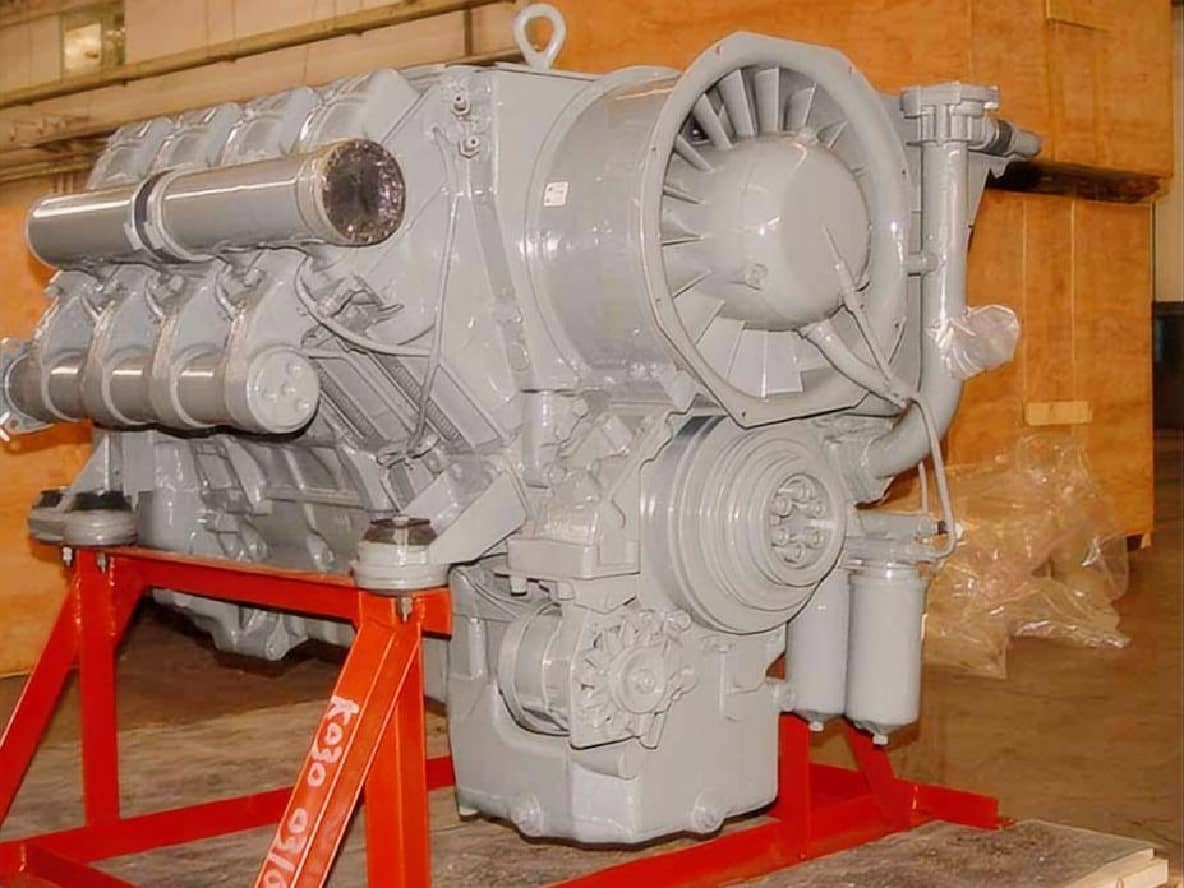

Deutz BF12L513C Air-Cooled Generator Engine (230 kW / 1500 RPM)
The Deutz BF12L513C is a high-performance 12-cylinder V-type air-cooled diesel engine engineered specifically for heavy-duty 50 Hz diesel generator sets. Delivering a continuous rated output of 230 kW at 1500 RPM, this 19.144-liter displacement engine features a 125 mm bore and 130 mm stroke configuration. Its design combines mechanical durability with an advanced Electronic Unit Pump (EUP) fuel injection system, achieving precise multi-stage fuel metering and an efficient fuel consumption rate of 205 g/kWh.
As a commercial engine supplier, HekoPower provides the Deutz BF12L513C as a complete prime mover for generator assembly, standby power retrofits, and equipment engine replacements. The defining advantage of the BF12L513C lies in its modular air-cooling system. By eliminating liquid coolants, water pumps, radiators, and interconnected hoses, the engine removes the primary failure points responsible for nearly half of all industrial engine downtime. Each cylinder operates with individual cooling fins and an independent cylinder head assembly, ensuring balanced thermal distribution across the entire V12 engine block.
A engine-oil-driven, thermostatically regulated cooling blower controls airflow directly based on internal operating temperatures. This mechanism reduces parasitical power loss during low-load operations while delivering instant cooling capacity when the generator transitions to full 230 kW load. Turbocharged and charge-air intercooled aspiration maximizes air density within the combustion chambers, enabling efficient operation even at high altitudes and in extreme ambient temperatures where liquid-cooled engines struggle.
Tech Specs of Deutz BF12L513C
General Engine Data
Engine Model: Deutz BF12L513C
Type: 12 Cylinders, V Type
Displacement: 19.144 L
Bore * Stroke: 125 * 130
Net Weight: 1300 Kg
Overall Dimension: 1590mm*1192mm*1087mm
Key Performance Data
Rated Power: 230 KW
Rated Speed: 1500 rpm
Low Idle Speed: 550-650 rpm
Fuel Consumption @ Rated Power: 205 g/kW.h
More Technical Data
Aspiration: Turbocharged & Intercooled
Fuel System: EUP
Compression Ratio: 15.8:1
Cooling Method: Air Cooled
Electrical System (Starter Motor/Alternator): Electronic Starting (24V)
Lubricant Capacity: 34 L
Technical Comparisons: Air-Cooled V12 vs. Liquid-Cooled Competitors
Structural Simplicity and Weight Efficiency
Unlike liquid-cooled V12 or heavy inline-6 diesel engines in the 230 kW to 250 kW class, the Deutz BF12L513C maintains a dry weight of approximately 1,300 kg. Standard liquid-cooled power units require bulky expansion tanks, heavy copper radiators, external water piping, and gallons of liquid coolant. The BF12L513C integrates its entire thermal management system directly onto the flywheel-driven engine frame. This design compacts the engine package, allowing generator manufacturers to build shorter, lighter power skids that reduce enclosure production costs and lower freight expenses.
Extreme Thermal Adaptability
Liquid-cooled generator drives suffer operational limits in harsh climates. In freezing conditions below zero degrees Celsius, water-based systems require jacket water heaters, anti-freeze additives, and cold-start grid systems to prevent block cracking and fluid thickening. The air-cooled BF12L513C operates reliably down to -32°C without risk of coolant freezing. Conversely, in high-ambient desert installations exceeding 45°C, liquid radiators frequently experience coolant cavitation, scale buildup, and thermal throttling. The direct air-cooling architecture of the BF12L513C dissipates heat straight into the surrounding atmosphere, maintaining consistent thermal equilibrium under uninterrupted prime load.
Fuel Injection Precision and Maintenance Footprint
Many legacy industrial engines in this power band rely on fully mechanical inline fuel pumps, which offer limited injection pressure control and higher smoke opacity during sudden load acceptance. The BF12L513C utilizes an Electronic Unit Pump (EUP) fuel system. EUP technology pairs individual high-pressure pump elements for each cylinder with short injection lines, achieving higher injection pressures and cleaner combustion. This architecture lowers particulate emissions while maintaining low maintenance overhead compared to complex common-rail systems, making it easier to service in remote regions without specialized diagnostic tools.
Real Application Scenarios for 230 kW Generator Sets
Remote Off-Grid Mining and Construction
Mining operations in remote desert regions or elevated plateaus require continuous, low-maintenance electrical power. Airborne dust quickly clogs conventional liquid radiator fins, causing water-cooled engines to overheat within hours if not manually washed down. The high-velocity blower on the air-cooled BF12L513C drives air across widely spaced cylinder cooling fins, preventing dust retention and eliminating radiator clogging risks.
Emergency Standby Power for Critical Infrastructure
For municipal standby generators, telecom hubs, and industrial facilities, long periods of inactivity often lead to coolant degradation, hose rot, and water pump seal failure in liquid-cooled systems. The BF12L513C eliminates fluid-related standby deterioration entirely. When grid power drops, the engine starts rapidly and accepts load steps cleanly without relying on pre-heating circuits or coolant pump readiness.
Mobile and Trailer-Mounted Power Units
Mobile diesel generators demand light structural weights and compact footprints to meet transport axle load limits. Incorporating a 19.144-liter V12 engine with a 1300 kg dry mass directly into a sound-attenuated trailer unit creates a highly portable 230 kW power package capable of rapid deployment across municipal maintenance or disaster relief sites.
Practical Maintenance and Engine Replacement Guidance
Routine Maintenance Essentials
Cooling Fin Inspection: Periodically clean the cylinder cooling fins using compressed air or a high-pressure air lance. Removing oil residue and dust accumulation preserves maximum heat transfer rates.
Oil System Integrity: The BF12L513C relies heavily on engine oil for internal cooling and hydraulic fan regulation. Maintain the 34-liter oil sump capacity using high-thermal-stability diesel engine oil, and replace oil filters at designated service intervals.
EUP Fuel System Protection: Install primary fuel-water separators upstream of the engine to protect individual electronic unit pumps from water contamination and fuel-borne debris.
Replacing Legacy FL413 and FL513 Engines
When replacing older Deutz FL413 or standard FL513 series engines in existing 230 kW generator sets, the BF12L513C offers direct mounting alignment across engine skids. Ensure that air intake ducting accommodates the intercooler position and verify that cabinet ventilation allows unimpeded exhaust airflow from the cooling blower outlet.
Common Misconceptions Regarding Air-Cooled Engines
Misconception 1: Air-cooled engines overheat faster than liquid-cooled engines under continuous 230 kW load
Fact: Air-cooled engines are designed to operate at higher core temperatures without degradation. The thermostatically controlled hydraulic fan automatically increases airflow speed as oil temperature rises, maintaining a stable engine temperature even under continuous prime power loads.
Misconception 2: Air cooling generates excessive mechanical noise compared to water-jacketed blocks
Fact: While liquid jackets provide mild sound dampening, modern V12 block casting techniques and precise gear trains keep the BF12L513C within standard industrial noise thresholds. When mounted inside an insulated generator canopy, operational noise matches equivalent liquid-cooled gensets.
Deutz FL513 & FL413 Generator Drive Engine Series
HekoPower supports global industrial operators, generator manufacturers, and service centers with complete diesel engine units and genuine replacement assemblies.
Deutz FL413-Generator Engine Series, original products from Huachai Deutz Engine Plant. This series mainly includes Deutz F8L413F, Deutz F10L413F, Deutz F12L413F, Deutz BF6L513, Deutz BF8L513, Deutz BF8L513C, Deutz BF10L513, Deutz BF12L513, Deutz BF12L513C, Deutz BF12L513CP, Deutz F8L413F (60HZ), Deutz F8L513 (60HZ), Deutz F12L413F (60HZ).
Frequently Asked Questions
What is the prime power output of the Deutz BF12L513C generator engine?
The Deutz BF12L513C delivers a rated prime power output of 230 kW at 1500 RPM, making it suited for 50 Hz, 280–300 kVA generator set configurations.
What are the fuel system specifications for the BF12L513C engine?
The engine uses an Electronic Unit Pump (EUP) fuel system combined with turbocharging and charge-air intercooling, delivering a fuel consumption rate of 205 g/kWh.
Why choose an air-cooled V12 engine over a liquid-cooled engine for remote power generation?
The air-cooled design eliminates radiators, water pumps, coolant hoses, and anti-freeze fluids, preventing coolant-related downtime in extreme environments ranging from -32°C freezing cold to +50°C desert heat.
