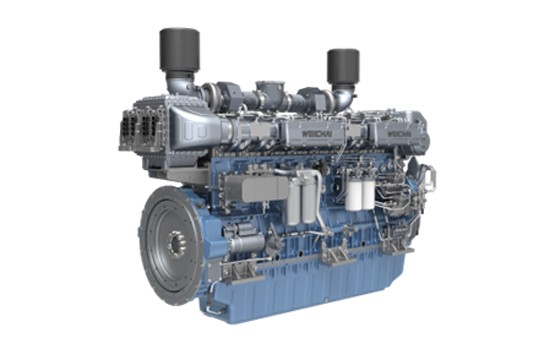

Weichai 8WH17C1200-3 Marine Diesel Engine: The Ultimate 1200 HP Commercial Propulsion Solution
The Weichai 8WH17C1200-3 marine diesel engine is a high-performance propulsion engine developed for commercial marine applications requiring reliable continuous-duty operation, fuel efficiency, and long service life. As a member of the renowned Weichai WH17 series 8-cylinder engine platform, this model delivers 882kW (1200HP) at 1350RPM, making it an ideal solution for fishing vessels, cargo ships, passenger ferries, workboats, and coastal transport vessels.
The global maritime market demands power plants that balance aggressive torque profiles with strict operational cost-efficiency. As a premier global marine engine distributor and trusted marine diesel engine exporter, HekoPower delivers the Weichai 8WH17C1200-3 marine diesel engine to fulfill this precise market need.
Generating a calibrated 882 kW (1200 HP) at 1350 RPM, this heavy-duty, 8-cylinder inline setup serves as an uncompromising main propulsion workhorse. From deep-sea trawlers fighting heavy currents to regional cargo vessels maintaining tight delivery schedules, this high-pressure common rail system provides commercial vessels with a rugged, fuel-efficient foundation for a lifetime of dependable service.
Tech Specs of Weichai 8WH17C1200-3
General Engine Data
Engine Model: Weichai 8WH17C1200-3
Cylinder Count: 8 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 40.31 L
Bore * Stroke: 170×222 (mm)
Net weight: 4600 kg
Overall Dimension: 2917×1147×1805 (mm)
Key Performance Data
Rated Power: 882 kW / 1200 HP
Rated Speed: 1350 RPM
Idle Speed: 500 RPM
Minimum fuel consumption rate: 190 g/kW.h
Oil consumption rate: ≤0.3 g/kW·h
More Technical Data
Certification: IMO Tier II / China Stage II Inland Marine
Aspiration: turbocharged and aftercooled
Starting system: Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: HPCR
Power rating: P1
Noise: ≤111 dB(A)
Technical Comparisons: Why the 8WH17C1200-3 Dominates the Medium-Speed Class
Selecting a Weichai medium speed marine engine requires analyzing how technical architecture translates into real-world efficiency. The Weichai WH17 series 8-cylinder engine stands out dynamically when evaluated against legacy mechanical engines and alternative high-speed designs in the 1200 HP range.
High-Pressure Common Rail (HPCR) vs. Mechanical Injection
Traditional mechanical injection engines rely on engine speed to generate injection pressure. This often results in incomplete fuel combustion, visible exhaust smoke, and wasted fuel at lower RPM ranges.
The Weichai common rail marine diesel engine architecture changes this dynamic entirely. Driven by an intelligent electronic control unit (ECU), its high pressure common rail marine engine fuel injection system decouples injection pressure from engine RPM.
- Optimized Atomization: Fuel enters the cylinders at extremely high pressures, creating a fine fuel mist for clean, spontaneous combustion.
- Multi-Stage Injection: Precise pilot and main injection cycles eliminate the classic "diesel knock," significantly lowering structural vibration.
- Minimized Fuel Waste: The combustion cycle achieves an exceptional fuel efficiency rating, dropping minimum fuel consumption down to ≤190 g/kW·h.
1350 RPM Medium-Speed vs. 1800 RPM High-Speed Units
Many fleet owners make the mistake of choosing a lighter, high-speed engine rated at 1800 RPM or above to hit the 1200 HP threshold. While these engines might offer a lower initial purchase weight, they inherently suffer from higher friction loss, faster component wear, and abbreviated lifespans.
As a dedicated 1350rpm marine propulsion engine, the 8WH17C1200-3 focuses its structural engineering on raw, continuous torque density. Operating at a more deliberate pace reduces piston travel speeds and lowers thermal stress on internal walls. This deliberate layout yields a reliable overhaul life of Weichai WH17 1200HP engine systems exceeding 20,000 operational hours before needing major component replacement.
Real Application Scenarios: Where the 882 kW Marine Propulsion Engine Excels
Every hull shape and operational profile presents unique challenges. HekoPower provides custom Weichai 882kW marine engine quotation configurations tailored exactly to your vessel's duty cycle.
Commercial Fishing Boats and Trawlers
For modern fleets deploying a Weichai 8WH17C1200-3 fishing boat engine, success depends heavily on net-trawling capacity. Dragging massive nets across muddy seabeds requires intense, low-end torque.
Our Weichai marine engine for trawler operations thrives in this environment due to its substantial torque reserve (exceeding 20%). When nets drop and drag forces spike, the engine holds its RPM floor without bogging down, protecting your gearboxes and auxiliary components from shock-load stress.
Coastal Transport and Cargo Vessels
A Weichai marine propulsion engine for cargo vessel integration demands long-range stability. Running inland waterways or coastal routes means spending days or weeks at 80% to 90% load factors.
Our Weichai engine for coastal transport vessel customers experience significant decreases in annual fuel overheads due to the flat fuel consumption curve of the HPCR layout. This efficiency allows vessels to extend their cruising ranges and minimize harbor refueling frequency.
Commercial Workboats and Passenger Ferries
Harbor operations demand rapid throttle response and constant maneuvering. Utilizing a Weichai marine diesel engine for workboat duties provides the instant acceleration needed to push heavy barges or maneuver in tight slips.
Similarly, when configured as a Weichai marine engine for passenger ferry platforms, the low-vibration characteristics of the 8-cylinder layout ensure a quiet, steady, and comfortable ride for passengers.
Engineering Guidelines for Marine Engine Replacement Projects
Replacing an aging, inefficient main engine with a new 8-cylinder marine diesel engine 882kW unit is a highly precise engineering process. HekoPower specializes in guiding shipyards through seamless retrofits.
Structural Foundation Assessment
The 8WH17C1200-3 features a solid, net dry weight of approximately 4,600 kg. During an active Weichai marine engine replacement project, naval architects must verify that the existing engine stringers can properly handle and support this weight profile. Old engine beds often require reinforcement or custom-fabricated transition plates to align with the Weichai mounting footprints.
Exhaust and Cooling Compatibility
Because this engine is an IMO II compliant marine engine, its exhaust piping must be properly sized to maintain backpressure within factory limits. Additionally, when upgrading from an old, naturally aspirated engine, you must review your sea-chest intake size. The water pump on this 1200 HP unit requires a steady, high-volume raw water flow to keep the turbocharger aftercooler performing optimally.
Professional Engine Maintenance, Spare Parts, and Overhaul Protocols
To protect your continuous power investment, maintaining rigid adherence to Weichai technical guidelines is essential. As an integrated Weichai marine engine supplier, HekoPower maintains a direct global pipeline for authentic factory parts and engineering support.
Routine Weichai 8WH17 Engine Maintenance
Daily and mid-term preventative steps protect your propulsion line from premature component failures:
- Lubrication Maintenance: Swap out engine oil and replace the standard oil filters every 250 to 500 hours (depending on fuel sulfur levels).
- Continuous Filtration: Take advantage of the engine's built-in duplex fuel and oil filters. These systems let your crew swap out dirty filter elements while the engine is running, keeping the ship moving without interrupting power.
- Cooling Loop Monitoring: Inspect zinc anodes within the seawater heat exchanger monthly to combat galvanic corrosion inside your cooling passages.
Executing a Successful Weichai Marine Engine Overhaul
When your unit approaches its 20,000-hour milestone, executing a structured Weichai marine engine overhaul restores factory clearances and performance metrics. HekoPower provides complete overhaul kits including:
- Cylinder liners, piston crowns, and ring sets.
- Main crankshaft bearings and connecting rod bushings.
- Fresh high-pressure injection nozzles and comprehensive seal kits.
Weichai 8WH17 series marine diesel engine, original products from Weichai. This series mainly includes 8WH17C900-1, 8WH17C952-1, 8WH17C1000-2, 8WH17C1156-2, 8WH17C1200-3, 8WH17C1251-5, 8WH17C1360-5.
Frequently Asked Questions (FAQ)
What makes HekoPower a preferred Weichai 1200HP marine engine supplier?
HekoPower doesn't just ship boxes; we provide end-to-end maritime propulsion solutions. We deliver complete factory packages that include comprehensive technical documentation, matching gearboxes, flexible mounts, and instrument panels. Our strong industry position allows us to offer highly competitive pricing structures along with direct access to genuine Weichai marine engine spare parts globally.
How does the 8WH17C1200-3 meet IMO Tier II emission regulations?
Compliance is achieved entirely through optimized internal combustion physics. By combining high-pressure common rail injection with an advanced, micro-managed ECU combustion profile, the engine limits peak combustion temperatures. This minimizes raw NOx formation during the power stroke without requiring complex, space-consuming exhaust after-treatment systems.
Can I run this engine on lower-grade marine gas oils?
While the engine's high-pressure fuel components perform best on standard, clean ISO 8217 DMA grade distillate fuels, it can comfortably accommodate regional variations. If you must operate in areas with higher-sulfur fuel options, contact our technical support team. We will help you adjust your oil change intervals and select the right high-TBN (Total Base Number) lubricants to protect your valve seats.
What is the standard lead time for a custom Weichai 882kW marine engine quotation?
At HekoPower, we prioritize keeping your commercial project on schedule. Standard requests for configuration pricing are typically processed within 24 to 48 business hours. For complex projects requiring custom gearbox integrations, specific classification certificates (like BV, ABS, or GL), or specialized dual-voltage electrical systems, our engineering team will provide a complete, itemized proposal within 3 to 5 business days.
