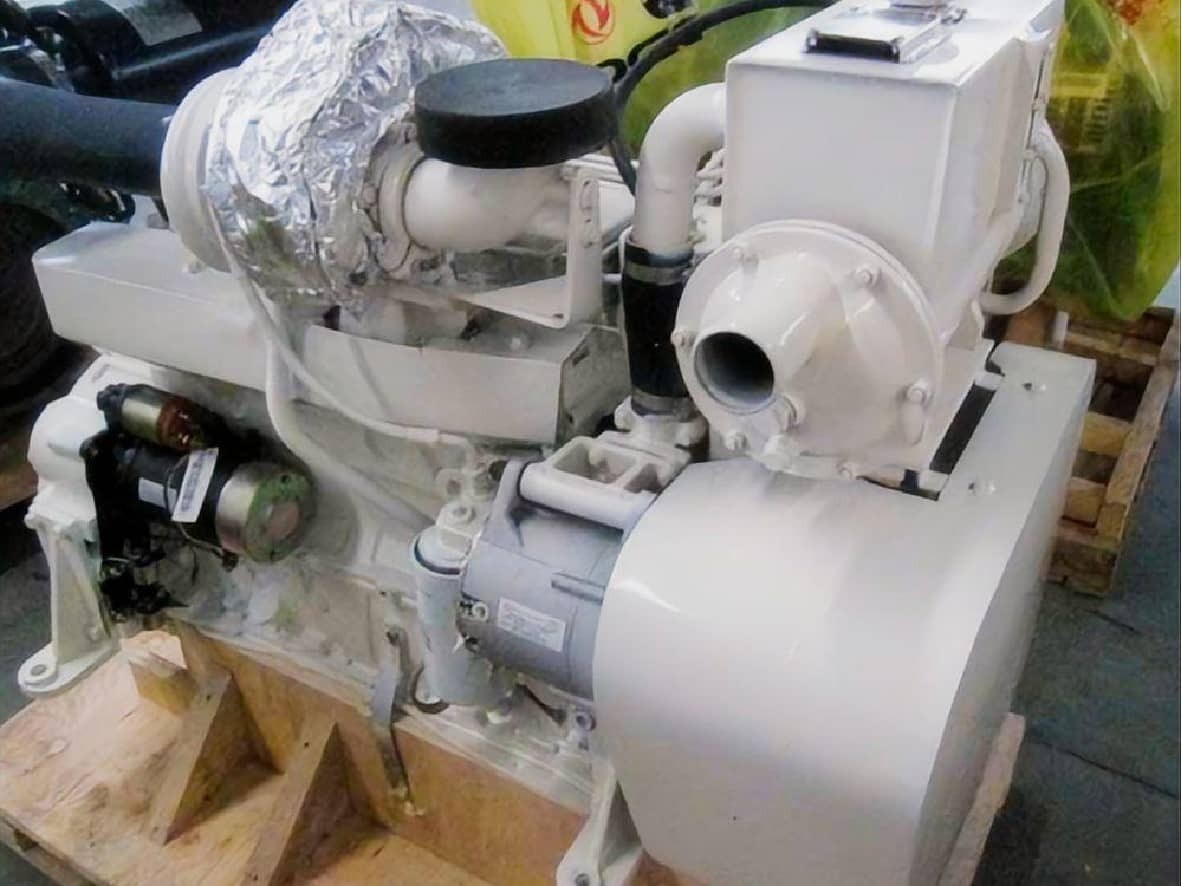

Cummins 4BTA3.9-GM65 Marine and Industrial Diesel Engine
The Dongfeng Cummins 4BTA3.9-GM65 stands as a pillar of reliability in the medium-duty marine and industrial sectors. As a direct-injected, turbocharged, and aftercooled 4-cylinder powerplant, it bridges the gap between raw fuel economy and heavy-duty output. Operating typically at a prime power rating of 65kW (approx. 87 horsepower) at 1800 RPM, this unit is engineered for continuous duty cycles in rigorous marine auxiliary and generator applications.
When international operators search for a genuine Cummins 4BTA3.9-GM65 engine for sale, they look for predictable thermal management, high low-end torque, and compliance with strict classification standards. Heko Power provides factory-direct access to this DCEC 3.9L diesel engine series. Every unit we distribute undergoes rigorous cold and hot test-bench runs before export.
Tech Specs of Cummins 4BTA3.9-GM65
General Engine Data
Engine Model: Cummins 4BTA3.9-GM65
Type: 4 Cylinders in Line
Displacement: 3.9 L
Bore * Stroke: 102 * 120
Net Weight (with flywheel & alternator): 350 Kg
Overall Dimension: 867mm*544mm*988mm
Engine Configuration No.: D383060MX02
Key Performance Data
Rated Power/Standby Power: 65 kW/87HP, 72 kW/96HP
Rated Speed: 1800 rpm
Low Idle Speed: 950-1050 rpm
Fuel Consumption (Running Speed): ≤ 240 g/kW.hr
More Technical Data
Certification: CCS Certificates
Aspiration: Turbocharged/Water-air Intercooled
Fuel System: BYC A Pump/GAC Governor
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 7.9 L
Real Application Scenarios and Power Pack Configurations
The versatility of the Cummins 4BTA3.9-GM65 industrial diesel engine allows it to function across multiple sectors beyond basic marine generator sets. At Heko Power, we configure custom marine power pack options depending on the vessel type.
In coastal fishing vessels and harbor workboats, this 4-cylinder diesel unit serves as the prime auxiliary driver for deck winches, hydraulic pumps, and onboard electrical grids. Because space in engine rooms is always at a premium, the compact footprint of the Cummins 3.9L diesel engine allows for straightforward retrofitting.
For land-based applications, the same core block adapts seamlessly as a Cummins 4BTA3.9-GM65 pump drive engine for agricultural irrigation or municipal flood control. Construction machinery operators also utilize similar Cummins 4 cylinder engine variants for medium-duty excavators and stationary compressors. When configured for marine service, the unit incorporates seawater pumps, heat exchangers, and optional CCS certified components to meet maritime regulatory requirements.
Maintenance, Replacement Tips, and Common Misconceptions
Preventive Maintenance for Maximum Longevity
Maintaining a Cummins B Series engine spare parts inventory locally prevents costly downtime. Routine checks on the raw water pump impeller, sacrificial zinc anodes, and turbocharger oil feed lines are vital for marine installations. Oil change intervals should strictly adhere to operating hours, using high-grade CI-4 or CH-4 diesel engine oils suited for marine environments.
Navigating Replacement Options
When a legacy power unit reaches the end of its lifecycle, sourcing a direct replacement for Cummins 4BT engine models can save considerable modification costs. The Cummins 4BTA3.9-GM65 replacement engine drops into mounts previously occupied by older non-turbo or naturally aspirated 4B versions, provided the exhaust and cooling manifolds are matched correctly. For severe wear, a complete Cummins 4BTA3.9 engine rebuild using genuine DCEC overhaul kits restores factory tolerances without the expense of a total system redesign.
Common Misconceptions Addressed
A frequent myth in the secondary market is that any automotive 4BT block can be easily converted into a marine auxiliary unit. In practice, automotive blocks lack the necessary marine-grade cooling jackets, specialized oil pans, and corrosion-resistant alloy components found on genuine DCEC marine specifications. Another misconception involves fuel consumption; operators sometimes assume higher horsepower settings yield worse efficiency, but the finely tuned injection timing of the GM65 configuration optimizes fuel burn specifically around the 1500–1800 RPM sweet spot.
Cummins B3.9-GM Series, Marine Auxilliary Diesel Engines for commercial and recreational applications, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 4BTA3.9-GM47, 4BTA3.9-GM65. All engines complete with sea water pump, heat exchanger, CCS/IMO certificates.
Frequently Asked Questions
What certifications accompany the Heko Power Cummins 4BTA3.9-GM65?
Units supplied for marine auxiliary duties can be provided with standard factory test reports, and CCS certification can be arranged upon request prior to dispatch to meet classification society requirements.
Can Heko Power supply specific customization for heat exchangers?
Yes. Depending on whether your vessel operates in clean river water or high-salinity seawater, we configure copper-nickel or standard brass tube bundle heat exchangers to match local thermal conditions.
How do I verify if a quoted unit is a genuine Dongfeng Cummins product?
Every engine supplied by Heko Power bears an authentic DCEC serial number stamped on the gear housing. This number can be cross-referenced directly through official Cummins authentication channels to verify factory origin and material pedigree.
