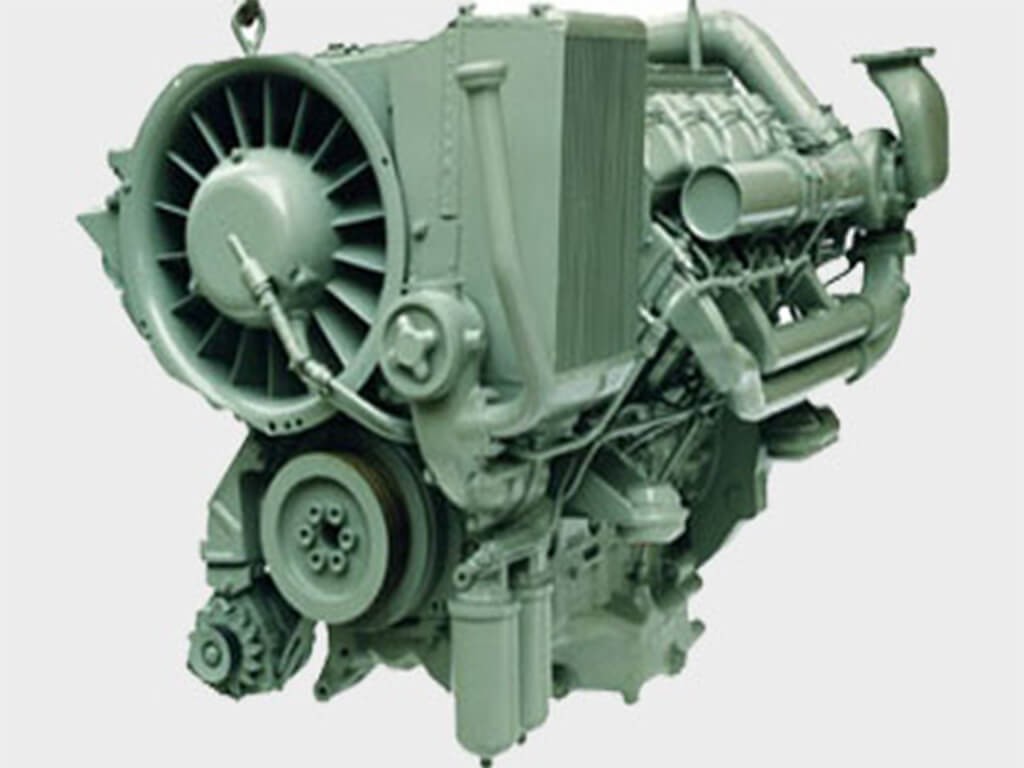

Deutz F10L413F-Construction Diesel Engine
Original Deutz licence plant, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Deutz, With 160 years of heritage, is one of the world’s leading manufacturers of innovative drive systems. Hebei Huabei Diesel Engine Company("Huachai"), Huachai Deutz Engine Plant is Deutz License Plant in China, which has successively introduced the technology of Deutz AG since 1979, including the B/FL413/513, BFM1015, TCD2015, TCD12.0/16.0, HC4132, HC6132 series.
Deutz F10L413F-Construction Diesel Engine could available for Heavy Truck, Excavator, Vehicles, Road roller, Bulldozer, Crane, water pump, Construction machinery and Industrial Engine power pack.
Technical Specifications
General Engine Data
Engine Model: Deutz F10L413F-Construction Diesel Engine
Type: 10 Cylinders, V type
Displacement: 15.953 L
Bore * Stroke: 125 * 130
Net Weight (with flywheel & alternator): 1100 Kg
Overall Dimension: 1412mm*1038mm*937mm
Key Performance Date
Highly Intermittent: 217 kW/ 2500 rpm
Max. Power/Speed: 235 kW/2500 rpm
Max Torque/Speed: 1020 N.m @ 1500 rpm
Min Fuel Consumption @ Full Load: 216 g/Kw.h
Intermittent Power As Per ISO3046/1: 206 kW/ 2500 rpm
Continue Power As Per ISO3046/1: 147 kW/1500 rpm, 196 kW/2300 rpm
More Technical Data
Certification: Euro II
Aspiration: Natural Intake
Fuel System: Direct Injection Pump
Compression Ratio: 18:1
Governor Type: Mechanical/Electronic Governor
Cooling Method: Air Cooled
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Deutz FL413/FL513-Construction Diesel Engine Series
Deutz FL413-Construction Diesel Engine Series, original products from Huachai Deutz Engine Plant. This series mainly includes Deutz F8L413F, Deutz BF8L413FC, Deutz BF12L413F, Deutz F10L413F, Deutz BF8L513FC, Deutz BF10L513, Deutz BF12L513, Deutz BF12L513C.
