Details

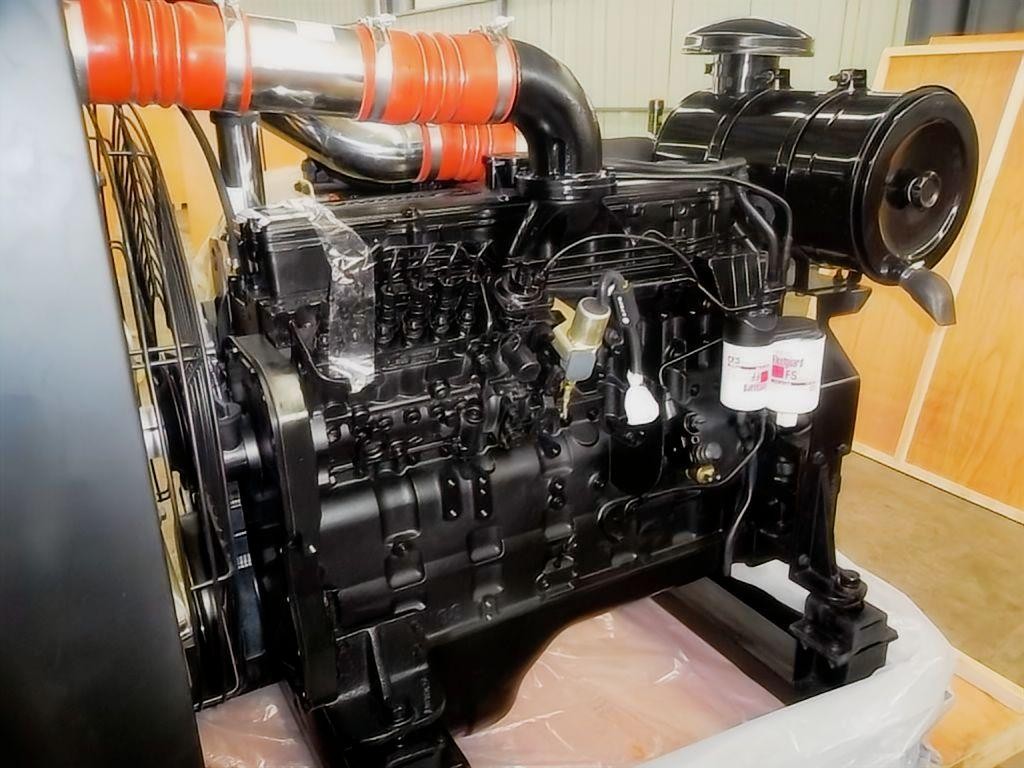

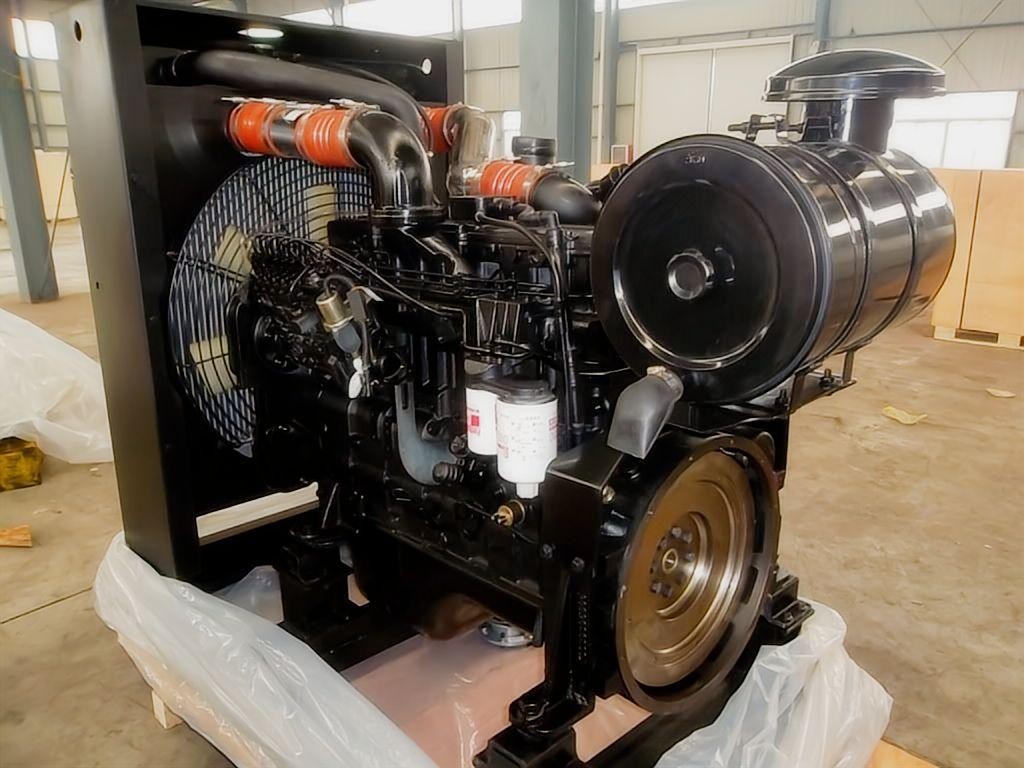

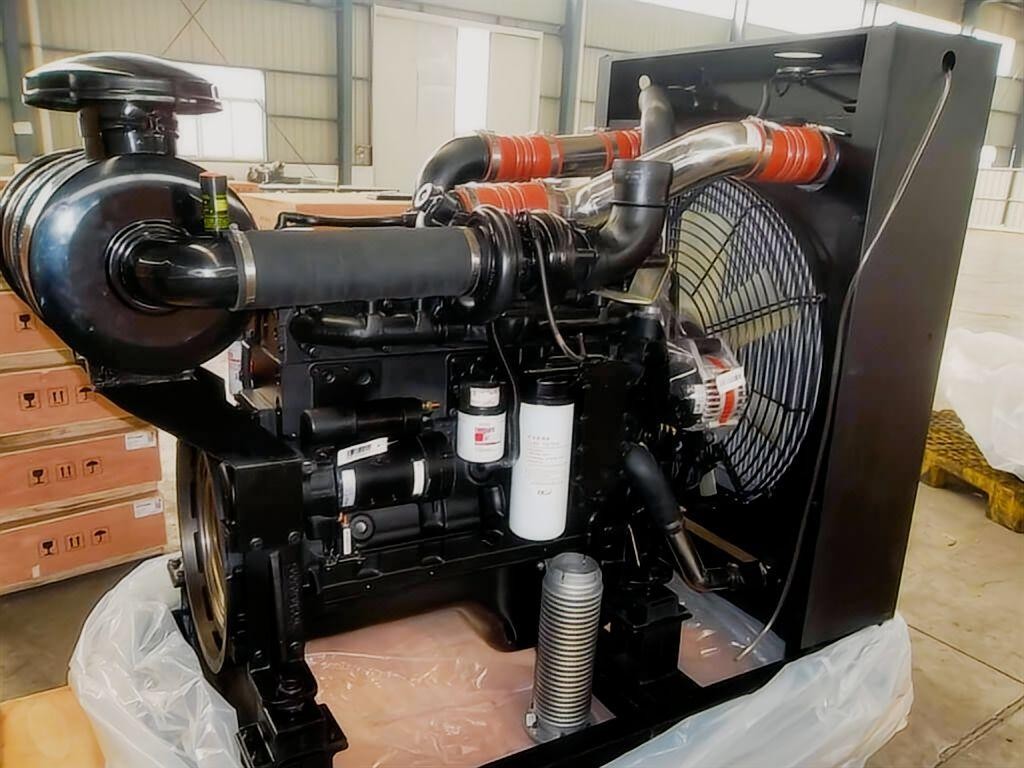

Dongfeng Cummins 6LTAA8.9-C325 Industrial Diesel Engine
The DCEC Cummins 6LTAA8.9-C325 engine represents a benchmark in heavy-duty power delivery. As a premier 8.9L diesel engine, it delivers a robust 325 horsepower to keep industrial sites moving and production lines operating. HekoPower supplies this specific Dongfeng Cummins 6LTAA8.9 series directly to contractors, machinery rebuilders, and fleet managers who require uncompromising, reliable performance under extreme environmental conditions. When a primary mover fails on a job site, you need a compatible Cummins L-series engine replacement that minimizes costly operational downtime. We specialize in providing the complete DCEC 6LTAA8.9-C325 complete engine assembly ready for seamless integration.
Tech Specs of Cummins 6LTAA8.9-C325
General Engine Data
Engine Model: Cummins 6LTAA8.9-C325
Type: 6 Cylinders in Line
Displacement: 8.9 L
Bore * Stroke: 114 * 145
Overall Dimension: 1400mm*800mm*1040mm
Net Weight (with flywheel & alternator): 650 Kg
Key Performance Data
Rated Power: 239 kW/325HP
Rated Speed: 2200 rpm
Max Torque/Speed: 1037 N.m @ 1400
Fuel Consumption @ Rated Power: 210 g/Kw.h
Max Continuous Running Altitude: 2000 m
Torque/Rated Speed: 1230 N.m @ 2200 rpm
More Technical Data
Certification: Euro II
Aspiration: Turbocharged-Intercooled
Fuel System: p7100 Pump/RSV-K Governor
Compression Ratio: 16.6:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 11.1 L
Real-World Application Scenarios for the Cummins 325HP Engine
The Cummins 6LTAA8.9-C325 engine for construction machinery serves as the heavy-duty backbone for high-demand equipment across global job sites. Site operators frequently utilize this specific model as the preferred Cummins 8.9L engine for wheel loader fleets and heavy tracked excavators. Its reinforced heavy-duty block and responsive mechanical fuel system make it the ideal replacement 8.9L engine for excavators and road rollers operating in dust-heavy, high-load environments where lesser engines experience thermal failure.
Contractors rely on the Cummins 6LTAA8.9-C325 engine for excavator applications specifically in the 30-ton to 40-ton weight class. The physical footprint of this Cummins L-series engine for heavy machinery allows it to fit into existing engine bays with minimal fabrication, making it a highly sought-after unit for mid-life machinery refurbishments. Choosing the correct Dongfeng Cummins industrial engine replacement ensures your machinery not only returns to service quickly but meets its original factory breakout force and hydraulic response specifications.
Technical Comparison: Difference between 6LTAA8.9-C325 and 6LTAA8.9-C300
Fleet managers and procurement officers often ask us to clarify the functional difference between the 6LTAA8.9-C325 and the closely related 6LTAA8.9-C300 model. While both belong to the rugged Cummins L-series diesel engine family and share the identical 114 mm by 145 mm bore and stroke, their tuning and internal component stresses differ significantly in practical application.
The Cummins 6LTAA8.9-C325 239kW engine utilizes an optimized fuel delivery map and a slightly more aggressive turbocharger geometry to achieve its higher 325HP rating. This engineering adjustment translates directly to better hydraulic pump responsiveness when a machine is under heavy, sudden strain. The 300HP variant might save a marginal amount of fuel during extended idle periods, but the Cummins 6LTAA8.9-C325 325HP diesel engine provides the critical necessary power reserve when digging through compacted clay, rock, or permafrost. Upgrading to the higher horsepower model often results in faster cycle times for earthmoving equipment.
Performance Metrics and Engine Capabilities
Analyzing the DCEC Cummins 6LTAA8.9-C325 fuel consumption curve reveals exactly why this engine is highly favored for continuous, long-shift operations. The high-pressure injection system maximizes fuel atomization inside the combustion chamber, allowing the Cummins 6LTAA8.9-C325 turbocharged diesel engine to maintain excellent fuel economy even under continuous 80% to 90% loads. Efficient combustion means less wasted energy and lower operational costs over a 10,000-hour lifecycle.
A critical metric for construction and aggregate operators is the 6LTAA8.9-C325 peak torque at 1400 RPM. Producing massive low-end torque allows wheel loaders to push deep into dense aggregate piles without the engine bogging down or stalling. The operator receives immediate lugging power right where the hydraulic system and drivetrain demand it most, ensuring smooth, uninterrupted momentum during heavy lifts and pushes.
Maintenance, Genuine Parts, and Engine Swap Solutions
Keeping your Cummins 6LTAA8.9-C325 diesel engine running at peak efficiency requires adhering strictly to factory maintenance schedules. Sourcing genuine spare parts for 6LTAA8.9-C325 is the absolute first step in protecting your heavy equipment investment. We strongly advise fleet mechanics against using aftermarket filters or off-brand internal components, which frequently lead to premature cylinder scoring and bearing failure.
Common high-hour service requirements include the Cummins 6LTAA8.9-C325 water pump and fuel injector replacement. The water pump should be inspected closely and tested around the 4,000 to 5,000-hour mark to prevent catastrophic overheating events in the field. Similarly, precise, unobstructed fuel delivery is crucial for maintaining that 325HP output; consequently, injector servicing and calibration cannot be delayed or ignored without risking severe power loss.
If your equipment has suffered a catastrophic block failure, a piecemeal rebuild might not be a cost-effective route. HekoPower provides a highly efficient used equipment Cummins engine swap solution. We supply the genuine Dongfeng Cummins 6LTAA8.9-C325 for sale as a complete, factory-tested unit. Replacing the entire block with a fresh assembly eliminates the hidden wear and tear that often plagues localized rebuilds, getting your machine back into the dirt faster.
Common Misconceptions About L-Series Engine Swaps
A frequent operational misconception is that you can easily swap a lower-tier L-series engine out and install the 6LTAA8.9-C325 without evaluating the machinery's cooling package. The Dongfeng Cummins 8.9L 325 horsepower engine generates significantly more heat under heavy load than its lower-output siblings. If you are replacing a 260HP or 300HP unit, your radiator, cooling fan, and charge air cooler must be adequately rated to handle the increased thermal rejection. Failing to upgrade the cooling system will lead to chronic overheating alarms.
Another misunderstanding involves the mechanical fuel system. Operators sometimes believe they can swap injection pumps between entirely different Cummins sub-models to save money. The injection pump calibration on the DCEC 6LTAA8.9-C325 engine is specifically tailored to its unique torque curve, specific camshaft profile, and emission requirements. Mixing mismatched fuel components guarantees poor performance and high exhaust smoke.
Logistics, Export Delivery, and Wholesale Supply
As a globally trusted Cummins 6LTAA8.9-C325 wholesale supplier in China, HekoPower understands that heavy equipment downtime directly impacts your profitability. When procurement teams need to buy Cummins 6LTAA8.9-C325 engine units, they require accurate lead times, transparent shipping routes, and highly competitive pricing structures.
The Cummins 6LTAA8.9-C325 industrial engine price fluctuates slightly based on global logistics costs, currency exchange rates, and the exact sub-assembly configurations required for your specific machinery. We maintain open, clear communication regarding the 6LTAA8.9-C325 lead time and export delivery schedules from the moment you request a quote. Whether you are a local contractor seeking a single 6LTAA8.9-C325 engine replacement supplier for an emergency breakdown, or a large-scale manufacturer looking to source wholesale DCEC 8.9L diesel engines for a new production line of machinery, our dedicated logistics team expertly handles the complex export documentation, customs clearance, and fast-track shipping protocols.
Cummins CL8.9-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6LTAA8.9-C300, 6LTAA8.9-C325, 6LTAA8.9-C340, 6LTAA8.9-C360.
Frequently Asked Questions
What specific machinery is the Cummins 6LTAA8.9-C325 best suited for?
This specific engine assembly is primarily engineered for heavy earthmoving and infrastructure equipment. It serves as the standard, reliable powerplant for 35-ton to 40-ton tracked excavators, heavy-duty articulated wheel loaders, and large-scale road paving machinery.
Can I use this specific engine to replace an older Cummins 8.9L construction engine?
Yes, this 325HP unit is an excellent replacement candidate for older equipment. However, operators must carefully verify the bell housing dimensions, flywheel size, and the engine mount configuration to ensure it is a direct, drop-in fit for your specific machine chassis.
How do I verify the current Cummins 6LTAA8.9-C325 price?
Because international freight costs and specific accessory configurations vary heavily by order, we encourage procurement managers to contact the HekoPower sales team directly. We provide highly customized, transparent quotes that include the base engine assembly and all necessary shipping arrangements directly to your facility or port of choice.
