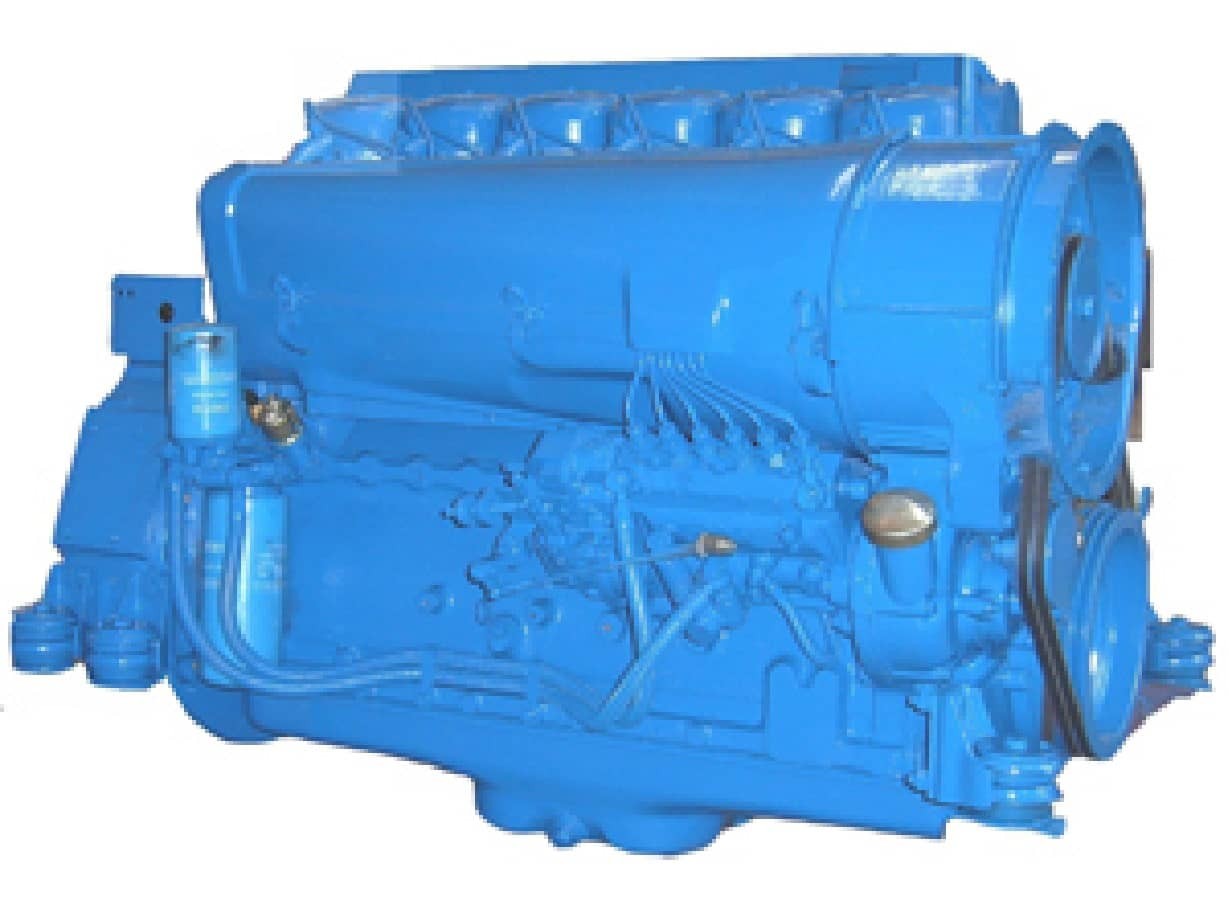

Deutz F6L912W Construction Diesel Engine: Complete Assembly
Finding a reliable power unit for specialized heavy equipment requires matching the right combustion technology to the operating environment. As a dedicated engine supplier, HekoPower provides the complete Deutz F6L912W engine assembly directly to equipment manufacturers, maintenance facilities, and contractors worldwide.
The F6L912W air-cooled industrial engine stands apart from standard models due to its specific internal architecture. Delivering 74kW of continuous power, this naturally aspirated engine is built for environments where durability, compact size, and specific emission profiles are strictly required.
Tech Specs of Deutz F6L912W Construction Diesel Engine
General Engine Data
Engine Model: Deutz F6L912W-Construction Diesel Engine
Type: 6 Cylinders in Line
Displacement: 5.655 L
Bore * Stroke: 100 * 120
Overall Dimension: 1120mm*673mm*815mm
Net Weight (with flywheel & alternator): 410 Kg
Key Performance Data
Continue Power as per DIN170020: 74 kW/2800 rpm
Net Break Fuel Stop Power As Per ISO30046/1(IFN): 69 kW/2800 rpm
Max. Power Output(1500 RPM): 298 N.m @ 1550 rpm
Min Fuel Consumption @ Full Load: 212 g/Kw.h
Highly Intermittent: 63 kW/2500 rpm
More Technical Data
Certification: Euro II
Aspiration: Natural Intake
Fuel System: Direct Injection Pump
Cooling Method: Air Cooling
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Compression Ratio: 19:1
Governor Type: Mechanical/Electronic Governor
Real Application Scenarios for the F6L912W
Because of its unique emissions profile and rugged build, the F6L912W construction engine thrives in two distinct operational sectors.
Underground Mining and Enclosed Construction
Standard diesel engines pose a massive respiratory hazard in poorly ventilated spaces. The lowered particulate output of the indirect injection system makes this the premier air-cooled diesel engine for underground mining.
Our clients frequently request the Deutz F6L912W engine for LHD loader applications and underground scooptrams. When an operator is running a 63kW or 74kW underground loader in a deep tunnel, the reduced exhaust toxicity of the F6L912W directly lowers the ventilation costs for the mining operation. It is the industry standard F6L912W mining equipment engine for subterranean infrastructure projects.
Surface Construction Machinery
Above ground, the F6L912W 6 cylinder inline engine is equally capable. It serves as a highly reliable Deutz F6L912W engine for construction machinery operating in extreme dust or high-temperature zones. Liquid-cooled engines often suffer radiator clogs on dirty job sites. The air-cooled nature of this engine completely eliminates water pumps, radiators, and coolant leaks.
Equipment builders regularly utilize this 101HP Deutz engine for construction equipment such as road rollers, compact excavators, and bulldozers. Whether you need a Deutz F6L912W engine for an excavator trenching in the desert or a mobile construction equipment power unit for a concrete pump, this engine assembly delivers consistent mechanical power.
Maintenance and Replacement Tips
Extending the lifecycle of your F6L912W diesel engine requires adhering to specific maintenance protocols tailored to air-cooled machinery.
Best Practices for Air-Cooled Engines
The cooling system relies entirely on the engine-driven axial cooling fan and the integrity of the sheet metal shrouds directing air over the cylinder fins. A critical maintenance tip is to routinely inspect and clean these cooling fins. Construction debris, mixed with minor oil seepage, can quickly form an insulating crust on the cylinders. This leads to localized overheating that a dashboard gauge might not immediately register.
When replacing the engine, always verify that the mechanical governor is properly calibrated to the hydraulic pump demands of your specific machine. Operators tracking the Deutz F6L912W fuel consumption and performance curve should ensure the fuel injection pump timing is set accurately to factory specifications to maintain the balance of low emissions and optimal torque.
Common Misconceptions About the F6L912W
A frequent misconception in the heavy equipment industry is that the "W" in F6L912W stands for "Water-cooled." This is entirely incorrect. The engine remains 100% air-cooled. The "W" originates from the German word "Wirbelkammer," which translates to swirl chamber, denoting the indirect injection system.
Another misconception is that standard F6L912 parts are universally interchangeable with the W model. While external blocks and mounts are identical, critical internal components like the cylinder heads, pistons, and fuel injectors are completely different due to the two-stage combustion design. Always verify part numbers with your Deutz F6L912W replacement engine supplier before initiating a rebuild.
Sourcing Your F6L912W Complete Engine Assembly
Minimizing equipment downtime is our primary focus. Whether you are looking to buy a Deutz F6L912W 101HP construction engine for a fleet upgrade or need a single Beinei Deutz F6L912W replacement engine for a broken-down bulldozer, HekoPower provides transparent logistics.
As an established Deutz F6L912W engine supplier, we offer competitive F6L912W engine wholesale pricing for bulk fleet orders. Our standard F6L912W engine lead time is highly efficient, ensuring your complete engine assembly arrives on schedule, fully inspected, and ready for installation.
By integrating closely with top-tier manufacturing partners, we provide comprehensive powertrain solutions across this engine family.
Deutz F2L912/FL913-Generator Engine Series, original products from Beinei Deutz Engine Plant. This series mainly includes Deutz F2L912, Deutz F3L912W, Deutz F3L912, Deutz F4L92W, Deutz F4L912T, Deutz F4L912, Deutz F6L912W, Deutz F6L912T, Deutz F6L912, Deutz F3L913, Deutz F4L913, Deutz BF4L913, Deutz F6L913, Deutz F6L913T, Deutz BF6L913, Deutz BF6L913C.
Frequently Asked Questions (FAQs)
What is the exact Deutz F6L912W engine price for wholesale orders?
Pricing fluctuates based on global material costs, shipping destinations, and whether you require specific auxiliary attachments like custom flywheels or specific exhaust manifolds. Please contact our sales team directly for an accurate, up-to-date quote on single units or wholesale bulk orders.
Can I use the F6L912W diesel engine to replace a standard F6L912?
Yes, physically it is a drop-in replacement. The engine mounting points, bell housing dimensions, and overall footprint are identical. Replacing a standard model with the F6L912W will simply provide you with a smoother-running engine with lower emissions, which is highly beneficial if the equipment has been moved to an enclosed work site.
Does HekoPower provide the Deutz F6L912W engine specifications and dimensions sheet?
Absolutely. Upon request, our engineering team provides comprehensive CAD drawings, external dimension blueprints, and detailed performance curves to ensure the engine integrates perfectly with your construction loader, excavator, or custom machinery build.
