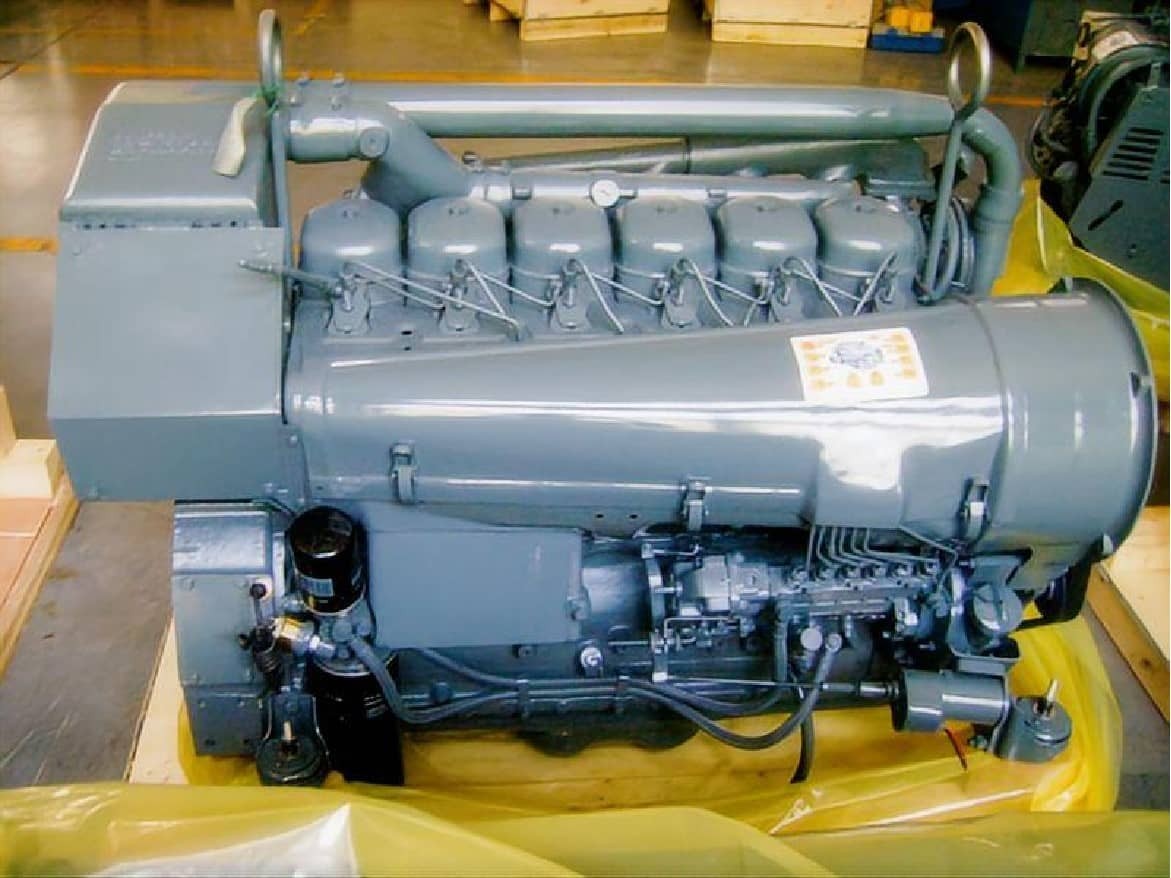

Deutz BF6L913C Construction Diesel Engine
The Deutz BF6L913C construction diesel engine is engineered specifically for the punishing environments of extreme heavy machinery operation. Delivering a robust 141kW (192HP) at 2500 rpm, this air-cooled inline-6 construction engine provides the reliable, continuous power required by contractors and heavy equipment OEMs. As a dedicated industrial supplier, HekoPower provides complete new BF6L913C engine assemblies designed to minimize downtime on your job site and keep your fleet moving.
Whether you are upgrading aging machinery or sourcing a replacement engine for a Deutz BF6L913C, this 6.128 L diesel engine offers an unparalleled balance of heavy-duty torque and low-maintenance operation.
Tech Specs of Deutz BF6L913C
General Engine Data
Engine Model: Deutz BF6L913C-Construction Diesel Engine
Type: 6 Cylinders in Line
Displacement: 6.128 L
Bore * Stroke: 102*125
Overall Dimension: 1134mm*711mm*990mm
Net Weight (with flywheel & alternator): 540 Kg
Key Performance Data
Continue Power as per DIN170020: 141 kW/2500 rpm
Net Break Fuel Stop Power As Per ISO30046/1(IFN): 136 kW/2500 rpm
Max. Power Output(1500 RPM): 620 N.m @ 1650 rpm
Min Fuel Consumption @ Full Load: 214.8 g/Kw.h
Highly Intermittent: 131 kW/2500 rpm
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Aftercooled
Fuel System: Direct Injection Pump
Cooling Method: Air Cooling
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Compression Ratio: 15.5:1
Governor Type: Mechanical/Electronic Governor
Technical Comparisons and the Air-Cooled Advantage
Many fleet managers and operators evaluating the BF6L913C turbocharged aftercooled diesel engine want to know how it stacks up against modern water-cooled alternatives and earlier naturally aspirated 912 models. The primary advantage of this 6 cylinder Deutz air-cooled diesel engine is its complete lack of a radiator, water pump, and coolant hoses. In high-vibration construction settings, cooling system leaks are a leading cause of catastrophic machinery failure. By relying entirely on advanced air cooling requirements, the Deutz 913 series construction engine completely bypasses this critical vulnerability.
Compared to standard naturally aspirated units, the turbocharged and aftercooled BF6L913C pushes a formidable 620 Nm peak torque at 1650 rpm. This low-end torque curve is exactly what is required for heavy earthmoving and high-resistance soil compaction. Furthermore, the robust direct injection pump and Euro II construction engine emissions rating ensure that it provides reliable diesel power for high-dust construction environments without sacrificing fuel economy.
Real-World Application Scenarios for the BF6L913C
This engine is built to thrive where conditions are at their worst. A very common application intent is utilizing the BF6L913C engine for an excavator working in quarrying, mining, or demolition. The extreme dust levels in these areas will easily clog the fins of traditional liquid radiators, leading to rapid overheating. With this specific air-cooled engine, particulate matter and dust pass through the wide cooling fins much more efficiently, maintaining safe operating temperatures.
We also frequently supply the BF6L913C engine for road rollers and heavy bulldozers. The constant, aggressive vibration of a vibratory soil compactor demands an engine block that will not crack under continuous stress. The cast-iron construction of the Beinei Deutz BF6L913C engine handles these kinetic loads effortlessly.
Beyond earthmoving, it serves exceptionally well as a BF6L913C engine for cranes, hydraulic equipment, and heavy-duty industrial water pumps. Its consistent power output under continuous load fluctuations makes it a highly versatile asset across an entire construction fleet.
Expert Maintenance and Engine Replacement Tips
When sourcing a BF6L913C engine replacement for construction equipment, physical compatibility is just as important as power output. Before ordering, operators must verify the BF6L913C flywheel housing compatibility and the specific PTO configuration on their existing machine. Construction equipment chassis vary wildly between manufacturers. Ensuring your BF6L913C engine mounting dimensions match your machinery perfectly will prevent costly installation delays and frame modifications.
For routine maintenance, site mechanics must monitor the Deutz BF6L913C maintenance and fuel consumption closely. Operating at an highly efficient 214.8 g/kW.h, any sudden spikes in fuel usage often indicate dirty air intake filters or issues developing within the direct injection pump. Mechanics should always ensure the turbocharger and aftercooler exterior fins remain free of caked-on mud or cement dust. Regular, scheduled cleaning of the cooling block with compressed air will extend the lifespan of this 102 x 125 mm diesel engine significantly.
Additionally, pay close attention to the governor configuration during installation. A stationary generator requires a fixed-speed governor. However, a BF6L913C engine for construction machinery requires a variable speed governor to handle sudden, aggressive load changes from hydraulic pumps. HekoPower ensures these configurations are correct prior to dispatch.
Common Misconceptions About Air-Cooled Diesel Engines
A persistent myth in the construction industry is that an air-cooled diesel engine will inevitably overheat during peak summer operation. This is fundamentally untrue for the Deutz BF6L913C 141 kW engine. The integrated axial cooling fan is driven directly by the engine's gear train. This means the harder the engine works and the higher the RPMs climb, the more cooling air is forcefully blasted over the cylinders. As long as the cooling fins are not entirely blocked by debris, the BF6L913C 192 HP construction engine can safely operate in ambient temperatures exceeding 50 degrees Celsius.
Another frequent misconception involves the BF6L913C engine identification process. Many buyers assume any 6-cylinder Deutz engine will easily drop into their existing machine. In reality, you must locate and check the exact BF6L913C engine serial number stamped on the engine block to confirm the factory build specification.
Explore the Deutz 912/913 Construction Engine Series
While the BF6L913C is an exceptional heavy-duty powerplant, we recognize that different construction sites and fleet sizes require vastly different power bands. HekoPower supplies the entire spectrum of Deutz air-cooled engines to meet the specific requirements of various hydraulic excavators, wheel loaders, and road maintenance machinery. Understanding the broader family of Deutz engines can help your procurement team standardize your fleet's maintenance protocols and parts inventory.
Deutz F2L912/FL913-Generator Engine Series, original products from Beinei Deutz Engine Plant. This series mainly includes Deutz F2L912, Deutz F3L912W, Deutz F3L912, Deutz F4L92W, Deutz F4L912T, Deutz F4L912, Deutz F6L912W, Deutz F6L912T, Deutz F6L912, Deutz F3L913, Deutz F4L913, Deutz BF4L913, Deutz F6L913, Deutz F6L913T, Deutz BF6L913, Deutz BF6L913C.
Frequently Asked Questions
What are the exact Deutz BF6L913C engine specifications for heavy machinery?
The BF6L913C is an air-cooled, inline 6-cylinder diesel engine equipped with a turbocharger and an aftercooler. It features a total displacement of 6.128 liters, a bore and stroke of 102 x 125 mm, and delivers a rated output of 141 kW (192 HP) at 2500 rpm. It produces a peak torque of 620 Nm at 1650 rpm.
Is this a complete new engine assembly or a rebuilt unit?
HekoPower supplies complete, brand new BF6L913C engine assemblies. As a dedicated BF6L913C construction engine supplier, we provide factory-fresh units designed for long-term construction and industrial machinery replacement.
How do I ensure BF6L913C engine replacement compatibility with my machine?
You should provide our sales engineers with your existing BF6L913C engine serial number. Our technical team will use this number to verify the exact flywheel housing, PTO configuration, and governor setup to ensure the new engine drops directly into your machinery without the need for custom fabrication.
Can HekoPower supply BF6L913C spare parts alongside the complete engine?
Yes. As a comprehensive Deutz BF6L913C engine supplier, we offer a full catalog of genuine BF6L913C spare parts. We can supply replacement fuel injectors, turbochargers, air filters, and direct injection pumps to ensure your fleet remains operational for years after the initial engine installation.
