The Unique Engineering Behind the Deutz F4L912W Engine

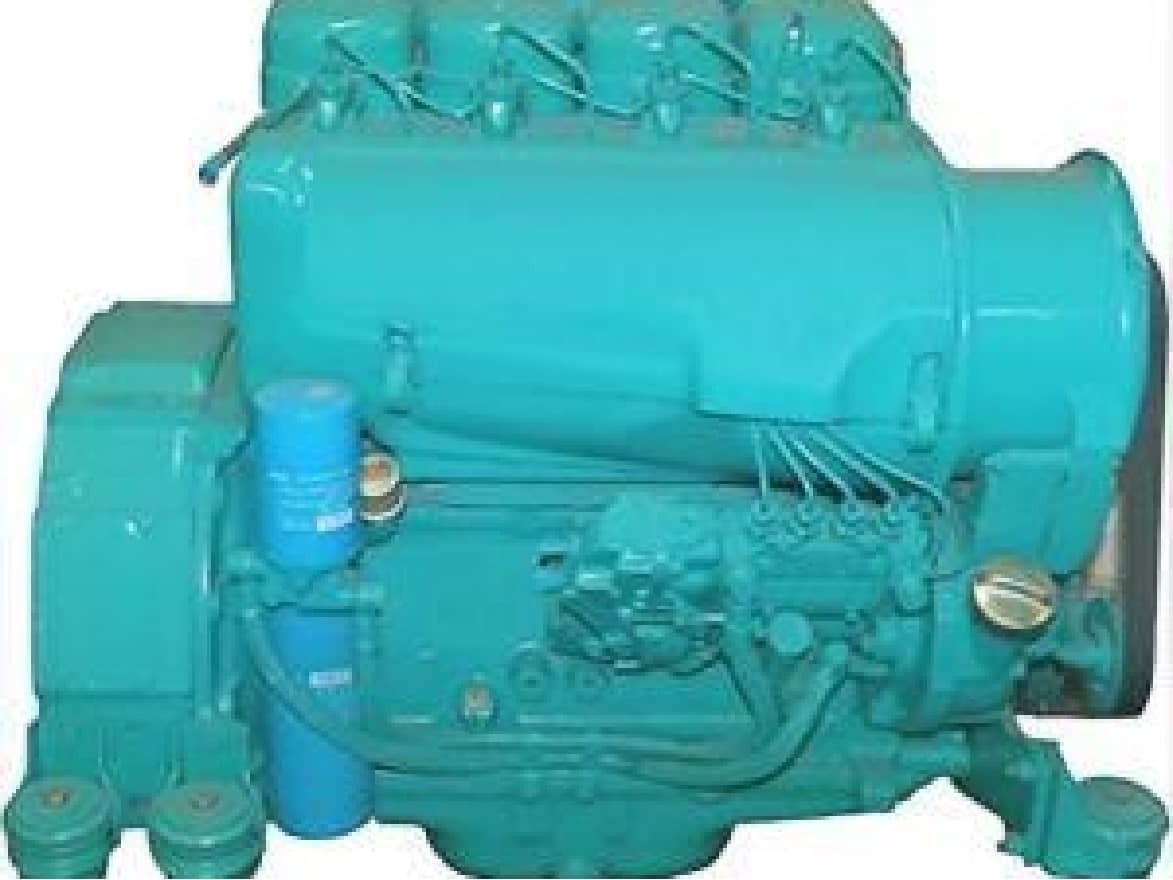

The Deutz F4L912W construction diesel engine is specifically engineered for environments where standard powerplants rapidly fail. At its core, this is a highly robust Deutz 4-cylinder diesel engine utilizing an advanced air-cooling system. Unlike standard liquid-cooled units that rely on vulnerable radiators, water pumps, and coolant lines, this F4L912W air-cooled diesel engine uses a heavy-duty integrated axial blower to force high-velocity air over finned cylinder barrels. This mechanical design completely eliminates the risk of coolant leaks on jagged job sites, frozen engine blocks in winter, or boiling radiators during continuous summer operations. What truly sets the F4L912W engine apart from standard 912 models is its specialized combustion architecture. The "W" designation signifies a highly refined two-stage combustion process tailored specifically for low-ventilation environments. This specific trait makes the 4-cylinder Deutz engine for mining equipment the industry standard for underground operations. By optimizing the burn cycle, it drastically reduces toxic exhaust emissions, allowing it to safely power underground load-haul-dump (LHD) loaders and tunneling rigs. Despite this specialized two-stage combustion, mechanics often group it alongside the standard Deutz F4L912W direct injection engine family, though the W-series offers a much cleaner emissions profile, qualifying as a Deutz F4L912W Euro II engine based on its manufacturing specifications. Built around a precise Deutz F4L912W 100 x 120 mm engine bore and stroke configuration, this Deutz F4L912W 3.77L diesel engine delivers exceptional torque density for its physical footprint. Operating strictly as a Deutz F4L912W naturally aspirated engine, it breathes freely without the added mechanical complexity or heat generation of a turbocharger, further enhancing its reliability in heavy dust environments.
Tech Specs of Deutz F4L912W
General Engine Data
Engine Model: Deutz F4L912W-Construction Diesel Engine
Type: 4 Cylinders in Line
Displacement: 3.77 L
Bore * Stroke: 100 * 120
Overall Dimension: 860mm*673mm*815mm
Net Weight (with flywheel & alternator): 300 Kg
Key Performance Data
Continue Power as per DIN170020: 49 kW/2800 rpm
Net Break Fuel Stop Power As Per ISO30046/1(IFN): 46 kW/2800 rpm
Max. Power Output(1500 RPM): 199 N.m @ 1550 rpm
Min Fuel Consumption @ Full Load: 245 g/Kw.h
Highly Intermittent: 42 kW/2500 rpm
More Technical Data
Certification: Euro II
Aspiration: Natural Intake
Fuel System: Direct Injection Pump
Cooling Method: Air Cooling
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Compression Ratio: 19:1
Governor Type: Mechanical/Electronic Governor
Technical Comparisons: Air-Cooled vs. Liquid-Cooled Power
When evaluating the Deutz F4L912W 49kW engine against traditional liquid-cooled alternatives of the exact same displacement, several critical engineering differences dictate purchasing decisions. The most noticeable difference is the power delivery control. The F4L912W construction engine utilizes a Deutz F4L912W mechanical governor engine setup. This mechanical fuel regulation provides instantaneous throttle response when a piece of heavy machinery encounters sudden severe resistance, such as a loader bucket hitting solid rock. Modern electronic common-rail liquid-cooled engines often experience a slight digital delay as sensors calculate the load; the mechanical governor simply opens the rack and delivers fuel instantly. Looking at performance metrics, the Deutz F4L912W 199 Nm engine torque output peaks at an exceptionally low RPM, providing lugging power right where construction equipment needs it most. While a comparable liquid-cooled engine might offer slightly quieter operation due to the sound-dampening water jacket surrounding the cylinders, it carries significant dead weight and parasitic power loss from driving the water pump. The F4L912W diesel engine converts more of its raw combustion energy directly into usable flywheel power. Additionally, the Deutz F4L912W 245 g/kWh fuel consumption rate remains highly competitive, frequently outperforming liquid-cooled counterparts during the extended idling or partial-load scenarios that are common on active job sites. Procurement managers analyzing Deutz F4L912W fuel consumption and dimensions will quickly realize that the lack of a bulky external radiator allows this Deutz F4L912W industrial construction engine to fit into remarkably tight machinery engine bays.
Real Application Scenarios in Construction Equipment
Heavy machinery purchasing carries strict construction-equipment intent; the powerplant must survive neglect, extreme weather, and constant chassis vibration. The Deutz F4L912W construction equipment engine thrives in exactly these conditions. Because of its rugged simplicity, the F4L912W engine for construction machinery is the preferred choice for remote, off-grid job sites where specialized diagnostic laptops are unavailable. A primary application is the F4L912W engine for excavator machinery. Compact excavators operating in demolition environments benefit greatly from the absence of a fragile radiator that could be punctured by rebar or flying concrete debris. Similarly, the F4L912W engine for road roller applications takes advantage of the engine's flat low-end torque curve to maintain consistent compaction speeds, regardless of the asphalt incline. Beyond mobile machinery, this exact model excels in stationary continuous-duty roles. The F4L912W engine for water pump configurations is frequently seen in heavy-duty dewatering operations at quarry sites. Because it is air-cooled, it can run continuously for days pumping out flooded pits without the risk of pulling contaminated water into a cooling jacket. It is equally popular as an F4L912W engine for hydraulic equipment, powering standalone mobile hydraulic power packs that drive augers, heavy winches, and rock splitters.
Maintenance and Replacement Tips
Maintaining a Deutz F4L912W 67HP construction diesel engine is straightforward, provided operators understand the specific thermodynamic needs of an air-cooled block. The most critical maintenance tip is keeping the external cooling fins on the cylinder heads meticulously clean. In high-dust environments, a mixture of oil vapor and dirt can bake onto the metal fins, insulating them and causing localized hot spots. Mechanics should prioritize blowing out the cooling shrouds with compressed air during every routine oil change. When completing a swap with a Deutz F4L912W replacement engine, always verify the V-belt tension driving the cooling blower. A slipping belt reduces airflow and will lead to rapid overheating under heavy mechanical load. A very common misconception regarding the product is that air-cooled engines are prone to overheating in hot summer climates. In reality, the high ambient temperatures of a desert affect a liquid-cooled engine's radiator efficiency much more severely than the high-velocity forced air system of the F4L912W. Because the Deutz block operates at a higher baseline temperature, the temperature differential between the engine and the hot outside air remains wide enough to shed heat effectively. For procurement teams, sourcing a genuine Beinei Deutz F4L912W air-cooled engine ensures you are getting the authentic licensed technology built for longevity. When installing the F4L912W replacement diesel engine, ensure the existing exhaust plumbing accommodates the specialized two-stage combustion manifold, and always prime the mechanical fuel system thoroughly before the first crank.
Integrating with the Broader Product Family
The F4L912W does not exist in isolation; it is part of a highly modular engine family that shares numerous internal components, simplifying fleet maintenance and spare parts inventory. By maintaining this modularity across different cylinder counts, fleet managers can service multiple machines using the same fuel filters, piston rings, and individual cylinder heads.
Deutz F2L912/FL913-Generator Engine Series, original products from Beinei Deutz Engine Plant. This series mainly includes Deutz F2L912, Deutz F3L912W, Deutz F3L912, Deutz F4L92W, Deutz F4L912T, Deutz F4L912, Deutz F6L912W, Deutz F6L912T, Deutz F6L912, Deutz F3L913, Deutz F4L913, Deutz BF4L913, Deutz F6L913, Deutz F6L913T, Deutz BF6L913, Deutz BF6L913C.
Frequently Asked Questions (FAQs)
Why is the F4L912W preferred over standard models for underground mining?
The "W" combustion system dictates a two-stage fuel burn that significantly reduces the emission of harmful gases compared to standard direct-injection models. When paired with its air-cooled design, which requires far less installation space than a massive radiator setup, it becomes the safest and most compact choice for underground operation.
Is it difficult to source parts for an F4L912W engine replacement?
Not at all. As a dedicated Deutz F4L912W engine supplier, HekoPower stocks a massive inventory of genuine and OEM-equivalent parts. Because the 912 series utilizes individual cylinder jugs and heads rather than a single massive cast iron block, major internal repairs can often be executed in-frame without removing the engine block from the machinery chassis.
