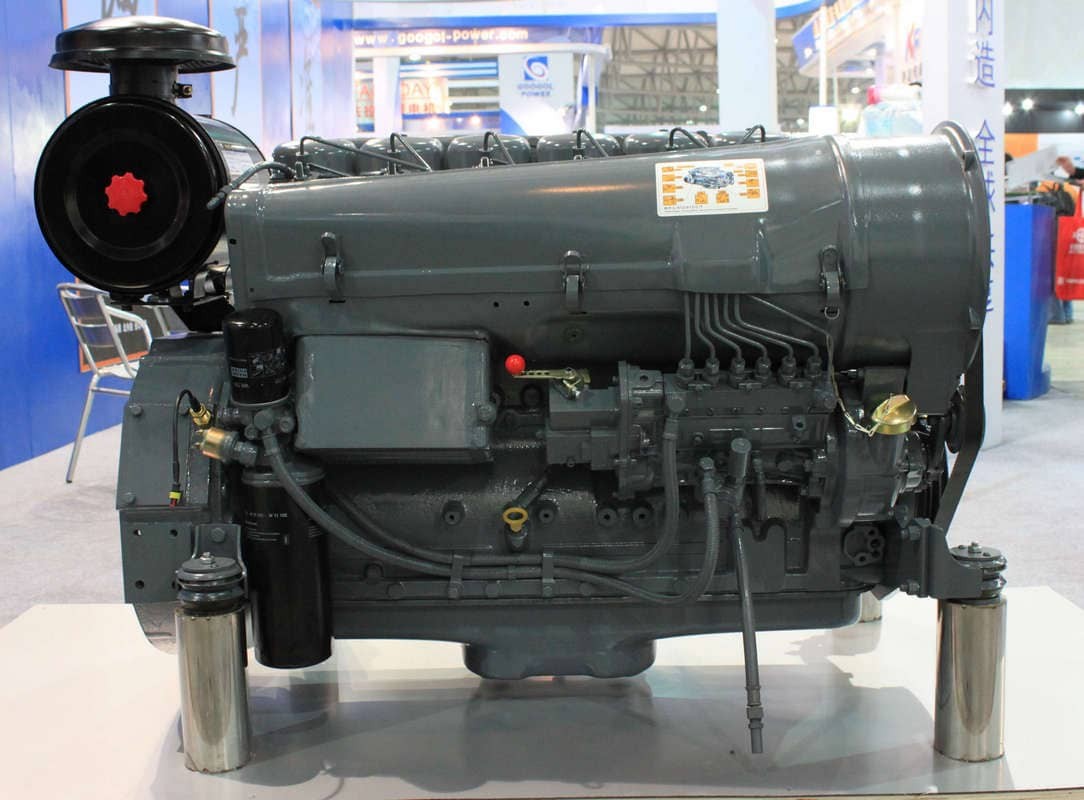

Deutz BF6L913 Construction Diesel Engine: Reliable Power for Heavy Equipment
When industrial operators demand unwavering reliability in harsh environments, the Deutz BF6L913 construction engine remains a premier choice. As a dedicated engine supplier, HekoPower provides the complete Deutz BF6L913 engine assembly, delivering an exceptional balance of mechanical simplicity and robust power. This 6-cylinder turbocharged air-cooled engine is engineered specifically for heavy equipment that operates far off the grid, where downtime is not an option.
Producing a formidable 118 kW at 2800 RPM, this BF6L913 160 HP engine offers the torque and structural rigidity required to keep construction sites moving. With its proven 6.128 L displacement and a peak torque output of 510 Nm at 1700 rpm, the engine effortlessly handles the sudden load variations typical of hydraulic heavy machinery.
Tech Specs of Deutz BF6L913 Construction Diesel Engine
General Engine Data
Engine Model: Deutz BF6L913-Construction Diesel Engine
Type: 6 Cylinders in Line
Displacement: 6.128 L
Bore * Stroke: 102*125
Overall Dimension: 1134mm*711mm*920mm
Net Weight (with flywheel & alternator): 515 Kg
Key Performance Data
Continue Power as per DIN170020: 118 kW/2800 rpm
Net Break Fuel Stop Power As Per ISO30046/1(IFN): 118 kW/2800 rpm
Max. Power Output(1500 RPM): 510 N.m @ 1700 rpm
Min Fuel Consumption @ Full Load: 214.8 g/Kw.h
Highly Intermittent: 109 kW/2500 rpm
More Technical Data
Certification: Euro II
Aspiration: Turbocharged
Fuel System: Direct Injection Pump
Cooling Method: Air Cooling
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Compression Ratio: 15.5:1
Governor Type: Mechanical/Electronic Governor
Technical Comparisons: Understanding the 913 Series Differences
Selecting the right engine model is critical for ensuring optimal equipment performance and a smooth installation. Operators often ask about the BF6L913 vs BF6L913C construction engine difference. The "C" in the BF6L913C designation stands for charge-air cooling, also known as intercooling. While the intercooled version pushes the horsepower slightly higher, the standard BF6L913 turbocharged air-cooled engine offers a distinct installation advantage. Without the bulky charge-air cooler and its associated piping, the standard BF6L913 requires a smaller installation footprint. This makes it a highly sought-after Deutz BF6L913 replacement engine for older machinery with confined engine bays.
When compared to the naturally aspirated engines in the same family, this turbocharged variant completely transforms the machine's capability. The addition of the exhaust gas turbocharger allows this 6.128 L diesel engine to force more air into the combustion chamber, resulting in a much steeper torque curve. This means that when a hydraulic pump suddenly demands maximum pressure, the engine powers through without stalling.
Real Application Scenarios in Construction Machinery
The versatility of the Deutz BF6L913 construction diesel engine makes it the backbone of numerous industrial applications. Because it relies entirely on an axial cooling fan rather than a vulnerable liquid cooling system, it thrives in environments that would destroy a standard engine.
For earthmoving operations, the BF6L913 engine for excavator applications is incredibly popular. Excavators operate in dust-heavy environments where a traditional radiator would quickly clog, leading to overheating. The generous spacing between the finned cylinders of this air cooled Deutz engine for construction machinery allows dust and debris to blow straight through the cooling passages.
Road paving and compaction represent another major application. A BF6L913 engine for road roller use guarantees consistent RPMs under steady, heavy loads. The engine's low-vibration characteristics, thanks to its inline-six design and balanced crankshaft, ensure that vibrations go into the soil compaction rather than rattling the machine's cabin. Similarly, operators frequently utilize the BF6L913 engine for bulldozer repowers and hydraulic equipment upgrades, appreciating the direct injection diesel engine’s excellent fuel economy.
Furthermore, this model serves as an ideal BF6L913 diesel engine for mobile air compressor units. Compressors are often towed to remote quarries or mining sites where sourcing engine coolant is difficult. The air-cooled nature of this industrial diesel engine eliminates coolant leaks, frozen engine blocks in winter, and boiling radiators in the summer heat.
Maintenance and Replacement Tips for the Deutz BF6L913
Navigating Common Misconceptions About Air-Cooled Engines
A frequent misconception among new operators is that an air-cooled engine cannot handle extreme summer temperatures. In reality, the Beinei Deutz BF6L913 160HP engine and the Huachai Deutz BF6L913 construction power unit are intentionally designed to operate at higher cylinder temperatures than liquid-cooled alternatives. The engine block utilizes individual cast-iron cylinders with massive cooling fins that dissipate heat incredibly fast. As long as the axial fan is spinning at the correct speed, this engine will comfortably operate in desert environments.
Another misconception is that replacing major internal components requires pulling the entire engine block. Because the BF6L913 utilizes a modular cylinder design, maintenance crews can replace a single cylinder head, barrel, or piston right in the field without removing the entire engine assembly from the machine.
Upgrading and Repowering Your Equipment
When an old engine finally reaches the end of its lifespan, investing in a BF6L913 complete replacement engine is often far more cost-effective than attempting a piecemeal rebuild. HekoPower serves as a premier wholesale engine supplier, providing factory-fresh units. When installing your new Deutz 913 series air cooled engine repower kit, always verify the Deutz BF6L913 fuel injection pump and governor spec matches your equipment’s hydraulic demands. Construction machinery usually requires an all-speed mechanical governor to maintain RPM under varying hydraulic loads, whereas a generator would require a fixed-speed governor setup.
Maintenance on this engine is wonderfully straightforward. The primary concerns are maintaining proper tension on the cooling fan belt and ensuring regular valve clearance adjustments. Because the engine oil also plays a vital role in cooling the internal components, adhering to strict oil change intervals with high-quality diesel engine oil is paramount for longevity.
Genuine Spare Parts and Sourcing Complete Assemblies
Finding a reliable Deutz BF6L913 engine manufacturer in China ensures you get both competitive pricing and uncompromised build quality. Whether you are looking to buy a complete new Deutz BF6L913 engine assembly or simply need Deutz BF6L913 genuine spare parts and engine replacement components, HekoPower provides direct access to these assets. We understand that downtime costs money, which is why we stock the BF6L913 complete engine assembly ready for global dispatch, complete with a starter, alternator, turbocharger, and injection system pre-installed and calibrated.
Exploring the Broader Deutz 913 Series
While the BF6L913 turbocharged air-cooled engine offers the perfect balance of power and compact design for many excavators and loaders, different equipment requires different power outputs and physical footprints. To ensure our clients find the exact match for their machinery, HekoPower supplies the entire spectrum of this legendary engine family. Whether you need a smaller naturally aspirated unit for a compact pump or a higher-output charge-air-cooled engine for massive earthmovers, we have the corresponding assembly ready for deployment.
Deutz F2L912/FL913-Generator Engine Series, original products from Beinei Deutz Engine Plant. This series mainly includes Deutz F2L912, Deutz F3L912W, Deutz F3L912, Deutz F4L92W, Deutz F4L912T, Deutz F4L912, Deutz F6L912W, Deutz F6L912T, Deutz F6L912, Deutz F3L913, Deutz F4L913, Deutz BF4L913, Deutz F6L913, Deutz F6L913T, Deutz BF6L913, Deutz BF6L913C.
Frequently Asked Questions (FAQs)
What are the core Deutz BF6L913 118kW 2800rpm diesel engine specs?
This model is a 6-cylinder, inline, turbocharged, air-cooled diesel engine. It features a 102 x 125 mm bore and stroke, resulting in a displacement of 6.128 liters. It produces 118 kW (160 HP) at 2800 RPM and generates 510 Nm of torque at 1700 RPM.
Is this engine compliant with modern emissions standards?
The standard BF6L913 is designed as a Euro II diesel engine (equivalent to Tier 2 industrial standards). This makes it highly suitable for unregulated markets, export machinery, and older construction equipment repowers where complex electronic emission controls are not desired.
Why choose a 6.128L Deutz air cooled engine for heavy equipment over a water-cooled alternative?
Air-cooled engines eliminate the water pump, radiator, hoses, and coolant fluid. This removes the most common failure points in off-road environments—namely punctured radiators, ruptured hoses, and coolant freezing or boiling over.
How do I inquire about the BF6L913 engine price?
As a dedicated BF6L913 replacement engine China supplier, HekoPower offers tailored quotes based on your exact configuration needs and shipping destination. You can contact our sales engineering team directly to discuss your specific machinery application and secure a competitive wholesale engine price.
