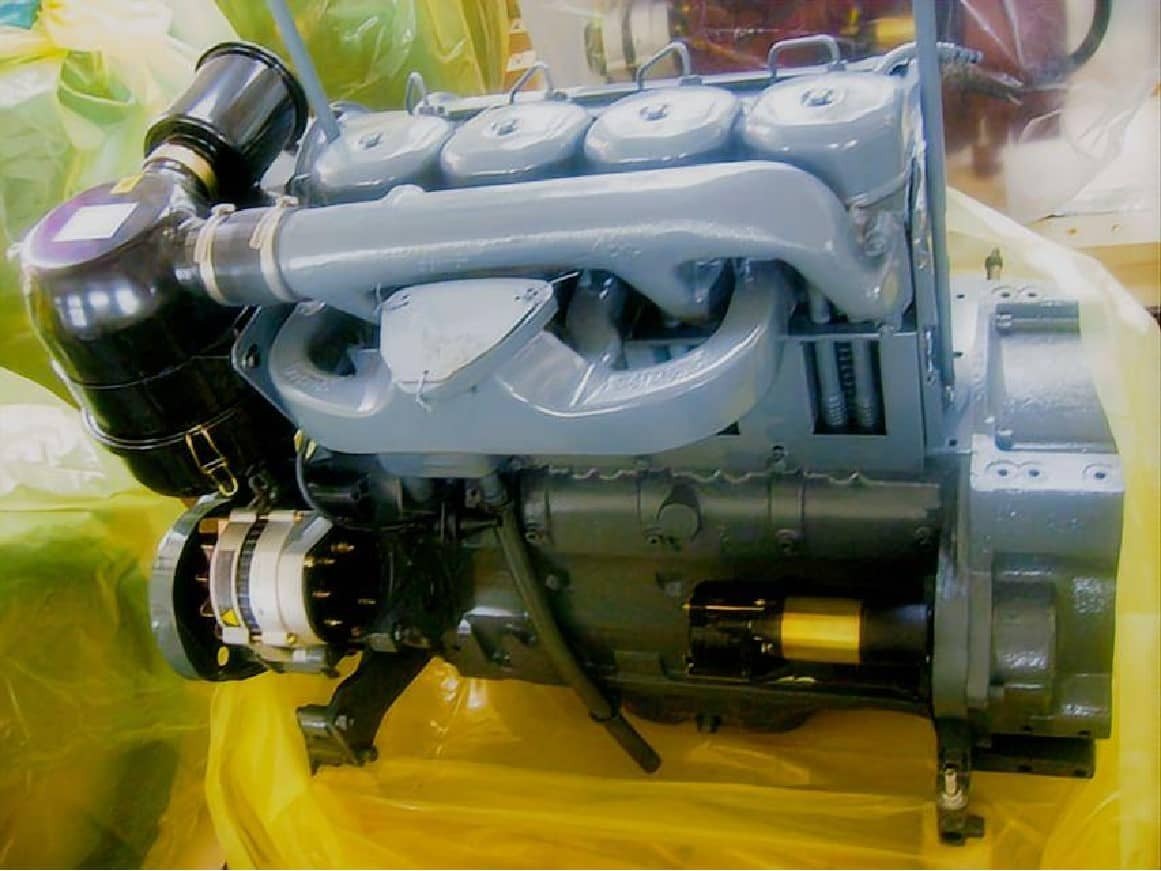

Deutz F4L912 Construction Diesel Engine
The Deutz F4L912 construction diesel engine stands as one of the most resilient power solutions designed for heavy-duty operational environments. Delivering a rated output of 59kW (80HP) at 2800 RPM, this robust motor is engineered specifically to withstand the brutal conditions of active construction sites. As a trusted Deutz F4L912 supplier, HekoPower understands that equipment downtime translates directly to financial loss. That is why we focus on providing the highly dependable F4L912 air-cooled diesel engine for operators who need uninterrupted performance in off-highway applications.
Tech Specs of Deutz F4L912
General Engine Data
Engine Model: Deutz F4L912-Construction Diesel Engine
Type: 4 Cylinders in Line
Displacement: 3.77 L
Bore * Stroke: 100 * 120
Overall Dimension: 860mm*673mm*815mm
Net Weight (with flywheel & alternator): 300 Kg
Key Performance Data
Continue Power as per DIN170020: 59 kW/2800 rpm
Net Break Fuel Stop Power As Per ISO30046/1(IFN): 59 kW/2800 rpm
Max. Power Output(1500 RPM): 230 N.m @ 1600 rpm
Min Fuel Consumption @ Full Load: 215 g/Kw.h
Highly Intermittent: 51 kW/2500 rpm
More Technical Data
Certification: Euro II
Aspiration: Natural Intake
Fuel System: Direct Injection Pump
Cooling Method: Air Cooling
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Compression Ratio: 17:1
Governor Type: Mechanical/Electronic Governor
Technical Comparisons: Air-Cooled vs. Liquid-Cooled Competitors
When evaluating a 59kW 80HP Deutz F4L912 alongside comparable liquid-cooled alternatives, the differences in operational philosophy become clear. Liquid-cooled engines often boast slightly tighter temperature regulation under rapidly fluctuating loads. However, they introduce dozens of potential failure points. A single punctured radiator hose on a busy construction site will immediately halt a liquid-cooled machine.
In contrast, the air-cooled 4 cylinder Deutz motor excels in high-vibration and high-dust environments where debris would typically clog a traditional radiator. Furthermore, without a water jacket surrounding the cylinders, the F4L912 reaches its optimal operating temperature much faster upon startup. This rapid warm-up significantly reduces cold-engine wear on the cylinder liners and piston rings, ultimately extending the lifecycle of the Deutz F4L912 engine assembly.
Addressing Common Misconceptions
A prevalent misconception in the heavy machinery industry is that an air-cooled motor will inevitably overheat during continuous, high-load operation. This is factually incorrect when applied to the Deutz F4L912 direct injection pump system. Deutz engineers meticulously designed the 100x120 bore stroke engine to dissipate heat efficiently through specialized metallurgy. The finned aluminum alloy cylinder heads transfer heat rapidly away from the combustion chamber, ensuring the F4L912 59kW construction engine maintains safe operating temperatures even when running at max torque for extended hours.
Real Application Scenarios in Construction Equipment
The versatility of the Deutz F4L912 3.77L diesel engine makes it the backbone of numerous off-highway applications. HekoPower frequently provisions this motor as a direct Deutz F4L912 replacement engine for construction equipment that has suffered catastrophic failure.
In the paving and earthmoving sectors, this motor thrives. As a Deutz F4L912 road roller engine, the lack of liquid cooling means intense machine vibrations will not shake loose delicate plumbing. When utilized as a Deutz F4L912 excavator replacement engine, operators benefit from the engine's excellent low-end torque, which provides the immediate hydraulic power necessary for breaking ground. We also see heavy demand for this model as a Deutz F4L912 bulldozer engine and a reliable Deutz F4L912 crane engine. Beyond mobile machinery, the stable power output at a continuous 2800 RPM makes it an exceptional F4L912 diesel engine for construction equipment like heavy-duty industrial water pumps and mobile concrete mixers.
Maintenance and Replacement Tips for the 4-Cylinder Deutz Construction Engine
Maintaining a Deutz F4L912 80HP diesel engine is remarkably straightforward compared to modern emission-choked alternatives. The primary maintenance focus shifts from checking coolant levels to ensuring the cooling fins remain unobstructed. Construction environments are naturally dusty. Operators must periodically use compressed air to blow debris, mud, and dust out of the cylinder head fins and the axial blower intake to maintain optimal airflow.
The Deutz F4L912 direct injection pump system requires clean fuel to function efficiently. Regularly replacing the fuel filters and ensuring the mechanical injectors are free of carbon buildup will keep the Deutz F4L912 fuel consumption per hour within factory specifications. Valve lash adjustments should be performed strictly according to the service manual, as proper clearance is vital for both performance and heat management in an air-cooled cylinder head.
When an aging machine finally requires a heart transplant, purchasing a full F4L912 complete engine assembly is often more cost-effective than attempting a major in-frame overhaul. As a dedicated China F4L912 diesel engine supplier, HekoPower provides fully tested, drop-in ready F4L912 complete diesel engines. Buying the whole Deutz F4L912 engine assembly minimizes machinery downtime, getting your excavator or loader back to generating revenue immediately.
Exploring the FL912/FL913 Series Family
While the F4L912 59kW 2800rpm engine delivers exceptional mid-range power for specialized construction machinery, larger projects may demand alternative specifications or varying cylinder configurations. To ensure our clients have exactly the right power output and physical dimensions for their specific chassis, HekoPower maintains a comprehensive catalog of this engine family.
Deutz F2L912/FL913-Generator Engine Series, original products from Beinei Deutz Engine Plant. This series mainly includes Deutz F2L912, Deutz F3L912W, Deutz F3L912, Deutz F4L92W, Deutz F4L912T, Deutz F4L912, Deutz F6L912W, Deutz F6L912T, Deutz F6L912, Deutz F3L913, Deutz F4L913, Deutz BF4L913, Deutz F6L913, Deutz F6L913T, Deutz BF6L913, Deutz BF6L913C.
Frequently Asked Questions (FAQs)
What is the expected Deutz F4L912 fuel consumption per hour?
Fuel consumption heavily depends on the load factor of the machinery. However, due to the highly efficient direct injection pump system, the F4L912 boasts a very competitive specific fuel consumption rate, generally hovering around 215 g/kW.h under optimal load conditions.
Does HekoPower offer a wholesale price Deutz F4L912 engine?
Yes. As a premier F4L912 engine wholesale supplier and exporter, HekoPower specializes in B2B transactions. We provide highly competitive wholesale pricing for fleet managers, equipment manufacturers, and heavy machinery repair facilities looking to buy Deutz F4L912 replacement engines in volume.
Is the Deutz F4L912 engine for sale a complete assembly?
When you order from HekoPower, you can specify your exact needs. We supply the F4L912 complete engine assembly, which includes all major external components required for a drop-in replacement. We also provide long blocks and individual genuine spare parts for localized rebuilds.
Can this be used as a replacement engine for older construction machinery?
Absolutely. The mechanical simplicity and standardized footprint of the air-cooled 4 cylinder Deutz motor make it an ideal F4L912 replacement engine for construction machinery. It integrates easily into older excavators, loaders, and road rollers without the need for complex electronic control unit (ECU) programming or advanced wiring harnesses.
