Genuine Beinei Deutz F3L912 Construction Diesel Engine Supplier

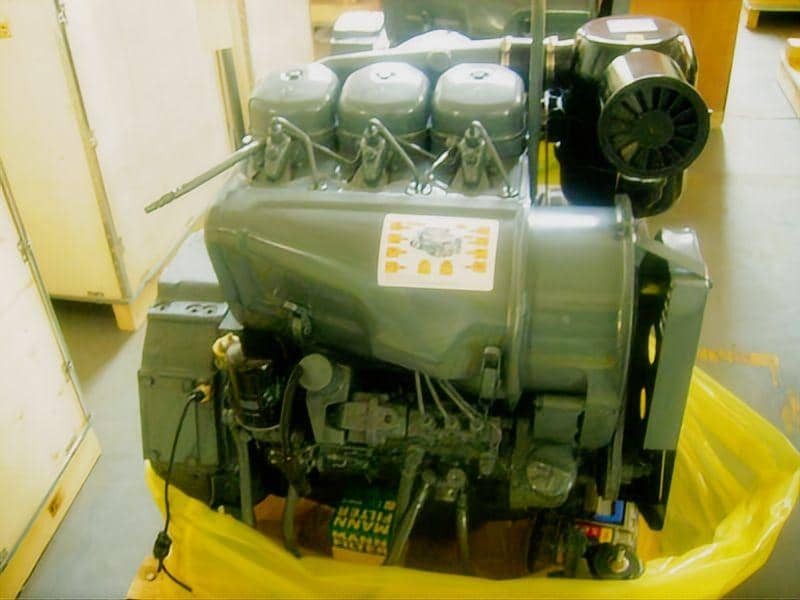

The Deutz F3L912 engine remains an industrial benchmark for mechanical reliability in heavy duty applications. As a dedicated industrial power partner, HekoPower supplies the authentic Beinei Deutz F3L912 air cooled engine, manufactured under strict global quality standards. This specific 3 cylinder Deutz construction engine 43kw unit offers an optimized balance of footprint, thermal efficiency, and high torque layout.
Unlike standard liquid-cooled machinery that struggles with radiator leaks, water pump failures, and coolant scaling, this 3 cylinder air cooled diesel engine eliminates cooling system vulnerabilities entirely. It is engineered to deliver continuous, uninterrupted work under grueling field conditions.
Tech Specs of Deutz F3L912 Construction Diesel Engine
General Engine Data
Engine Model: Deutz F3L912-Construction Diesel Engine
Type: 3 Cylinders in Line
Displacement: 2.827 L
Bore * Stroke: 100 * 120
Overall Dimension: 730mm*673mm*815mm
Net Weight (with flywheel & alternator): 270 Kg
Key Performance Data
Continue Power as per DIN170020: 43 kW/2800 rpm
Net Break Fuel Stop Power As Per ISO30046/1(IFN): 43 kW/2800 rpm
Max. Power Output(1500 RPM): 170 N.m @ 1600 rpm
Min Fuel Consumption @ Full Load: 228 g/Kw.h
Highly Intermittent: 38 kW/2500 rpm
More Technical Data
Certification: Euro II
Aspiration: Natural Intake
Fuel System: Direct Injection Pump
Cooling Method: Air Cooling
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Compression Ratio: 17:1
Governor Type: Mechanical/Electronic Governor
Air Cooled Engines vs Liquid Cooled Alternates
Standard industrial liquid-cooled engines depend on a fragile ecosystem of hoses, belts, radiators, and water jackets. In dusty construction environments, debris blocks radiator fins within hours, causing rapid overheating.
The air cooled Deutz engine bypasses this issue entirely. By using a high-velocity axial cooling fan driven directly by the crankshaft, air is forced across deeply finned individual cylinders.
- Weight Reduction: Eliminating the radiator, coolant fluid, and heavy water jackets saves up to 20% total engine mass.
- Thermal Stability: The engine operates comfortably in ambient temperatures ranging from sub-zero conditions up to 50 degrees Celsius.
- Reduced Failure Points: Over 40% of standard engine downtime stems from cooling system failures. This platform brings that specific risk down to zero.
Naturally Aspirated vs Turbocharged Systems
The naturally aspirated air cooled diesel engine configuration of the F3L912 offers unique operational profiles compared to turbocharged alternatives like the BF4L913.
Without the complexity of a turbocharger, the engine runs at lower internal pressures and thermal loads. The direct injection diesel engine combustion chamber design ensures highly efficient fuel atomization, translating to immediate throttle response at lower RPM ranges. This makes it far more reliable for equipment that experiences sudden, sharp loading spikes.
Heavy Duty Machinery Application Scenarios
The Deutz F3L912 diesel engine is highly adaptable, serving as the primary mechanical heart for a wide range of global infrastructure machinery.
Road Rollers and Compactor Drives
Soil compaction equipment subjects the engine compartment to constant high-frequency vibration and deep dust clouds. The rugged cast-iron crankcase of this Deutz F3L912 engine for road roller setups absorbs cyclic mechanical shock without fracturing. Because it operates cleanly without electronics, the persistent jarring forces cannot disrupt delicate wiring harnesses or sensor inputs.
Concrete Mixers and Mobile Agitators
Mobile concrete mixers require an independent, continuous power unit that runs at steady RPMs for hours on end. The Deutz F3L912 engine for concrete mixers and road rollers provides the consistent torque needed to prevent ready-mix concrete from setting during transport delays. Its highly compact 3-cylinder configuration fits neatly within standard side-mount equipment bays.
Dewatering Pumps and Air Compressors
For remote mining sites and deep foundational worksites, the F3L912 serves as a dedicated Deutz F3L912 industrial power unit. When configured as a Deutz F3L912 engine for pump drive use, it can run autonomously for multi-day shifts. The mechanical fuel injection engine setup allows it to function reliably on variable fuel qualities often found in remote operations.
Maintenance, Overhaul, and Machinery Replacement Guidelines
Extending the operational lifespan of your Deutz F3L912 construction diesel engine beyond 15,000 hours requires proper maintenance practices and targeted replacement schedules.
Field Maintenance Protocols
- Cooling Fin Inspection: Check the individual cylinder cooling fins every 50 operating hours. Use compressed air to blow out packed dust, mud, or cement powder to preserve proper heat dissipation.
- Valve Clearance Adjustment: The mechanical overhead valve system requires inspection every 500 operating hours. Maintaining proper clearances guarantees optimal airflow and protects against valve seat recession.
- Fuel System Drainage: Regularly bleed the primary fuel-water separator to shield the high-pressure mechanical injection pump from water damage and corrosion.
Step-by-Step Replacement Workflow
When swap-outs are necessary, executing a clean engine drop minimizes machine downtime.
- Fluid Isolation and Structural Disconnection: Drain the engine oil and isolate the primary fuel lines. Securely tag and label all incoming 12V or 24V electrical leads connected to the starter motor, alternator, and oil pressure sending units.
- Bell Housing and Shaft Separation: Unbolt the hydraulic pump drive or main transmission input shaft from the engine flywheel. Support the equipment's existing hydraulic system independently using heavy jack stands to prevent stress on the pump shafts.
- Mount Extraction and Lifting: Attach heavy-duty lifting chains to the designated factory hoist loops on the cylinder head. Unbolt the flexible rubber engine mounts from the chassis frame, balance the load, and slowly hoist the old block vertically out of the bay.
- New Assembly Alignment and Integration: Lower the new complete assembly onto the mounts. Align the flywheel housing precisely with the input shaft before tightening any structural bolts, reconnect the mechanical throttle linkage, and bleed the fuel system thoroughly before the first crank.
Procurement, Customization, and Global Supply Chains
Navigating international logistics for heavy industrial equipment demands a clear, transparent supplier framework. HekoPower operates as an established global hub for complete power assemblies.
Complete Engine Assembly Options
We supply the Deutz F3L912 complete engine assembly, which comes fully built, timed, and factory-tested. Every single original Deutz F3L912 engine undergoes rigorous dyno testing before it is crated for international shipping. These units arrive completely built with the fuel injection pump, starter motor, alternator, and primary filtration systems pre-installed to minimize onsite integration labor.
Wholesale and OEM Customization Pipelines
As a prominent China Deutz F3L912 manufacturer partner and Deutz F3L912 engine supplier, HekoPower supports both single-unit replacement buyers and fleet managers looking for wholesale Deutz F3L912 engine contracts. We provide custom flywheels, specialized housing SAE adaptations, and distinct exhaust routing profiles tailored exactly to your equipment's frame layout.
Deutz F2L912/FL913-Generator Engine Series, original products from Beinei Deutz Engine Plant. This series mainly includes Deutz F2L912, Deutz F3L912W, Deutz F3L912, Deutz F4L92W, Deutz F4L912T, Deutz F4L912, Deutz F6L912W, Deutz F6L912T, Deutz F6L912, Deutz F3L913, Deutz F4L913, Deutz BF4L913, Deutz F6L913, Deutz F6L913T, Deutz BF6L913, Deutz BF6L913C.
Deutz F3L912 FAQs and Diagnostic Support
What is the distinction between Beinei Deutz and German Deutz?
Beinei Deutz engines are manufactured in China under a long-standing technical license, using the exact design blueprints and material standards as historical German production. This ensures identical dimensional properties and parts compatibility while drastically lowering procurement costs.
What causes an air-cooled engine to run hot, and how is it fixed?
Overheating in an air-cooled system is almost always caused by a loose or broken cooling fan V-belt, or thick debris blocking the cooling fins. Clean the cylinder exterior thoroughly and ensure the belt tensioner is correctly adjusted.
Are replacement parts readily available for the F3L912 platform?
Yes, HekoPower carries a deep inventory of Deutz F3L912 engine parts, including Deutz F3L912 service parts, overhaul gasket kits, pistons, cylinder liners, and fuel injectors ready for immediate global air freight dispatch.
