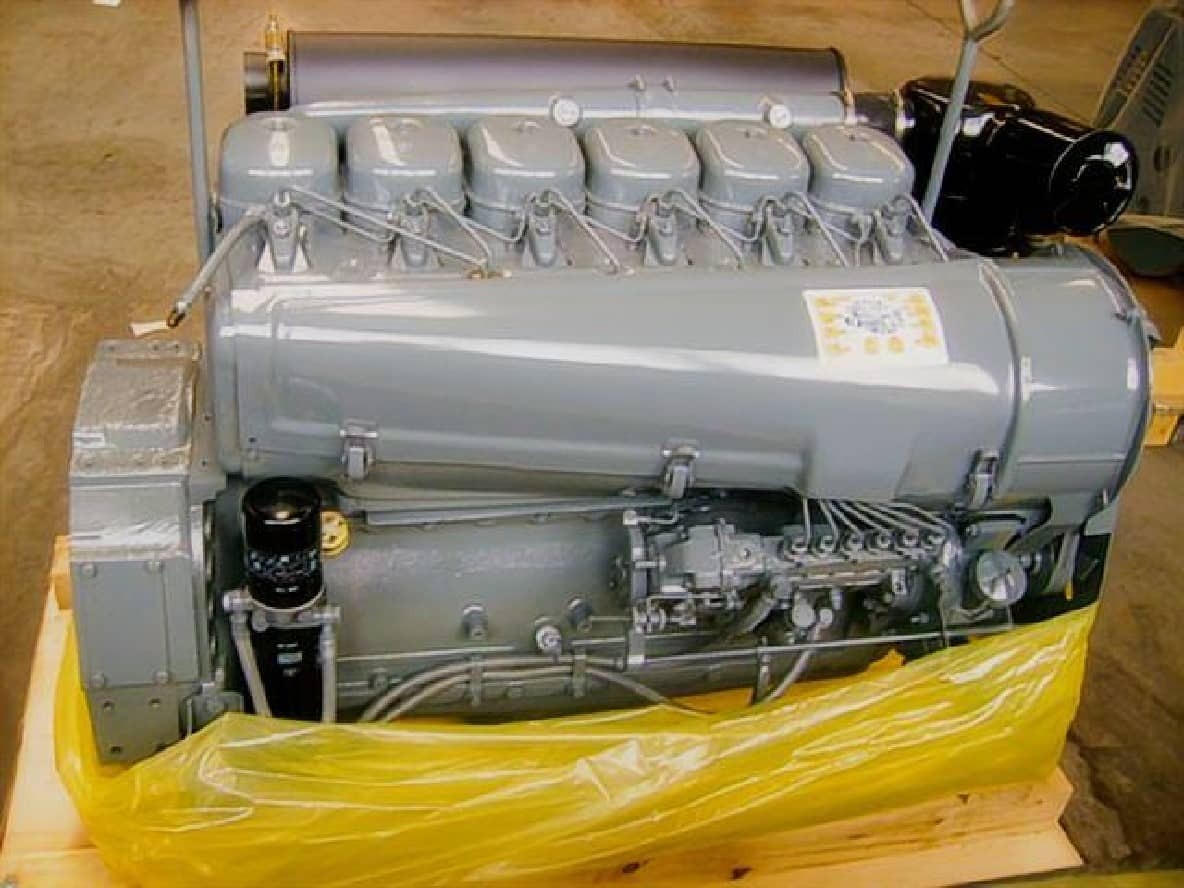

Deutz F6L912 Construction Diesel Engine: Complete Power Solutions
Industrial operators require dependable, uncompromised power in the field. The Deutz F6L912 engine stands out as an exceptionally rugged, naturally aspirated engine engineered explicitly for harsh off-highway environments. As a leading specialized engine supplier, HekoPower delivers complete, factory-tested Beinei Deutz F6L912 engine assembly units ready for immediate drop-in replacement across global industrial applications.
Tech Specs of Deutz F6L912 Construction Diesel Engine
General Engine Data
Engine Model: Deutz F6L912-Construction Diesel Engine
Type: 6 Cylinders in Line
Displacement: 5.655 L
Bore * Stroke: 100 * 120
Overall Dimension: 1120mm*673mm*815mm
Net Weight (with flywheel & alternator): 410 Kg
Key Performance Data
Continue Power as per DIN170020: 78 kW/2500 rpm
Ooptional Continue Power: 74 kW/2300 rpm
Max. Power Output(1500 RPM): 345 N.m @ 1600 rpm
Min Fuel Consumption @ Full Load: 221 g/Kw.h
Net Break Fuel Stop Power: 88 kW/2800 rpm
Rotation (Face to Fan): Clockwise
More Technical Data
Certification: Euro II
Aspiration: Natural Intake
Fuel System: Direct Injection Pump
Cooling Method: Air Cooling
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Compression Ratio: 17:1
Governor Type: Mechanical/Electronic Governor
Technical Performance and Engineering Comparisons
F6L912 vs. Water-Cooled Alternatives
Most modern heavy equipment relies on water-cooled engines, which introduces complex cooling systems prone to field failures. The 6 cylinder Deutz air cooled engine eliminates these vulnerabilities entirely.
By removing radiators, water pumps, coolant hoses, and thermostats, the F6L912 mechanical diesel engine eliminates roughly 40% of the common mechanical issues that cause job site downtime. This air-cooled engineering makes the unit significantly lighter and more compact than its water-cooled counterparts, drastically simplifying engine bay installation.
FL912 vs. FL913 Series Construction Engine Performance
Choosing between the FL912 and the larger FL913 product series depends on your specific torque and displacement requirements.
The 78 kW Deutz construction diesel engine provides optimal fuel efficiency and exceptional thermal balance for mid-range machinery. While the FL913 series offers a slight power boost through larger cylinder displacement, the F6L912 remains the global benchmark for mechanical simplicity, low-maintenance longevity, and accessible component replacement.
Real Application Scenarios in Heavy Equipment
Primary Driving Power for Excavators and Wheeled Loaders
The high torque backup of the Deutz F6L912 industrial engine makes it a reliable choice for mid-sized Earthmoving machinery. When operating a Deutz F6L912 engine for excavator configurations, the engine maintains constant hydraulic pump speeds even under heavy digging resistance. The mechanical governor responds instantly to sudden load shifts, preventing hydraulic stall conditions during tough operations.
Heavy-Duty Compaction and Road Rolling Machinery
Road rollers and asphalt compactors operate continuously at steady, high-RPM configurations while experiencing severe vibrations. The structural design of the original Beinei Deutz F6L912 engine features a rigid crankcase that isolates high-frequency operational vibrations. Utilizing a Deutz F6L912 engine for road roller applications protects the internal engine components from premature wear caused by compaction feedback.
Continuous Duty Hydraulic Power Packs and Industrial Equipment
Outside of self-propelled vehicles, this 106HP air cooled engine is an exceptional prime mover for stationary systems.
- Deutz F6L912 engine for drilling rig applications: Delivers reliable rotational torque for deep exploratory or water-well boring.
- Deutz F6L912 engine for crane functions: Manages steady hoisting power without cooling fluid stagnation risks during prolonged idling.
- Deutz F6L912 engine for hydraulic power pack setups: Drives high-pressure fluid systems for mining and construction equipment.
Maintenance Guide and Replacement Strategies
Essential Maintenance Protocol for Air-Cooled Systems
Air-cooled engines require specific, non-negotiable maintenance procedures to maintain proper thermal efficiency. Dust accumulation on the cooling fins blocks airflow, which can rapidly cause localized hot spots inside the cylinders.
Operators must regularly clean the cooling fins using compressed air or high-pressure water during scheduled servicing. Additionally, check the cooling fan drive belt tension daily. A loose belt reduces structural airflow, leading to swift thermal expansion issues across the cylinder heads.
Sourcing Genuine vs. Aftermarket F6L912 Parts
As a dedicated Deutz F6L912 replacement engine supplier, HekoPower emphasizes using precise OEM components. Substandard aftermarket parts often lack the correct thermal expansion coefficients required for high-heat, air-cooled operation. Selecting an authentic Beinei Deutz F6L912 engine supplier guarantees that components like pistons, liners, and fuel injection pumps align perfectly with original factory specifications, preserving your 12-month warranty protection.
Step-by-Step Engine Assembly Replacement Procedure
Replacing a worn block with a complete Deutz F6L912 replacement diesel engine assembly requires clear, sequential steps to ensure long-term reliability.
- Disconnect and Drain Fluid Systems: Pre-removal. Isolate the electrical network, detach the fuel supply and return lines, and drain the engine oil fully from the old sump.
- Uncouple the Drive Assembly: Disengagement. Unbolt the flywheel housing from the main hydraulic pump or mechanical transmission shaft, ensuring the input shaft is safely supported.
- Extract the Old Engine Unit: Lifting. Attach certified lifting tackle to the integrated factory engine brackets, unbolt the structural engine mounts, and lift the unit straight up out of the engine bay.
- Inspect and Prepare Structural Mounts: Chassis Prep. Clean the frame rails and replace worn anti-vibration rubber isolation pads to prevent operational harmonic transfer.
- Drop in the New HekoPower Assembly: Alignment. Lower the new Deutz F6L912 heavy equipment engine into position, aligning the flywheel precisely with the driven component input shaft before tightening the engine mount bolts.
- Recharge Systems and Execute First Start: Commissioning. Reconnect fuel, exhaust, and electrical lines. Fill the crankcase with premium 15W-40 oil, prime the mechanical fuel lift pump, and run the engine at low idle to check oil pressure.
Commercial Procurement and Logistics with HekoPower
Global Sourcing and Wholesale Pricing Structures
Finding a reliable China Deutz F6L912 supplier involves navigating varied manufacturing qualities and fluctuating market prices. HekoPower operates directly as an established Deutz F6L912 factory supplier, eliminating broker markups to provide competitive wholesale Deutz F6L912 engine pricing. We manage complete export documentation, supply original compliance certifications, and implement rugged export-grade packaging to protect your machinery investment during transit.
Lead Times and Production Capacity
We maintain an active, verified inventory of complete engine units to minimize your operational downtime. Our standard manufacturing and validation lead time for bulk orders or specialized configurations spans 15-20 business days. Every single Deutz F6L912 engine for sale undergoes rigorous dynamometer testing under load before leaving our facility, ensuring plug-and-play field performance upon arrival.
Deutz F2L912/FL913-Generator Engine Series, original products from Beinei Deutz Engine Plant. This series mainly includes Deutz F2L912, Deutz F3L912W, Deutz F3L912, Deutz F4L92W, Deutz F4L912T, Deutz F4L912, Deutz F6L912W, Deutz F6L912T, Deutz F6L912, Deutz F3L913, Deutz F4L913, Deutz BF4L913, Deutz F6L913, Deutz F6L913T, Deutz BF6L913, Deutz BF6L913C.
Frequently Asked Questions
What does "Beinei Deutz" mean regarding engine origin?
Beinei Deutz denotes engines manufactured by the Beinei Diesel Engine Company in China under license from Deutz AG Germany. These engines are built using original German technical data, blueprint specifications, and metallurgy standards, providing authentic Deutz reliability at a highly accessible commercial price point.
Can the F6L912 operate reliably in extreme desert environments?
Yes, the Deutz F6L912 naturally aspirated engine excels in hot desert conditions where water-cooled engines frequently boil over. Because air cooling works via direct heat transfer, these engines operate reliably in ambient temperatures exceeding 50 degrees Celsius, provided the cooling fins remain clean and free of debris.
What specific fuel types are compatible with this mechanical engine?
The F6L912 mechanical diesel engine utilizes a direct-injection fuel system optimized for standard industrial diesel fuels. Because it lacks complex common-rail electronics or sensitive exhaust treatment systems, it operates reliably on varied regional fuel qualities, making it ideal for remote mining machinery and international construction projects.
How does HekoPower handle international freight and shipping?
As an experienced export Deutz F6L912 engine manufacturer partner, HekoPower manages flexible shipping arrangements including FOB, CIF, and DDU terms. Engines are secured inside heavy wooden crates to prevent moisture exposure and physical impacts during international ocean and overland transport.
