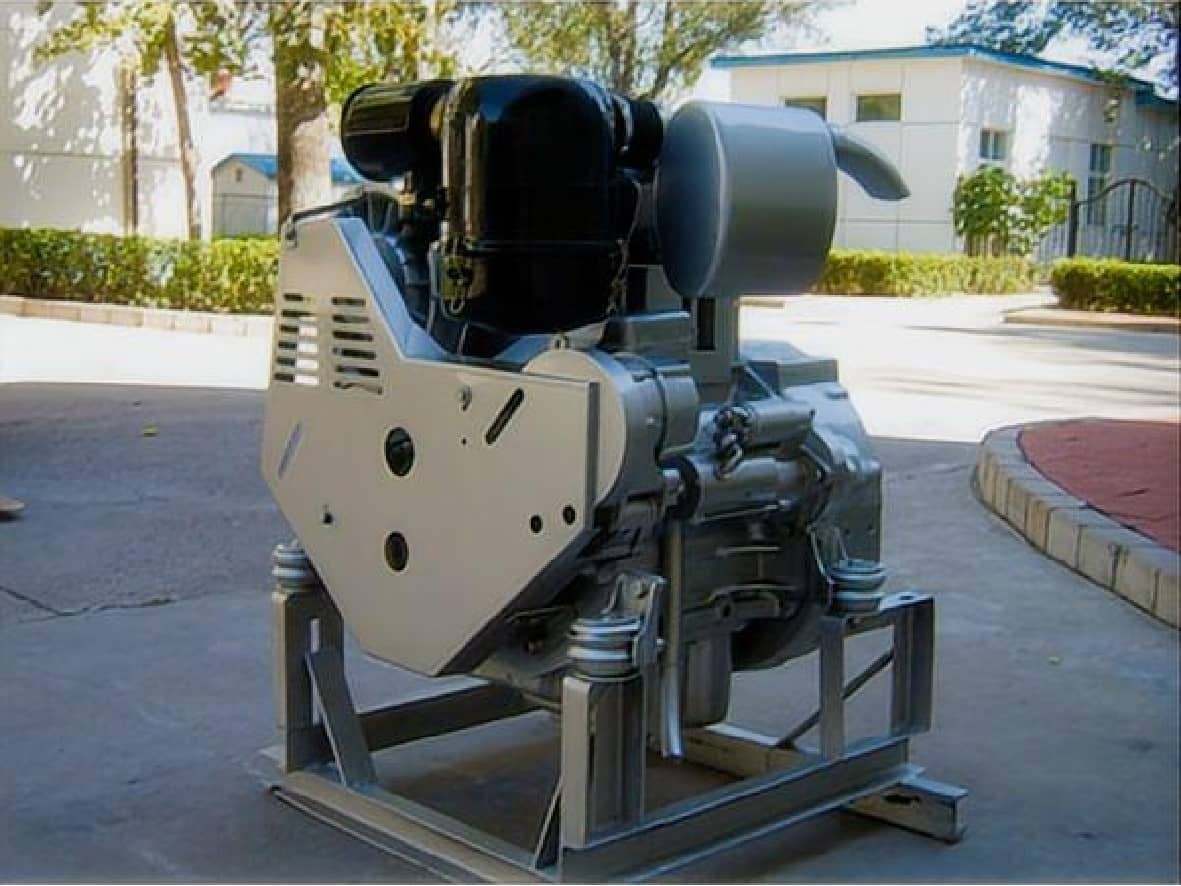

Deutz F2L912 Construction Diesel Engine: Heavy Duty Industrial Power Unit
Sourcing a reliable replacement engine for high-vibration construction environments requires a balance of thermal efficiency and mechanical simplicity. The Deutz F2L912 Construction Diesel Engine stands out as a highly resilient, naturally aspirated engine assembly engineered to withstand brutal conditions on remote job sites.
As an established, factory-direct Deutz engine supplier, HekoPower stocks complete, ready-to-ship Beinei Deutz F2L912 engines. These heavy-duty units serve as immediate, drop-in mechanical injection diesel engine solutions for global fleet operators, commercial builders, and equipment distributors looking to cut operational downtime.
Tech Specs of Deutz F2L912 Construction Diesel Engine
General Engine Data
Engine Model: Deutz F2L912-Construction Diesel Engine
Type: 2 Cylinders, in Line
Displacement: 1.88 L
Bore * Stroke: 100 * 120
Overall Dimension: 678mm*704mm*872mm
Net Weight: 245 Kg
Key Performance Data
Continue Power as per DIN170020: 20 kW/2300 rpm
Net Break Fuel Stop Power As Per ISO30046/1(IFN): 20 kW/2300 rpm
Max. Power Output(1500 RPM): 125 N.m @ 1600 rpm
Min Fuel Consumption @ Full Load: 220 g/Kw.h
Highly Intermittent: 20 kW/2300 rpm
More Technical Data
Certification: Euro II
Aspiration: Natural Intake
Fuel System: Direct Injection Pump
Cooling Method: Air Cooling
Electrical System (Starter Motor/Alternator): Electronic Starting (24V)
Compression Ratio: 17:1
Governor Type: Mechanical/Electronic Governor
High-Efficiency Mechanical Injection Design
Unlike modern electronically controlled common-rail setups, this model features a robust mechanical injection diesel engine configuration. The inline injection pump tolerates varying fuel qualities, making it ideal for isolated mining and infrastructure project sites where ultra-low sulfur diesel isn't consistently available.
Operating with a direct injection industrial engine combustion chamber design, it optimizes the atomization of fuel directly over the piston crown. This structural blueprint yields high thermal output while preserving a low fuel consumption construction diesel engine footprint during continuous load periods.
Naturally Aspirated Air-Cooled Architecture
The defining feature of this 2 cylinder Deutz air-cooled engine is the total elimination of a radiator, water pump, hoses, and coolant jackets. By shedding these cooling components, you eliminate roughly 40% of standard diesel engine mechanical failures, such as coolant leaks, water pump cavitation, and frozen blocks.
The high-volume integrated cooling fan drives ambient air across deep-finned modular cylinders, stabilizing core temperatures even when operating in extreme environments up to 50 degrees Celsius. Furthermore, this naturally aspirated Deutz engine variant runs a highly simplified Euro II construction engine emissions setup, eliminating complex diesel particulate filters (DPF) or selective catalytic reduction (SCR) modules.
Application Scenarios for the Deutz F2L912 Engine
A major issue across competitor websites like coopalpower.com or engine-family.com is that they only display generic data charts. To provide genuine helpfulness to buyers, the specific machinery applications for this 20kW Deutz construction power unit must be clearly defined.
Compaction Equipment Integration
The extreme structural vibration caused by vibratory drums quickly damages liquid-cooled cooling systems. This makes the Deutz F2L912 engine for road roller builds the industry standard. The rigid crankcase and robust mounting brackets handle intense, repetitive G-forces, ensuring stable 2300RPM construction diesel engine performance during asphalt and soil compaction runs.
Earthmoving and Utility Machinery
For tight construction sites and urban infrastructure projects, space within the engine bay is restricted. Sourcing a compact Deutz F2L912 engine for excavator retrofits or selecting a Deutz F2L912 engine for compact loader units allows engineers to maximize compartment space. The integrated fan design avoids the need for massive airflow clearances typically required by front-mounted radiators.
Stationary Industrial Power Attachments
Beyond mobile machinery, this platform excels as an independent, standalone Deutz F2L912 industrial power unit. It is widely deployed as a:
- Deutz F2L912 engine for air compressor rigs operating in heavy dust zones.
- Deutz F2L912 engine for concrete mixer operations demanding high initial torque under load.
- High-durability drive core for a Deutz F2L912 engine for hydraulic power pack stations.
- Dedicated mechanical driver for a remote Deutz F2L912 engine for water pump array.
Technical Comparisons: F2L912 vs. Competitor Engine Layouts
When evaluating a new Deutz F2L912 diesel engine against alternative models in the 20kW class, a few distinct mechanical differences emerge.
Air-Cooled vs. Water-Cooled Engines
Most standard 20kW air cooled diesel engine configurations struggle with uneven heat distribution across the cylinder bank. The Deutz FL912 construction engine circumvents this via independent, modular cylinder heads. If one cylinder suffers mechanical damage, a mechanic can swap that specific module right on the machine without tearing down the entire block. Water-cooled competitors require draining the system, pulling a massive cylinder head, and replacing complex head gaskets.
Mechanical Integrity and Torque curves
Compared to lightweight multi-cylinder engines, this 2 cylinder industrial diesel engine features a heavy-duty forged crankshaft and large-bore cylinders. It achieves peak torque lower down the RPM range, providing excellent lugging power when concrete mixers or hydraulic pumps face sudden resistance.
Maintenance Guide & Replacement Best Practices
To maximize the working lifespan of your Deutz F2L912 diesel engine, operators must follow precise maintenance intervals tailored to air-cooled machinery.
Managing Air-Cooling Fins
Because this is an air cooled Deutz engine, the exterior cylinder fins serve as the radiator. In high-dust environments like demolition sites, grease and stone dust can cake inside the cooling fin channels. Operators must pull the side shroud every 250 operating hours to pressure wash or blow out the fins. Ignoring this step leads to localized hotspots and piston scuffing.
Fuel System Priming and Filter Lifespans
The direct injection industrial engine fuel system relies on pristine fuel delivery. Change the primary fuel filter and water separator every 500 hours. If air enters the low-pressure fuel lines during a filter swap, use the manual priming lever on the lift pump to purge the lines completely before cranking the starter motor. This preserves the internal seals of the injection pump.
Sourcing & Global Logistics with HekoPower
As a premier China Deutz engine supplier and dedicated Deutz F2L912 exporter, HekoPower bridges the gap between factory production and global site delivery.
Complete Assembly Guarantee
When you buy a Deutz F2L912 complete engine assembly from us, you receive a fully built unit including the fuel injection system, starter motor, alternator, and air filtration housing. This comprehensive setup cuts field installation times down to a single afternoon.
OEM Quality Assurance & Wholesale Supply
We operate as an experienced Deutz F2L912 OEM supplier, ensuring that all internal components match exact factory tolerances. With substantial Deutz F2L912 stock available, we offer highly competitive Deutz F2L912 wholesale price points for large-scale procurement, backed by Deutz F2L912 fast delivery options to major international ports.
Deutz F2L912/FL913-Generator Engine Series, original products from Beinei Deutz Engine Plant. This series mainly includes Deutz F2L912, Deutz F3L912W, Deutz F3L912, Deutz F4L92W, Deutz F4L912T, Deutz F4L912, Deutz F6L912W, Deutz F6L912T, Deutz F6L912, Deutz F3L913, Deutz F4L913, Deutz BF4L913, Deutz F6L913, Deutz F6L913T, Deutz BF6L913, Deutz BF6L913C.
Deutz F2L912 FAQ: Common Purchasing & Technical Questions
What is the exact power output of the Beinei Deutz F2L912 engine?
The standard configuration produces a rated output of 20kW (approximately 27 horsepower) at a governed speed of 2300 RPM. This makes it an ideal matching unit for mid-sized industrial pumps and construction attachments.
Can I use standard Deutz FL912 spare parts on a Beinei Deutz engine?
Yes. There is complete genuine Beinei Deutz FL912 parts compatibility across the global aftermarket. The internal components, including pistons, rings, bearings, and valves, match the standard FL912 blueprint dimensions, ensuring easy parts sourcing anywhere in the world.
How does HekoPower pack these engines for international shipping?
Every F2L912 engine assembly is treated with anti-corrosion storage oils, wrapped in heavy-gauge protective plastic, and secured inside a rugged, export-grade ISPM-15 compliant wooden crate. This prevents physical impact damage and moisture intrusion during long ocean transits.
What is the typical lead time for a wholesale order?
For standard configurations, we maintain ready stock to facilitate swift dispatch. Bulk orders or customized power unit configurations typically feature a production lead time of 15 to 20 business days before arriving at the port of loading.
