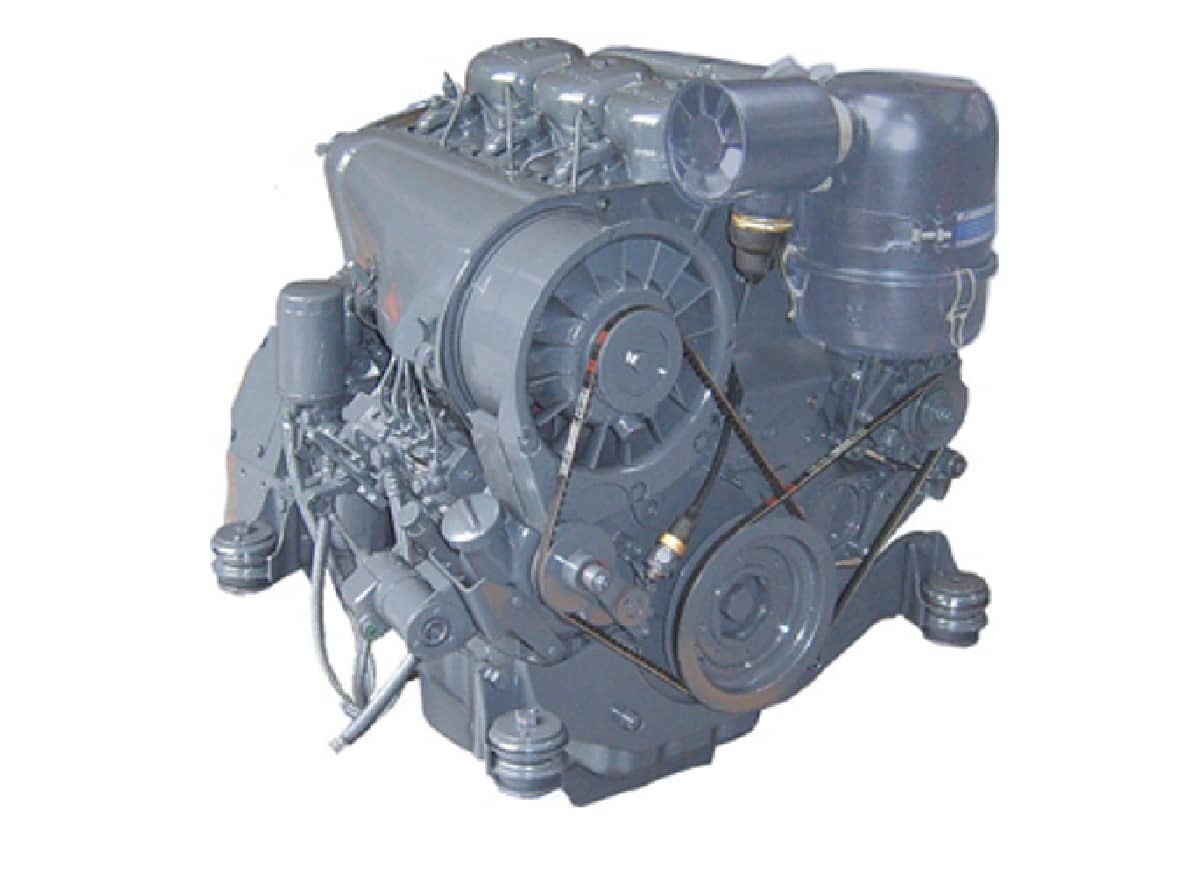

Deutz F3L912W Construction Diesel Engine
Industrial procurement demands power units that thrive under punishing conditions. The Beinei Deutz F3L912W is a specialized variant within the legendary FL912/FL913 series. Unlike standard open-air industrial engines, the "W" designation signifies a highly engineered layout explicitly built for high-stress, confined environments like underground mining, tunneling, and heavy civil infrastructure projects.
As a premier global industrial diesel engine supplier, HekoPower provides complete, factory-tested Beinei Deutz F3L912W diesel engine assemblies. This 3 cylinder air cooled diesel engine delivers a robust 37kW (50HP) at 2800 RPM. It combines mechanical simplicity with structural resilience, ensuring minimal downtime for your fleet.
Tech Specs of Deutz F3L912W Construction Diesel Engine
General Engine Data
Engine Model: Deutz F3L912W-Construction Diesel Engine
Type: 3 Cylinders in Line
Displacement: 2.827 L
Bore * Stroke: 100 * 120
Overall Dimension: 730mm*673mm*815mm
Net Weight (with flywheel & alternator): 270 Kg
Key Performance Data
Continue Power as per DIN170020: 37 kW/2800 rpm
Net Break Fuel Stop Power As Per ISO30046/1(IFN): 35 kW/2800 rpm
Max. Power Output(1500 RPM): 149 N.m @ 1550 rpm
Min Fuel Consumption @ Full Load: 240 g/Kw.h
Highly Intermittent: 32 kW/2500 rpm
More Technical Data
Certification: Euro II
Aspiration: Natural Intake
Fuel System: Direct Injection Pump
Cooling Method: Air Cooling
Electrical System (Starter Motor/Alternator): Electronic Starting (12V/24V)
Compression Ratio: 17:1
Governor Type: Mechanical/Electronic Governor
Understanding the Two-Stage Combustion System
The defining feature of the Deutz F3L912W mining engine is its unique two-stage combustion system (W-engine). Standard direct-injection engines struggle in enclosed spaces due to the high volume of raw toxic emissions. The F3L912W uses a specialized pre-combustion or split-chamber design.
Fuel injection occurs in a controlled environment, ensuring more complete chemical reactions before the exhaust gas exits. This results in a low emission Deutz diesel engine that drastically reduces carbon monoxide (CO) and nitrogen oxides (NOx) output. This setup helps mining operations comply with strict ventilation and safety protocols without requiring overly complex, high-maintenance exhaust aftertreatment systems.
Engineering Comparisons: F3L912W vs. F3L912 Standard
When looking to buy Deutz F3L912W engine units, buyers often wonder how the mining-spec model differs from the standard F3L912 configuration. Competitor sites frequently group these together, but the internal differences are critical for operational longevity.
Combustion and Injection Profiles
The standard F3L912 uses a direct injection system optimized for open-air performance, maximizing raw fuel efficiency at the cost of higher raw exhaust toxicity. The F3L912W utilizes the modified two-stage system mentioned above. Glow plugs are integrated directly into the cylinder head assembly to guarantee rapid, dependable starting sequences in damp, cold underground shafts.
Thermal Dispersion Adjustments
Because underground mining loaders operate in areas with minimal airflow, the air cooled industrial diesel engine design of the F3L912W features an upgraded axial cooling fan. The cooling fins on the individual cylinder barrels are cast with wider spacing gaps to prevent dirt and pulverized rock dust from packing tightly between the metal surfaces. This modification prevents localized hot spots that can warp standard cylinder heads.
Real-World Application Scenarios
The F3L912W excels in machinery where liquid cooling is impractical due to space constraints, extreme ambient temperatures, or high mechanical debris levels.
Underground Mining and Tunneling Equipment
The primary application for this unit is as a replacement diesel engine for underground mining loaders, scoop trams, and utility vehicles. The low-profile, inline-three configuration allows it to fit neatly inside tight engine bays, keeping the equipment's center of gravity low for steep subterranean inclines.
Heavy Civil Construction Machinery
On the surface, this heavy duty construction engine provides prime power for various mobile assets:
- Deutz engine for road roller setups, tolerating continuous, high-amplitude vibrations.
- Deutz engine for wheel loader machines operating in isolated aggregate yards.
- Deutz engine for concrete mixer trucks and portable grout pumps where consistent PTO torque is vital.
Stationary Auxiliary Systems
Beyond mobile machinery, the high torque output at low RPMs makes this an ideal Deutz engine for hydraulic power pack units, high-pressure air compressors, and remote Deutz engine for drilling rig infrastructure.
Fleet Maintenance & Seamless Replacement Protocols
As a specialized Deutz F3L912W replacement engine provider, HekoPower advises implementing a rigid maintenance schedule to ensure your asset reaches its targeted 15,000-hour operational lifespan before its first major overhaul.
Preventive Maintenance for Air-Cooled Systems
Liquid-cooled engines give early warnings via coolant drops, but an air cooled construction engine requires physical, visual monitoring. Mechanics must inspect the cooling fan belt tension every 250 operating hours. A slipping belt reduces airflow exponentially, causing rapid thermal expansion and piston scuffing. Additionally, the mechanical fuel injection pump oil reservoir must be checked independently during scheduled lubricant changes.
Step-by-Step Retrofit and Installation Guide
When executing a engine replacement utilizing a new genuine Beinei Deutz F3L912W assembly from HekoPower, follow this sequence:
- Verify Flywheel Housing Alignment: Pre-mounting check. Measure the SAE housing runout using a dial indicator. Misalignment by even fractions of a millimeter will cause rapid wear on the main bearing and input shaft.
- Clean the Axial Cooling Pathway: Chassis preparation. Before lowering the engine, clear all shroud debris from the machine's engine bay to ensure hot air can exhaust freely away from the cylinder block.
- Bleed the Mechanical Fuel Lines: First-start prep. Loosen the return fittings on the injection pump. Use the manual priming lever until fuel flows free of air bubbles, preventing dry-firing the injectors.
- Execute Initial Break-in Thermal Cycle: Commissioning. Run the engine at 30% load for the first 4 hours. Gradually scale up to full operational load while closely monitoring oil pressure and cylinder head temperatures.
Procurement Logistics: HekoPower Global Supply Chain
Finding a reliable Deutz F3L912W construction diesel engine supplier involves more than just comparing base prices. HekoPower streamlines the entire sourcing process for international buyers, contractors, and parts distributors.
Pricing Transparency and Lead Times
We provide competitive wholesale pricing structures tailored to individual unit orders or complete container volumes for fleet rebuilds. Our strategic factory partnerships allow us to offer an efficient Deutz F3L912W construction engine price and lead time, typically completing assembly testing and export preparation within 15 to 20 business days.
Quality Assurance Testing
Every single OEM Deutz F3L912W engine leaves our facility only after undergoing a rigorous multi-point dynamometer test matrix. We record oil pressure stability, torque output across the entire RPM band, and thermal dissipation levels. This data sheet is included with the shipping documentation, giving you full confidence that the engine is ready for immediate deployment upon arrival.
Deutz F2L912/FL913-Generator Engine Series, original products from Beinei Deutz Engine Plant. This series mainly includes Deutz F2L912, Deutz F3L912W, Deutz F3L912, Deutz F4L92W, Deutz F4L912T, Deutz F4L912, Deutz F6L912W, Deutz F6L912T, Deutz F6L912, Deutz F3L913, Deutz F4L913, Deutz BF4L913, Deutz F6L913, Deutz F6L913T, Deutz BF6L913, Deutz BF6L913C.
Frequently Asked Questions
What makes the F3L912W different from a standard F3L912 engine?
The "W" version features a specialized two-stage combustion system designed to lower exhaust emissions, making it safe for underground mining and tunneling operations. It also features optimized cooling fan configurations designed to prevent clogging from heavy rock dust.
Can I use the F3L912W to replace a standard F3L912 engine in a piece of construction equipment?
Yes. The exterior mounting footprints, bell housing configurations, and flywheel dimensions are identical. The F3L912W functions perfectly as a premium, low-emission replacement engine for any standard F3L912 application.
What is the typical lead time and warranty coverage for global delivery?
HekoPower maintains a standard lead time of 15-20 business days for assembly, testing, and custom export packaging. Every engine is backed by our comprehensive 12-month warranty, covering the block, crankshaft, cylinder heads, and fuel system components.
