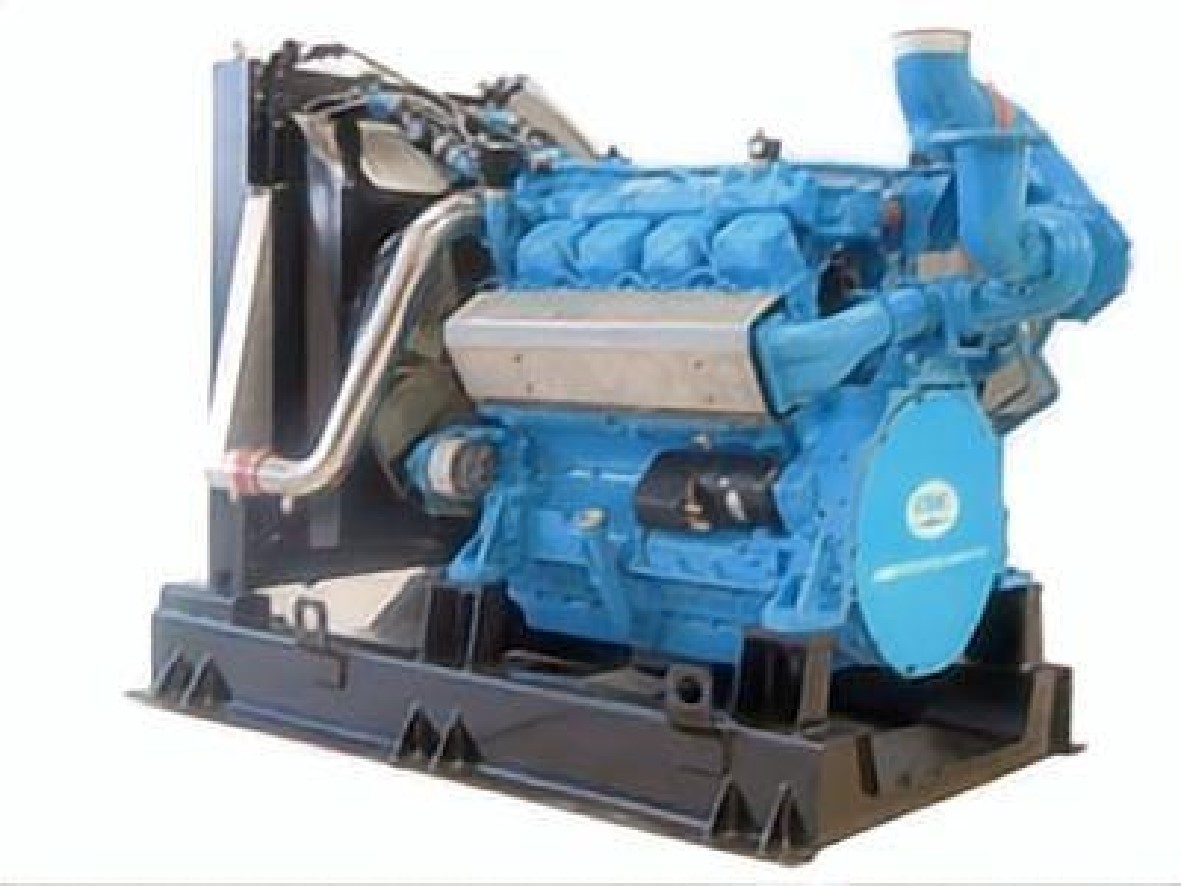

Introduction to the Deutz TD234V8 Generator Engine
When industrial operators and power plant managers evaluate prime or standby power solutions, selecting the right heavy-duty core dictates long-term reliability. As a specialized Deutz generator engine supplier, HekoPower provides the Deutz TD234V8 generator engine, a powerhouse engineered for continuous operation in demanding environments. Built under license by Henan Diesel Engine Industry (HND), the TD234 series represents robust German engineering adapted for modern power generation.
Unlike standard light-duty utility engines, this V8 platform combines a heavy structural crankcase with optimized thermal efficiency. Whether deployed as a backup generator engine for remote telecommunications sites or powering a municipal backup station, the Deutz TD234 V8 diesel engine delivers stable torque and predictable load acceptance.
Tech Specs of Deutz TD234V8 Generator Engine
General Engine Data
Engine Model: Deutz TD234V8-Generator Engine
Type: 6 Cylinders, V Type
Displacement: 10.8 L
Bore * Stroke: 128 * 140
Overall Dimension: 1850mm*1100mm*1600mm
Key Performance Data
Rated Power(1500 RPM): 186 kW
Rated Power(1800 RPM): 222 kW
Rated Power(2100 RPM): 242 kW
Rated Speed: 1500/1800/2100 rpm
Idle Speed: 650 rpm
Fuel Consumption: ≥ 198 g/kW.h
Intermittent Power/Speed (kW/rpm): 205/1500,244/1800, 266/2100, 272/2300
More Technical Data
Certification: Euro II
Aspiration: Turbocharged
Compression Ratio: 15:1
Electrical System (Starter Motor/Alternator): Electrical Start (24V)
Cooling Method: Water Cooled
Ignition Sequence: A1-B2-A3, B1-A2-B3
Fuel System: Direct Injection Pump
Technical Comparisons: TD234V8 vs. Inline Configurations and Competitors
Many buyers struggle to decide between a traditional inline-6 engine (such as certain Cummins or Deutz 1013/2012 derivatives) and a V8 block like the Deutz TD234V8.
Inline engines often offer simpler packaging for narrow enclosures, but they introduce longer crankshafts that can suffer from higher torsional vibration stress at scale. The V8 architecture of the Deutz V8 diesel engine for generator set applications shortens the overall block length. This reduction in block length creates a stiffer crankshaft assembly, lowering vibration harmonics during high-load rejection events.
Compared to competitor offerings found across the market, the HND-built Deutz TD234V8 engine stands out due to its wet-liner cylinder design. Wet liners simplify major overhauls because mechanics can replace individual cylinders in the field without boring the entire engine block. Competitors utilizing dry-liner blocks often require complete engine removal for a structural rebuild.
Real Application Scenarios and Operational Suitability
Finding an ideal diesel engine for standby power system demands hardware that can sit idle for weeks and assume full electrical load within seconds of a grid failure. The Deutz TD234V8 engine for sale through HekoPower is routinely specified for several critical sectors:
- Telecom Backup Generator Systems: Cell towers in remote locations require unattended reliability. The V8 fuel management system ensures clean combustion even during fluctuating ambient temperatures.
- Emergency Power Stations: Hospitals and data centers leverage the rapid transient response of this industrial generator diesel engine to protect sensitive infrastructure.
- Remote Industrial Camps: Mining operations in harsh climates rely on the power station diesel generator engine variant for uninterrupted continuous baseload supply.
Maintenance, Replacement Tips, and Common Misconceptions
Maximizing the service life of a Deutz TD234V8 replacement engine requires strict adherence to scheduled servicing intervals.
Preventive Maintenance Best Practices
Oil quality remains the single most critical factor for V8 longevity. Operators must utilize high-grade diesel engine oils that meet Deutz lubricant specifications to prevent soot buildup in the turbocharger bearings. Coolant additive concentrations should be checked semi-annually to eliminate cavitation erosion along the wet cylinder liners.
Common Misconceptions Regarding the TD234 Series
A frequent misconception among buyers is that all 234-series parts are universally interchangeable regardless of the manufacturing tier. Because these units are produced via licensed manufacturers like HND in China alongside original German specifications, sourcing components requires verifying exact part numbers for fuel injection pumps and cylinder heads. Another misconception is that V8 engines inherently consume excessive fuel at light loads; modern electronic governing and optimized combustion chambers on the Deutz TD234V8 generator engine maintain high efficiency across varying partial load curves.
Deutz TBD234-Generator Engine Series, original products from Henan Diesel Engine Plant (HND). This series mainly includes Deutz TD234V6, Deutz TBD234V6, Deutz TD234V8, Deutz TBD234V8, Deutz TBD234V12.
Frequently Asked Questions (FAQs)
What is the primary difference between a Deutz TD234 and a TBD234 designation?
The 'B' typically denotes turbocharged with charge-air cooling (intercooled), whereas standard 'T' variations may refer to general turbocharging. In contemporary generator applications, most units supplied by HekoPower incorporate intercooling to maximize power density.
Is the Deutz TD234V8 compliant with modern emission standards?
Depending on whether the unit is configured for stationary prime power, emergency standby, or export to unregulated territories, fuel system configurations can be optimized for mechanical or electronic governance. Contact HekoPower directly to confirm emissions compliance for your specific jurisdiction.
Can HekoPower supply complete spare parts alongside the engine?
Yes. As an established Deutz TD234V8 wholesale supplier, HekoPower maintains a comprehensive inventory of genuine replacement parts, including overhaul kits, fuel injectors, water pumps, and turbochargers, ensuring minimal downtime for your equipment.
