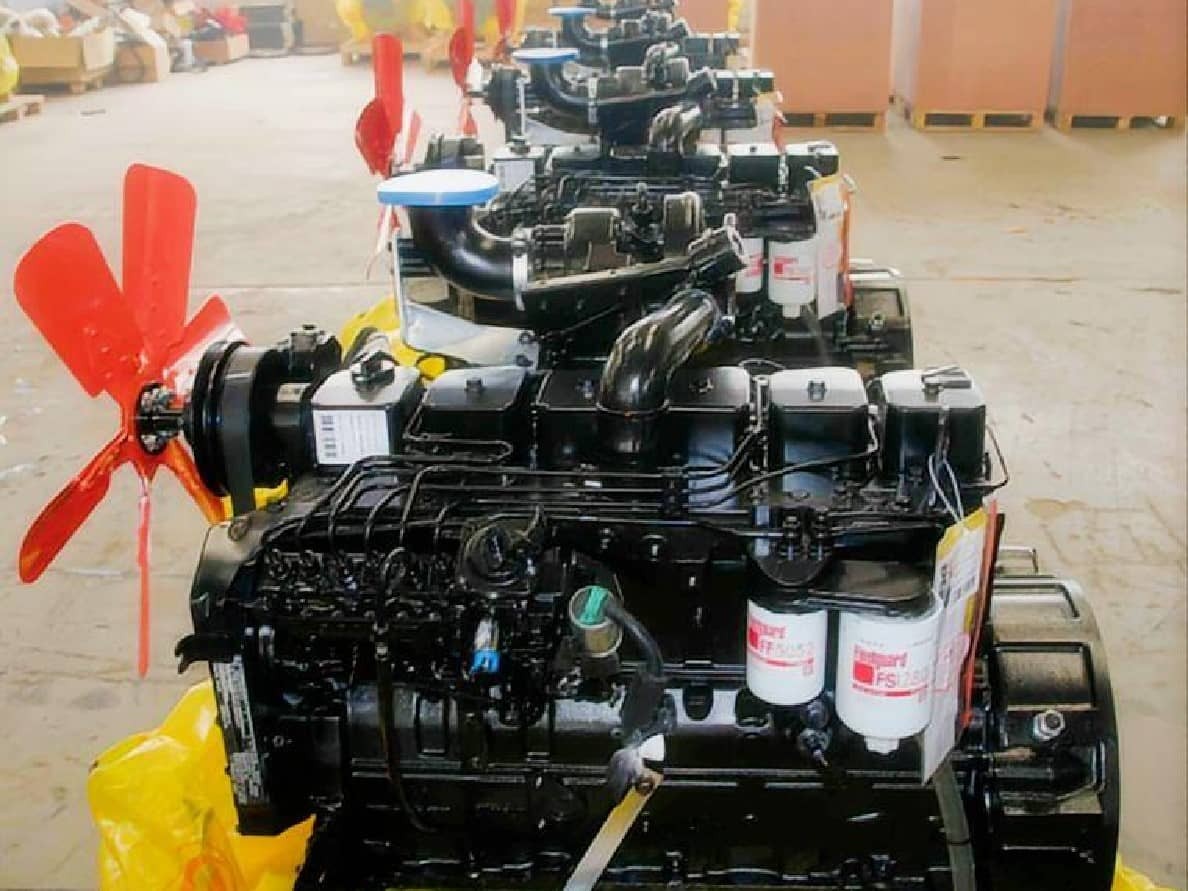

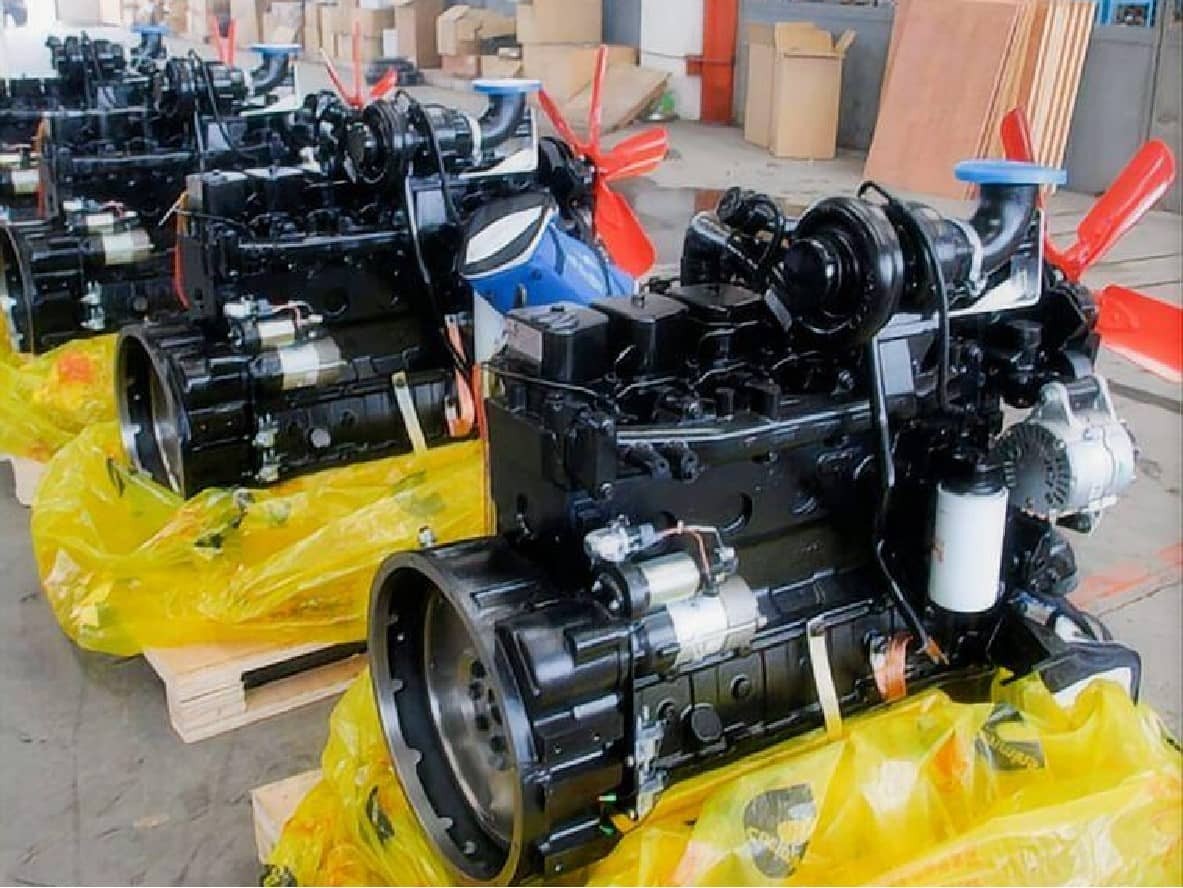

Cummins 6BTA5.9-C125 Engine Assembly: The Backbone of Industrial Reliability
The Cummins 6BTA5.9-C125 engine assembly is part of the well-known Cummins B series diesel engine family. It is widely used in construction machinery, industrial equipment, and generator sets where stable torque output and mechanical reliability are required.
As an engine supplier, HekoPower provides complete engine assemblies, including matched turbocharger, fuel system components, and cooling parts to ensure installation compatibility and operational stability in real working conditions.
Tech Specs of Cummins 6BTA5.9-C125
General Engine Data
Engine Model: Cummins 6BTA5.9-C125
Type: 6 Cylinders in Line
Displacement: 5.9 L
Bore * Stroke: 102 * 120
Overall Dimension: 1100mm*750mm*988mm
Net Weight (with flywheel & alternator): 432 Kg
Key Performance Data
Rated Power: 92 kW/125HP
Rated Speed: 2000 rpm
Max Torque/Speed: 540 N.m @ 1400 rpm
Fuel Consumption @ Rated Power: 210 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro I
Aspiration: Turbocharged-Intercooled
Fuel System: A Pump/ RSV Govenor
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.9 L
Why Choose the Dongfeng Cummins (DCEC) Version?
As a leading wholesale Cummins 6BTA5.9 engine supplier, HekoPower sources directly from the Dongfeng Cummins (DCEC) joint venture. These engines are built to global Cummins standards but offer a significant cost advantage for replacement projects.
6BTA5.9-C125 Turbocharger and Water Pump Configuration
A common failure point in "gray market" engines is the use of non-standard cooling and induction parts. Our Cummins 6BTA5.9 engine assembly features the high-flow water pump and Holset turbocharger specifically calibrated for the C125 power curve. This ensures that the thermal load is managed even during continuous 24-hour operation in industrial pump applications.
Application Focus: The Best Replacement for Liugong Excavators
This engine is commonly used in equipment where steady torque output is more important than high-speed performance.
Typical applications include:
- Construction machinery such as excavators and loaders
- Industrial pump systems for irrigation and mining
- Generator sets (especially 80–120kW range units)
- Marine auxiliary propulsion systems
- Light industrial power units
Cummins 6BTA5.9-C125 Fuel Consumption at 2000rpm
Efficiency is a primary concern for fleet managers. At its rated speed of 2000rpm, the 6BTA5.9-C125 maintains a fuel consumption rate of approximately 210-215 g/kW.h. By choosing a genuine assembly over a rebuilt Cummins 6BTA5.9 engine, you ensure that these tolerances remain tight, preventing fuel wastage and excessive smoke.
Cummins 6BTA vs 6BT Difference Explanation
The primary difference is the "A"—Aftercooling. While a standard 6BT is only turbocharged, the 6BTA cools the intake air before it enters the cylinders. This increases air density, leading to a cleaner burn and more horsepower. If you are replacing a 6BT, upgrading to a 6BTA5.9-C125 can provide more "grunt" for heavy lifting.
6BTA5.9-C125 vs. 6BTA5.9-C130
Many customers ask if they can swap a C125 for a C130. While they share the same block, the C130 is tuned for 130HP (97kW).
- C125: Best for steady-state industrial pumps and medium excavators.
- C130: Better for applications requiring occasional bursts of higher torque. Using a C125 where a C130 is required may lead to underperformance, while the reverse might stress your existing transmission.
The HekoPower Advantage in the Global Market
Competitors like cumminsengine.net or engine-family.com often provide generic data. At HekoPower, we focus on the heavy duty industrial diesel engine China OEM supply chain. We don't just sell an engine; we provide the configuration needed for your specific equipment.
Cummins 6BTA5.9 Generator Set Engine vs. Industrial
Note that the 6BTA5.9-C125 is an industrial (C) rated engine. If you need a Cummins 6BTA5.9 generator set engine, the governor settings are different (G-drive). We stock both, but it is vital to specify your application so we can set the mechanical governor to the correct RPM (1500/1800 for power gen vs. variable for industrial).
Cummins B5.9-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6BT5.9-C115, 6BT5.9-C120, 6BT5.9-C125, 6BT5.9-C130, 6BT5.9-C135, 6BT5.9-C145, 6BT5.9-C150, 6BTA5.9-C125, 6BTA5.9-C130, 6BTA5.9-C150, 6BTA5.9-C155, 6BTA5.9-C170, 6BTA5.9-C175, 6BTA5.9-C180, 6BTAA5.9-C130, 6BTAA5.9-C150, 6BTAA5.9-C160, 6BTAA5.9-C180, 6BTAA5.9-C190, 6BTAA5.9-C195, 6BTAA5.9-C205.
Maintenance and Longevity Secrets
The mechanical diesel engine reliability of the 5.9L Cummins is world-renowned. To reach the 20,000-hour mark, follow these steps found in the maintenance manual for Cummins 6BTA5.9-C125 DCEC:
- Fuel Filtration: Always use a high-quality water separator. Mechanical injectors are durable but sensitive to water contamination.
- Valve Adjustments: Check clearances every 2,000 hours to ensure the overhead remains quiet and efficient.
- Oil Quality: Use high-grade 15W-40 oil to protect the turbocharger bearings.
FAQ: Everything You Need to Know About the 6BTA5.9-C125
What is the current Cummins 6BTA5.9 diesel engine price?
Prices fluctuate based on shipping costs and regional taxes. However, as a wholesale supplier, HekoPower offers the 6BTA5.9-C125 at competitive China-direct pricing. Contact us for a quote that includes the latest CPL (Control Parts List) configurations.
Can I use the 6BTA5.9-C125 for marine applications?
While this is a 6BTA5.9-C125 construction engine, it can be converted for marine use. However, a dedicated 6BTA5.9 marine diesel engine application usually requires a heat exchanger, water-cooled manifolds, and different sea-water pumps. We recommend buying the marine-spec version directly from us to ensure safety.
Is this engine Tier 4 or Stage V compliant?
The 6BTA5.9-C125 is a mechanical engine, generally meeting Euro I or Euro II standards. It is ideal for markets where ultra-low sulfur diesel is not available or for stationary equipment where older emission standards apply.
How do I verify a "Genuine DCEC" engine?
Every Genuine Cummins 6BTA5.9 industrial engine comes with a data plate on the gear housing. This includes the Engine Serial Number (ESN) and CPL. You can verify these numbers through the Cummins QuickServe system or by asking us to provide a video of the engine tag before shipping.
