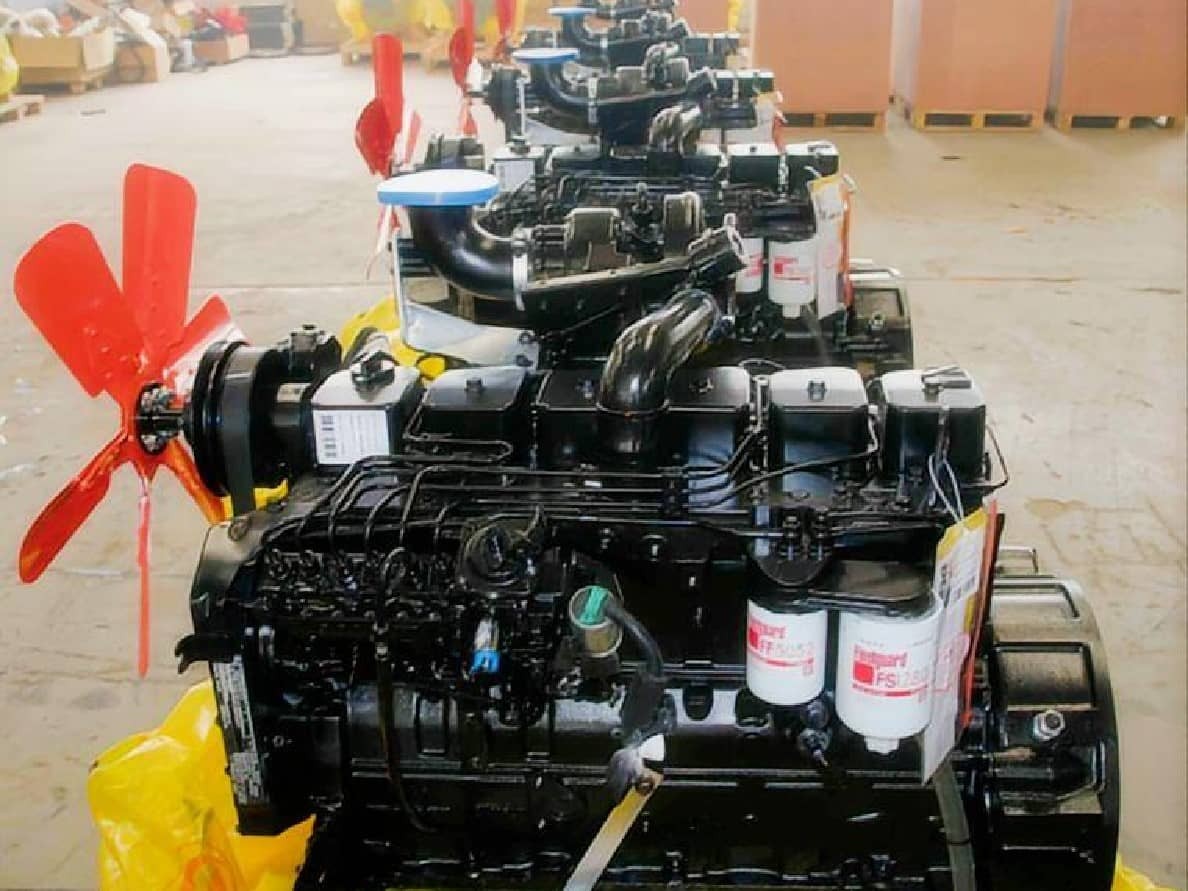

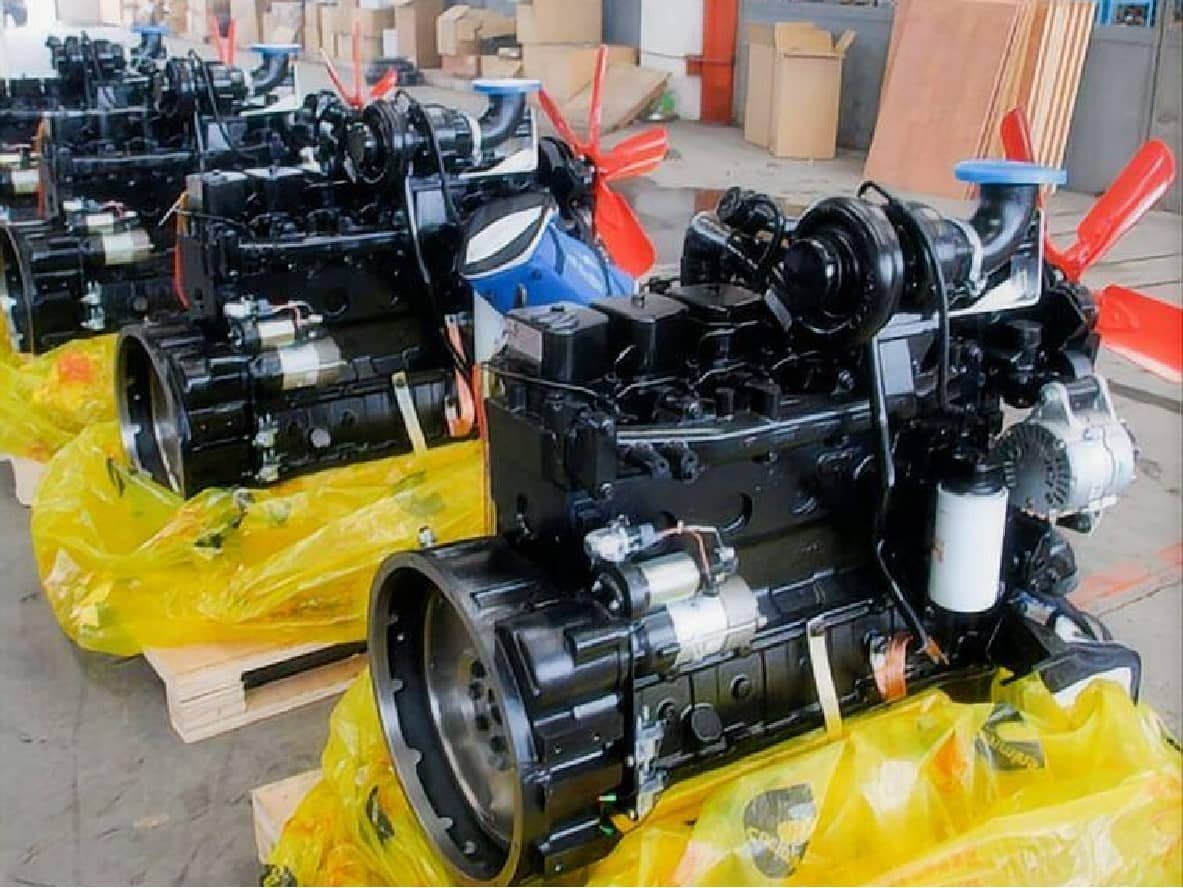

DCEC Cummins 6BT5.9-C145 Construction Engine
The Cummins 6BT5.9-C145 industrial diesel engine is a reliable 5.9L six-cylinder power unit widely used in construction machinery, mining equipment, road maintenance systems and industrial pump applications. Manufactured by Dongfeng Cummins Engine Co., Ltd. (DCEC), this engine combines a compact mechanical structure with stable turbocharged performance and convenient maintenance characteristics.
Compared with electronically controlled industrial engines, the 6BT5.9-C145 adopts a mechanical fuel injection system that offers strong adaptability in high-temperature, dusty and remote operating environments. This makes it particularly suitable for overseas construction projects, quarry operations and heavy-duty industrial equipment where reliability and easy servicing are essential.
As an engine supplier, HekoPower provides complete engine assemblies, replacement engines and export support for international equipment distributors, repair workshops and machinery owners requiring stable long-term industrial power solutions.
Tech Specs of Cummins 6BT5.9-C145
General Engine Data
Engine Model: Cummins 6BT5.9-C145
Type: 6 Cylinders in Line
Displacement: 5.9 L
Bore * Stroke: 102 * 120
Overall Dimension: 1100mm*750mm*988mm
Net Weight (with flywheel & alternator): 432 Kg
Key Performance Data
Rated Power: 106 kW/145HP
Rated Speed: 2100 rpm
Max Torque/Speed: 580 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 221 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro I
Aspiration: Turbocharged
Fuel System: A Pump/ RSV Govenor
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.9 L
Mechanical Fuel Injection and Governor Setup
The core reliability of this 5.9L mechanical diesel engine lies in its fuel delivery system. This unit features a 6BT5.9-C145 engine with a Weifu A pump and RSV mechanical governor. Unlike electronic common-rail setups, this inline fuel pump diesel engine handles variable fuel qualities exceptionally well. The mechanical governor responds dynamically to sudden hydraulic loads, stabilizing the RPM when your machinery tackles heavy resistance.
Turbocharger and Cooling System Requirements
Engineered as a Cummins 5.9L 145HP turbocharged diesel engine, the turbocharger relies on high-efficiency pulse exhaust manifolds. To keep the thermal load balanced, the internal engine cooling system requirements mandate an optimized radiator layout capable of handling a rejection heat of approximately 65 kW. The standard lubrication specifications require high-grade CH-4 or CI-4 diesel oil to maintain the oil film integrity under high operating temperatures.
Flywheel Housing and Weight Configuration
When ordering, confirming the DCEC 6BT5.9-C145 weight and flywheel configuration prevents installation mismatches. The standard dry weight sits at 432 kg. The housing usually conforms to SAE #2 or SAE #3 standards, paired with a 11.5-inch flywheel configuration. This mechanical interface allows direct coupling to main hydraulic pumps, heavy-duty transmissions, or industrial PTO shafts.
Industrial Applications and Machine Compatibility
The Cummins 6BT5.9-C145 construction machinery engine is a versatile workhorse globally. Identifying your precise machinery model ensures the intake, exhaust, and engine mounts align perfectly.
Primary Excavator Hydraulic Systems
This model serves as a vital Cummins engine for excavator hydraulic systems. It frequently powers 15 to 22-ton excavators, driving tandem axial piston pumps. The high torque output of 580 Nm at 1500 RPM provides the necessary force for intense digging and breakout operations without taxing the internal fuel efficiency.
Compaction and Heavy Infrastructure Equipment
Road construction relies on steady, uninterrupted torque. This configuration acts as a reliable Cummins engine for road rollers and heavy vibratory compactors. The mechanical fuel injection systems resist the constant vibrations that often damage electronic wiring harnesses and sensors on newer engine models.
Material Handling and Lifting Machinery
Fleet operators look to this unit when sourcing a replacement Cummins engine for wheel loaders and heavy crane machinery. Its rapid low-end torque response allows operators to lift and move heavy bulk materials efficiently, ensuring smooth cycle times in ports, yards, and quarries.
Specialized Drilling and Mining Equipment
Harsh environments require simple, durable power. This build serves as an optimized Cummins diesel engine for drilling machines and heavy-duty mining equipment. The simple inline configuration ensures field mechanics can service the engine with standard hand tools, minimizing remote site downtime.
Stationary Auxiliary Units
Beyond mobile machinery, this configuration is deployed as a rugged Cummins engine for industrial pump units and large compressor equipment. When built as a Cummins 6BT5.9-C145 complete power unit, it comes equipped with an integrated structural skid, radiator pack, and instrument panel, ready for structural installation.
Technical Comparison with Similar Cummins Engines
6BT5.9-C145 vs 6BT5.9-C130
Compared with the 130HP version, the 145HP configuration provides:
- higher torque reserve
- improved heavy-load performance
- stronger climbing capability for machinery
- better suitability for hydraulic-intensive equipment
The C145 model is often selected when equipment operates continuously under medium-to-heavy workloads.
Mechanical Engine vs Electronic Engine
Many newer industrial engines use electronic control systems. However, mechanical engines like the 6BT5.9-C145 still remain highly competitive in many international markets.
Mechanical engines offer:
- easier maintenance
- lower repair costs
- reduced sensor dependency
- better fuel tolerance in some regions
For projects in remote locations, mechanical engines can significantly reduce operational downtime.
Replacement Strategy and Fleet Maintenance Tips
Replacing a Cummins 6BT5.9 industrial engine datasheet profile requires examining your current setup's physical configuration details.
Crucial CPL and Nameplate Verification
Before purchasing a new Cummins 145HP diesel engine, look at the data plate on the gear housing. You must verify the Cummins 6BT5.9 engine CPL information (Critical Parts List). The CPL defines the internal piston design, turbocharger model, and fuel pump calibration. Matching the CPL guarantees the replacement engine drops onto your existing chassis beds without modifying linkages.
Managing Overhaul Intervals and Common Faults
The Cummins 5.9L engine overhaul interval typically reaches 12,000 to 15,000 operating hours under proper maintenance regimes. While highly reliable, awareness of common faults of the Cummins 6BT5.9 engine saves money. Pay close attention to the killer dowel pin (KDP) issue on older configurations, and watch for wear on the mechanical lift pump diaphragm, which can leak fuel into the oil crankcase if unchecked.
Routine Lubrication and Operating Temperature Guides
Strictly follow the Cummins engine operating temperature guide, maintaining coolant levels between 82°C and 93°C under full load. Utilize the Cummins turbocharged diesel engine maintenance schedule: replace oil filters and fuel-water separators every 250 hours. Consistent maintenance preserves the engine's long-term fuel efficiency optimization.
Global Sourcing and Logistics Management
HekoPower operates as an original Dongfeng Cummins 6BT5.9-C145 exporter, streamlining your global procurement process.
Factory Direct Supply and Distributor Wholesale
We provide wholesale Cummins 6BT5.9 engine assembly options directly to international repair yards, fleet owners, and regional machinery part stores. Our position as an OEM DCEC Cummins engine supplier in China ensures every engine comes straight from the production facility with verifiable documentation.
Warranty, Packaging, and Lead Times
Every original Cummins engine with a warranty leaves our warehouse in heavy-duty, sea-worthy wooden crates to prevent moisture or physical damage during sea transit. We provide transparent updates regarding Cummins 6BT5.9-C145 engine price and lead time, managing custom export clearance to make the import process effortless for overseas buyers.
Cummins B5.9-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6BT5.9-C115, 6BT5.9-C120, 6BT5.9-C125, 6BT5.9-C130, 6BT5.9-C135, 6BT5.9-C145, 6BT5.9-C150, 6BTA5.9-C125, 6BTA5.9-C130, 6BTA5.9-C150, 6BTA5.9-C155, 6BTA5.9-C170, 6BTA5.9-C175, 6BTA5.9-C180, 6BTAA5.9-C130, 6BTAA5.9-C150, 6BTAA5.9-C160, 6BTAA5.9-C180, 6BTAA5.9-C190, 6BTAA5.9-C195, 6BTAA5.9-C205.
Frequently Asked Questions Regarding the 6BT5.9-C145
What is included in a complete engine assembly from HekoPower?
Our complete assembly includes the cylinder block, cylinder head, crankshaft, camshaft, turbocharger, Weifu A-pump fuel system, starter motor, alternator, and water pump. Auxiliary components can be customized according to your specific machinery configuration requirements.
Can this engine replace an electronically controlled Tier 3 or Tier 4 engine?
Physically, it can often fit the chassis rails, but you must check local environmental laws. The 6BT5.9-C145 is a mechanical engine suited for regions or applications using Tier 1 or Tier 2 standards. It requires no ECU or complex wiring harnesses to operate.
How do you confirm the engine configuration matches my machine?
Please provide your current engine nameplate, serial number, or CPL number. Our technical team checks the DCEC manufacturing database to ensure the flywheel housing, oil pan depth, and turbocharger orientation match your machine exactly.
What are the shipping dimensions for a 6BT5.9-C145 engine?
The standard engine dimensions are roughly 1025mm × 682mm × 930mm. When crated for international shipping, the dimensions increase slightly, and gross package weight sits around 480 kg.
