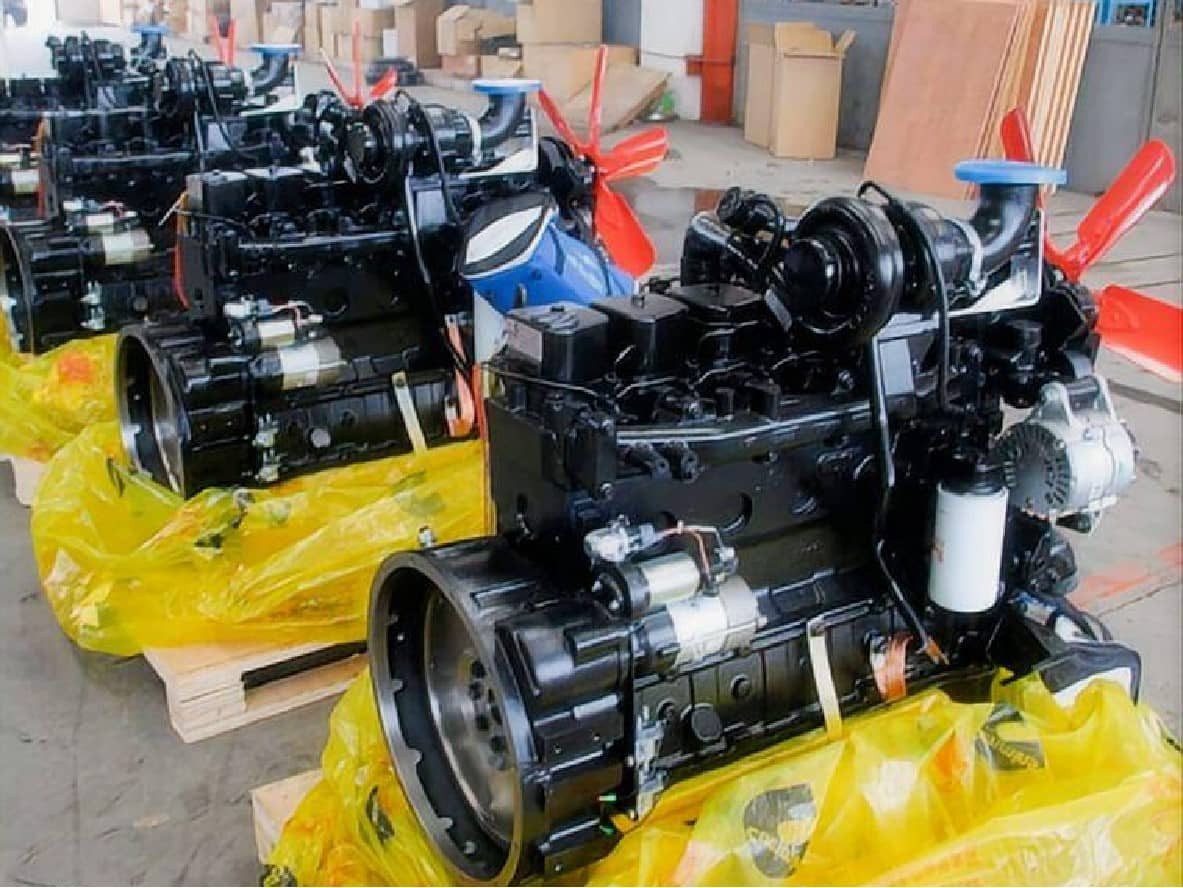

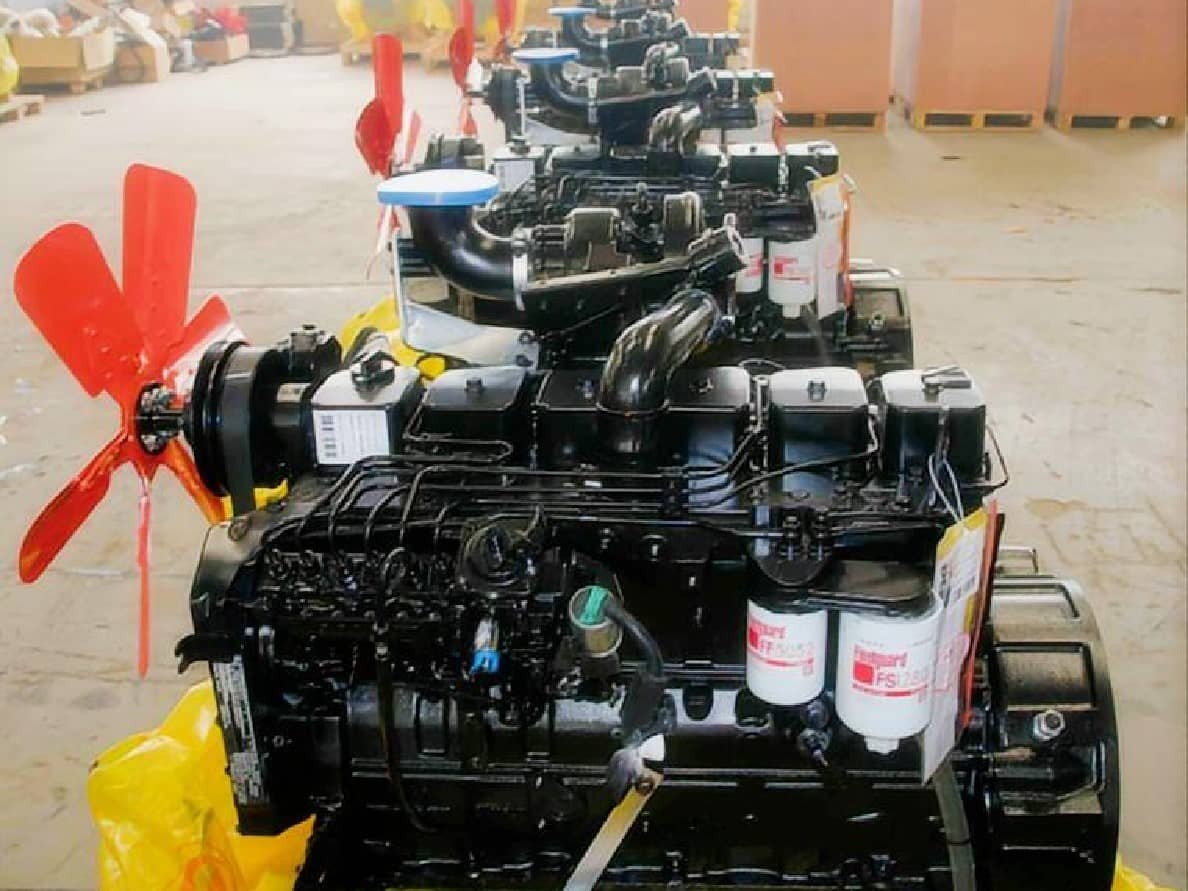

Cummins 6BTAA5.9-C205 Industrial Diesel Engine Overview
The Cummins 6BTAA5.9-C205 is a 5.9L turbocharged intercooled diesel engine developed for industrial and construction power applications. As a DCEC (Dongfeng Cummins) platform engine, it is widely used in pump drive systems, medium-duty construction machinery, and generator sets requiring stable output around 151kW (approximately 200–205HP depending on calibration).
As an engine supplier, HekoPower provides complete assemblies including engine, control system compatibility guidance, and export packaging suitable for long-distance shipping and replacement projects.
Tech Specs of Cummins 6BTAA5.9-C205
General Engine Data
Engine Model: Cummins 6BTAA5.9-C205
Type: 6 Cylinders in Line
Displacement: 5.9 L
Bore * Stroke: 102 * 120
Overall Dimension: 1100mm*750mm*988mm
Net Weight (with flywheel & alternator): 453 Kg
Key Performance Data
Rated Power: 151 kW/205HP
Rated Speed: 2000 rpm
Max Torque/Speed: 870 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 217 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged-Intercooled
Fuel System: Weifu P7100 Pump/ RSV Govenor
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 10.4 L
Fuel System Configuration with BYC P7100 Pump
Unlike modern electronic engines with common rail electronics, the Cummins 6BTAA5.9-C205 engine fuel system uses a BYC P7100 injection pump. This mechanical setup tolerates varied fuel qualities across developing industrial markets.
The physical configuration features standard mechanical governors that manage engine load fluctuations without requiring an electronic control unit (ECU). This eliminates wiring harness vulnerabilities in dusty construction environments.
Technical Comparisons: C205 vs. Alternative 5.9L Variations
Selecting the wrong engine variant leads to immediate operational failures. This section breaks down mechanical variations to prevent ordering mistakes.
Difference Between Cummins C180 and C205 Engine
The difference between Cummins C180 and C205 engine platforms lies in the fuel delivery tuning and turbocharger selection. While both share the foundational 5.9L engine block, the C180 produces less horsepower and targets lighter equipment loads.
The C205 employs a reinforced fuel injector nozzle profile and advanced wastegate turbocharging to safely push output up to 205HP without escalating internal exhaust gas temperatures (EGT).
Cummins 6BTAA5.9 C205 vs C175 Performance Comparison
A Cummins 6BTAA5.9 C205 vs C175 performance comparison reveals distinct duty cycle tolerances. The C175 serves well in intermittent utility operations.
The C205 architecture features heavy-duty pistons and enhanced oil gallery cooling paths to withstand continuous high-load running cycles at 2000 rpm. This makes it a preferred choice for stationary pump drives requiring prolonged throttle applications.
Choosing the Best 5.9L Configuration for Heavy Equipment
When deciding which Cummins 5.9L engine model is best for construction use, engineers must evaluate internal cooling capacity. The "6BTAA" designation confirms air-to-air intercooling, which operates more efficiently in high-ambient-temperature environments than the jacket-water aftercooled "6BTA" variants.
Real Application Scenarios for the 205HP Engine
The Cummins 5.9L construction engine 205HP platform drives a variety of machinery across global infrastructure sectors. Hekopower configures these units to match the specific load characteristics of each industrial application.
High-Output Water Pump Drive Configurations
The 6BTAA5.9-C205 water pump drive engine specifications match the continuous speed needs of mining dewatering systems and agricultural irrigation networks. The mechanical drive shaft couples directly with high-capacity centrifugal pumps.
Because the engine maintains peak torque at lower rpm bands, it preserves pump impeller life while delivering steady fluid movement.
Integration with Excavators and Earthmoving Loaders
The Cummins 6BTAA5.9-C205 for excavator and loader lines provides the necessary hydraulic pump drive torque. Excavators encounter sudden, extreme load resistance during deep digging cycles.
The mechanical BYC P7100 pump responds mechanically to RPM drops, instantly feeding more fuel to prevent the engine from stalling under heavy hydraulic pressures.
Industrial Power Units for Construction Machinery
As a versatile industrial diesel engine for construction machinery, this motor operates efficiently in stone crushers, piling rigs, and air compressor stations.
The lack of complex electronic sensors prevents unexpected shutdowns caused by the high structural vibrations common to rock crushing and drilling operations.
Emergency Backup Power Generation Sets
Beyond mobile equipment, this platform serves as a reliable prime mover. The Cummins 5.9L engine for generator set 150–200kVA applications handles rapid block load connections.
When a facility loses power, the engine ramps up to synchronous speeds quickly, providing a steady electrical supply without frequency dips.
Maintenance, Diagnostic Tips, and Replacement Logistics
Regular service and proper procurement planning prevent costly project delays. Hekopower provides ongoing engineering support to keep your fleet running smoothly.
Mechanical Fuel System Troubleshooting and Adjustments
To maintain reliable performance, check the primary fuel filters for water contamination every 250 operating hours. If the mechanical engine loses power or produces excessive black smoke, check the turbocharger wastegate for binding.
Keep fuel lines free of air bubbles by utilizing the manual priming pump situated on the side of the BYC injection pump assembly after every filter change.
Identifying a Direct Replacement Engine for Cummins 6BTAA5.9-C205
When looking for a replacement engine for Cummins 6BTAA5.9-C205, check the metal data plate stamped onto the gear housing. You must verify the original Cummins Data Tag (CPL number and Engine Serial Number).
This verification ensures the replacement unit shares identical oil pan positions, flywheel housing dimensions, and starter motor voltages with your existing equipment frame.
Global Logistics, Export Packaging, and Lead Times
Our operational processes ensure damage-free transit to international ports. The original DCEC 6BTAA5.9-C205 lead time and packaging process follows strict international shipping rules:
- Internal Protection: Anti-corrosion oil coatings applied directly to exposed crankshaft flanges and flywheel assemblies.
- Outer Packaging: Heavy-duty, fumigated wooden cases built to prevent movement during maritime transport.
- Export Documentation: All shipments include factory compliance certificates, technical datasheets, and clearance invoices.
Cummins B5.9-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6BT5.9-C115, 6BT5.9-C120, 6BT5.9-C125, 6BT5.9-C130, 6BT5.9-C135, 6BT5.9-C145, 6BT5.9-C150, 6BTA5.9-C125, 6BTA5.9-C130, 6BTA5.9-C150, 6BTA5.9-C155, 6BTA5.9-C170, 6BTA5.9-C175, 6BTA5.9-C180, 6BTAA5.9-C130, 6BTAA5.9-C150, 6BTAA5.9-C160, 6BTAA5.9-C180, 6BTAA5.9-C190, 6BTAA5.9-C195, 6BTAA5.9-C205.
Frequently Asked Questions
What does the product nomenclature 6BTAA5.9-C205 signify?
The code breaks down into specific engineering features: 6 denotes six cylinders; B identifies the engine series; T indicates turbocharged; AA specifies air-to-air intercooled; 5.9 is the displacement in liters; C designates a construction or industrial application; and 205 indicates the 205-horsepower rating.
Can I swap a standard electronic engine for this mechanical model?
Yes. Many fleet operators replace problematic electronic common-rail engines with this mechanical version to eliminate ECU failures. You will only need basic 12-volt or 24-volt electrical connections for the starter motor and fuel shutoff solenoid.
Where can I find factory direct pricing for this platform?
You can get quote for Dongfeng Cummins 6BTAA5.9-C205 directly through the Hekopower sales office. As an industrial engine supplier, we offer wholesale volume pricing for engineering firms, machinery rebuilders, and equipment dealers.
