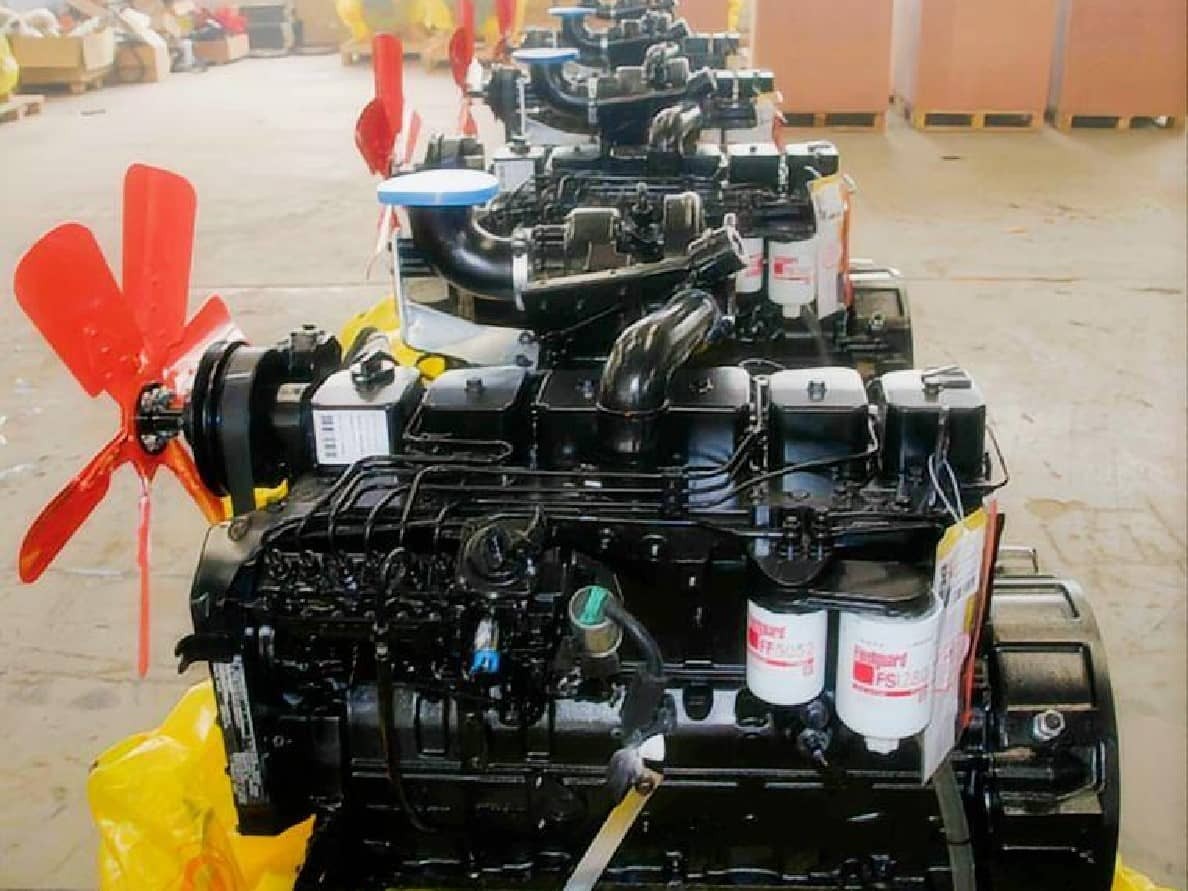

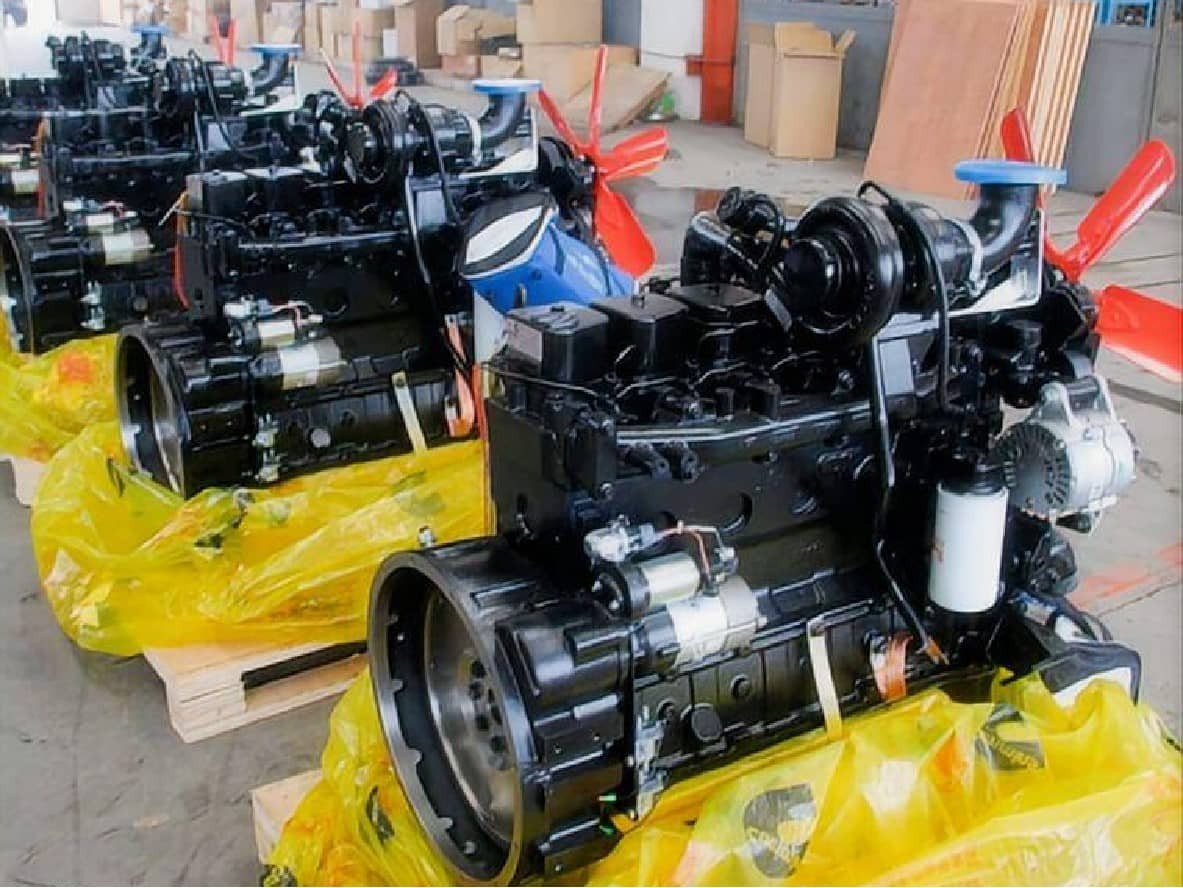

DCEC Cummins 6BT5.9-C120 Industrial Diesel Engine
The DCEC Cummins 6BT5.9-C120 is a 6-cylinder, 5.9-liter inline turbocharged diesel engine engineered specifically for heavy-duty industrial and construction machinery. Delivering a rated output of 87 kW (120 HP) at 2200 RPM, this powertrain balances mechanical simplicity with durable torque delivery under harsh working conditions. Built by Dongfeng Cummins Engine Co. (DCEC), the 6BT5.9-C120 engine assembly serves as a reliable power unit for mobile construction equipment, stationary industrial pumps, and field machinery.
As a primary supplier of genuine DCEC assemblies and replacement components, HekoPower supplies complete engine packages, long blocks, and drop-in engine units configured to meet original factory specifications for rapid field installation.
Tech Specs of Cummins 6BT5.9-C120
General Engine Data
Engine Model: Cummins 6BT5.9-C120
Type: 6 Cylinders in Line
Displacement: 5.9 L
Bore * Stroke: 102 * 120
Overall Dimension: 867mm*544mm*988mm
Net Weight (with flywheel & alternator): 432 Kg
Key Performance Data
Rated Power: 87 kW/120HP
Rated Speed: 2200 rpm
Max Torque/Speed: 436 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 225 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro I
Aspiration: Turbocharged-Intercooled
Fuel System: Wuxi Weifu A Pump/ RSV Govenor
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.9 L
Real Application Scenarios & Equipment Fitment
The Cummins 6BT5.9-C120 construction engine is widely integrated across global heavy equipment platforms. Its physical footprint and power profile make it an optimal primary engine or replacement solution across several machinery sectors:
Excavators and Earthmovers: Frequently utilized as a direct-fit unit, the Cummins 6BT5.9-C120 engine for Liugong excavator models provides steady hydraulic pump driving power. It is equally suited for mid-sized excavators from manufacturers like SANY, XCMG, and Lonking.
Wheel Loaders & Compactors: Serves as a high-torque Cummins 6BT5.9-C120 wheel loader replacement engine, providing the low-end traction required for bucket loading, slope climbing, and material transport.
Drilling Rigs & Mining Units: Operates reliably in rotary drilling rigs and underground auxiliary units where constant torque output under continuous load is required.
Industrial & Agricultural Pumps: Applied as a Cummins 6BT5.9-C120 industrial pump engine and agricultural irrigation power unit, driving high-volume water pumps and stationary field equipment.
Technical Comparisons: 6BT5.9-C120 vs. C115, C125, and C130
Selecting the correct replacement engine requires understanding the mechanical distinctions between variants within the DCEC B5.9 family. While displacement remains constant at 5.9 liters, fuel pump calibration, governor setup, and turbocharger profiles create distinct performance boundaries.
Cummins 6BT5.9-C120 vs. 6BT5.9-C115
The 6BT5.9-C115 generates 85 kW (115 HP), operating at a slightly lower output threshold than the C120. The primary difference lies in the fuel injection pump calibration and turbocharger boost delivery. The 6BT5.9-C120 delivers 87 kW and higher peak torque (436 Nm compared to ~410 Nm on the C115), making the C120 better suited for heavier hydraulic work cycles where lugging power prevents engine stalling under load.
Cummins 6BT5.9-C120 vs. 6BT5.9-C125
When comparing the 6BT5.9-C120 vs C125, the horsepower difference is 5 HP (87 kW / 120 HP vs 93 kW / 125 HP). The C125 utilizes a slightly modified fuel injection delivery volume on its Weifu inline pump to achieve the additional 5 horsepower at 2200 RPM. Physical mounting dimensions, flywheel housing profiles, and block structures remain identical. In many field applications, a C120 can serve as a suitable drop-in substitute for a C125 with minor governor adjustments.
Cummins 6BT5.9-C120 vs. 6BT5.9-C130
The 6BT5.9-C130 delivers 97 kW (130 HP) and requires higher fuel delivery rates along with specific wastegate turbocharger tuning. Upgrading from a C120 to a C130 increases thermal output, requiring verification of existing radiator heat dissipation capacity. While the cylinder block and mounting patterns match, the C130 generates higher strain on downstream drive belts and cooling systems.
Maintenance, Troubleshooting & Drop-In Replacement Tips
Replacing an aged or damaged 6BT5.9-C120 requires careful evaluation of engine configuration parameters before purchasing.
Flywheel Housing & Coupling Alignment
Verify the 6BT5.9-C120 flywheel housing SAE size before ordering. Most industrial construction setups utilize SAE #2 or SAE #3 flywheel housings. Installing an engine with an mismatched bellhousing pattern causes misalignment with the main hydraulic pump or transmission coupling.
Package Options: Complete Engine vs. Long Block
Decide between a complete engine package and a long block based on existing peripheral component health:
- Complete Engine Assembly: Includes the cylinder block, cylinder head, Weifu fuel injection pump, injectors, turbocharger, water pump, starter motor, alternator, and option for a complete engine with radiator. Recommended for fast replacement to minimize equipment downtime.
- Engine Long Block: Contains the block, crankshaft, connecting rods, pistons, and cylinder head assembly. Best suited when existing fuel injection systems, starter, and turbocharger remain in working condition, lowering overall replacement costs.
Installation Checklist
Ensure the fuel lines are thoroughly flushed to prevent contamination from entering the Weifu fuel pump and injectors. Check electrical system compatibility, as starter motors and alternators are available in both 12V and 24V configurations depending on the host machine.
Common Misconceptions Regarding the 6BT5.9-C120
Misconception 1: Any 6BT5.9 Engine Will Fit Any Machine
While all 6BT5.9 blocks share the same external footprint, industrial "C" series engines feature specific sump pans, dipstick locations, flywheel housings, and governor settings distinct from automotive (ISBe) or generator drive (6BT5.9-G) engines. Installing a generator-spec engine into an excavator will result in poor throttle control due to different governor behaviors.
Misconception 2: You Must Match the Exact HP Rating During Replacement
Replacing a 115 HP or 125 HP unit with a 120 HP DCEC 6BT5.9 engine is common practice in field retrofits, provided the torque curve and maximum RPM (2200 RPM) match the hydraulic system requirements.
Misconception 3: Marine and Industrial 6BT Blocks Are Identical
Industrial engines utilize air-to-air or standard jacket-water cooling pathways, whereas marine engines utilize raw-water heat exchangers and water-cooled exhaust manifolds. Converting between the two requires extensive component retrofitting.
DCEC B5.9 Engine Series Overview
To support equipment owners, repair facilities, and machinery operators seeking exact displacement and power matches for their operational needs, HekoPower maintains a dedicated inventory of genuine DCEC B-series engines and spare parts.
Cummins B5.9-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6BT5.9-C115, 6BT5.9-C120, 6BT5.9-C125, 6BT5.9-C130, 6BT5.9-C135, 6BT5.9-C145, 6BT5.9-C150, 6BTA5.9-C125, 6BTA5.9-C130, 6BTA5.9-C150, 6BTA5.9-C155, 6BTA5.9-C170, 6BTA5.9-C175, 6BTA5.9-C180, 6BTAA5.9-C130, 6BTAA5.9-C150, 6BTAA5.9-C160, 6BTAA5.9-C180, 6BTAA5.9-C190, 6BTAA5.9-C195, 6BTAA5.9-C205.
Frequently Asked Questions regarding the 6BT5.9-C120
What is Cummins 6BT5.9-C120 used for?
It is primarily used as a prime power source for construction machinery, agricultural equipment diesel engine Cummins 6BT5.9 builds, industrial fluid pumps, and small commercial generator sets.
How do I verify if the engine is a genuine DCEC Cummins unit?
Every genuine engine features a metal data plate stamped by Dongfeng Cummins Engine Co., Ltd. This plate includes a unique 8-digit Engine Serial Number (ESN). HekoPower provides this ESN prior to dispatch so you can verify the factory build history through the official Cummins network.
What is the wholesale price of a Cummins 6BT5.9-C120 from China?
Pricing varies depending on the specific auxiliary components required, such as radiators, clutches, or customized flywheels. Contact the HekoPower sales team directly to receive an itemized Cummins 6BT5.9 engine wholesale price China supplier quote based on your fleet order volume.
What warranty coverage is included with the engine?
Every engine is backed by a standard 12-month international warranty covering structural components, including the cylinder block, crankshaft, and camshaft. We also offer extended parts support packages for remote mining and construction operations.
Can I buy a Cummins 6BT5.9-C120 complete engine with accessories?
Yes. HekoPower offers the complete Cummins 6BT5.9-C120 engine assembly equipped with starter motor, alternator, turbocharger, fuel system, and optional radiator skid packages for direct drop-in replacement.
How do I check if the 6BT5.9-C120 will fit my Liugong wheel loader or excavator?
Check the engine dataplate on your current broken unit for the model code (6BT5.9-C120), compare the SAE flywheel housing size, and confirm whether your electrical system runs on 12V or 24V.
