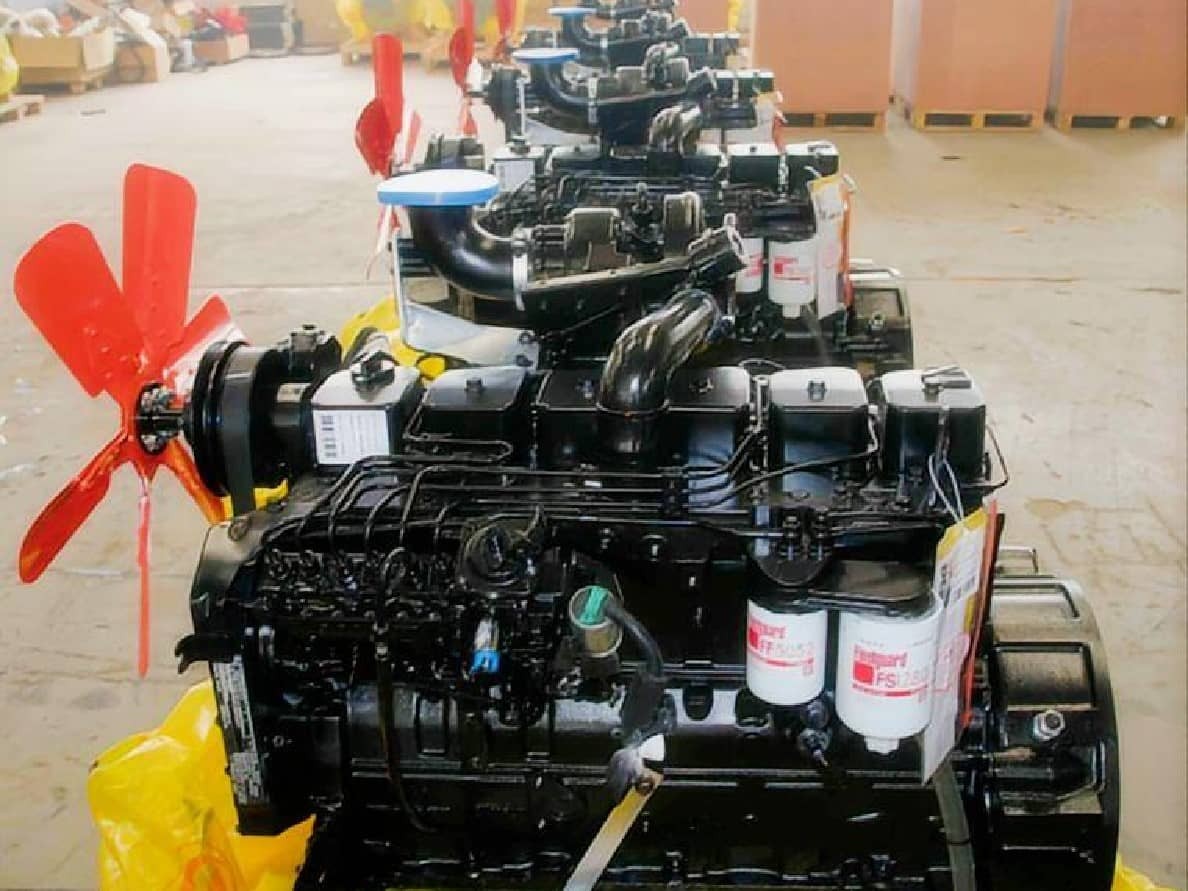

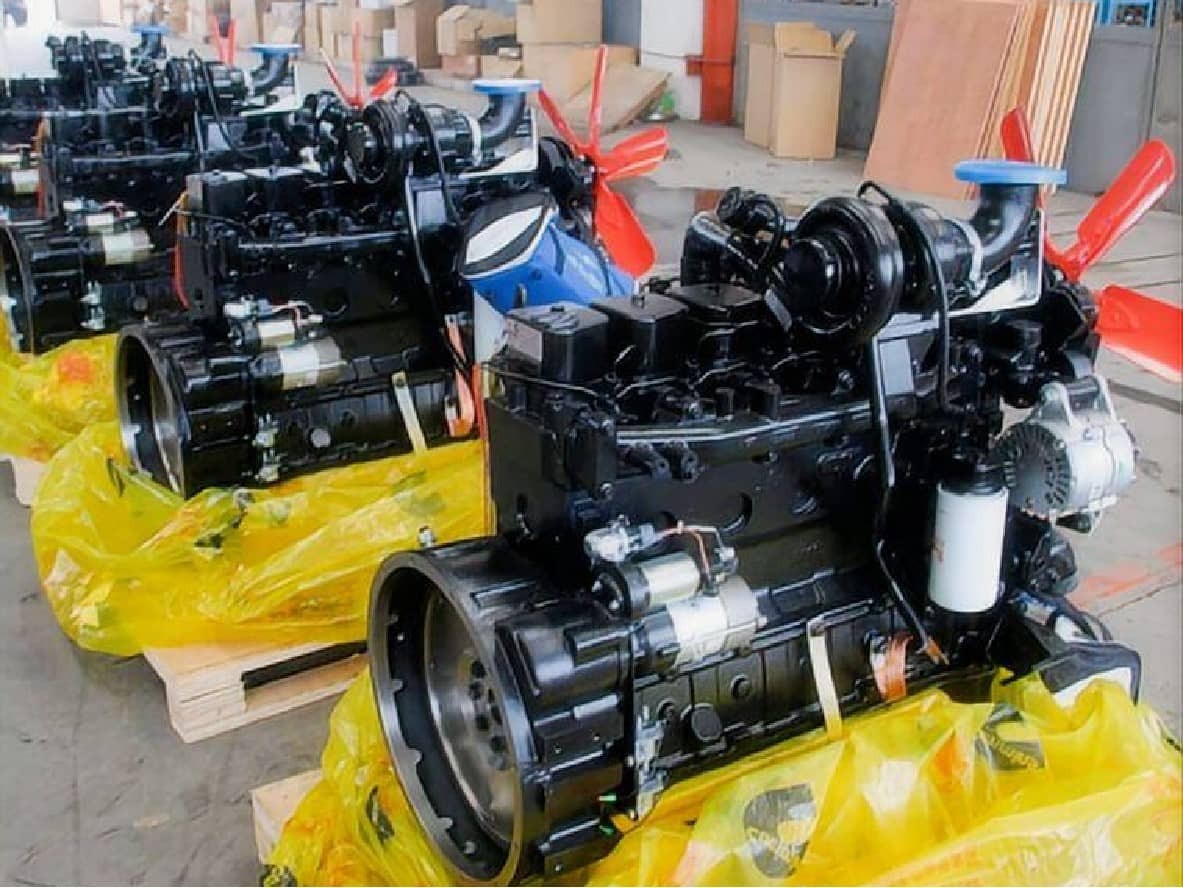

Original DCEC Cummins 6BT5.9-C115 Industrial Engine Assembly
The Cummins 6BT5.9-C115 is a highly reliable 6-cylinder, 5.9-liter turbocharged diesel engine manufactured by Dongfeng Cummins Engine Co., Ltd. (DCEC). Calibrated to deliver 85 kW (115 HP) at a conservative 2000 RPM, this mechanical engine is built specifically to handle the continuous operating demands of heavy construction machinery and industrial fluid pumping systems.
As a direct engine supplier and global exporter, HekoPower provides factory-new, genuine DCEC Cummins 6BT5.9-C115 complete engine assemblies. We supply equipment operators, fleet maintenance managers, and heavy machinery repair centers with original replacement motors designed to eliminate equipment downtime.
Tech Specs of Cummins 6BT5.9-C115
General Engine Data
Engine Model: Cummins 6BT5.9-C115
Type: 6 Cylinders in Line
Displacement: 5.9 L
Bore * Stroke: 102 * 120
Overall Dimension: 867mm*544mm*988mm
Net Weight (with flywheel & alternator): 432 Kg
Key Performance Data
Rated Power: 85 kW/115HP
Rated Speed: 2000 rpm
Max Torque/Speed: 436 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 225 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro I
Aspiration: Turbocharged-Intercooled
Fuel System: Wuxi Weifu A Pump/ RSV Govenor
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.9 L
Real-World Application Scenarios for the 6BT5.9-C115
Identifying the exact working environment for the Cummins 6BT5.9-C115 engine ensures you are sourcing the correct repower unit for your machinery. This specific 115HP configuration thrives in two primary sectors.
Construction Machinery Repowers
This specific engine model is the preferred power plant for medium-duty earthmoving equipment. It is frequently installed as an excavator replacement engine for machines in the 10-ton to 15-ton weight class, as well as medium wheel loaders and vibratory road rollers. The 2000 RPM speed rating is highly deliberate. It allows the engine to drive heavy hydraulic pumps continuously without inducing the severe thermal stress associated with higher-revving engines during intense digging cycles.
Industrial Water and Agricultural Pump Drives
In stationary setups, the 6BT5.9-C115 acts as an exceptional water pump drive engine. It routinely powers municipal dewatering setups, high-volume agricultural irrigation pumps, and industrial fire pump systems. Because it relies on a purely mechanical injection pump, the engine maintains steady RPMs under varying fluid resistance without requiring stable electrical grid power.
Technical Comparisons: Selecting the Right B-Series Model
Selecting a replacement engine requires understanding the exact mechanical differences between models. The B-series platform is vast, and buying the wrong configuration will negatively impact your machinery's performance.
Difference Between Cummins 6BT5.9-C115 and C120
While both engines utilize the exact same 5.9L cylinder block, 102 mm bore, and 120 mm stroke, their fuel injection calibration and rated operating speeds are entirely different. The C115 model generates 85kW at 2000 RPM, producing a peak torque of 430 N.m at a low 1500 RPM. Conversely, the C120 variant achieves its 88kW output at a much higher 2200 RPM. If your machinery requires sustained lugging power and low-end torque for heavy hydraulic loads, the 2000 RPM C115 model provides superior fuel economy and significantly lower piston ring wear over long operating hours.
Mechanical Fuel Injection vs. Electronic Common Rail Systems
The 6BT5.9-C115 utilizes traditional mechanical fuel injection. It does not use the electronically controlled common-rail systems found in the newer Cummins ISDe or ISBe engines. This mechanical simplicity is its greatest asset. There are no electronic control modules (ECMs), sensitive wiring harnesses, or complex engine sensors to fail. This allows the 6BT5.9-C115 to easily tolerate low-quality diesel fuel, extreme ambient temperatures, and heavy dust. Furthermore, field mechanics can troubleshoot and repair the fuel system using standard hand tools.
How to Verify a Genuine Cummins 6BT5.9-C115 Before Purchase
The immense popularity of the 5.9L Cummins platform has resulted in a flooded market of unauthorized rebuilds and counterfeit units. Fleet managers must know how to identify genuine DCEC Cummins engine identification markers.
Examining the Engine Data Plate and CPL Number
Every original DCEC engine leaves the factory with a stamped metallic data plate riveted securely to the front gear housing. You must verify the Engine Serial Number (ESN) against official DCEC build records. Additionally, check the Control Parts List number. The standard 6BT5.9-C115 CPL number is typically FR91470, which directly correlates to the engine configuration verification code D402056CX02. If these numbers are missing or look hastily engraved, reject the engine.
Identifying the Genuine Weifu Fuel Pump and RSV Governor
Authentic DCEC 6BT5.9-C115 engines are equipped with a mechanical fuel injection pump manufactured by Wuxi Weifu, seamlessly integrated with an RSV variable-speed mechanical governor. You must inspect the identification stamp on the fuel pump body. Substandard counterfeit engines frequently utilize cheap, unbranded fuel pumps that lead to erratic governor response, excessive black smoke, and engine stalling under sudden loads.
Genuine vs Rebuilt 6BT5.9-C115 Engines
Differentiating a factory-new engine from a rebuilt unit requires visual inspection. A new complete replacement engine arrives with uniform, unbroken factory paint sealing all assembly bolts. The cylinder block casting marks will be sharp and clean. Rebuilt engines typically expose their history through painted-over bolt threads, visible machining marks on the crankshaft journals, aggressively sandblasted cylinder blocks, and mixed-brand accessory components.
Engine Replacement and Maintenance Engineering Tips
Executing a clean and precise installation guarantees the long-term reliability of your new Cummins 115HP diesel motor.
Replacement Engine Mounting Dimensions and Compatibility
The standard physical dimensions of the 6BT5.9-C115 industrial engine assembly are approximately 1100 mm long, 750 mm wide, and 988 mm high. The dry engine weight sits at roughly 432 kg. Before attempting an installation, mechanics must measure the replacement engine flywheel housing. Most industrial applications utilize an SAE #2 or SAE #3 housing. Matching the flywheel ring gear tooth count to your existing hydraulic pump drive or transmission is mandatory to prevent catastrophic coupling failure.
6BT5.9-C115 Engine Replacement Checklist
Prior to starting your newly installed engine, follow these mandatory pre-commissioning steps:
- Drain the machinery fuel tank entirely and replace all fuel lines to prevent old rust from destroying the new Weifu mechanical injection pump.
- Pre-lube the internal bearings by filling the new spin-on oil filter with 15W-40 heavy-duty diesel oil before threading it onto the block.
- Flush the equipment's radiator core thoroughly and fill the 6BT5.9-C115 cooling system with a 50/50 mix of ethylene glycol and distilled water.
- Inspect the 24V starter and alternator wiring to guarantee solid frame grounds and prevent voltage drops.
Common Misconceptions Regarding the 6BT5.9-C115
Operators frequently make assumptions about this engine that lead to premature mechanical failure. Avoiding these pitfalls will drastically extend your engine's service life.
Over-Revving the RSV Governor for More Power
The most common operator mistake is manually adjusting the RSV mechanical governor to force the engine past its 2000 RPM factory limit in an attempt to generate higher horsepower. Over-speeding the 6BT5.9-C115 aggressively alters the mechanical fuel injection timing. This leads directly to dangerous valve float, elevated exhaust gas temperatures that warp the turbocharger, and rapid main bearing destruction. You should never alter factory governor limits.
Assuming Universal Drop-In Compatibility
Many buyers mistakenly assume a mechanical 6BT5.9-C115 will drop directly into a machine frame originally designed for an electronic ISDe engine. While the core cylinder block footprints look highly similar, the front gear covers, oil pan sump profiles, and engine mount bracket bolt locations are entirely different between mechanical and electronic B-series families. Frame modifications are always required when swapping between electronic and mechanical engine generations.
Exploring the Complete Cummins B5.9 Engine Series
The Cummins B5.9 platform is incredibly versatile, powering a massive spectrum of global industrial, construction, and agricultural equipment. Depending on your machinery's specific hydraulic system demands and horsepower requirements, DCEC manufactures multiple power configurations within this exact same engine family.
If your repower project requires a higher horsepower output, a different torque curve, or an alternative governor calibration than what the C115 offers, we encourage you to review the other distinct models within this series.
Cummins B5.9-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6BT5.9-C115, 6BT5.9-C120, 6BT5.9-C125, 6BT5.9-C130, 6BT5.9-C135, 6BT5.9-C145, 6BT5.9-C150, 6BTA5.9-C125, 6BTA5.9-C130, 6BTA5.9-C150, 6BTA5.9-C155, 6BTA5.9-C170, 6BTA5.9-C175, 6BTA5.9-C180, 6BTAA5.9-C130, 6BTAA5.9-C150, 6BTAA5.9-C160, 6BTAA5.9-C180, 6BTAA5.9-C190, 6BTAA5.9-C195, 6BTAA5.9-C205.
Frequently Asked Questions (FAQs) for Global Buyers
What is the standard Cummins 6BT5.9-C115 fuel consumption rate?
At its full rated output of 85 kW at 2000 RPM, this engine maintains a specific fuel consumption rate of approximately 225 g/kW.h. Under standard fluctuating industrial workloads, operators can expect to burn roughly 20 to 22 liters of diesel fuel per operating hour.
Is this engine a genuine DCEC Cummins product?
Yes. HekoPower is a recognized DCEC Cummins 6BT5.9-C115 exporter from China. Every engine assembly features a verified stainless steel DCEC data plate, unique serial numbers, and a factory anti-counterfeiting tracking stamp.
Is this engine compatible as a replacement for older construction equipment?
Yes. As long as your existing excavator or wheel loader utilizes a purely mechanical fuel system and features matching flywheel housing dimensions, the 6BT5.9-C115 will serve as a direct structural replacement for legacy 6BT5.9 engines.
Can the 6BT5.9-C115 replace other Cummins 6BT engines?
Yes, in many cases it can replace lower or similar power variants if mounting and drivetrain alignment are compatible.
What makes the mechanical injection system different?
It does not rely on electronic ECU control, making it easier to maintain and more resistant to electrical failure.
Can this engine be used in excavator repowering projects?
Yes, it is commonly used in excavator rebuild and repower applications due to its standard 6BT architecture.
