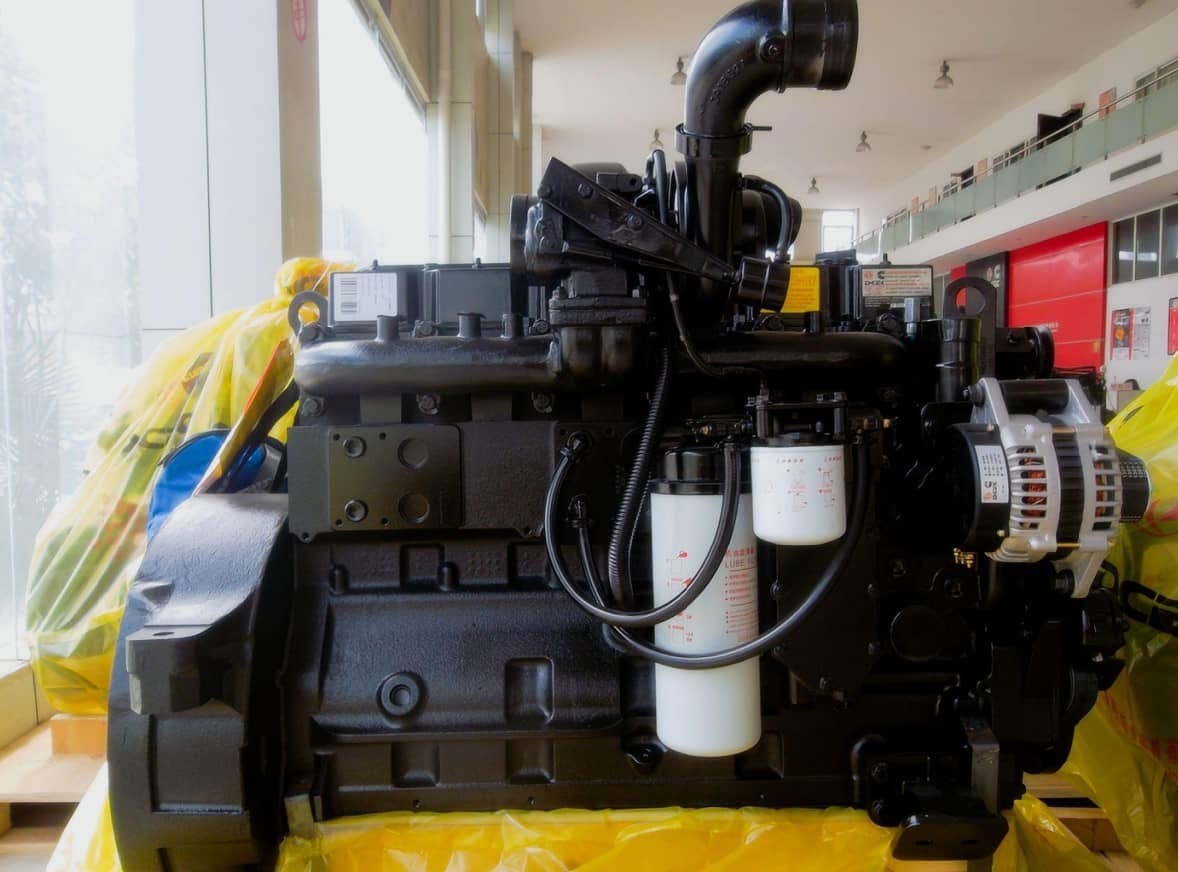

Overview of the DCEC Cummins C240-20 Diesel Engine
The Cummins C240-20 engine stands as a foundational power plant for medium to heavy-duty commercial transport. Built by Dongfeng Cummins (DCEC), this 8.3L, 6-cylinder engine delivers a highly specific balance of power and efficiency tailored for regional hauling and high-capacity passenger transport.
Unlike higher-output engines in the C-Series, the C240-20 is calibrated specifically for longevity under consistent, moderate loads rather than peak transient power. Producing 176kW (240HP) at 2400 RPM and a peak torque of 880 Nm, it provides the steady low-end grunt required for commercial vehicles operating in varied terrain without suffering the higher thermal stress of its heavier-duty counterparts.
If you are replacing a tired power pack in a commercial fleet, the genuine Cummins C240-20 engine offers a direct-fit solution that minimizes downtime and eliminates the compatibility headaches associated with aftermarket rebuilds.
Tech Specs of Cummins C240-20
General Engine Data
Engine Model: Cummins C240-20
Type: 6 Cylinders in Line
Displacement: 8.3 L
Bore * Stroke: 114 * 135
Net Weight (with flywheel & alternator): 604 Kg
Overall Dimension: 1180mm*920mm*1280
Key Performance Data
Rated Power: 176 kW/240HP
Rated Speed: 2400 rpm
Max Torque/Speed: 880 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 247 g/Kw.h
Max. No-load Governed Speed: 2720 rpm
Idle-Speed: 800 rpm
Max Continuous Running Altitude: 3000 m
More Technical Data
Certification: Euro I
Aspiration: Turbocharged & Intercooled
Fuel System: BYC PB Pump/R801 Governor
Compression Radio: 18:1
Electrical System (Starter Motor/Alternator): 12V (500A)/24V (250A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 12.3 L
Technical Highlights of the 8.3L Cummins C240 Engine
Inline 6 Cylinder Structural Advantage
The inline 6 cylinder Cummins diesel engine layout ensures smooth operation, reduced vibration, and easier maintenance, which is essential for long-term industrial use.
Turbocharged Intercooled System
The turbocharged intercooled Cummins engine improves combustion efficiency and enhances power delivery under load conditions.
High Torque Performance
The engine delivers approximately 880N·m torque at 1500rpm, ensuring strong pulling capability for heavy-duty applications such as construction and freight transport.
High Altitude Capability
The 3000m altitude compatible C240-20 Cummins engine performs reliably in challenging environments such as mining and plateau regions.
Direct Technical Comparison: C240-20 vs. C260-20
A common challenge for fleet managers is deciding whether to replace a failed C240-20 with an identical unit or upgrade to the C260-20. While they share the same 8.3L displacement and 114x135 mm bore and stroke, their operational profiles are distinctly different.
The primary difference lies in the fuel delivery calibration and the turbocharger mapping. The DCEC Cummins C240-20 is optimized for maximum fuel efficiency during sustained highway cruising. It utilizes a specific BYC PB fuel pump configuration that limits maximum fuel flow to preserve thermal efficiency and extend the life of the cylinder liners.
In contrast, the C260-20 pushes higher boost pressures and delivers more fuel to achieve its 260HP rating. This makes the C260-20 better suited for vehicles operating primarily in mountainous regions or hauling maximum permissible weight limits. However, that extra power comes at a cost. The C240-20 consistently demonstrates a flatter, more economical fuel consumption curve under normal operating conditions. Upgrading to a C260-20 when the vehicle chassis and typical payload only require 240HP often results in unnecessary fuel expenditures and increased wear on the drivetrain components. Sticking with the original Cummins C240-20 engine assembly ensures your vehicle operates exactly as the OEM intended.
Real-World Application Scenarios for the C240-20
The true value of the Cummins 240HP vehicle diesel engine is best understood by looking at where it works every day. This engine is rarely found in extreme heavy-haul applications. Instead, it is the workhorse of the regional logistics sector.
You will frequently find the Dongfeng Cummins C240-20 powering box trucks engaged in intercity freight delivery. In these scenarios, the engine’s ability to maintain highway speeds efficiently while still offering enough torque to navigate urban loading zones is critical. The 880 Nm of torque provides enough low-speed pulling power to move fully loaded rigid trucks away from traffic lights without excessive clutch slipping.
Another major application is in intercity commercial buses. Passenger transport demands smooth power delivery to ensure ride comfort. The 6-cylinder inline configuration of the Cummins C240-20 8.3L engine inherently balances secondary vibrations better than smaller 4-cylinder options. This translates to less cabin noise and vibration, making it a preferred choice for coachbuilders who prioritize passenger experience on routes lasting several hours.
Maintenance and Replacement Tips for Fleet Operators
Maximizing the lifespan of your Cummins C240-20 replacement engine requires strict adherence to maintenance schedules, particularly concerning the fuel and air handling systems.
The BYC PB fuel pump is exceptionally durable, but it is highly sensitive to water contamination. In regions where fuel quality fluctuates, installing a high-capacity primary fuel/water separator is a non-negotiable upgrade. Failing to drain this separator regularly is the leading cause of premature injector failure on the C240-20.
When planning an overhaul, always source genuine Cummins C240-20 spare parts. The market is flooded with visually identical aftermarket components, particularly cylinder liners and piston rings. However, these often lack the specific metallurgical properties required to withstand the 2400 RPM operating speeds of this engine. Using genuine C240-20 engine overhaul parts ensures that the piston cooling nozzles and oil flow rates remain within factory specifications, preventing localized overheating.
Common Misconception: The "Universal" Turbocharger
There is a persistent myth that all 8.3L C-Series engines use the exact same turbocharger. This is false and often leads to expensive mistakes during repairs. The turbocharger fitted to the Cummins C240-20 is mapped precisely for its 176kW output. Bolting on a turbocharger salvaged from a higher-horsepower variant will not automatically increase the power of your C240-20. Instead, it typically introduces excessive turbo lag, ruins the low-end torque characteristics, and dramatically worsens fuel economy, as the engine cannot generate enough exhaust volume to spool the larger turbine efficiently.
Exploring the Dongfeng Cummins C-Series Lineup
Understanding where the C240-20 fits within the broader Cummins family helps in making informed purchasing decisions. While the C240-20 is an excellent choice for medium-duty applications, different operational needs may require exploring other options within the same architectural family.
DCEC C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes C220-20, C230-20, C230-33, C240-20, C245-20, C245-33, C260-20, C260-33, C280-20, C280-33, C300-20, C300-33, C325-20.
Frequently Asked Questions (FAQ)
What is the standard lead time for an OEM Cummins C240-20 176kW engine?
As an established engine exporter, HekoPower typically maintains a lead time of around 10 business days for a complete Cummins C240-20 engine assembly. This allows for final inspection, secure crating, and export documentation preparation.
Can the DCEC C240-20 truck engine be used to replace an older 6CT8.3?
Yes, the C240-20 is part of the same engine family as the mechanical 6CT8.3. It serves as an excellent replacement engine, offering updated components while maintaining the same physical footprint and mounting points, minimizing custom fabrication during installation.

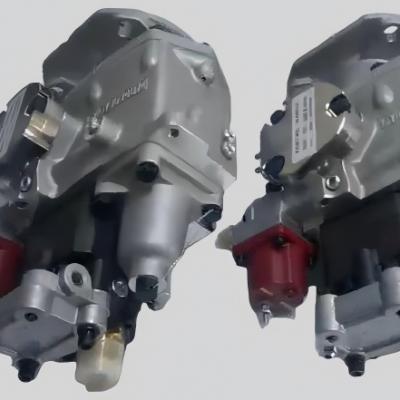

Is the C240-20 fuel pump available separately from the engine assembly?
Yes. While we supply the Cummins C240-20 complete engine, HekoPower is also a C240-20 engine parts supplier. We provide wholesale pricing on the specific BYC PB fuel pump calibrated for this 240HP engine, as well as complete overhaul kits.
What causes the C240-20 to lose power on inclines?
If a Cummins C240-20 commercial vehicle engine feels sluggish under load, the first components to check are the fuel filters and the charge air cooler (CAC) piping. A restricted fuel flow or a boost leak in the CAC system will immediately limit the engine's ability to reach its peak 880 Nm of torque.
