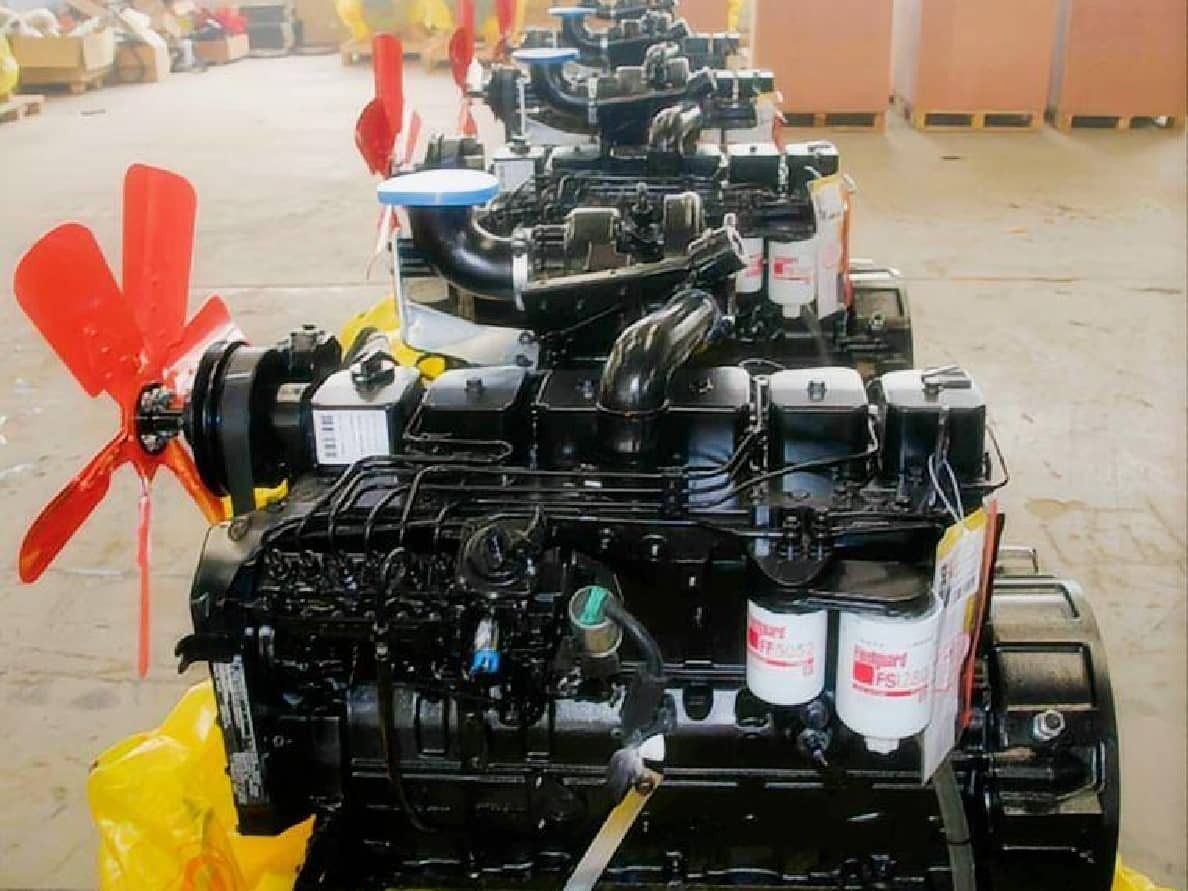

HekoPower Cummins 6BTAA5.9-C150 Industrial Diesel Engine
The Cummins 6BTAA5.9-C150 is a 5.9L turbocharged diesel engine engineered specifically for heavy-duty industrial and construction machinery. As a dedicated industrial engine supplier, HekoPower provides this complete engine assembly configuration directly from the Dongfeng Cummins (DCEC) manufacturing facility. Delivering a rated power output of 110 kW (150 HP) at 2200 RPM, this mechanical Cummins 6BTAA5.9 engine is built to operate reliably under high-stress, continuous-duty cycles in harsh environments.
Tech Specs of Cummins 6BTAA5.9-C150
General Engine Data
Engine Model: Cummins 6BTAA5.9-C150
Type: 6 Cylinders in Line
Displacement: 5.9 L
Bore * Stroke: 102 * 120
Overall Dimension: 1100mm*750mm*988mm
Net Weight (with flywheel & alternator): 443 Kg
Key Performance Data
Rated Power: 110 kW/150HP
Rated Speed: 1950 rpm
Max Torque/Speed: 718 N.m @ 1200 rpm
Fuel Consumption @ Rated Power: 217 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro I
Aspiration: Turbocharged-Intercooled
Fuel System: Wuxi Weifu A Pump/RSV Govenor
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 10.4 L
Mechanical Injection Architecture with Wuxi Weifu Pump
Unlike modern electronic engines with fragile common-rail sensors, this mechanical injection engine utilizes a highly resilient fuel delivery system. This specific original 6BTAA5.9-C150 engine with Wuxi Weifu pump operates via a mechanical RSV governor.
The mechanical pump system tolerates variable fuel qualities far better than electronic systems. This makes it an ideal power unit for remote mining sites and rugged construction zones where low-sulfur diesel is unavailable. The inline plunger design simplifies timing adjustments and field servicing without requiring expensive diagnostic software.
Turbocharged Aftercooled Aspiration Benefits
The engine achieves its high power density through a holistic turbocharged aftercooled (jacket water aftercooling) aspiration layout. By cooling the compressed intake air before it enters the combustion chamber, the air density is significantly increased.
This results in a complete fuel burn cycle, producing an excellent torque backup profile while maintaining strict compliance with the 6BTAA5.9-C150 Euro II emission standard certificate requirements. The cast-iron cylinder block features deep-skirt reinforcement, extending component lifecycles under extreme thermal loading.
Technical Comparisons: 6BTA5.9 vs. 6BTAA5.9-C150
Understanding Aspiration and Air Treatment Differences
Equipment owners often struggle with the core difference between Cummins 6BTA5.9 and 6BTAA5.9-C150 units. The critical distinction lies within the letter "A" in the model designation.
The standard 6BTA5.9 uses a Turbocharged-Aftercooled system where compressed air is cooled by engine coolant inside the intake manifold. Conversely, the 6BTAA5.9 utilizes a Turbocharged-Air-to-Air Aftercooled setup. This external air-to-air cooling path drops intake air temperatures much lower, delivering a denser oxygen charge to the cylinders.
Horsepower Scaling and Internal Stress Tolerances
The basic 6BTA5.9 configuration usually caps industrial outputs between 120 HP and 135 HP. The advanced thermal management of the 6BTAA5.9-C150 complete engine assembly safely elevates output to a stable 150 HP.
To manage this structural output increase, the 6BTAA5.9 block features reinforced connecting rods, optimized piston crown profiles, and upgraded valve seat inserts. This makes it a significantly more durable mechanical diesel engine for mining equipment compared to its base counterpart.
Upgrading From a Base 6BTA to a 6BTAA Unit
When planning an equipment upgrade from a 6BTA to a 6BTAA5.9-C150 power unit, physical modifications are required. The air-to-air intercooler radiator must be physically mounted in front of the standard cooling jacket. This modification requires additional engine bay depth and altered intake piping paths, which our engineering team can help configure.
Construction Equipment Real Application Scenarios
6BTAA5.9-C150 Engine Replacement for Excavators
This 150HP Cummins engine assembly serves as a primary power source for mid-sized tracked excavators ranging from 20 to 24 tons. In excavator configurations, the engine is paired with tandem axial piston hydraulic pumps.
The engine's flat torque curve between 1400 and 1700 RPM matches the hydraulic pump demand curves perfectly. This balance eliminates engine RPM droop when pulling heavy trenches or lifting solid bedrock slabs.
Cummins 6BTAA5.9 Engine for Wheel Loader Applications
When deployed as a Cummins engine for wheel loader machines (such as 3-ton capacity utility loaders), the power unit handles completely different structural dynamics. Loaders demand fast power surges to drive into material stockpiles.
The integrated heavy-duty flywheel housing absorbs high torque reversals from the torque converter transmission. This protects the crankshaft from torsional stress during quick changes between forward and reverse gears.
Compatibility Across Major Equipment Brands
This versatile engine functions as an OEM Cummins construction machinery engine replacement across numerous global heavy equipment platforms, including:
- Excavators: Ideal replacement drop-in for LiuGong, XCMG, and older Komatsu or Hyundai crawler units.
- Wheel Loaders: Standard power specification for SDLG, Lonking, and various specialized material handlers.
- Road Machinery: Extensively used in heavy static rollers, rotary drilling rigs, and industrial air compressor stations.
Installation, Maintenance, and Replacement Guide
Checking Physical Power Pack with Radiator Dimensions
Before ordering a replacement unit, procurement teams must verify the Cummins 6BTAA5.9-C150 power pack with radiator dimensions. The standard footprint for a complete industrial power unit assembly measures roughly 1600mm in length, 1100mm in width, and 1450mm in height.
Ensure your equipment's structural frame rails align with the standard rear flywheel housing mountings and front engine support brackets. This step avoids costly frame alterations during installation.
Crucial Initial Break-In Protocols
Proper installation of an export-grade Cummins diesel engine supplier unit requires a structured 50-hour break-in process to seat the piston rings against the honed cylinder liners:
- Fill the crankcase with a high-quality break-in lubricating oil; avoid using advanced synthetic oils immediately.
- Do not idle the new engine for longer than 10 consecutive minutes during its initial startup cycle.
- Operate the machinery under varying loads, keeping total output below 80% capacity for the first 25 working hours.
- Perform a complete oil flush and replace both the oil filter and fuel filters at the 50-hour mark.
Essential Preventive Maintenance Interventions
To maintain a low fuel consumption Cummins diesel engine profile over thousands of operating hours, follow this strict service schedule:
- Every 250 Hours: Change the engine oil and replace the primary fuel filters to prevent sulfur erosion.
- Every 1000 Hours: Clean the air-to-air aftercooler core channels and adjust mechanical valve clearances (Intake: 0.25mm / Exhaust: 0.51mm).
- Operate the machinery under varying loads, keeping total output below 80% capacity for the first 25 working hours.
- Every 2000 Hours: Service the Wuxi Weifu injection nozzle tips and inspect the turbocharger compressor wheel for axial play.
HekoPower Global Supply and Logistics Operations
Rigorous Pre-Shipment Dynamometer Testing
As an established China DCEC Cummins engine manufacturer distributor, HekoPower subjects every single engine assembly to a mandatory 2-hour dynamometer test run before crating. We record real-time oil pressure, coolant temperature stability, turbocharger boost curves, and exhaust smoke opacity. This detailed test report is signed by our lead technician and packed alongside the engine's warranty documentation.
Export-Grade Industrial Packaging Standards
International transport presents corrosion risks from humidity and maritime salt air. Every genuine Cummins engine with warranty protection shipped by HekoPower is treated with external anti-rust spray, vacuum-sealed in heavy gauge vapor-barrier plastic sheeting, and bolted securely inside an ISPM-15 certified IPPC fumigated wooden crate. This secure packaging ensures your power unit arrives in immaculate condition, ready to be dropped into your equipment.
Cummins 6BTAA5.9 Spare Parts Support Matrix
We understand that equipment downtime creates severe financial losses. HekoPower maintains a comprehensive supply chain for original engine components alongside our complete engine assemblies. We stock cylinder heads, piston ring sets, water pumps, and genuine gaskets for immediate air-freight dispatch. This logistical network ensures long-term operational security for your equipment fleets worldwide.
Cummins B5.9-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6BT5.9-C115, 6BT5.9-C120, 6BT5.9-C125, 6BT5.9-C130, 6BT5.9-C135, 6BT5.9-C145, 6BT5.9-C150, 6BTA5.9-C125, 6BTA5.9-C130, 6BTA5.9-C150, 6BTA5.9-C155, 6BTA5.9-C170, 6BTA5.9-C175, 6BTA5.9-C180, 6BTAA5.9-C130, 6BTAA5.9-C150, 6BTAA5.9-C160, 6BTAA5.9-C180, 6BTAA5.9-C190, 6BTAA5.9-C195, 6BTAA5.9-C205.
Frequently Asked Questions
What exact components are included in HekoPower’s complete power unit assembly?
Our complete industrial power engine assembly arrives fully configured for rapid deployment. The assembly includes the cylinder block structure, complete fuel system with injection pump, turbocharger, exhaust manifold, alternator, starter motor, air-to-air piping connections, cooling fan, and a matched industrial radiator unit.
Can this mechanical engine replace an electronically controlled engine?
Yes, but it requires minor modifications. Replacing an electronic engine with this durable mechanical diesel engine eliminates complex ECU wiring harnesses. However, you will need to install a mechanical throttle linkage cable and configure a basic 24V fuel cutoff solenoid circuit to manage engine shutdown.
How does HekoPower guarantee the genuine origin of this DCEC engine?
Every engine assembly we sell features an un-tampered OEM data plate stamped by Dongfeng Cummins Engine Co., Ltd. This plate displays a unique, traceable 8-digit engine serial number (ESN). This serial number can be verified through any global Cummins service center to confirm authenticity and warranty coverage.
What are the precise shipping weights for logistical transport planning?
The dry weight of the bare engine assembly is approximately 411 kg (906 lbs). When configured as a complete industrial power pack with a radiator, cooling fan, and full structural base framing, the gross shipping weight inside our export wood crate increases to approximately 650 kg.
Is the 6BTAA5.9-C150 suitable for high-temperature environments?
Yes. The aftercooled intake system improves combustion stability and helps maintain reliable operation in demanding ambient temperatures.
Does HekoPower provide spare parts support?
HekoPower can assist customers with spare parts coordination and engine replacement support for compatible industrial applications.
What is the difference between 6BTA5.9 and 6BTAA5.9-C150?
The 6BTAA5.9-C150 includes an aftercooling system designed to improve combustion efficiency, thermal stability and heavy-load operating performance.
