Details

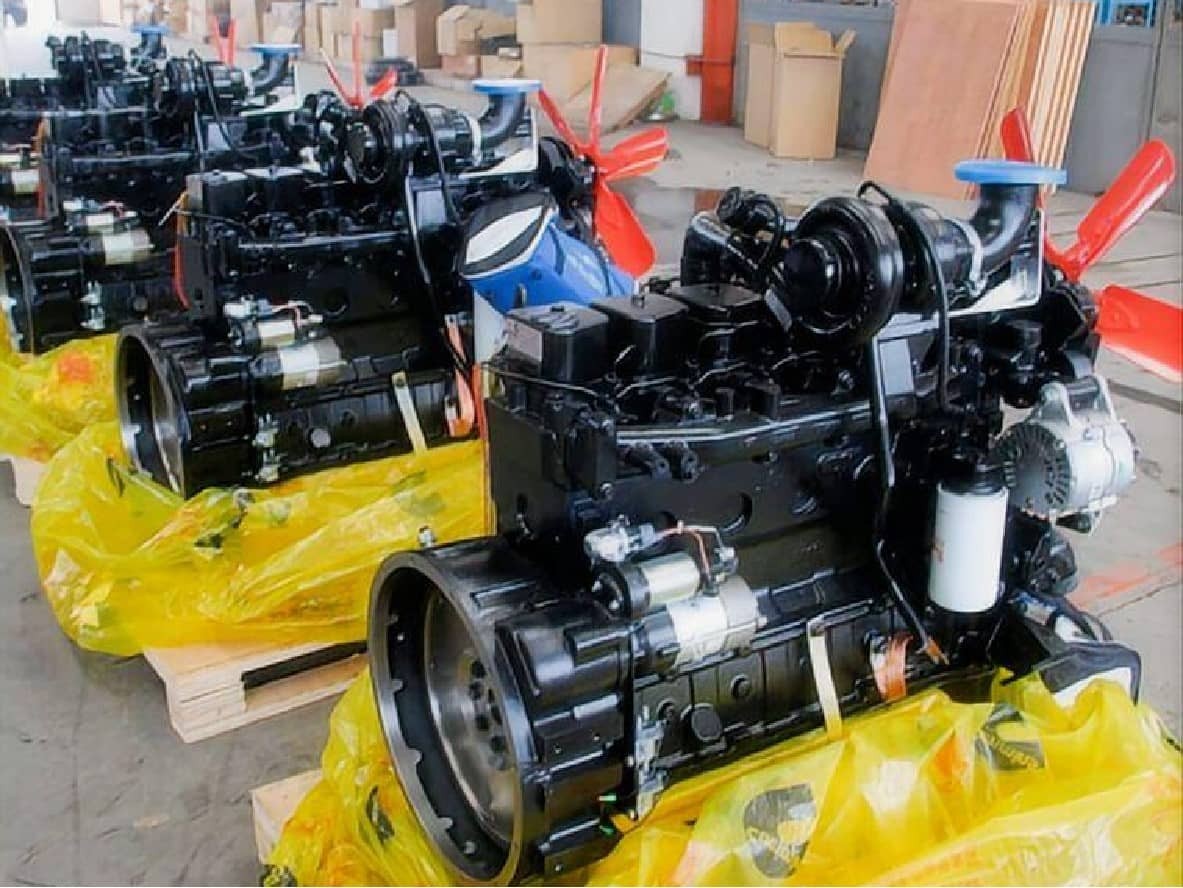

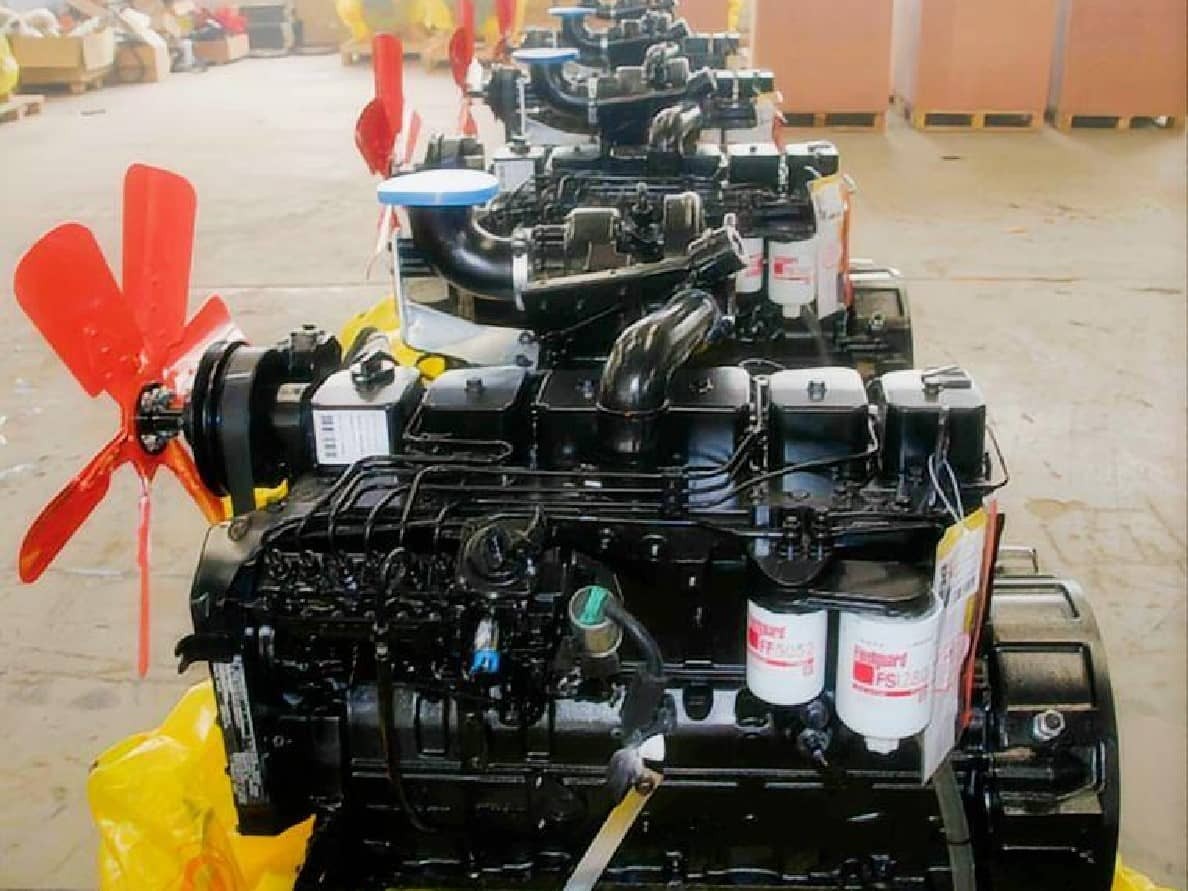

DCEC Cummins 6BTAA5.9-C190 Construction Engine Assembly
The DCEC Cummins 6BTAA5.9-C190 is a heavy-duty industrial diesel engine engineered for continuous high-load operations. Rated at 142kW (190HP) at 2200 RPM, this 5.9L six-cylinder diesel power plant provides exceptional reliability for off-highway machinery. HekoPower supplies the complete 6BTAA5.9-C190 engine assembly to global contractors, OEMs, and fleet operators looking for an unyielding power source that meets Euro II emission standards.
With a robust 102mm x 120mm bore and stroke, this block is built for mechanical endurance. It generates a peak torque of 800Nm at lower RPMs, providing the essential lugging power required by heavy hydraulic systems and industrial pump drives.
Tech Specs of Cummins 6BTAA5.9-C190
General Engine Data
Engine Model: Cummins 6BTAA5.9-C190
Type: 6 Cylinders in Line
Displacement: 5.9 L
Bore * Stroke: 102 * 120
Overall Dimension: 1100mm*750mm*988mm
Net Weight (with flywheel & alternator): 453 Kg
Key Performance Data
Rated Power: 142 kW/190HP
Rated Speed: 2200 rpm
Max Torque/Speed: 800 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 217 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged-Intercooled
Fuel System: Weifu P7100 Pump/ RSV Govenor
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 10.4 L
Advanced Mechanical Fuel Delivery
A major advantage of this specific model is the integration of the BYC P7100 fuel pump paired with an RSV mechanical governor. Unlike modern electronic engines that require complex diagnostic software, the P7100 is a fully mechanical, inline injection pump. This setup guarantees immediate throttle response and allows the engine to tolerate variations in fuel quality found in remote mining or construction sites. The RSV governor maintains stable RPMs automatically when the engine faces sudden hydraulic loads, making it highly preferred for equipment that demands steady power output under fluctuating stress.
Technical Comparison: 6BTAA5.9-C190 vs. Alternate B5.9 Ratings
When selecting a replacement power unit, buyers often weigh the 6BTAA5.9-C190 against similar models like the 6BT5.9-C150 or the higher-rated C205. The primary difference lies in the aspiration and thermal management. The standard 6BT utilizes simple turbocharging or water-to-air cooling. The 6BTAA5.9-C190 features an advanced turbocharged, air-air intercooled system. By cooling the compressed intake air directly with ambient air, it achieves a denser oxygen charge. This translates directly to better fuel economy and lower exhaust temperatures during continuous operation.
Compared to the C205 model, which pushes the 5.9-liter block past 200 horsepower, the 142kW C190 operates with a significantly lower thermal load. The C190 provides the perfect middle ground. It delivers enough horsepower to drive tandem hydraulic pumps on a 20-ton excavator, yet it operates at a safe internal pressure that prevents premature cylinder liner wear. For buyers focused on maximizing engine lifespan over pure peak power, the 6BTAA5.9-C190 remains the superior choice for long-term industrial deployments.
Real Application Scenarios
The 6BTAA5.9-C190 industrial diesel engine is engineered for versatility. Because it features a standard SAE flywheel housing, it integrates seamlessly into a massive variety of off-highway platforms.
In the construction sector, this engine assembly is the primary power source for mid-sized crawler excavators, wheel loaders, and rotary drilling rigs. The 800Nm torque curve allows loaders to break through compacted earth without stalling the hydraulics.
Beyond mobile machinery, the Cummins 6BTAA5.9-C190 pump drive engine configuration is heavily utilized in stationary industrial setups. It serves as a highly reliable driver for heavy-duty water pumps, agricultural irrigation systems, and municipal flood control pumps. Thanks to its mechanical simplicity, it is also frequently selected as a standalone hydraulic equipment engine to power remote rock crushers and industrial balers where electrical grids are unavailable.
Engine Replacement and Retrofit Tips
Swapping an aging engine requires careful planning to minimize equipment downtime. When sourcing a 6BTAA5.9-C190 replacement engine, verifying the physical footprint is critical. The standard engine dimensions and dry weight for this unit are approximately 1100mm in length and 443 kg. However, these figures represent the bare engine block. You must account for the added dimensions of the specific cooling package, alternator, and exhaust manifolds required for your specific chassis.
When executing a 6BTAA5.9-C190 engine interchange, always inspect your existing intake plumbing. A common pitfall during retrofits is attempting to swap an older water-jacket cooled 6BT with this air-air intercooled 6BTAA model without upgrading the radiator stack. The 6BTAA requires dedicated space in front of the radiator for the charge air cooler. Failing to accommodate this will lead to severe engine suffocation and overheating.
HekoPower ensures that every 6BTAA5.9-C190 complete engine assembly we supply matches your exact OEM footprint. Whether you need a direct drop-in replacement or a custom industrial power unit built on a skid, we configure the bell housing, oil pan sump location, and mounting brackets to align with your exact machinery requirements.
Maintenance and Upkeep Guidelines
Maximizing the lifecycle of the DCEC 6BTAA5.9-C190 requires strict adherence to its maintenance manual. The 5.9L Cummins 6BTAA5.9-C190 fuel consumption rate is highly efficient, averaging around 217g/kW.h at rated power, provided the mechanical fuel injectors remain clean.
Operators should replace the fuel-water separators every 250 hours. The P7100 mechanical pump is incredibly durable, but it relies entirely on the lubricity of the diesel fuel passing through it. Allowing water or heavy particulate to bypass the filters will score the pump plungers, leading to hard starting and a noticeable drop in power. Furthermore, because this engine utilizes an air-air intercooler, the intercooler fins must be blown out with compressed air regularly. Construction environments are prone to heavy dust, and clogged cooling fins will rapidly increase intake temperatures, causing the engine to burn excessive fuel.
Explore the Complete B-Series Portfolio
To ensure your fleet or OEM project gets the exact power curve needed, HekoPower supplies the complete DCEC B5.9 engine lineup. Whether you need a low-horsepower naturally aspirated model or a high-output intercooled powerhouse, we have the correct configuration.
Cummins B5.9-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6BT5.9-C115, 6BT5.9-C120, 6BT5.9-C125, 6BT5.9-C130, 6BT5.9-C135, 6BT5.9-C145, 6BT5.9-C150, 6BTA5.9-C125, 6BTA5.9-C130, 6BTA5.9-C150, 6BTA5.9-C155, 6BTA5.9-C170, 6BTA5.9-C175, 6BTA5.9-C180, 6BTAA5.9-C130, 6BTAA5.9-C150, 6BTAA5.9-C160, 6BTAA5.9-C180, 6BTAA5.9-C190, 6BTAA5.9-C195, 6BTAA5.9-C205.
Frequently Asked Questions
Is the 6BTAA5.9-C190 compatible with Euro II emission regulations?
Yes. The mechanical injection timing and air-air intercooling allow the 6BTAA5.9-C190 Euro II diesel engine to meet regional emissions standards without requiring a complex Diesel Particulate Filter (DPF) or DEF fluid injection.
Can I purchase replacement parts for this engine separately?
Absolutely. HekoPower is a comprehensive Cummins 6BTAA5.9-C190 replacement parts supplier. We stock genuine overhaul kits, replacement P7100 pumps, cylinder heads, water pumps, and OEM gasket kits.
What is the standard lead time and warranty for a complete assembly?
The exact 6BTAA5.9-C190 engine price and lead time depend on the specific configuration required (bare engine vs. complete power pack). Generally, standard configurations ship within 10 to 15 business days. All genuine DCEC engines supplied by HekoPower carry a standard 12-month or 1,500-hour operational warranty.
Can this engine replace an older 6BT5.9 model in my excavator?
Yes, it is an excellent upgrade for older machinery. The block footprint is identical, meaning the motor mounts will align perfectly. However, the air intake piping will require modification to accommodate the intercooler. Our engineering team provides detailed engine dimensions and weight schematics to help your technicians complete the retrofit smoothly.
