Weichai WP7C300-22.5E120 Marine Propulsion Engine: The Ultimate 300HP Diesel Solution for Commercial Vessels

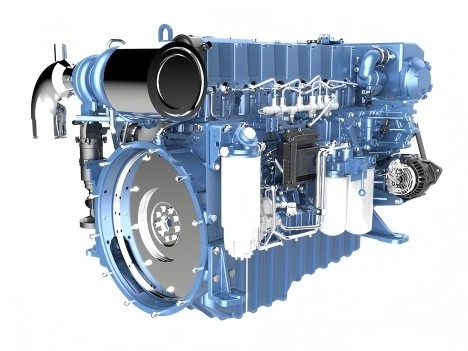

The Weichai WP7C300-22.5E120 marine engine is a powerful and efficient propulsion solution developed for commercial and professional marine applications. Delivering 300HP (220kW) of rated power, this engine belongs to the advanced Weichai WP7 marine engine platform and combines modern common rail fuel technology with proven reliability in demanding operating conditions.
As a professional marine engine supplier, HekoPower provides the Weichai WP7C300-22.5E120 marine engine to customers worldwide for fishing vessels, passenger boats, patrol boats, harbor service vessels, and small cargo ships. The engine is designed to achieve strong propulsion performance while maintaining excellent fuel economy and compliance with IMO Tier II emission requirements.
Tech Specs of Weichai WP7C300-22.5E120
General Engine Data
Engine Model: Weichai WP7C300-22.5E120
Cylinder Count: 6 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 7.47 L
Bore * Stroke: 108×136 (mm)
Dimensions L×W×H): 1398×865×980 (mm)
net weight: 850 kg
Key Performance Data
Rated Power: 220 kW / 300 HP
Rated Speed: 2250 RPM
Idle Speed: 700±50 RPM
Minimum fuel consumption rate: 192 g/kW·h
Oil consumption rate: ≤0.2 g/kW·h
Torque reserve: 20-35%
More Technical Data
Certification: IMO Tier II
Aspiration: turbocharged and aftercooled
Starting system: Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: HPCR
Power rating: P1
Noise: ≤97 dB(A)
Technical Comparisons: Why the WP7C300 Outperforms Competitors
When evaluating options on the Weichai WP7 series marine engine comparison checklist, choosing between model variants or alternative brands significantly alters your long-term operating costs.
Weichai WP7C300 vs. WP7C278
The primary difference between the 300HP model and the 278HP variant lies in the electronic control calibration and fueling profile. The WP7C300 utilizes an optimized mapping strategy within the Weichai WP7 common rail marine diesel engine ECM to extract an additional 22HP without increasing thermal fatigue. This extra headroom provides necessary power reserves when pushing through heavy headwinds or towing nets, while maintaining nearly identical baseline dimensions and weight.
Weichai WP7C300 vs. Cummins Marine Engines
In the 300HP commercial tier, the Weichai 300HP marine engine competes directly with popular options like the Cummins 6BTA or 6CTA series. While both are excellent platforms, the Weichai WP7 series relies on more modern common-rail electronic architecture compared to mechanical or older rotary-pump engines.
This results in a significantly quieter engine room and drastically reduced exhaust smoke during cold starts. Furthermore, from a financial perspective, the Weichai WP7C300-22.5E120 price offers a far more rapid return on investment, with replacement components costing up to 40% less than Western alternatives.
300HP Marine Engine Fuel Economy Comparison
Data pulled from the WP7C300-22.5E120 technical data sheet shows a specific fuel consumption rating of around 195 g/kWh at rated power. In a side-by-side 300HP marine engine fuel economy comparison, the Weichai WP7 platform consistently burns less fuel per hour at cruising speeds (1600–1800 RPM) than legacy mechanical engines, directly lowering daily voyage expenses for commercial operators.
Real Application Scenarios
The versatility of this high-speed marine diesel engine 220kW platform makes it ideal for several distinct vessel classes operating in coastal waters and inland waterways.
Commercial Fishing Vessels
A 300HP marine engine for fishing vessel applications must endure hours of low-speed idling while powering hydraulic winches, followed by high-load sprints back to port with a full hold. The flat Weichai WP7C300 torque specifications ensure that even at lower RPMs, the engine delivers steady traction power, making it perfect for regional trawlers and longliners.
Patrol and Passenger Boats
Speed stability and vibration management are essential for a Weichai engine for patrol vessels and a Weichai engine for passenger boats. The electronically controlled common rail system dampens traditional diesel chatter, ensuring a smoother ride for passengers and a quieter operating environment for law enforcement or pilot crews.
Workboats and Harbor Services
For heavy-duty pushing and towing, a Weichai engine for workboats or a Weichai engine for harbor service boats requires high structural rigidity. The WP7 series utilizes wet cylinder liners and an integrated cylinder head design that withstands continuous high-load operations in busy commercial ports.
Small Cargo and Coastal Vessels
As a marine propulsion engine for coastal boats and a marine diesel engine for small cargo vessels, this unit pairs excellently with mechanical or hydraulic marine gearboxes (such as Advance or Twin Disc brands) with ratios optimized for sustained displacement cruising.
Maintenance, Troubleshooting, and Spare Parts Support
Sustaining high vessel uptime requires adhering to strict maintenance schedules and sourcing verified components. HekoPower is not just an exporter of complete engines; we are a dedicated Weichai WP7C300 genuine spare parts supplier.
Routine Maintenance and Fluid Management
To safeguard the high-pressure common rail system, fuel filtration is your top priority. Marine diesel often suffers from water contamination. Ensure that primary water separators are drained daily and secondary fuel filters are replaced every 250 operating hours. Always monitor the oil pressure gauges against the metrics provided in your Weichai 22.5E120 specification sheet to catch oil pump degradation before it causes a critical failure.
Sourcing Genuine vs. Aftermarket Parts
Using non-genuine components on a common rail system introduces extreme risk. Precision parts like fuel injectors, high-pressure fuel pumps, and turbochargers must match exact factory tolerances. As a genuine Weichai marine engine exporter, HekoPower supplies certified components that guarantee your engine continues to meet IMO Tier II emission profiles and preserves factory structural integrity.
Procurement Guide: Buying from HekoPower
Navigating international supply chains for heavy machinery can be complex. HekoPower streamlines the acquisition process from quote to final port delivery.
Quotations and Pricing Structure
The Weichai marine engine wholesale price varies depending on your required configuration, such as heat exchanger cooling versus keel cooling, 12V or 24V electrical systems, and your choice of matching gearbox matching. When you request a Weichai WP7 engine quotation from us, our engineering team reviews your vessel design blueprints to ensure all accessories fit perfectly.
Lead Time and Shipping Logistics
We maintain a steady inventory of popular commercial configurations to shorten project timelines. The standard Weichai WP7C300 lead time for customized configurations typically ranges from 15 to 30 days. As an established China Weichai marine engine supplier, we coordinate secure marine freight packaging, export customs documentation, and delivery logistics to any major global port.
Weichai WP7 series marine diesel engine, original products from Weichai. This series mainly includes WP7C150-15E120, WP7C240-18E120, WP7C268-18E120, WP7C278-21E120, WP7C300-22.5E120.
Frequently Asked Questions
What is the exact power output of the Weichai WP7C300-22.5E120?
The engine produces exactly 300 horsepower, which translates to 220 kilowatts of continuous or intermittent commercial power at a rated speed of 2250 RPM.
Where can I download the Weichai WP7C300 marine engine PDF manual?
HekoPower provides complete technical documentation to verified clients. Contact our sales department directly to receive the official installation drawings, operation manuals, and comprehensive parts books for your specific engine serial number.
Can this engine replace an old mechanical Cummins or Perkins engine?
Yes. The Weichai WP7 marine propulsion engine is frequently used for repower projects. Because of its narrow inline-6 footprint, it typically fits into existing engine stringers with minor adjustments to the mounting brackets and shaft alignment.
Why should I choose HekoPower as my Weichai marine engine distributor?
HekoPower combines competitive factory-direct pricing with deep technical expertise. We do not just ship a box; we assist with engine-gearbox matching, supply genuine maintenance parts, and provide clear communication regarding shipping schedules and technical specifications.
If you are looking to buy Weichai WP7C300-22.5E120 units or require an accurate quote for an upcoming commercial build, contact HekoPower today to speak with a marine propulsion specialist.
