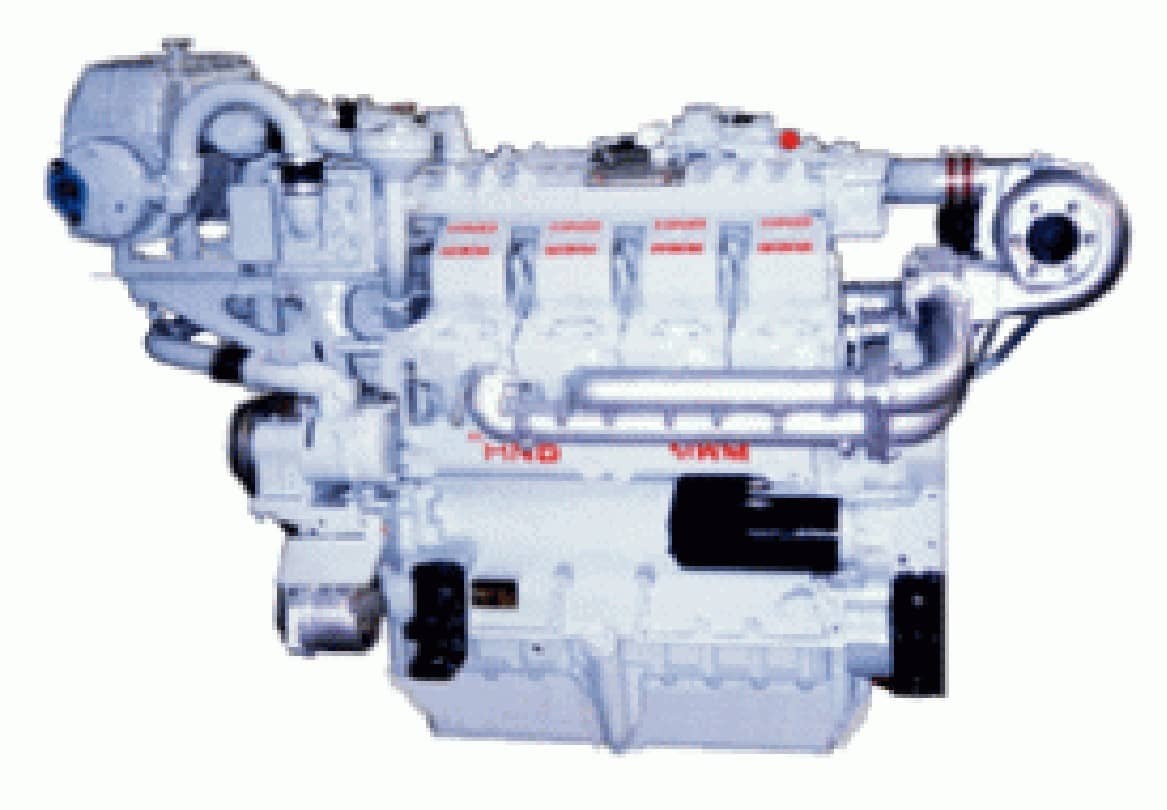

Deutz TBD234V8 325kW Marine Generator Engine: 1800 RPM Auxiliary Power
The Deutz TBD234V8 325kW marine generator engine is a heavy-duty, high-speed prime mover designed specifically for continuous shipboard electrical generation. Manufactured under official license by Henan Diesel Engine Plant (HND), this compact 14.4L diesel engine provides stable, reliable power for commercial maritime operations. Running at a precise rated speed of 1800 RPM, the unit delivers a continuous 325kW output, making it an ideal match for standard 60Hz marine electrical grids.
HekoPower supplies this turbocharged and intercooled Deutz TBD234 marine engine directly to shipyards, fleet managers, and marine engineers globally. Built around an exceptionally rigid 8 cylinder V engine block, it offers an excellent power-to-weight ratio for confined engine rooms. Every Deutz TBD234V8 marine generator with CCS/IMO approval meets strict international maritime classification standards for safety and Tier II emissions. Whether you are outfitting a new build or seeking a direct Deutz TBD234V8 replacement parts and complete engine package, this unit delivers consistent baseline power for critical onboard systems.
Tech Specs of Deutz TBD234V8 325kW
General Engine Data
Engine Model: Deutz TBD234V8-325KW
Type: 8 Cylinders, V Type, 4 Stroke
Displacement: 14.4 L
Bore * Stroke: 128 * 140
Wet Weight (with heat exchanger): 1500 Kg
Overall Dimension: 2032mm*1130mm*1587mm
Key Performance Data
Rated Power/Speed: 325 kW @ 1800 rpm
Standby Power/Speed: 358 kW @ 1800 rpm
Min. Speed at Full Load: 1000 rpm
Low Idle Speed: 650 rpm
Fuel Consumption: 210 g/kW.hr
More Technical Data
Certification: CCS/IMO Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: High Pressure Fuel Pump
Compression Ratio: 15:1
Starting Method: Electrical Start (24V), Air Start
Cooling Method: Water Cooled
Ignition Sequence: A1-B2-A3-B1, A4-B3-A2-B4
Technical Comparisons for the TBD234V8 Series
Selecting the correct TBD234V8 engine requires a deep understanding of marine load profiles and frequency requirements. The HND Deutz TBD234V8 genset platform encompasses several power calibrations, each engineered for specific operational demands.
Output Variations: TBD234V8 249KW vs 274KW vs 296KW vs 325KW
The core 14.4L displacement remains consistent across the V8 lineup, but the rotational speed and fuel mapping change the output. The 249kW and 274kW configurations are typically calibrated for 1500 RPM operation, making them the standard choice for vessels running on 50Hz electrical systems.
When comparing the TBD234V8 296KW vs 325KW, both engines are designed for 1800 RPM auxiliary marine engine applications to generate 60Hz power. The TBD234V8 325 kW 1800 rpm engine represents the highest prime power density in this specific block size. It achieves this through an optimized high pressure fuel pump calibration and enhanced charge-air cooling efficiency. Upgrading to the 325kW model allows vessel designers to maximize their electrical generation capacity without altering the engine footprint or engine room layout.
TBD234V8 325KW Marine Generator vs Construction Engine
Buyers sometimes confuse marine-spec engines with their industrial or construction counterparts. A TBD234V8 325KW marine generator vs construction engine comparison reveals fundamental differences in the cooling and governing systems. Construction equipment relies on ambient air radiators and variable-speed governors to handle fluctuating hydraulic loads.
In contrast, this 325KW Deutz marine auxiliary diesel engine utilizes a specialized marine cooling system. It features a high-capacity heat exchanger and raw water pump to manage temperatures using seawater, keeping the enclosed engine room safe. Furthermore, the marine variant is equipped with an isometric mechanical governor designed to lock the rotational speed at exactly 1800 RPM. This prevents voltage drops and frequency variations across the ship's switchboard when heavy equipment is suddenly turned on.
Real Application Scenarios for the 325kW Auxiliary Engine
The unique TBD234V8 325KW dimensions and weight make this water-cooled V8 marine diesel generator 325kw highly adaptable. It serves as a primary auxiliary power source across diverse commercial fleets.
Auxiliary Engine for Cargo Ships and Passenger Vessels
On ocean-going bulk carriers and container ships, the TBD234V8 325KW auxiliary engine for cargo ships handles the vessel's heavy hotel loads. It provides uninterrupted power for navigation electronics, crew quarters, cargo hold ventilation, and critical fuel oil separators during long transits. For passenger vessels, the engine's low vibration profile and quiet operation ensure onboard comfort while powering extensive lighting and HVAC systems.
Marine Engine for Fishing Vessels and Tug Boats
Deep-sea fishing trawlers experience sudden, massive electrical demands when blast freezers and heavy hydraulic deck winches are activated. The TBD234V8 325KW marine engine for fishing vessels excels here due to its robust transient response. The engine comfortably relies on its TBD234V8 325KW 358KW standby power reserve to absorb these momentary load spikes without stalling. Similarly, the TBD234V8 325KW diesel engine for tug boats fits perfectly into cramped hull spaces, providing reliable power for towing winches and fire-fighting pumps without obstructing technician access.
TBD234V8 325kW Engine Replacement Guide and Maintenance Tips
Maintaining high vessel uptime requires proper installation and rigorous preventive maintenance. HekoPower operates as a dedicated TBD234V8 325KW marine engine supplier, providing both complete drop-in replacements and individual genuine components.
Considerations for TBD234V8 Marine Engine Replacement
When planning a replacement for Deutz TBD234V8 325KW units, marine engineers must verify the existing bedplate mounts and flywheel coupling dimensions. Because the HND TBD234V8 marine engine is manufactured under official license, it serves as an exact dimensional match for aging Deutz or MWM systems. This drastically reduces shipyard labor and downtime. During installation, laser alignment of the generator shaft is mandatory to prevent premature crankshaft bearing wear. Buyers can also specify their preferred starting method, as the engine block accommodates both a standard TBD234V8 325KW 24V starting system and a pneumatic air start system for specialized offshore requirements.
Upkeeping the Water Cooled Diesel Engine
Consistent maintenance directly impacts the TBD234V8 325KW fuel consumption and longevity. The marine cooling system requires periodic descaling of the heat exchanger tube bundle to maintain efficient thermal transfer. Engineers must inspect and replace the sacrificial zinc anodes within the raw water circuit quarterly to prevent galvanic seawater corrosion. Additionally, the mechanical high-pressure fuel injection system should be protected by draining the primary fuel-water separators every 250 hours, ensuring only clean marine diesel reaches the injectors.
Common Misconceptions in TBD234V8 Marine Generator Sizing
Understanding how to choose TBD234V8 marine engine specifications correctly will prevent premature engine wear and electrical failures at sea.
One frequent error in TBD234V8 325KW marine generator sizing is confusing the prime power rating with the standby rating. The TBD234V8 325KW rated power 1800 rpm indicates continuous, unlimited annual operating hours under variable loads. The 358kW specification is strictly a standby power limit meant only for temporary emergency backup. Ship operators should never base their vessel's continuous base-load calculations on the 358kW figure.
Another misconception involves the governing system. While the standard TBD234V8 325KW mechanical governor is extremely reliable and easy to service in remote ports, it operates with a standard droop percentage. If a vessel utilizes highly sensitive surveying equipment or requires seamless parallel load-sharing across multiple generator sets, an electronic governor upgrade should be specified during the ordering process to achieve tighter frequency control.
Explore the Complete HND Deutz TBD234 Marine Generator Series
Finding the exact power generation match for your vessel's electrical grid is critical for fuel efficiency and operational safety. While the 325kW configuration offers peak power density for 60Hz applications, the broader TBD234 architecture accommodates a wide variety of displacement and output needs for both auxiliary generation and primary propulsion. To support distinct marine engineering requirements across different ship classes, HekoPower supplies the entire factory range.
Deutz TBD234-Marine Generator Series, Marine Generator Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TD234V6, TD234V8, TBD234V6-116KW, TBD234V6-132KW, TBD234V6-186KW, TBD234V6-205KW, TBD234V6-222KW, TBD234V6-244KW, TBD234V8-160KW, TBD234V8-186KW, TBD234V8-249KW, TBD234V8-274KW, TBD234V8-296KW, TBD234V8-325KW, TBD234V12-373KW, TBD234V12-444KW.
Frequently Asked Questions (FAQs)
What is the Wholesale HND Deutz marine generator lead time?
As a primary HND TBD234V8 325KW wholesale distributor, HekoPower typically fulfills standard complete engine orders within 15 to 30 business days. Expedited shipping is available for urgent TBD234V8 engine replacement supplier requests to minimize vessel downtime.
Are these engines certified for international waters?
Yes. Every Deutz TBD234V8 325KW marine generator engine can be supplied with complete CCS marine engine certification and IMO marine engine Tier II compliance documentation, ensuring unrestricted global operation.
How can I get the Deutz TBD234V8 325KW engine price and lead time?
Because shipping logistics and exact classification requirements vary by project, the Deutz TBD234V8 325KW price is provided via custom quotation. You can contact our engineering sales team directly with your vessel specifications for a comprehensive TBD234V8 325KW wholesale price estimate.
