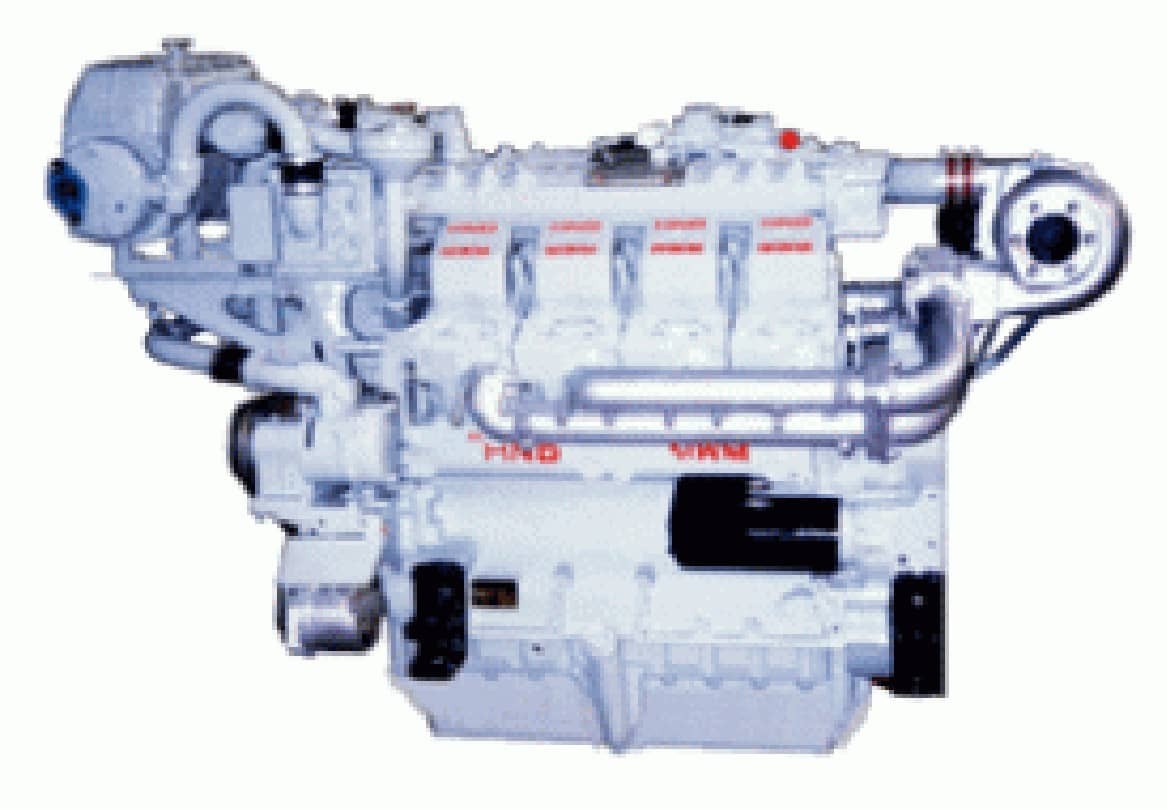

Deutz TBD234V8 274KW Generator Engine: Complete Engineering & Supply Guide
When facilities require uninterrupted backup or reliable prime power, the Deutz TBD234V8 274KW generator engine stands out as a robust engineering choice. Built on the proven HND Deutz TBD234 platform, this Deutz 8 cylinder diesel generator engine delivers 274kW of steady power at 1500 RPM.
As a trusted China Deutz TBD234V8 generator engine supplier, HekoPower provides original units paired with expert technical backing. Whether you are replacing a worn power plant or configuring a new Deutz industrial generator engine, understanding its operating parameters ensures maximum lifespan and efficiency.
Tech Specs of Deutz TBD234V8 274KW Generator Engine
General Engine Data
Engine Model: Deutz TBD234V8-274KW
Type: 8 Cylinders, V Type, 4 Stroke
Displacement: 14.4 L
Bore * Stroke: 128 * 140
Wet Weight (with heat exchanger): 1500 Kg
Overall Dimension: 2032mm*1130mm*1587mm
Key Performance Data
Rated Power/Speed: 274 kW @ 1500 rpm
Standby Power/Speed: 301 kW @ 1500 rpm
Min. Speed at Full Load: 1000 rpm
Low Idle Speed: 650 rpm
Fuel Consumption: 210 g/kW.hr
More Technical Data
Certification: CCS/IMO Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: High Pressure Fuel Pump
Compression Ratio: 15:1
Starting Method: Electrical Start (24V), Air Start
Cooling Method: Water Cooled
Ignition Sequence: A1-B2-A3-B1, A4-B3-A2-B4
Understanding the 274kW Standby vs. Prime Rating
When evaluating a TBD234V8 274KW standby power rating, operators must distinguish between emergency backup usage and continuous prime operation. Running a Deutz V8 generator engine at 100% load continuously without accounting for site derating factors—such as ambient temperature and altitude—can accelerate component wear. HekoPower assists buyers in sizing fuel tanks, cooling radiators, and alternators to match exact site demands.
Technical Comparison: TBD234V8 vs. Inline Series Engines
Choosing between a V-form engine like the TBD234V8 and an inline alternative involves several design trade-offs.
Footprint and Vibration Control
Inline 6-cylinder engines are often longer, whereas the V8 layout of the Deutz TBD234V8 274kW diesel generator engine offers a shorter overall block length. This makes it ideal for containerized generator sets where skid space is limited. However, V8 engines require precise balancing. The internal harmonic dampening on the Deutz TBD234 series minimizes torsional vibration, translating to smoother synchronization when running parallel generator sets.
Thermal Efficiency and Fuel Dynamics
The Deutz TBD234V8 274KW fuel consumption profile is optimized for mid-to-high load factors. Compared to older generation power units, the intercooled turbocharging system ensures cleaner air-fuel mixing. This design reduces particulate output under heavy loads, helping operators meet regional emission benchmarks without sacrificing block-load acceptance speed.
Real Application Scenarios
The Deutz 274kW diesel generator engine is engineered for environments where power failure is not an option. HekoPower regularly supplies this model for several key sectors:
Emergency Backup for Telecommunications & Data Centers
Data hubs require rapid block-load pickup. When utility power drops, the Deutz V8 engine for emergency power generation steps in, accepting significant load steps within seconds while maintaining frequency stability.
Marine Auxiliary Power Systems
Although frequently deployed on land-based skids, the adaptability of the Deutz TBD234V8 generator engine for marine auxiliary power makes it a favorite for shipboard electrical grids, driving auxiliary alternators smoothly under variable sea states.
emote Industrial Camps and Construction Sites
In off-grid mining and infrastructure projects, a 1500rpm Deutz generator engine for backup power provides continuous heavy-duty output, tolerating dusty environments and fluctuating ambient temperatures when paired with heavy-duty air filtration.
Maintenance, Overhaul, and Replacement Tips
Protecting your investment in a heavy-duty Deutz TBD234V8 generator drive engine requires disciplined preventive maintenance. Neglecting minor servicing can lead to costly overhauls.
Addressing Common Product Misconceptions
- Misconception: "All Deutz-branded parts are interchangeable across different series."
- Fact: The TBD234 series has specific clearance tolerances distinct from air-cooled Deutz series (like the 912 or 913 lines). Always source genuine components from an authorized HND TBD234V8 spare parts supplier to prevent premature bearing or piston ring failure.
Overhaul Guidelines
When planning a Deutz TBD234V8 engine overhaul replacement, inspect the turbocharger wastegate and intercooler core for oil fouling. Regular coolant flushes are mandatory; electrolytic corrosion in the cylinder block waterways is the primary cause of premature liner pitting in V-form heavy diesels.
Deutz TBD234-Marine Generator Series, Marine Generator Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TD234V6, TD234V8, TBD234V6-116KW, TBD234V6-132KW, TBD234V6-186KW, TBD234V6-205KW, TBD234V6-222KW, TBD234V6-244KW, TBD234V8-160KW, TBD234V8-186KW, TBD234V8-249KW, TBD234V8-274KW, TBD234V8-296KW, TBD234V8-325KW, TBD234V12-373KW, TBD234V12-444KW.
Frequently Asked Questions (FAQs)
What is the typical lead time when purchasing a Deutz TBD234V8 274KW generator engine from HekoPower?
Standard assembly, testing, and preparation for shipping typically range between 15 to 30 business days, depending on whether the unit requires custom skid mounting, specific control panels, or specialized marine-tier corrosion protection.
Can HekoPower supply a complete replacement engine for an older Deutz TBD234V8 generator setup?
Yes. As an established Deutz TBD234V8 274KW engine supplier, we can match factory mounting footprints, flywheel housings, and electrical wiring harnesses to ensure seamless drop-in replacement for legacy gensets.
How does HekoPower ensure the quality of a China-sourced Deutz TBD234V8 engine?
Every unit undergoes rigorous dynamometer testing prior to dispatch, verifying fuel rack calibration, oil pressure stability, exhaust temperatures, and output voltage regulation under simulated load conditions.
