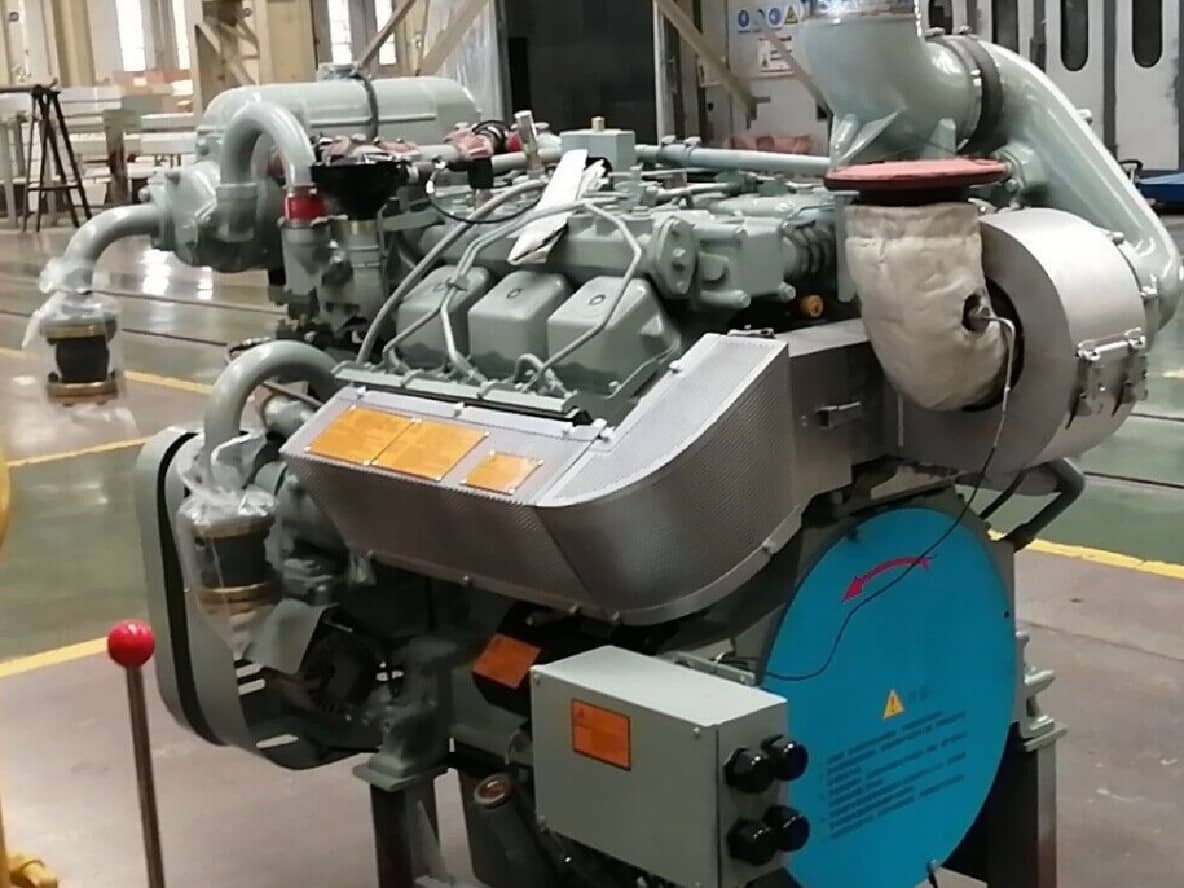

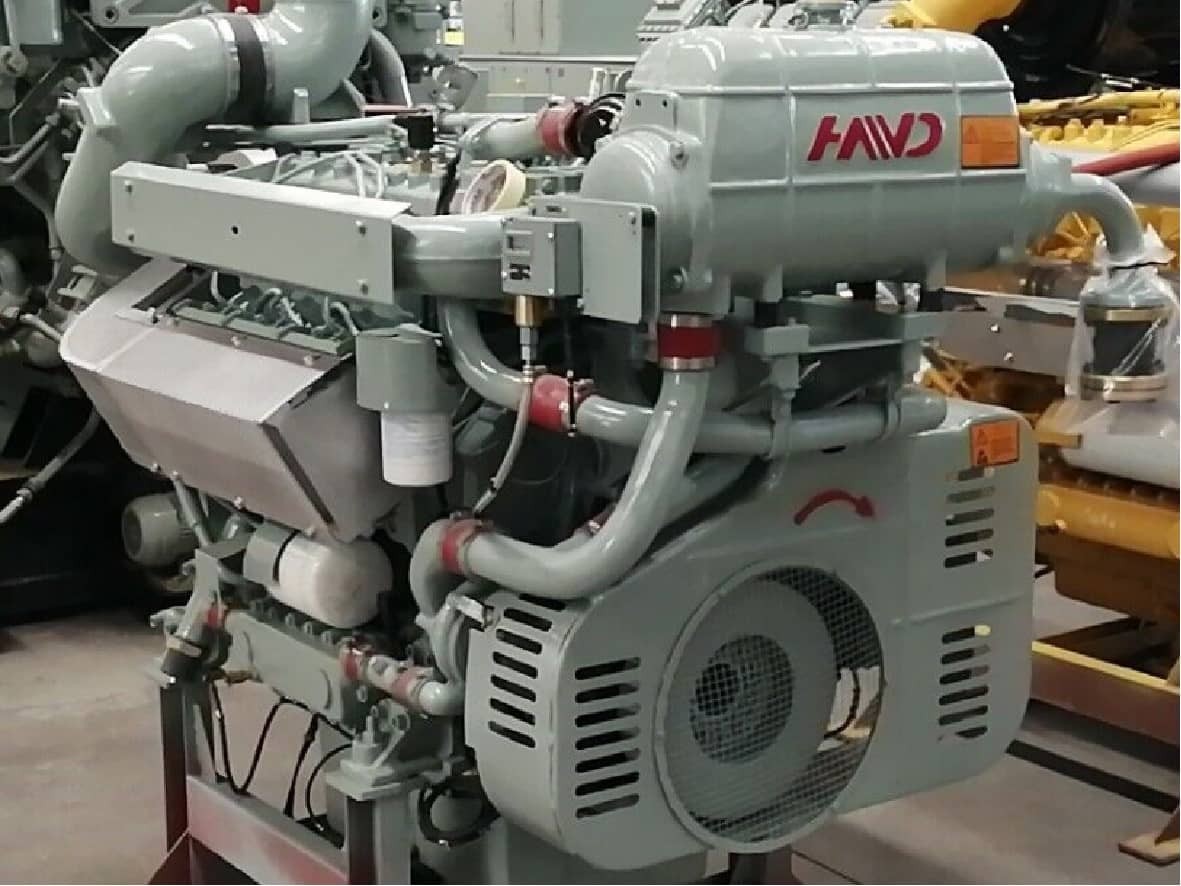

Genuine HND Deutz TBD234V6 (132kW) Marine Auxiliary Generator Engine
When outfitting an onboard generator set for demanding maritime environments, the power source needs to deliver stable output without a massive footprint. The HND Deutz TBD234V6 marine generator engine is engineered specifically for this kind of continuous duty. Producing 132kW at 1800 RPM, this V-type, 6-cylinder water-cooled diesel engine is a primary choice for ship auxiliary power.
As a specialized supplier of marine propulsion and auxiliary systems, HekoPower provides these original Henan Diesel Engine Plant (HND) units to fleets updating their onboard power. This model balances the proven Deutz/MWM technology with modern reliability standards, making it highly effective for vessels that run their auxiliary generators around the clock.
Tech Specs of Deutz TBD234V6
General Engine Data
Engine Model: Deutz TBD234V6-132KW
Type: 6 Cylinders, V Type, 4 Stroke
Displacement: 10.8 L
Bore * Stroke: 128 * 140
Wet Weight (with heat exchanger): 1300 Kg
Overall Dimension: 1847mm*1130mm*1587mm
Key Performance Data
Rated Power/Speed: 132 kW @ 1800 rpm
Standby Power/Speed: 145 kW @ 1800 rpm
Min. Speed at Full Load: 1000 rpm
Low Idle Speed: 650 rpm
Fuel Consumption: 210 g/kW.hr
More Technical Data
Certification: CCS/IMO Certificates
Aspiration: Turbocharged
Fuel System: High Pressure Fuel Pump
Compression Ratio: 15:1
Starting Method: Electrical Start (24V), Air Start
Cooling Method: Water Cooled
Ignition Sequence: A1-B2-A3, B1-A2-B3
Genuine Replacement and Retrofit Applications
A significant portion of the marine industry relies on the TBD234V6 marine generator engine for replacement projects. Upgrading an aging MWM TBD234V6 generator engine often requires an exact dimensional match to avoid costly modifications to the ship's engine bed.
Because HekoPower supplies original HND TBD234V6 replacement diesel engines, the footprint, mounting points, and exhaust routing remain consistent with legacy installations. This makes the TBD234V6 engine retrofit for marine generators a straightforward process for shipyard engineers.
Real-World Vessel Applications
This specific 132kW marine auxiliary generator drive engine is rarely used for primary propulsion; its design is heavily optimized for electrical generation. We frequently supply this model for:
Fishing Vessels and Workboats: A marine auxiliary generator engine for a fishing vessel must power heavy refrigeration plants and winches. The TBD234V6 provides the necessary 145kW standby power to handle the startup surge of commercial freezers.
Tugboats: A diesel generator engine for tugboat auxiliary power requires extreme reliability. When a tug is maneuvering a massive cargo ship in tight quarters, a loss of auxiliary electrical power (which controls steering pumps and navigation) is catastrophic.
Cargo and Passenger Ships: As a marine generator drive engine for cargo ships or passenger vessels, this unit often serves as a dedicated port generator or an emergency marine generator diesel engine, capable of taking on critical loads within seconds of a primary power failure.
TBD234V6 Maintenance and Operational Misconceptions
Maintaining a water-cooled TBD234V6 marine generator engine requires adherence to specific protocols, especially regarding the cooling system.
A Common Misconception: A frequent mistake operators make is assuming that because the engine is used as a generator drive—running at a constant 1800 RPM—the turbocharger requires less maintenance than a variable-speed propulsion engine. In reality, constant-speed operation under varying electrical loads can still lead to carbon buildup if the engine is frequently run at low loads (under 30% capacity). To prevent glazing the cylinder walls and fouling the turbocharger, the engine should periodically be run at higher loads to burn off accumulating carbon.
When sourcing TBD234V6 generator engine spare parts, it is vital to match the exact fuel injector specifications. Using non-genuine injectors can alter the spray pattern, leading to localized overheating on the piston crown—a common failure point when operators try to cut costs on routine maintenance. As a genuine HND TBD234V6 diesel engine supplier, HekoPower ensures that all replacement components meet original factory tolerances.
Related TBD234 Series Engine Configurations
The TBD234 line is highly versatile, extending well beyond this specific 132kW generator drive application. Whether you are outfitting a new vessel or replacing an existing power plant, understanding the broader family helps ensure you select the correct configuration for your hull.
Deutz TBD234-Marine Generator Series, Marine Generator Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TD234V6, TD234V8, TBD234V6-116KW, TBD234V6-132KW, TBD234V6-186KW, TBD234V6-205KW, TBD234V6-222KW, TBD234V6-244KW, TBD234V8-160KW, TBD234V8-186KW, TBD234V8-249KW, TBD234V8-274KW, TBD234V8-296KW, TBD234V8-325KW, TBD234V12-373KW, TBD234V12-444KW.
Frequently Asked Questions (FAQ)
Does this Deutz TBD234V6 132kW generator engine come with marine certification?
Yes, when requested, these engines can be supplied with CCS/IMO certification, which is mandatory for most commercial maritime operations and insurance compliance.
What is the difference between the 132kW prime power and the 145kW standby power?
The engine is rated for continuous, unlimited hours of operation at 132kW (prime power). The 145kW standby rating is the maximum output the engine can handle for short durations (typically 1 hour out of every 12 hours) to handle sudden electrical load spikes.
Can HekoPower provide the Deutz TBD234V6 wholesale price for fleet replacements?
Yes, as a China TBD234V6 marine generator engine supplier, we work directly with shipyards and fleet operators. We provide competitive pricing for bulk orders or complete vessel retrofit projects. Please contact our sales team with your project details for specific pricing.
Is this engine suitable as an emergency marine generator diesel engine?
Absolutely. The TBD234V6 is frequently installed as an emergency genset because of its reliable cold-starting capabilities and rapid load-acceptance characteristics, which are critical during a ship-wide power blackout.
