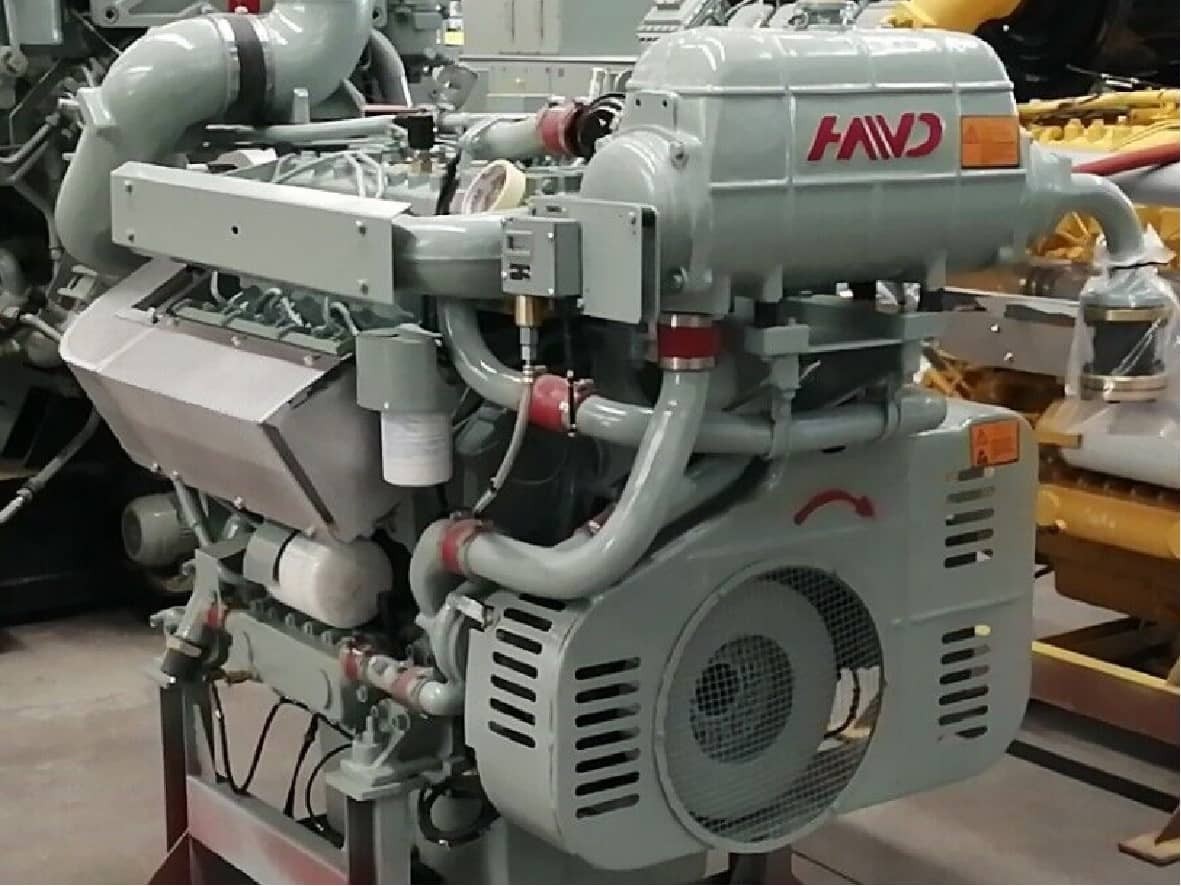

Genuine Deutz TBD234V6 244KW Generator Engine
Sourcing a reliable power plant for demanding maritime environments requires equipment built for relentless endurance. As a premier Deutz TBD234V6 244KW engine supplier, HekoPower delivers uncompromising quality for marine and industrial power generation.
The Deutz TBD234V6 244KW Generator Engine represents a benchmark in compact, high-output power. Manufactured by the Henan Diesel Engine Plant (HND) under an official license from Deutz AG, this Deutz licensed TBD234V6 engine combines German engineering precision with robust manufacturing. It is engineered specifically for continuous, heavy-duty operation. Whether you are outfitting a new vessel or seeking a replacement engine for a Deutz TBD234V6 generator, this specific configuration offers the ideal balance of fuel efficiency and mechanical reliability.
Tech Specs of Deutz TBD234V6 244KW Generator Engine
General Engine Data
Engine Model: Deutz TBD234V6-244KW
Type: 6 Cylinders, V Type, 4 Stroke
Displacement: 10.8 L
Bore * Stroke: 128 * 140
Wet Weight (with heat exchanger): 1300 Kg
Overall Dimension: 1847mm*1130mm*1587mm
Key Performance Data
Rated Power/Speed: 244 kW @ 1800 rpm
Standby Power/Speed: 268 kW @ 1800 rpm
Min. Speed at Full Load: 1000 rpm
Low Idle Speed: 650 rpm
Fuel Consumption: 210 g/kW.hr
More Technical Data
Certification: CCS/IMO Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: High Pressure Fuel Pump
Compression Ratio: 15:1
Starting Method: Electrical Start (24V), Air Start
Cooling Method: Water Cooled
Ignition Sequence: A1-B2-A3, B1-A2-B3
Real-World Application Scenarios
When buyers look for a genuine HND TBD234V6 diesel engine for sale, they are usually outfitting specific types of commercial vessels. Unlike generic industrial engines, the Henan Diesel (HND) TBD234V6 marine auxiliary engine is built to withstand high humidity, constant pitching, and salt-laden intake air.
We frequently supply this 244KW marine diesel generator engine to shipyards building offshore tugboats, commercial fishing trawlers, and mid-sized cargo barges. In these applications, the engine typically serves as the primary auxiliary power unit. It runs the ship's vital electrical systems, including navigation arrays, heavy winches, and cold-storage refrigeration units.
The compact V6 footprint is particularly valuable in cramped engine rooms. Ship engineers often choose the Deutz TBD234 series engine because it allows for easier access to bulkheads and surrounding machinery compared to bulkier inline-8 models of similar power output.
Technical Comparison: Why Choose the 244KW Configuration?
A common question we receive as a China Deutz TBD234V6 engine manufacturer and distributor is how this specific model compares to other engines in the same family. The Deutz 234 series generator engine comes in several power bands.
If you compare the 244KW model to the lower-output 186KW version, the difference lies primarily in the turbocharger mapping and fuel delivery rates. The 244KW Deutz generator engine is tuned specifically to handle higher transient loads. When a large electrical motor starts on a ship, it creates a massive temporary power draw. The 244KW version has the rotational inertia and fuel delivery response to handle these spikes without causing a voltage drop across the ship's grid.
Furthermore, internal homogenization on many supplier websites fails to explain the difference between 1500RPM (50Hz) and 1800RPM (60Hz) engines. If your vessel's switchboard is rated for 60Hz, you must use the Deutz TBD234V6 1800rpm generator engine. Attempting to modify a 1500RPM engine to run at 1800RPM can lead to catastrophic internal wear and governor instability.
V-Type 6-Cylinder Deutz TBD234V6 Fuel Consumption and Maintenance
Operational costs over the lifespan of a marine engine vastly outweigh the initial Deutz TBD234V6 generator engine price. Therefore, understanding fuel economy is vital for fleet managers.
The V-type 6-cylinder Deutz TBD234V6 fuel consumption is highly competitive within its class. Because it utilizes advanced direct injection, the engine achieves excellent atomization of the diesel fuel. At a continuous 80% load, the Deutz TBD234V6 fuel consumption rate remains relatively flat, meaning you do not suffer severe efficiency penalties when operating near peak capacity.
Recommended Maintenance Schedule
Adhering to a strict Deutz TBD234V6 maintenance schedule will easily extend the life of your equipment by thousands of hours. HekoPower recommends a disciplined approach to preventative care.
Oil and filter changes should generally occur every 250 to 500 operating hours, depending on fuel quality and environmental conditions. Valve clearances must be inspected and adjusted every 1,500 hours to ensure optimal breathing and prevent valve seat burning. The raw water pump impeller, a critical component of the water-cooled marine diesel generator 244KW system, should be inspected annually and replaced at the first sign of rubber degradation.
Additionally, the fuel injectors should be pop-tested by a certified technician every 3,000 hours. This prevents the spray pattern from degrading, which could otherwise lead to piston crown damage and increased exhaust smoke.
Deutz TBD234V6 Generator Engine Overhaul Replacement
Eventually, even the most well-maintained marine engine reaches the end of its service life. When this happens, ship owners face a choice between a complete teardown or purchasing a brand new unit.
Opting for a Deutz TBD234V6 generator engine overhaul replacement is often the most cost-effective solution to get a vessel back on the water quickly. Purchasing a complete, factory-new HND TBD234V6 replacement diesel engine drastically reduces shipyard downtime. A complete engine swap can often be completed in days, whereas a major in-hull rebuild can take weeks.
If you are dealing with an old Deutz 234 series engine replacement, upgrading to a newly manufactured HND unit guarantees that you benefit from the latest metallurgical improvements and factory-calibrated fuel pumps. Because the footprint and mounting points remain identical, installing the new engine is a straightforward drop-in procedure that requires no expensive modifications to the vessel’s engine bed.
For service yards and fleet operators, HekoPower also provides comprehensive Deutz TBD234V6 generator engine parts and wholesale support to ensure your replacement engines run flawlessly for decades.
Deutz TBD234-Marine Generator Series, Marine Generator Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TD234V6, TD234V8, TBD234V6-116KW, TBD234V6-132KW, TBD234V6-186KW, TBD234V6-205KW, TBD234V6-222KW, TBD234V6-244KW, TBD234V8-160KW, TBD234V8-186KW, TBD234V8-249KW, TBD234V8-274KW, TBD234V8-296KW, TBD234V8-325KW, TBD234V12-373KW, TBD234V12-444KW.
Frequently Asked Questions (FAQs)
What is a common misconception about the cooling system?
Many operators believe that a "water-cooled" marine engine circulates corrosive seawater directly through the engine block. This is false. The Deutz TBD234V6 244KW engine uses a closed-loop freshwater system. Seawater is only used to cool the internal freshwater via a specialized heat exchanger, protecting the engine block from internal rust and salt buildup.
Can I buy Deutz TBD234V6 244KW generator engine units for land-based industrial use?
Yes. While this HND Deutz TBD234V6 marine generator is heavily optimized for maritime environments, its robust nature makes it exceptional for continuous land-based power generation in harsh environments, such as mining camps or remote construction sites.
Where can I get the full Deutz TBD234V6 244KW engine specifications sheet?
As an authorized distributor, HekoPower provides comprehensive technical data, including installation drawings and wiring schematics. Contact our sales engineering team today to request the full documentation and discuss your project requirements.
