L290-30
Original Cummins, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Cummins, a global power solutions leader, comprises five business segments – Components, Engine, Distribution, Power Systems and Accelera by Cummins – supported by Cummins global manufacturing and extensive service and support network, skilled workforce and vast technological expertise. In 1981, Chongqing Engine Plant started to license-produce Cummins engines, and in 1995, it jointly established a Chinese joint venture engine factory with Cummins.

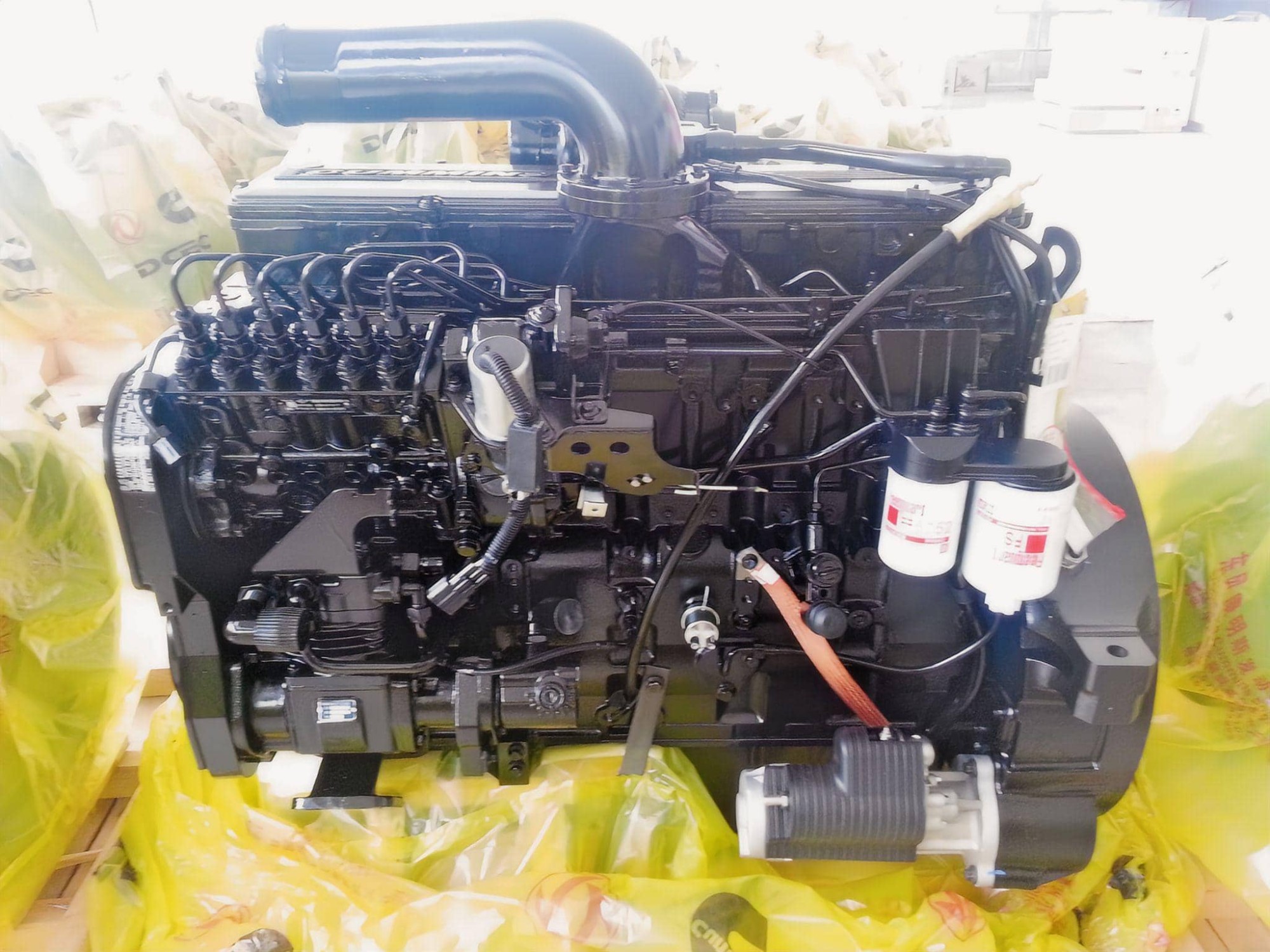

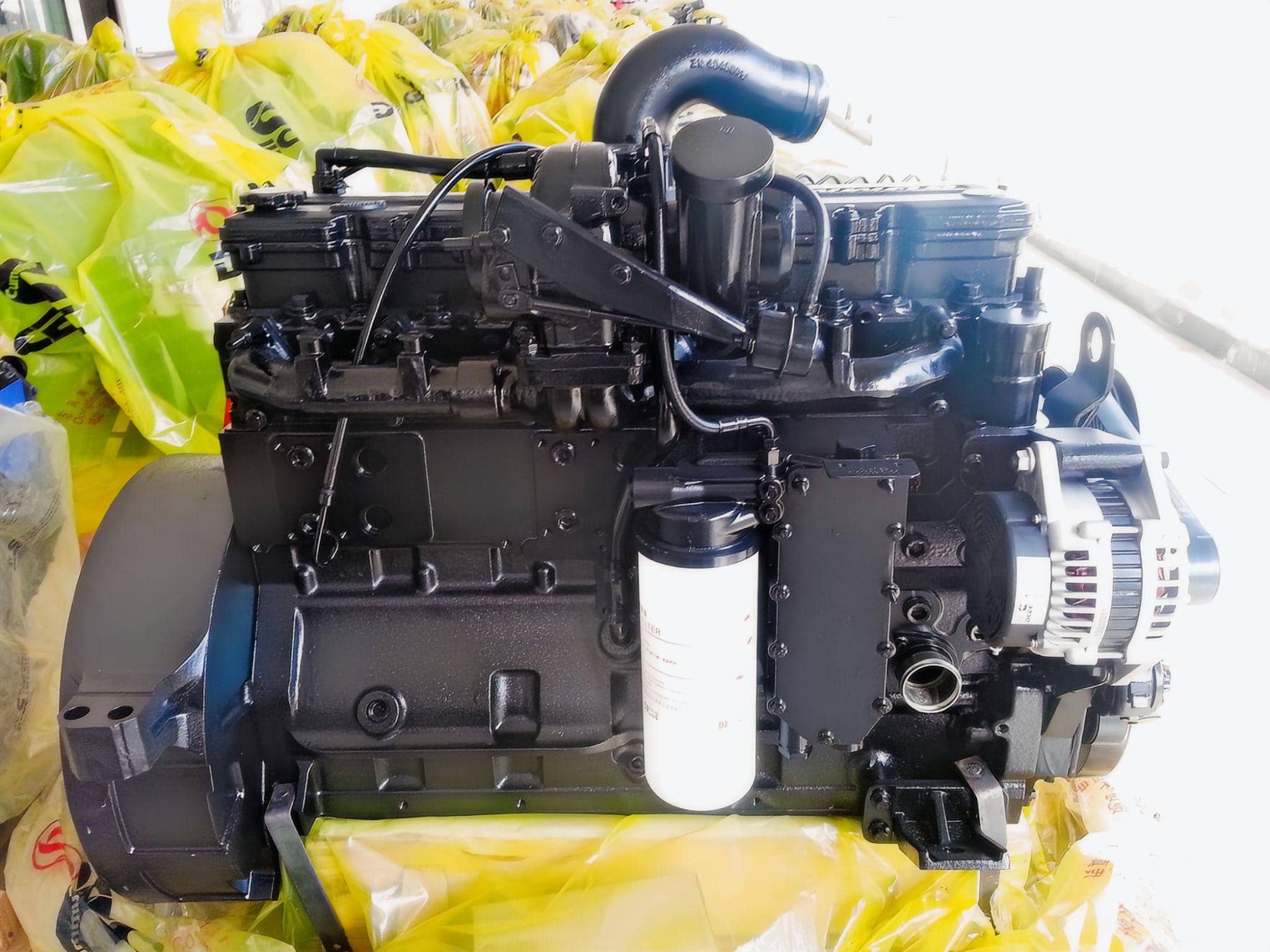

The Cummins L290-30 engine, with a displacement of 8.9L, features a 6-cylinder in-line configuration. It delivers a rated power of 213 kW (290 HP) at 2200 rpm, with a maximum torque of 1200 N·m at 1300 rpm. The engine has a bore and stroke of 114 mm and 145 mm, respectively, and weighs 650 kg (with flywheel and alternator). The engine is turbocharged, air-air intercooled, and equipped with a BOSCH P7100 fuel system. The engine operates efficiently at a maximum altitude of 3000 m and has a fuel consumption of 225 g/kW·h at rated power. The vehicle's cooling system is water-cooled, with a fluid capacity of 11.1 L. It meets Euro II standards and can start at temperatures as low as -10°C without an auxiliary system.
Specs - Technical standard
General Engine Data
Engine Model: Cummins L290-30
Type: 6 Cylinders in Line
Displacement: 8.9 L
Bore * Stroke: 114 * 145
Net Weight (with flywheel & alternator): 650 Kg
Overall Dimension: 1149mm*799mm*1022mm
Key Performance Date
Rated Power: 213 kW/290 HP
Rated Speed: 2200 rpm
Max. Torque/Speed: 1200 N.m @ 1300 rpm
Max. No-load Governed Speed: 2500 rpm
Idle-Speed: 700±100 rpm
Max Continuous Running Altitude: 3000 m
Fuel Consumption @ Rated Power: 225 g/Kw.h
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Air-Air Intercooled
Fuel System: BOSCH P7100 Pump
Compression Radio 16.6:1
Electrical System (Starter Motor/Alternator): 12V(500A)/24V (250A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 11.1 L
Cummins L Series
Cummins L Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes L270-30, L290-30, L300-20, L315-30, L325-20, L340-20, L360-20, L360-30, L375-20, L375-30.
