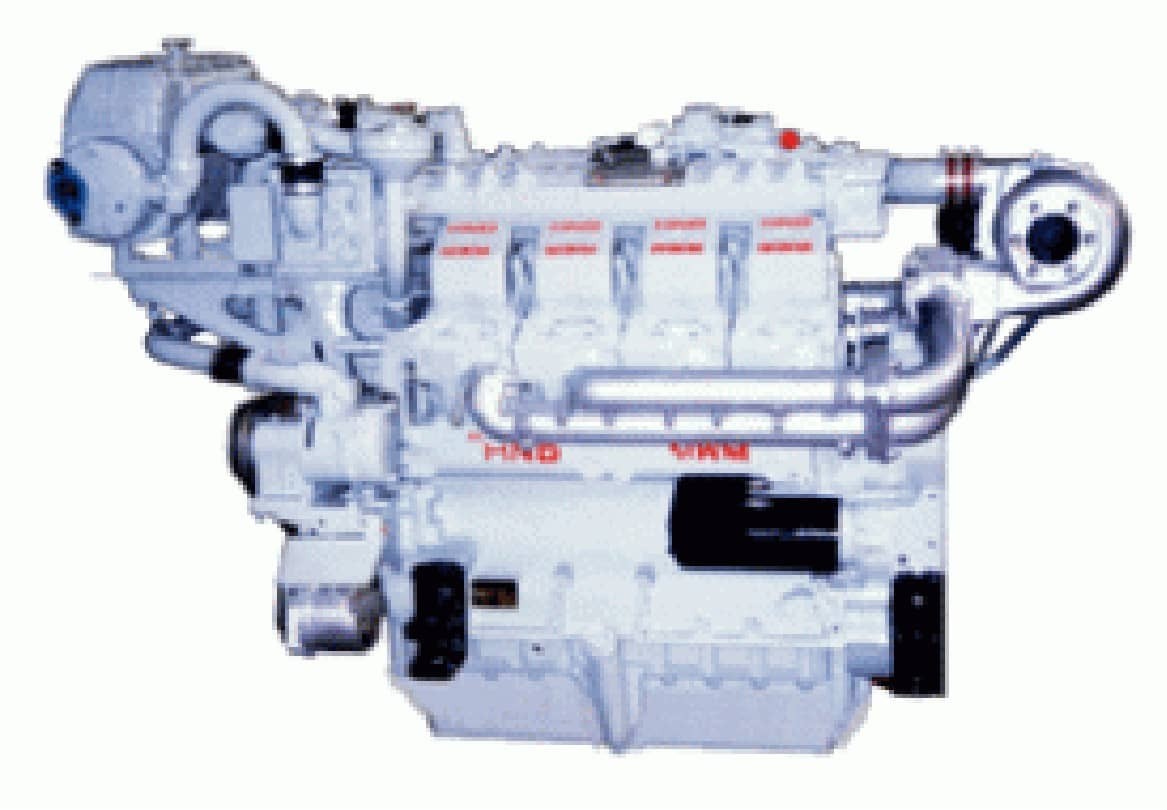

Deutz TD234V8 Generator Engine: Complete Sourcing and Technical Guide
Finding the right power unit for an industrial generator set requires more than just reading a spec sheet. At HekoPower, we supply the Deutz TD234V8 generator engine to assembly plants and maintenance teams worldwide. Our clients rely on this specific 14.4L V8 Deutz diesel generator engine for its robust mechanical design and exceptional load acceptance.
Unlike many websites that lump all V8 engines into one vague category, we want to provide complete clarity on what makes the TD234V8 unique. This guide will help you understand its capabilities, maintenance needs, and whether it is the right fit for your specific 250kW genset project.
Tech Specs of Deutz TD234V8 Generator Engine
General Engine Data
Engine Model: Deutz TD234V8
Type: 8 Cylinders, V Type, 4 Stroke
Displacement: 14.4 L
Bore * Stroke: 128 * 140
Wet Weight (with heat exchanger): 1470 Kg
Key Performance Data
Rated Power(Option 1): 160 kW @ 1500 rpm
Rated Power/Speed (Option 2): 186 kW @ 1800 rpm
Low Idle Speed: 650 rpm
Fuel Consumption: 210 g/kW.hr
More Technical Data
Certification: CCS/IMO Certificates
Aspiration: Turbocharged
Fuel System: High Pressure Fuel Pump
Compression Ratio: 15:1
Starting Method: Electrical Start (24V), Air Start
Cooling Method: Water Cooled
Ignition Sequence: A1-B2-A3-B1, A4-B3-A2-B4
Understanding the Deutz TD234V8 Power Profile
The Deutz 234V8 generator engine is highly regarded in the continuous and standby power sectors. It is primarily built to operate at two main synchronous speeds. For regions operating on a 50Hz grid, the Deutz TD234V8 1500rpm generator engine provides a steady 160kW of output. If your equipment requires a 60Hz frequency, the Deutz TD234V8 1800rpm diesel engine delivers 186kW.
Because it is a turbocharged diesel engine, it manages altitude and temperature changes far better than naturally aspirated alternatives. HekoPower frequently recommends this HND Deutz licensed engine for clients who need a reliable, heavy-duty prime power source without the complex electronics found in newer, emissions-heavy models.
Technical Comparison: Deutz TD234V8 vs TBD234V8
A common issue buyers face when browsing engine catalogs is the visual similarity between the different 234 series models. Many clients ask us to explain the Deutz TD234V8 vs TBD234V8 generator engine difference.
The distinction lies entirely in the air intake system. The TD234V8 is turbocharged. The TBD234V8 is turbocharged and intercooled.
Choosing the TD234V8 means you are opting for mechanical simplicity. Because it lacks an intercooler, the engine has fewer plumbing connections and a slightly smaller installation footprint. It is incredibly straightforward to service. The TBD234V8, with its intercooler, achieves higher power outputs suitable for 300kW diesel engine applications. However, if your power requirement sits comfortably in the 160kW to 186kW range, the TD234V8 is the more cost-effective and low-maintenance choice.
Real Application Scenarios
The Deutz TD234V8 engine for diesel generator sets is versatile. At HekoPower, we have shipped this specific model to a wide variety of operational environments.
Remote Mining and Quarry Sites
Dust and poor fuel quality are the enemies of modern electronic engines. The Deutz TD234V8 direct injection engine thrives in these harsh environments. Its mechanical fuel injection system is highly tolerant of lower-grade diesel. Site managers frequently purchase the Deutz TD234V8 replacement engine from us because it keeps rock crushers and camp facilities powered without requiring specialized diagnostic laptops for repairs.
Commercial Facility Backup
Hospitals, data centers, and manufacturing plants require fail-safe systems. The Deutz TD234V8 engine for standby power systems is ideal because it accepts block loads exceptionally well. When the main grid fails, this 14.4L Deutz generator engine ramps up to full speed and stabilizes the voltage rapidly, preventing damage to sensitive facility equipment.
Maintenance and Replacement Tips
Maximizing the lifespan of your HND Deutz TD234V8 generator engine requires strict adherence to maintenance schedules. HekoPower engineers always advise clients to pay special attention to the turbocharger system.
Managing the Turbocharger System
Because this is a turbocharged diesel engine, proper shutdown procedures are critical. Never shut the engine down immediately after a heavy load run. Allow the engine to idle for three to five minutes. This lets the lubricating oil cool the turbocharger bearings. Failing to do this causes oil coking, which is the leading cause of premature turbo failure in industrial generator engines.
Monitoring Fuel Consumption Rate
Fleet managers often inquire about the HND Deutz TD234V8 engine fuel consumption rate. Mechanical engines operate most efficiently at about 75% to 80% of their rated load. Running the engine at very low loads for extended periods can lead to incomplete combustion, a condition known as wet stacking.
To maintain optimal Deutz TD234V8 fuel consumption, ensure your generator is properly sized for your facility. If you regularly run the genset below 30% load, our technicians recommend scheduling regular load bank testing to burn off unburned fuel deposits and maintain piston ring seating.
Common Misconceptions About the TD234V8
The industrial engine market is full of outdated information. We want to clear up a few myths regarding this specific model to help you make an informed sourcing decision.
Myth 1: HND Engines are Inferior to German Originals
This is completely false. The HND TD234V8 generator engine is manufactured under an official license from Deutz. Henan Diesel Engine Industry Co. (HND) utilizes the exact same blueprints, metallurgy standards, and quality control processes as the original European factories. Buying a China Deutz TD234V8 engine supplier product through HekoPower guarantees you OEM-level reliability at a highly competitive price point.
Myth 2: Mechanical Injection is Outdated
While automotive markets have shifted entirely to common rail fuel injection, industrial stationary power is different. The Deutz TD234V8 direct injection engine uses a mechanical fuel pump. This is actually a massive advantage for an emergency power supply. It is immune to electromagnetic interference, features no delicate electronic control units (ECUs) that can short out, and can be easily repaired by any competent diesel mechanic worldwide.
Deutz TBD234-Marine Generator Series, Marine Generator Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TD234V6, TD234V8, TBD234V6-116KW, TBD234V6-132KW, TBD234V6-186KW, TBD234V6-205KW, TBD234V6-222KW, TBD234V6-244KW, TBD234V8-160KW, TBD234V8-186KW, TBD234V8-249KW, TBD234V8-274KW, TBD234V8-296KW, TBD234V8-325KW, TBD234V12-373KW, TBD234V12-444KW.
Frequently Asked Questions (FAQs)
What is the exact displacement of the Deutz TD234V8?
The engine features a displacement of 14.4 liters configured in a V8 cylinder arrangement. This large displacement allows for high torque reserves and excellent transient response when heavy electrical loads are suddenly applied.
Are you a Deutz TD234V8 engine supplier for single-unit purchases?
Yes. HekoPower operates as both a retail and HND TD234V8 engine wholesale supplier. Whether you are looking to buy Deutz TD234V8 generator engine units in bulk for a fleet assembly line, or need a single Deutz replacement generator engine for a breakdown, we can accommodate your order.
How do I get an accurate Deutz TD234V8 engine price?
Because pricing fluctuates based on global shipping rates and exact configuration needs (such as added radiators or specific alternators), we provide custom quotes. Contact the HekoPower sales team with your destination port and application details, and we will provide a comprehensive Deutz TD234V8 engine for sale quote within 24 hours.
Can this engine be used for a 250kW genset?
The TD234V8 is perfectly suited as a Deutz TD234V8 engine for 250kW genset applications when calculated for standby ratings in 60Hz regions. However, our engineering team can help you review your specific alternator efficiency and site conditions to ensure it meets your precise power generation goals.
