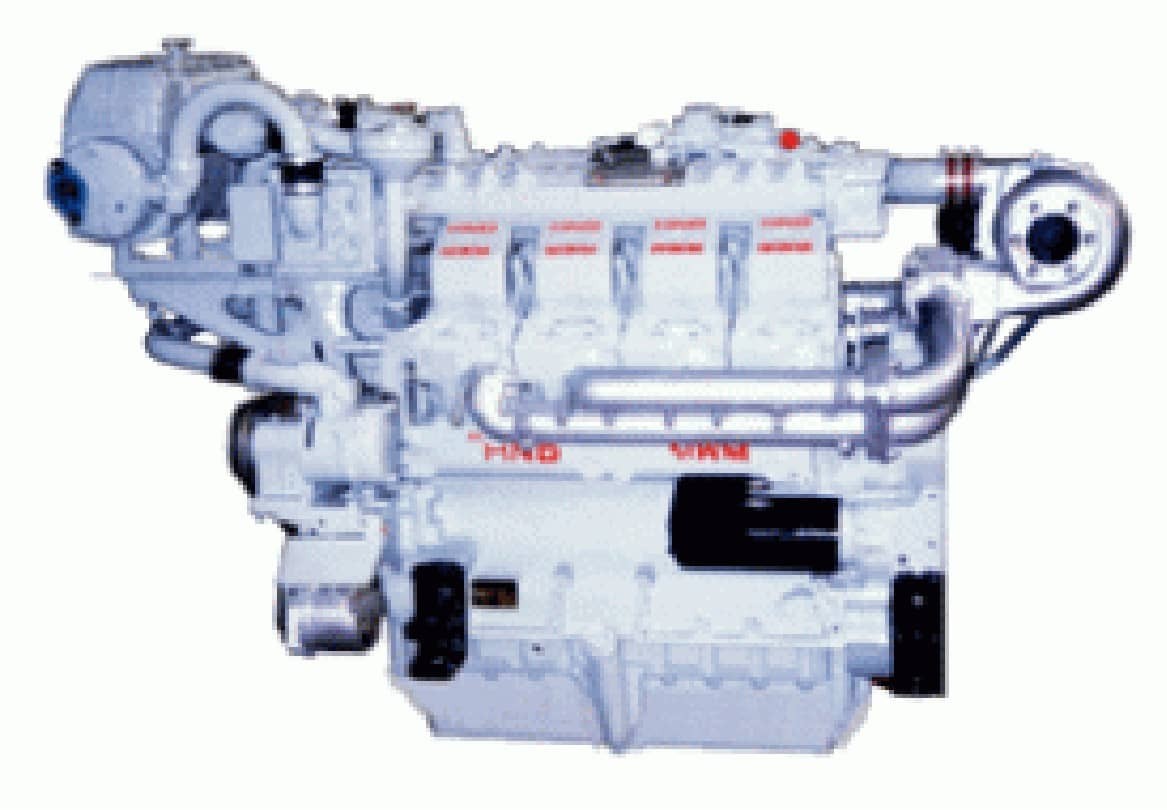

HekoPower Engineering Insight: The Deutz TBD234V8 296KW Generator Engine
Finding a dependable primary power source for industrial or marine backup systems comes down to engineering pedigree. At HekoPower, we supply heavy-duty power units designed to run reliably under heavy loads. Among our lineup, the Deutz TBD234V8 296KW generator engine stands out for operations requiring consistent, high-output performance. Built on robust V8 architecture, this Deutz TBD234 V8 diesel engine bridges the gap between compact sizing and demanding power requirements.
Tech Specs of Deutz TBD234V8 296KW Generator Engine
General Engine Data
Engine Model: Deutz TBD234V8-296KW
Type: 8 Cylinders, V Type, 4 Stroke
Displacement: 14.4 L
Bore * Stroke: 128 * 140
Wet Weight (with heat exchanger): 1500 Kg
Overall Dimension: 2032mm*1130mm*1587mm
Key Performance Data
Rated Power/Speed: 296 kW @ 1800 rpm
Standby Power/Speed: 326 kW @ 1800 rpm
Min. Speed at Full Load: 1000 rpm
Low Idle Speed: 650 rpm
Fuel Consumption: 210 g/kW.hr
More Technical Data
Certification: CCS/IMO Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: High Pressure Fuel Pump
Compression Ratio: 15:1
Starting Method: Electrical Start (24V), Air Start
Cooling Method: Water Cooled
Ignition Sequence: A1-B2-A3-B1, A4-B3-A2-B4
Technical Comparisons: TBD234V8 vs. Inline Alternatives
Facility managers often weigh a V8 engine against larger inline-6 models when sourcing a 296kw diesel generator engine. While inline-6 engines offer simpler top-end maintenance access, they suffer from extended block lengths.
The Deutz V8 generator engine provides a superior power-to-weight ratio. Because cylinder loads are split across two banks set at a 90-degree angle, torsional crankshaft vibrations are significantly minimized. When sourcing a Deutz TBD234V8 generator engine, buyers secure a unit that reacts faster to sudden block-load acceptances. This quick recovery time is critical for emergency standby facilities where power dropouts cannot exceed a few seconds.
Real Application Scenarios for the 296KW Power Unit
A 296kw Deutz generator drive engine for sale serves multiple heavy-duty industries across the globe. HekoPower routinely ships these units to clients operating in demanding remote environments.
Emergency Backup for Commercial Infrastructure
Hospitals, data centers, and municipal water treatment plants cannot afford grid instability. A Deutz TBD234V8 engine for standby power provides the instantaneous torque required to bring large alternators up to nominal speed within seconds of a grid failure.
Remote Mining Power Stations
Mining operations deep in the interior often rely on microgrids. Running a diesel generator engine for mining power station applications requires fuel flexibility and high altitude endurance. The direct fuel injection system on the Deutz TBD234V8 direct injection generator engine ensures clean atomization, reducing soot accumulation even when running on variable-grade commercial diesel.
Maintenance, Replacement Tips, and Common Misconceptions
To maximize the service life of any HND Deutz diesel generator engine, operators must adhere to strict preventive maintenance schedules. Neglect often leads to premature wear on high-pressure fuel pumps and turbocharger bearings.
Common Misconceptions About V8 Diesel Maintenance
Many technicians assume that maintaining an 8-cylinder engine is twice as complex as a 4-cylinder unit. In practice, modern modular design means cylinder heads and valve trains on the Deutz TBD234 series technical data sheet specifications are standardized. Replacing a gasket or servicing an injector follows the exact same mechanical logic across all banks.
Another common myth is that high-output engines require constant overhauls. When operated within its recommended duty cycle, the Deutz TBD234V8 14.4L diesel generator engine achieves thousands of running hours before requiring major bottom-end service.
Essential Spare Parts and Replacement Guidance
When sourcing an HND Deutz TBD234 V8 spare parts and engine assembly, always verify that components match the exact compression ratio and turbo-boost thresholds of your serial number. Using non-genuine pistons or incorrect fuel injectors can alter combustion chamber pressures, leading to thermal cracking in the cylinder heads.
Always inspect the oil coolers and coolant thermostats during routine 500-hour service intervals. Because the Deutz TBD234V8 fuel consumption at 296KW is optimized for heavy load factors, maintaining proper coolant flow is the single most effective way to prevent premature liner cavitation.
Sourcing Your Deutz TBD234V8 from HekoPower
Securing an original Deutz TBD234V8 generator engine China supplier requires working with a team that understands export compliance, crating standards, and technical customization. As an experienced Deutz TBD234V8 296KW diesel engine supplier, HekoPower ensures every unit undergoes rigorous cold-test validation before leaving our warehouse.
Whether you need a standalone Deutz TBD234V8 engine for sale to replace a tired legacy unit or require a complete HND TBD234V8 296KW engine for sale tailored to your specific alternator coupling, our engineering team provides direct technical documentation and layout drawings. Contact HekoPower today to review the complete Deutz TBD234V8 296KW engine specifications and secure a reliable power solution built to perform.
Deutz TBD234-Marine Generator Series, Marine Generator Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TD234V6, TD234V8, TBD234V6-116KW, TBD234V6-132KW, TBD234V6-186KW, TBD234V6-205KW, TBD234V6-222KW, TBD234V6-244KW, TBD234V8-160KW, TBD234V8-186KW, TBD234V8-249KW, TBD234V8-274KW, TBD234V8-296KW, TBD234V8-325KW, TBD234V12-373KW, TBD234V12-444KW.
Frequently Asked Questions About the Deutz TBD234V8 296KW Generator Engine
What is the primary application of the Deutz TBD234V8 296KW engine?
This engine is engineered primarily as a high-performance prime or standby power source for industrial generator sets, commercial backup systems, and heavy-duty remote power stations. Its 1800 RPM tuning makes it ideal for 60Hz electrical generation configurations.
How does the V8 configuration benefit generator applications compared to inline engines?
The 90-degree V8 architecture provides a shorter block length and a superior power-to-weight ratio. This allows the Deutz V8 generator engine to fit easily into compact enclosures while offering faster load-acceptance response times during sudden electrical grid dropouts.
What is the displacement and fuel system type of this engine?
The Deutz TBD234V8 14.4L diesel generator engine features a robust displacement of approximately 14.4 liters combined with a direct fuel injection system. This setup ensures precise fuel atomization, optimized fuel efficiency under heavy loads, and reliable combustion consistency.
Can HekoPower provide technical data sheets and custom spare parts?
Yes. As an experienced engine supplier, HekoPower provides complete technical documentation, data sheets, and genuine replacement components, including cylinder kits, fuel pumps, and turbocharger assemblies matched directly to your engine serial number.
